MANUAL TRANSMISSION – CONTROL HOUSING

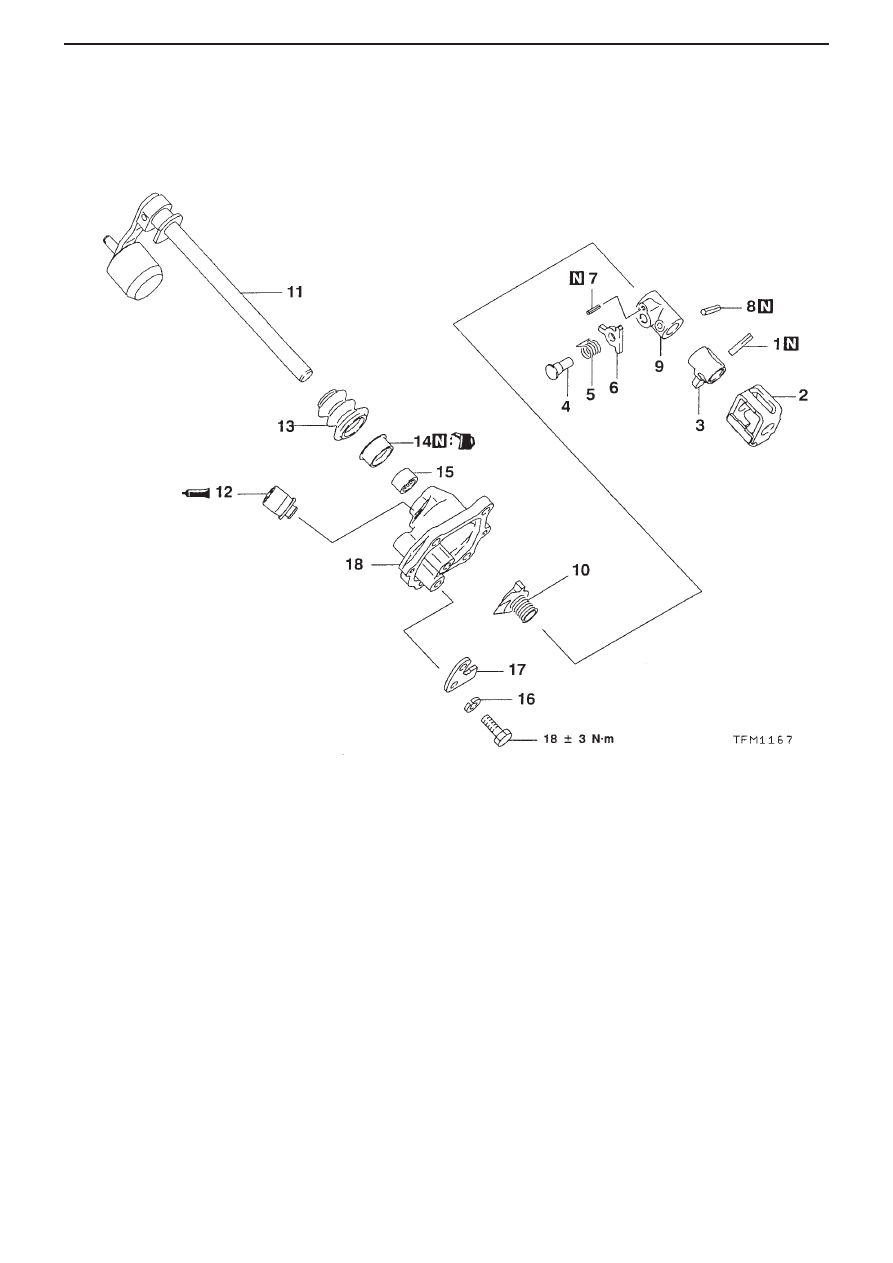

Control Housing

Dismantling / Assembling

Dismantling Order
1. Lock pin

10. Neutral return spring

2. Interlock plate

11. Control shaft

3. Control finger

12. Air breather

4. Pin

13. Control shaft boot

5. Return spring

14. Oil seal

6. Stopper plate

15. Needle bearing

7. Spring pin

16. Spring washer

8. Spring pin

17. Stopper bracket

9. Stopper body

18. Control housing
