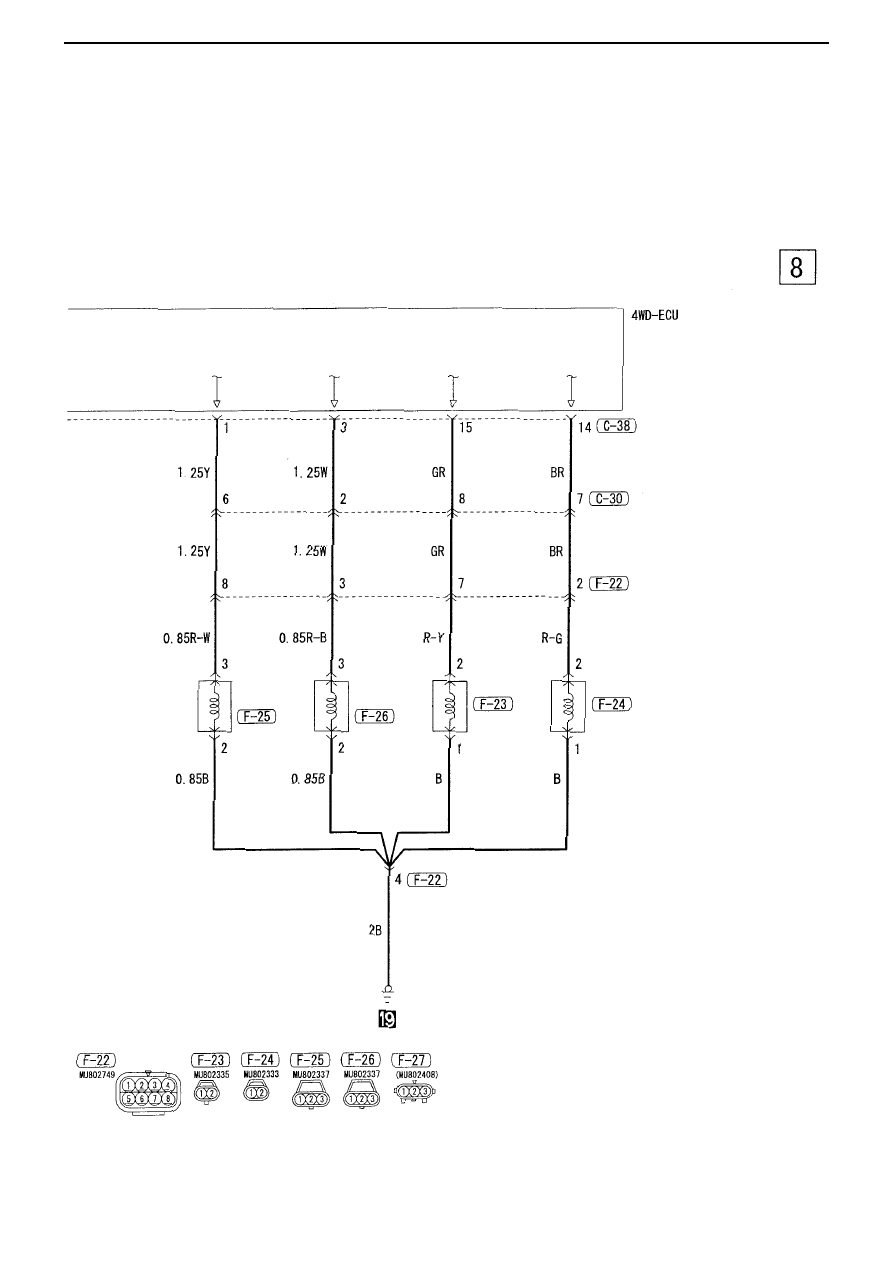

CIRCUIT DIAGRAMS - EQUIPMENT

3-145

Proportional
valve (for
ACD)

Proportional
valve (for
AYC)

Direction
valve
(LH)

Direction
valve
(RH)

CIRCUIT DIAGRAMS - EQUIPMENT

3-146

ACD, AYC (continued)

Ignition switch
(IG2)

Intercooler
water spray
Heater
Fully automatic
air conditioning

Steering
wheel
sensor

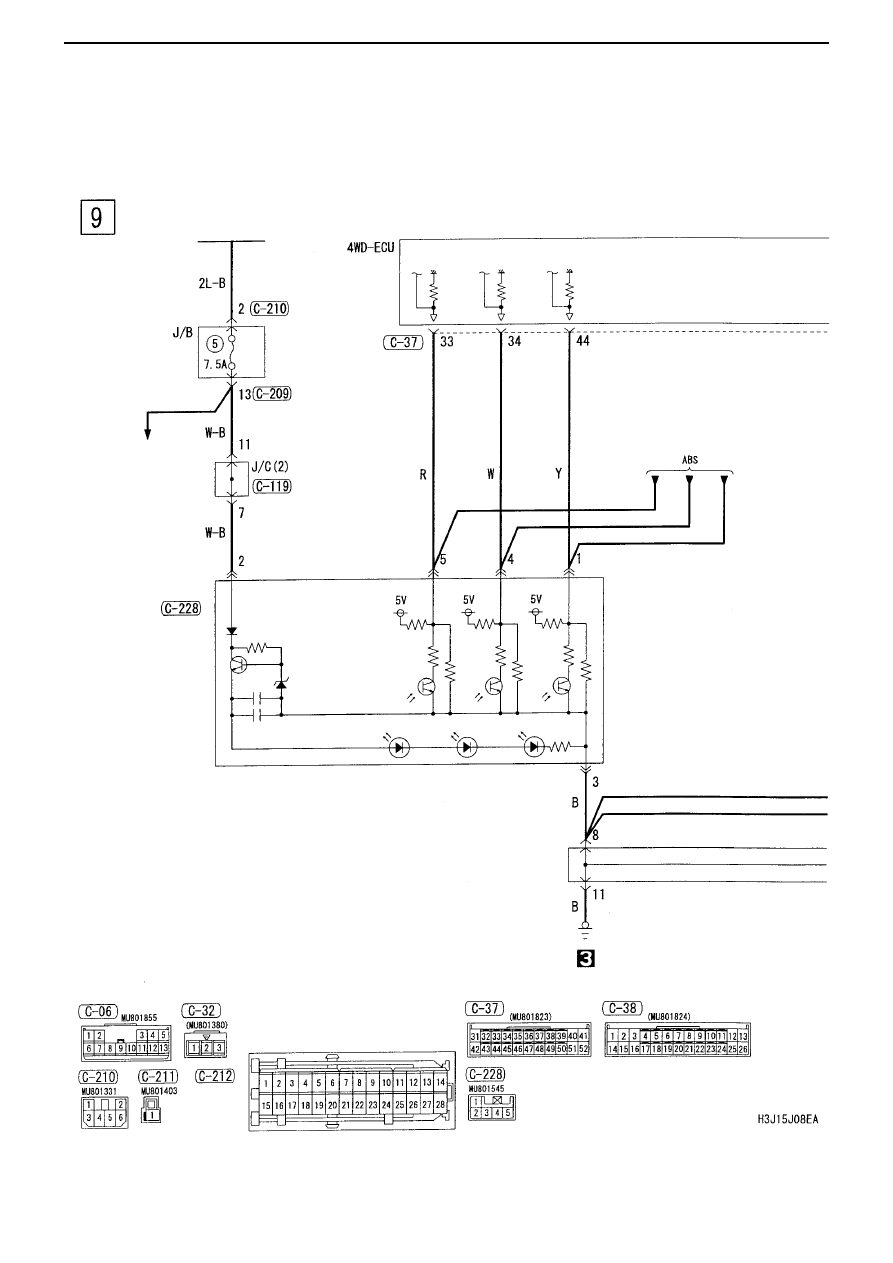

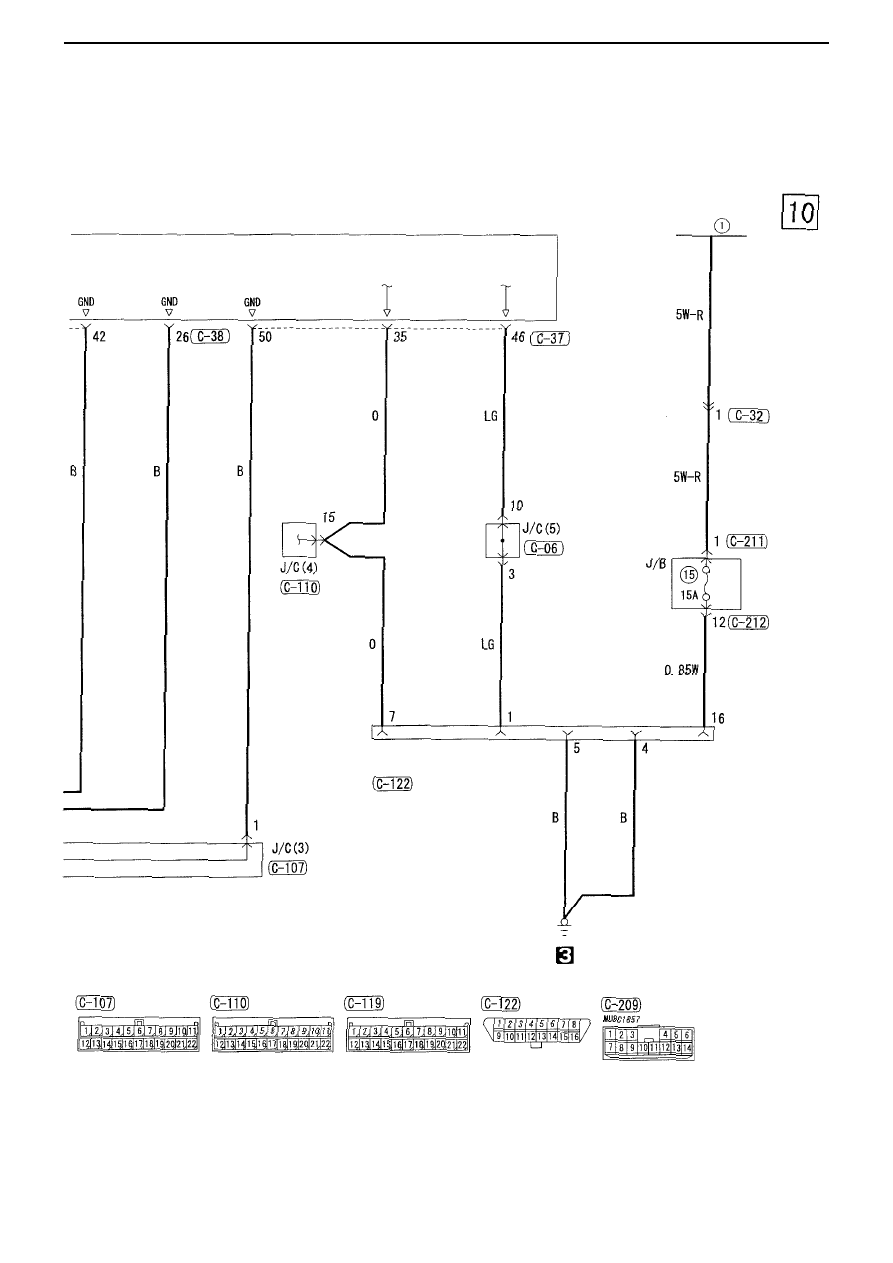

CIRCUIT DIAGRAMS - EQUIPMENT

3-147

Fusible
link

Diagnostic
connector

Front view

H3J15J08EB

CIRCUIT DIAGRAMS - EQUIPMENT

3-148

SRS airbag, pretensioners <vehicle not fitted with passenger seat airbag>

M3030009800156

Ignition switch (IG1)

Combination
meter

Remote control door
mirror
Fog light
Headlight
Rear wiper/washer
Interior light, luggage
compartment light,
ignition lock light, door
open warning light

Back-up
condenser

DC-DC
converter

Power

distribution

circuit

Front airbag
analogue G sensor

Squib drive
circuit

Connector
locking
switch*

Clock
spring

Connector
lock switch*

Driver seat
airbag
module
(squib)

Connector
lock switch*

Note:
*:When connector inserted: ON
When connector removed: OFF

DVD-MMCS
Windscreen
wiper/washer
Engine control system
Gauge
Indicator light, hazard
warning light
Tail light, front side light,
licence plate light,
lighting monitor buzzer

H3J15J09AA
