Mitsubishi Lancer Evolution 8. Manual - part 15





EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-10

Ignition switch (ACC)

Remote control mirror
switch (retract / return
switch)

Electric retractable mirror
relay (return)

Electric retractable mirror
relay (retract)

t: 0.1 second
T1: 2 seconds
T2: 16 seconds

Vehicle speed

Ignition switch (IG)

Remote control mirror
switch (retract / return
switch)

Electric retractable
mirror relay (retract)

Electric retractable
mirror relay (return)

Retract

Return

t: 0.1 second
T1: 30 seconds
T2: 16 seconds

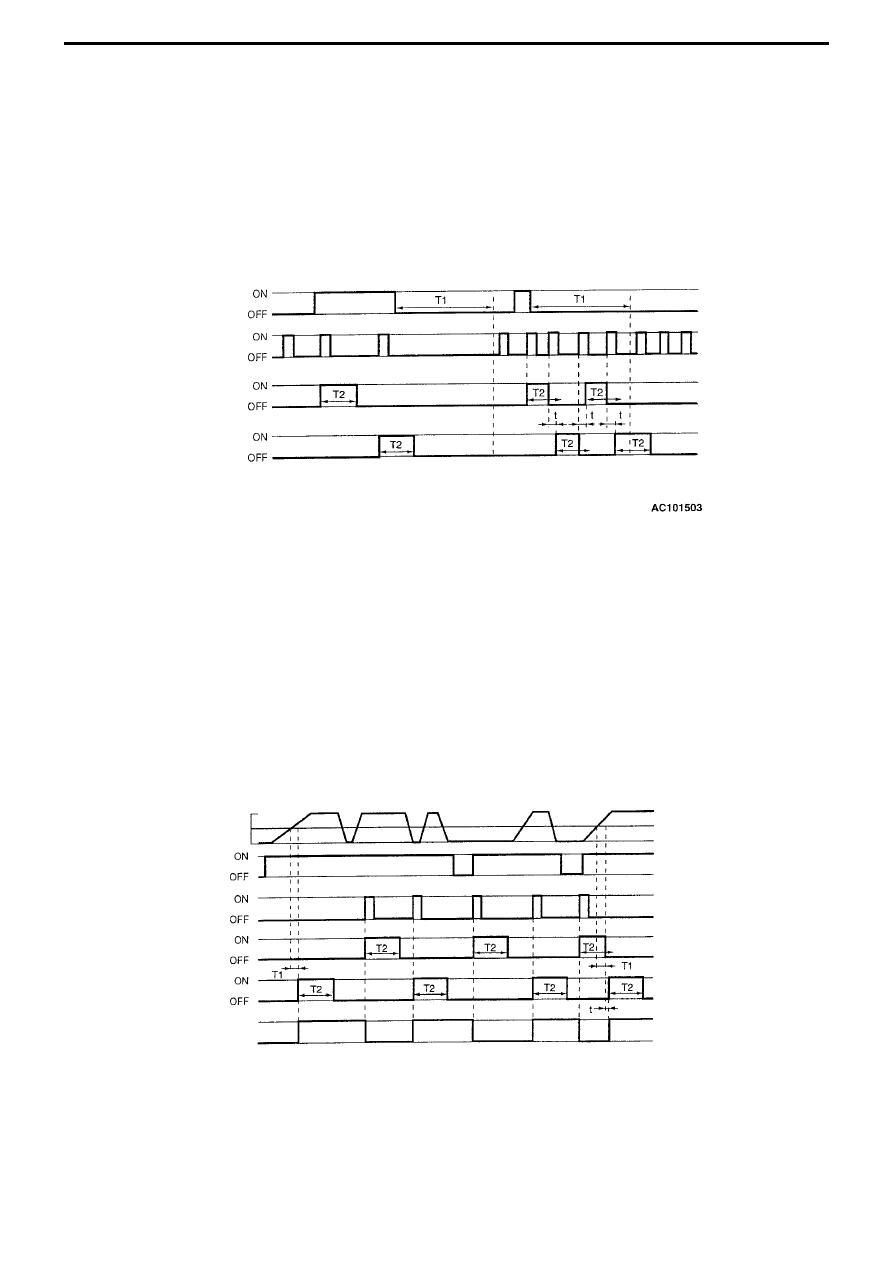

Electric retractable door mirror control function

• Electric retractable mirror timer function

If the retract / return switch of the electric remote control switch is turned on when the ignition switch is in the ACC or ON
position, the electric retractable mirror relay (retract or return) will be on for 16 seconds, and retract or return will be operated.
They will continue to be operable for about 10 seconds even after the ignition switch is OFF.
If the retract / return switch of the electric remote control switch in the retract or return drive goes on, there will be a delay of
about 0.1 second, and then the opposite relay will be turned ON.
Note
When carrying out manual retraction, in order to decide whether the door mirror is in the retract or return position by
remembering the relay that made the previous ON, sometimes it will not operate even if the next retract or return switch is
pressed.

• Automatic return function (Initial Setting: speed response expansion)

Note
There is no automatic return when carrying out manual retraction in order to decide whether the door mirror is in the retract or
return position by remembering the relay that made the previous ON.
1. Speed response expansion

If the ignition switch is on and the mirror is in retract condition when the vehicle speed reaches 30 k.p.h. (for at least
2 seconds continuously), ETACS-ECU turns on the retractable mirror relay (return) for 16 seconds and the door mirror is
returned. However, there is no automatic return if the retract / return switch of the remote control mirror switch is operated
after turning the ignition switch from OFF to ON.
Even during mirror retraction operation, when the vehicle speed exceeds 30 k.p.h. (for least 2 seconds continuously), it will
be delayed by 0.1 second as with the electric retractable mirror timer function and the retractable mirror relay (return) will
be turned on.

Mirror status

30km/h

0km/h

AC101504

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-11

Ignition switch

Driver’s door
switch

Electric
rectractable mirror
relay (return)

Electric
rectractable mirror
relay (retract)

Retract

Mirror status

Keyless entry transmitter
UNLOCK switch

Keyless entry transmitter
LOCK switch

Electric rectractable mirror
relay (return)

Electric rectractable mirror
relay (retract)

Mirror status

Return

Retract

Return

Ignition switch (IG)

(Key removed)

(Key still inserted)

Key reminder
switch

(Open)

(Closed)

(stays on)

(goes off)

Driver’s door switch

Ignition key cylinder
illumination light output

T: 30 seconds

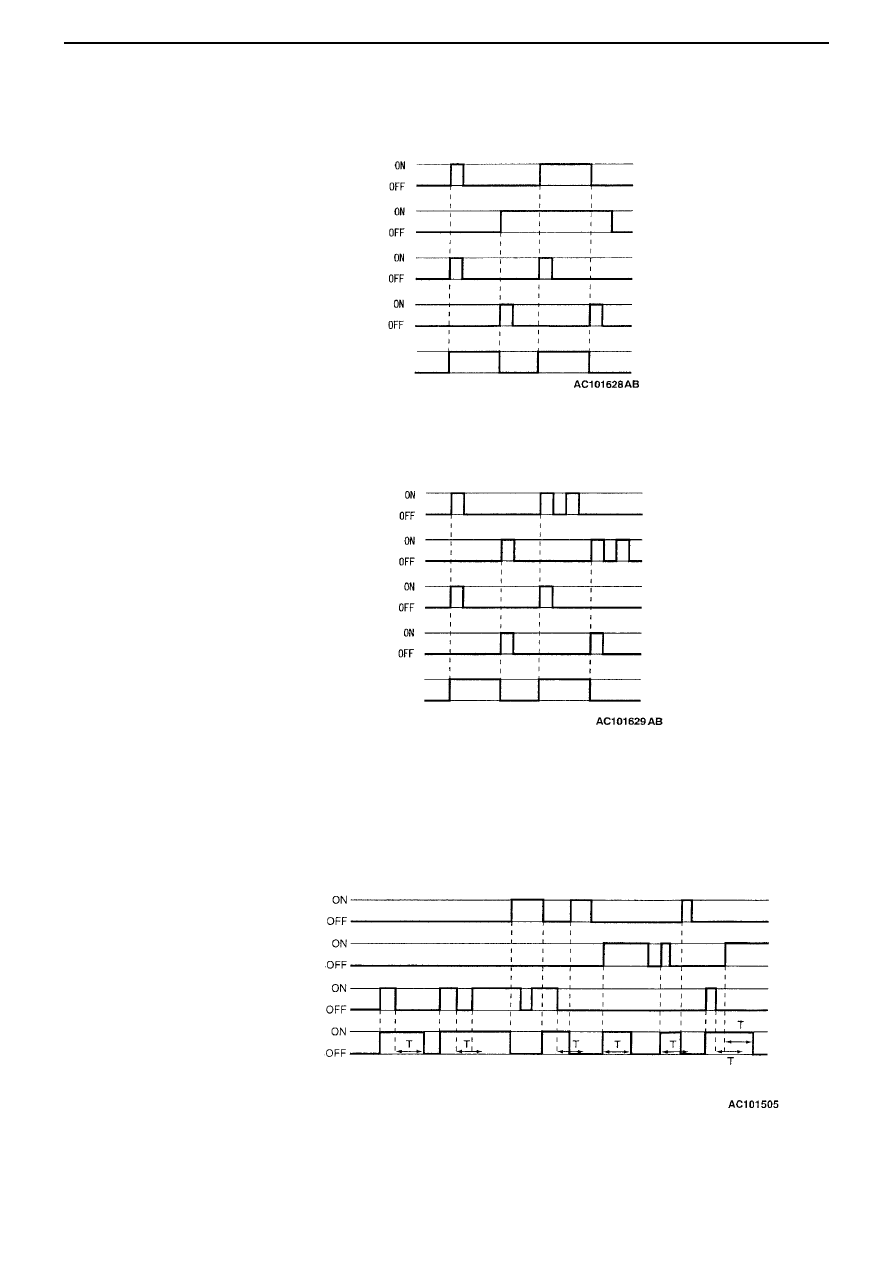

2. Ignition synchronized retract and return function

It returns by switching on the ignition switch, and retracts when the ignition switch is in the OFF (LOCK) position and the
driver’s door is opened.

3. Keyless entry synchronized retract and return function

It retracts by synchronous LOCK operation of the keyless entry transmitter and returns by synchronous UNLOCK operation
of the keyless entry transmitter.

Note
Functions 1 to 3 can be selected or cancelled by the adjustment function. (Refer to Page 7-17)

Ignition key cylinder illumination light control function
The ignition key cylinder illumination light stays on when the ignition switch is off and the driver’s door is open or for 30
seconds after the door is closed. It also stays on for 30 seconds after removing the ignition switch. In all cases, the light is
turned off when the ignition switch is turned on.

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-12

(Open)

(Closed)

Ignition switch (IG)

Driver’s door
switch

Headlights

Lighting switch

Tail light output

Headlight output

3 minutes

1 second

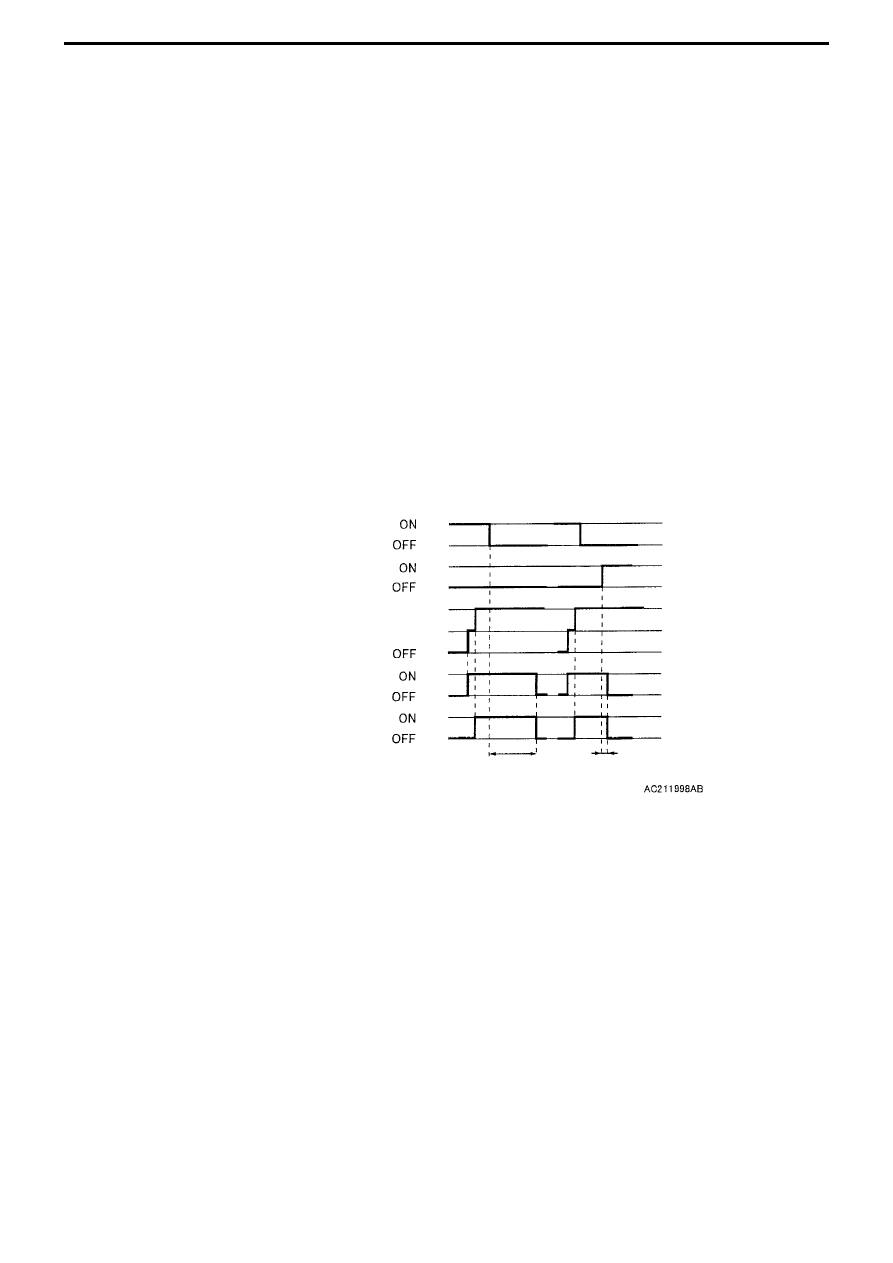

Headlight auto-cut function (Initial setting: Function ON (no auto-cut when the ignition switch is in the LOCK (OFF)
position and the tail lights have been put on))
If the lighting switch (tail light switch or the headlight switch) is on, the headlights (including the tail light etc.) will automatically
go off in the following conditions to prevent the battery from discharging.
1. The lighting switch will automatically be turned off if the ignition key is turned from ON to OFF with the lighting switch

turned ON, and this condition will continue for 3 minutes. If the driver’s door is opened during these 3 minutes, the light will
go off after 1 second. (The light still on reminder warning buzzer will sound during the one second until the light goes off.
However, if the driverÅfs door is opened with the ignition key inserted, the key inserted reminder warning buzzer will sound
first.).

2. The headlights will go off automatically after 3 seconds if the headlight switch is turned ON with the ignition switch and

lighting switch OFF.

3. The tail lights will not go off automatically if the tail light switch is turned ON with the ignition switch and lighting

switch OFF.

Note
They can be set to go off automatically by the adjustment function. (Refer to Page 7-17)

After this function has been activated, the headlights are turned on again by turning ON the lighting switch after it has been
turned OFF once or by turning ON the ignition switch. They will be turned off again when the conditions of (2) are fulfilled after
turning on again.

Note
This function can be disabled by the adjustment function. (Refer to Page 7-19)

Tail lights

EQUIPMENT - SMART WIRING SYSTEM (SWS)

7-13

Headlights

Tail lights

ON

OFF

ON

OFF

Fog light switch

Lighting switch

Headlight auto-cut
output

Fog light output

Ignition switch
(IG)

Turn signal light
switch RH

Turn signal light
switch LH

Indicator output
RH

Indicator output
LH

Hazard
light switch

Indicator
output RH

Indicator
output LH

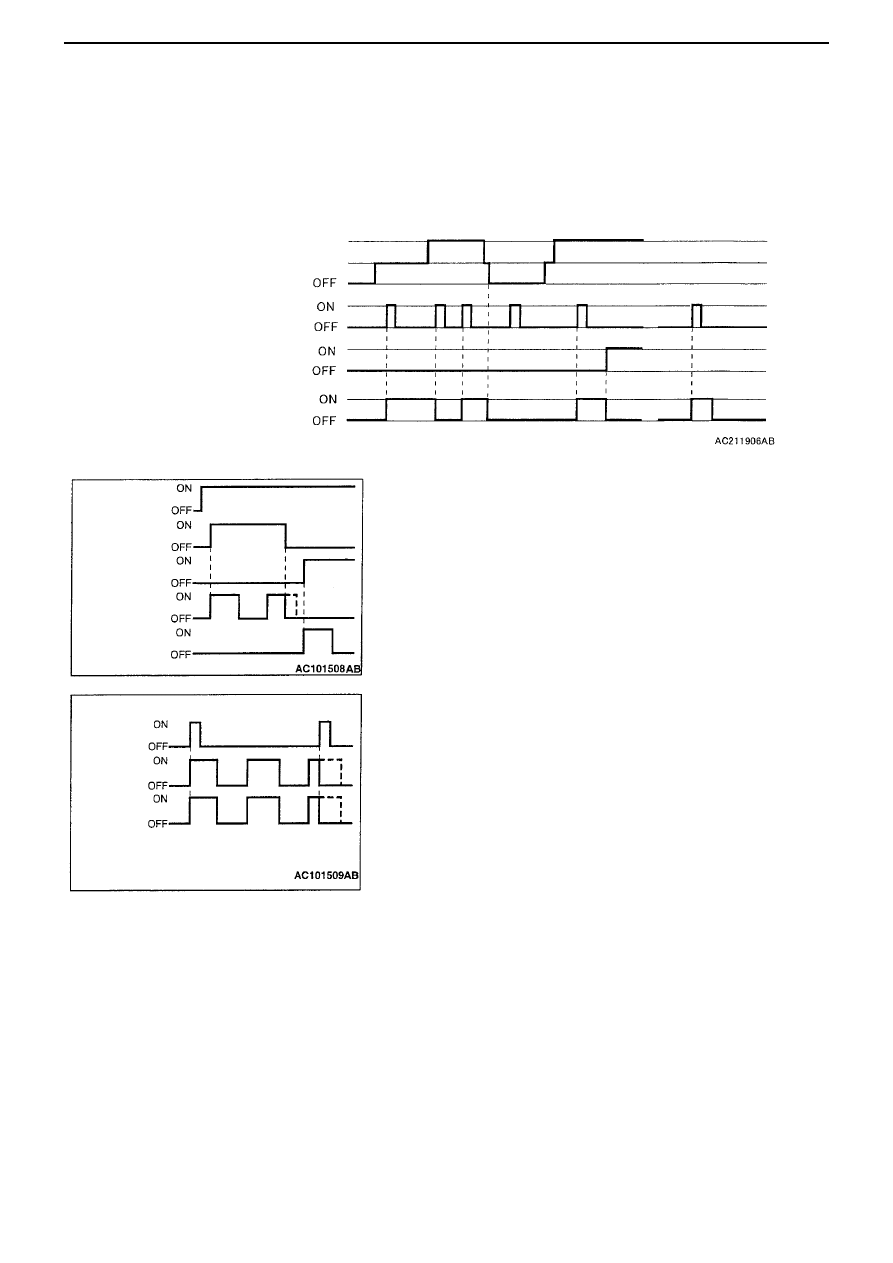

Fog light function
By turning the fog light switch ON when the tail lights or headlights have been turned on (tail light switch or headlight switch
ON), the fog light relay goes ON and the fog lights are turned on.
If the tail lights and headlights are turned off by turning OFF the lighting switch while the fog lights are on, the fog lights will
also go off at the same time, preventing the fog lights being left on. Also, if the tail light is turned off by the auto-light function,
the fog lights will go off at the same time. However, the fog lights will not go on again when the tail lights are turned on again.

Flasher timer function
• Indicator light

The indicator light output (flashing signal) is turned ON when the ignition
switch is ON and the indicator light switch is ON (LH or RH).
If either the front indicator light bulb or the rear indicator light bulb has
burned out, the flashing speed increases in order to indicate that the
bulb has burnt out.

• Hazard light

It checks the signal that changes hazard light input switch from OFF to
ON, and reverses the flashing status according to this signal. (It makes
the hazard light flash if is not flashing and switches it off if it is flashing.)

Note
1. The hazard light switch is now a push return switch.
2. The hazard light flashing speed will not change even if the bulb has
burnt out.
