3-10

CHANGING WELDED PANELS – ALUMINIUM ALLOY PANELS

Painting aluminium panels

Painting on the production line

Same as for painting ordinary steel plate.

Painting for repairs

The main points for repairs in general are as follows.
Paint adhesion to aluminium alloy panels is not quite as good as ordinary steel plate, so pay careful attention to precautionary
notes.

1. Peeling of paint film

Caution: avoid harsh polishing, and try not to generate heat during polishing.

2. Clean and remove any grease

3. Apply wash primer

4. Dry

5. Apply primer surfacer

6. Dry

Note: do not speed up by drying at over 60˚C.

7. Polish

8. Clean, remove any grease

9. Overcoat

10. Dry

Note: do not speed up by drying at over 60˚C.

Remarks:

1. Please refer to paint manufacturer’s instructions for details.
2. Same as for paint repair jobs done on stainless steel plate.



6-1

BODY COLOUR GENERAL, BODY COLOUR LIST, DIFFERENT BODY COLOUR PAINT SECTIONS

SECTION 6

BODY COLOUR

CONTENTS

General ....................................................6-1
Body colour list.......................................6-1

Body colour paint sections ...................6-1

Rear spoiler........................................................6-1

General

This specifies body colour and different body colour paint sections.

Body Colour List

Name of colour
(old colour
name)

Colour symbol

Colour code

Colour (paint)
number

Content of paint

Repair symbol

Paint
manufacturer

Cool silver
metallic

CL

A31

CMA10031

Aluminium

M

Kansai Paint

Medium Gun-
Metal grey mica

ES

A39

CMA 10039

Aluminium +
mica

2P

Nippon Paint

Solid White
(Scotia White)

2E

W83

AC10983

-

S

Kansai Paint

Solid Red
(Parma Red)

JW

P85

AC11185

-

S

Kansai Paint

Remarks
1. Repair symbols show only overcoat  S: solid  M: Metallic  2P: 2 coat pearl.
2. The paint manufacturer’s names are the names used at time of manufacturing.

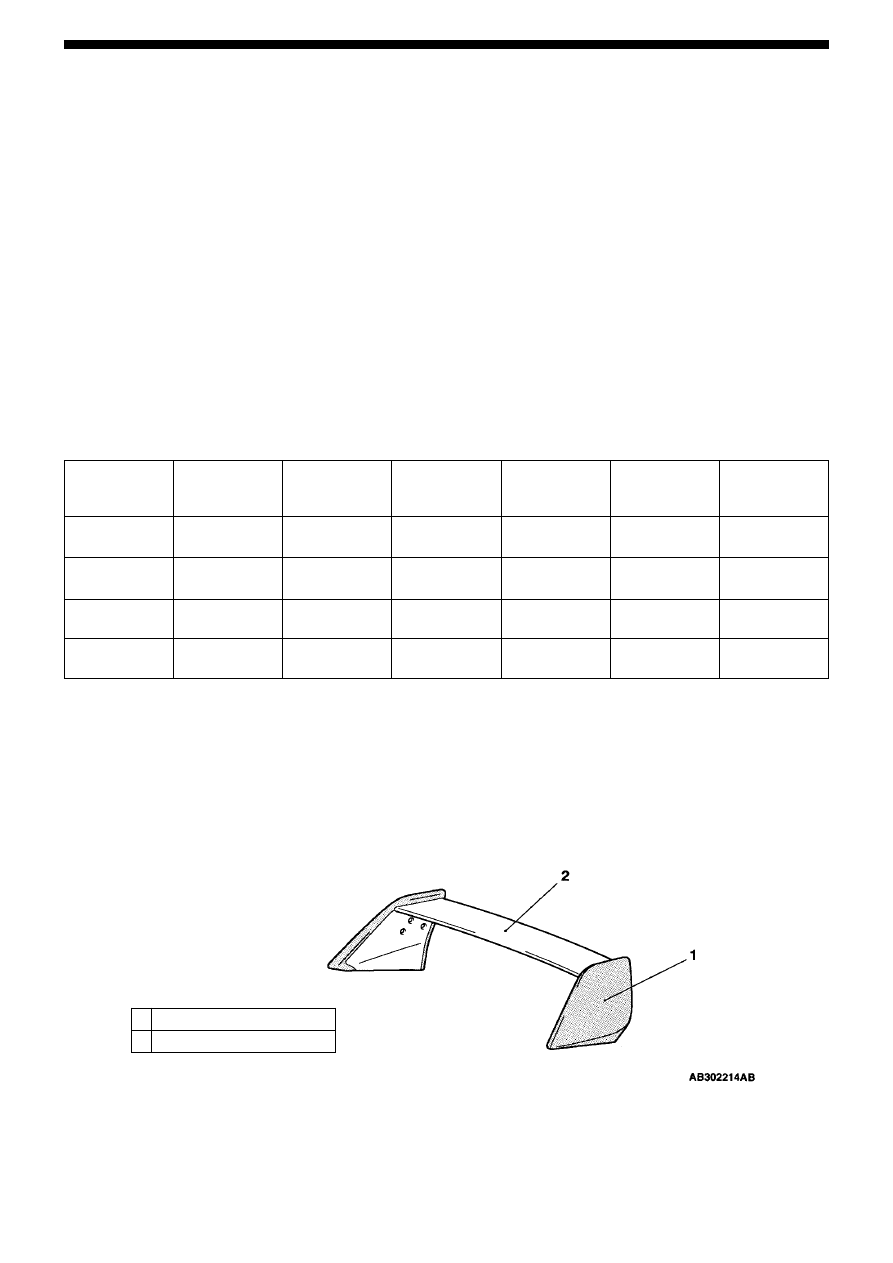

Different Body Colour Paint Sections

The different rear spoiler paint sections are specified below.

Rear Spoiler

1 Gun metal grey (CMA1002)

2 Part material colour

RJYJ402022–22

SERVICE MANUAL

Supplement

SERVICE MANUAL

LANCER

EVOLUTION VIII

MR

FOREWORD

This manual contains details of the main changes to
the 2004 model Lancer Evolution VIII MR. Only
differences to the current Lancer Evolution VIII are
included, so please use this manual in conjunction with
the related information specified on the next page.
Please ensure that proper servicing is carried out
promptly, and that the information contained in the
relevant manuals is carefully read and understood
before doing any servicing work.
This information relates to the current vehicle (February
2004). Since specifications will change, some of the
information contained here will inevitably be
superseded.
Note that SI units are used in this manual. Old units are
not shown alongside them.
(However, old units are used for some figures we have
taken from existing documents).

Any opinions, requests, or questions concerning
this manual, should be written on the ‘Servicing
Comments Form’ at the end, and sent to us by fax.

February 2004

MITSUBISHI MOTOR CORPORATION
