HEATER, AIR CONDITIONER AND VENTILATION
-
Refrigerant Lines
55-43

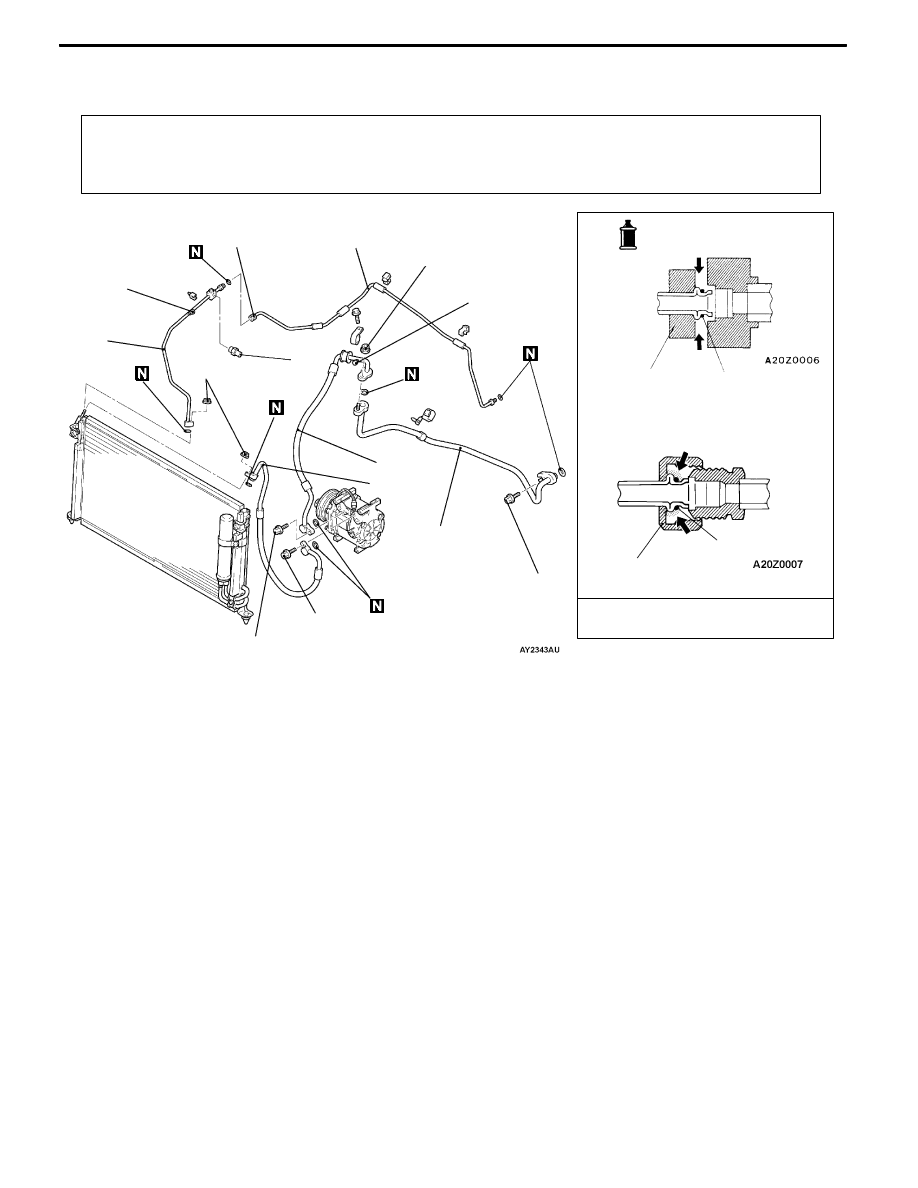

REMOVAL AND INSTALLATION
<R.H. DRIVE VEHICLES>
Pre-removal and Post-installation Operations
D
Refrigerant Draining and Refilling (Refer to P.55-16, 19.)
D
Radiator Grille Removal and Installation (Refer to GROUP 51.)
D
Air Cleaner Removal and Installation (Refer to GROUP 15.)
1
2
3
- Pipe
coupling
O ring
A/C compressor oil: SUN PAG 56
2, 3, 4, 5, 6
6
5
13 ± 1 N·m
Low-pressure side
service valve
O ring
6
12 ± 2 N·m
4.9 ± 0.9 N·m
High-pressure side
service valve
4.9 ± 0.9
N·m
4
12 ± 2 N·m
12 ± 2 N·m
Removal steps
1. Dual pressure switch
A
A"
2. Flexible discharge hose
A
A"
3. Flexible suction hose
A
A"
4. Suction pipe
A
A"
5. Liquid pipe A
A
A"
6. Liquid pipe B
REMOVAL SERVICE POINTS
A
A" REMOVAL OF HOSES AND PIPES
To prevent the entry of dust or other foreign bodies, plug
the condenser, compressor, and expansion valve nipples.
Caution
As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose
and nipples.
