EXTERIOR -

Windshield Wiper and Washer

51-13

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATIONS

Item

Standard value

Stop position of the windshield wiper arm/blade assembly (distance between the edge of

34

±

5

Stop position of the windshield wiper arm/blade assembly (distance between the edge of

the wiper blade and the end of the deck garnish) mm

34

±

5

TROUBLESHOOTING

The windshield wiper-washer is controlled by the smart wiring system (SWS). Refer to Group 54B for

troubleshooting.
NOTE

If ETACS-ECU is faulty, the windshield wiper can be operable in LO mode only as the fail-safe function.

(Normally the windshield wiper is operable when the ignition switch is turned to the ACC position. When

the fail-safe function is enabled, it is operable only when the ignition switch is turned to the ON position.)

ON-VEHICLE SERVICE

WINDSHIELD INTERMITTENT WIPER

INSPECTIONS

(1) Check the change in the intermittent time of the wiper

operation by using the windshield intermittent wiper

volume.

(2) Carry out troubleshooting if any of them is faulty.

(Refer to Group 54B.)

EXTERIOR -

Windshield Wiper and Washer

51-14

WINDSHIELD WIPER AND WASHER

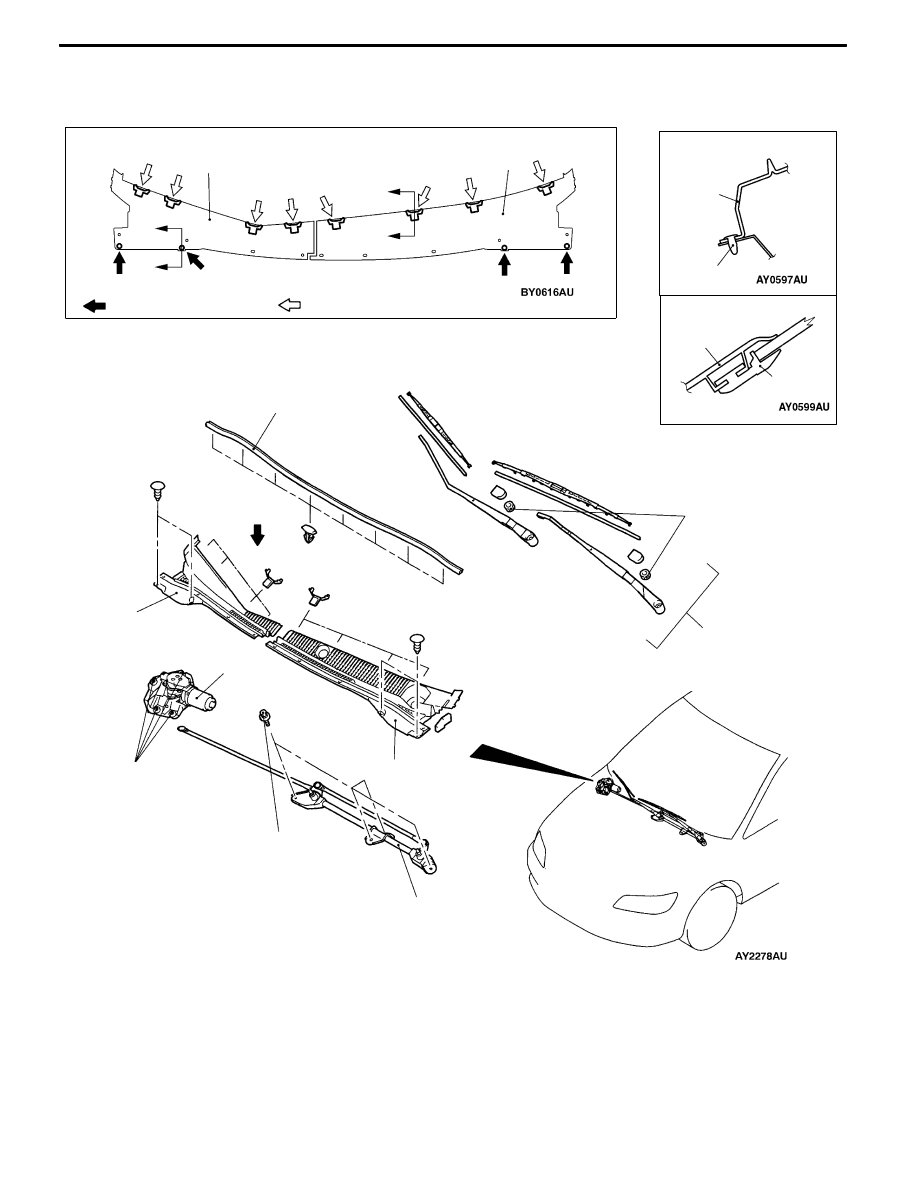

REMOVAL AND INSTALLATION

NOTE

indicates the clip A location.

indicates the clip B location.

Section A - A

Section B - B

View A

3 ,4

Clip A

13 ± 2 NSm

A

5

4

8.9 ± 1.9 NSm

1

3

Clip B

3, 4

7.4 ± 1.4 NSm

6

4

3

A

A

B

B

2

Windshield wiper motor assembly

and link assembly removal steps

"

AA 1. Wiper arm/blade assembly

2. Hood weather strip

3. Front deck garnish (driver’s side)

4. Front deck garnish (passenger’s side)

A

A"

5. Windshield wiper motor assembly

6. Link assembly

EXTERIOR -

Windshield Wiper and Washer

51-15

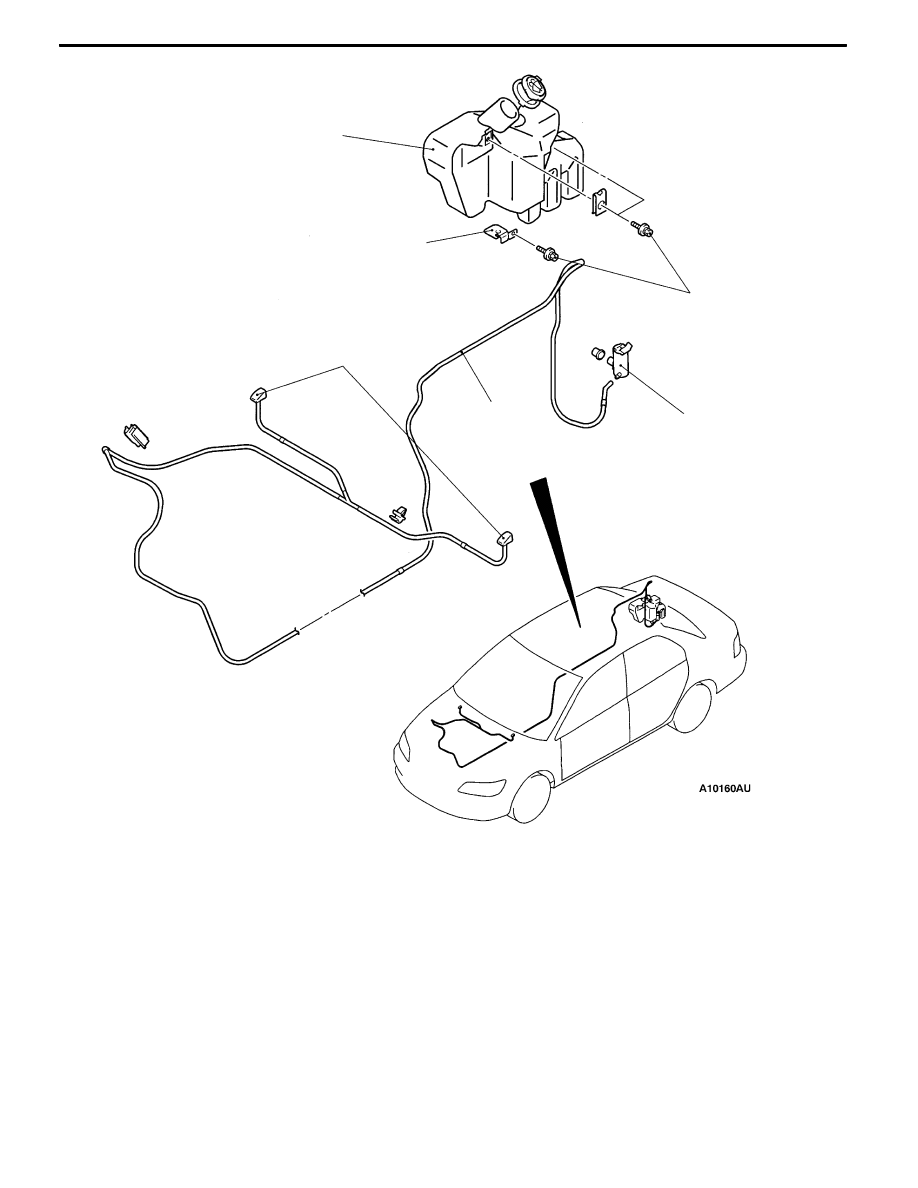

5.0 ± 1.0 NSm

4

1

3

2

NOTE: Refer to P.51-19 for more information regarding removal and installation of rear washer nozzle.

5

Washer hose removal steps
D

Splash shild <Right side> (Refer to

GROUP 42 – Fender.)

D

Cowl side trim, front scuff plate, center

pillar trim, lower, rear scuff plate (Refer

to GROUP 52A – Trim.)

D

Rear

seat

(Refer

to

GROUP

52A – Seat.)

1. Washer hose

Windshield washer nozzle removal

steps
D

Connection of washer hose

2. Windshield washer nozzle

Washer tank and windshield washer

motor assembly removal steps
D

Rear end trim, trunk side trim (Refer

to GROUP 52A – Trim.)

D

Connection of front washer hose

3. Washer tank assembly

4. Washer tank bracket

5. Washer motor

NOTE: Refer to GROUP 54A– Column Switch for

removal and installation of wiper washer switch.

EXTERIOR -

Windshield Wiper and Washer

51-16

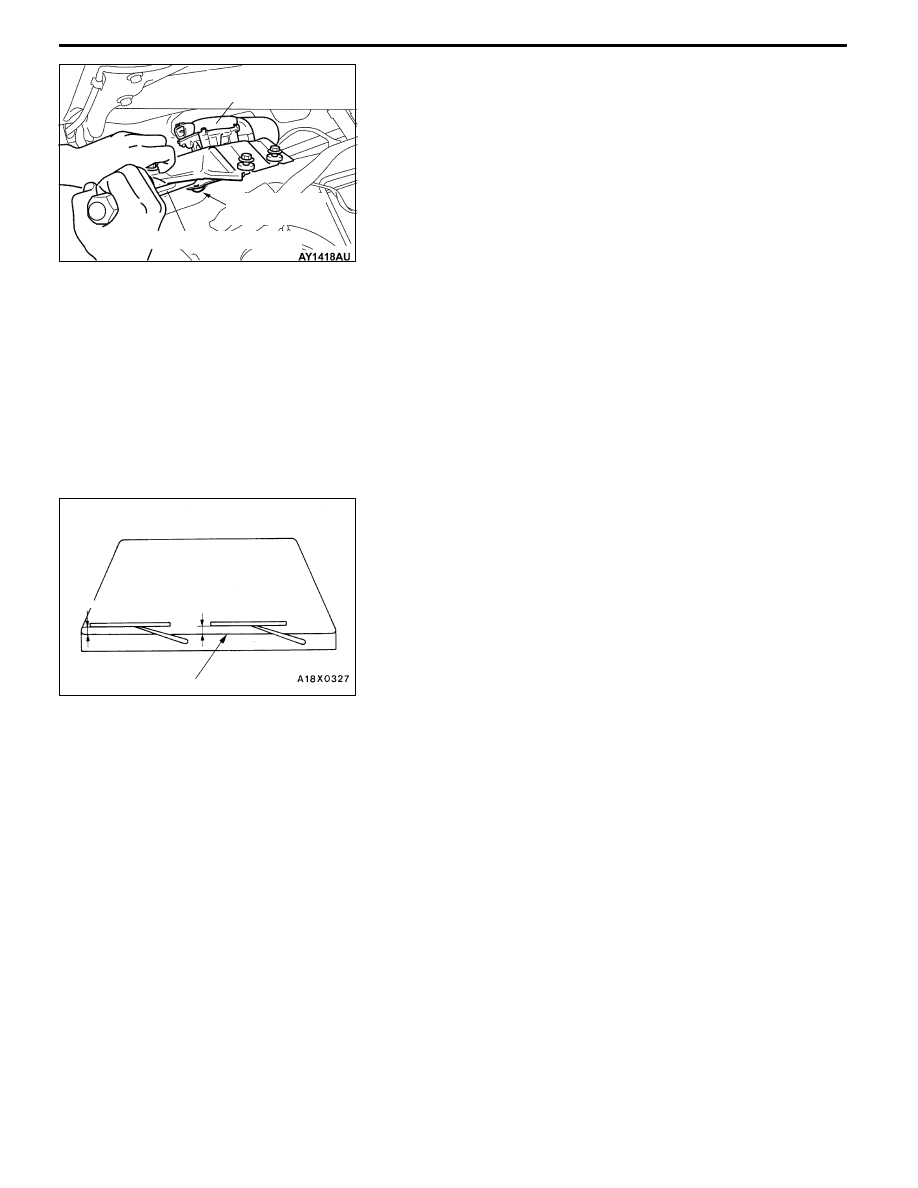

REMOVAL SERVICE POINT

A

AWINDSHIELD WIPER MOTOR ASSEMBLY

REMOVAL

1. Remove the windshield wiper motor assembly mounting

bolt.

2. Use the flat-tipped screw driver to disengage the link

between the windshield wiper motor assembly and the

link assembly to remove the windshield wiper motor

assembly.
Caution

Be careful not to damage the windshield glass when

the windshield wiper motor assembly is removed.

INSTALLATION SERVICE POINT

"

AWIPER ARM/BLADE ASSEMBLY INSTALLATION

Assemble the parts so that the edge of the wiper blade can

stop in the specified position (standard value).
Standard value:(A) 34 ± 5 mm

Windshield wiper

motor assembly

Flat-tipped screw driver

Link assembly

connection

Front deck garnish terminal

A

A
