BODY -

Trunk lid

42-41

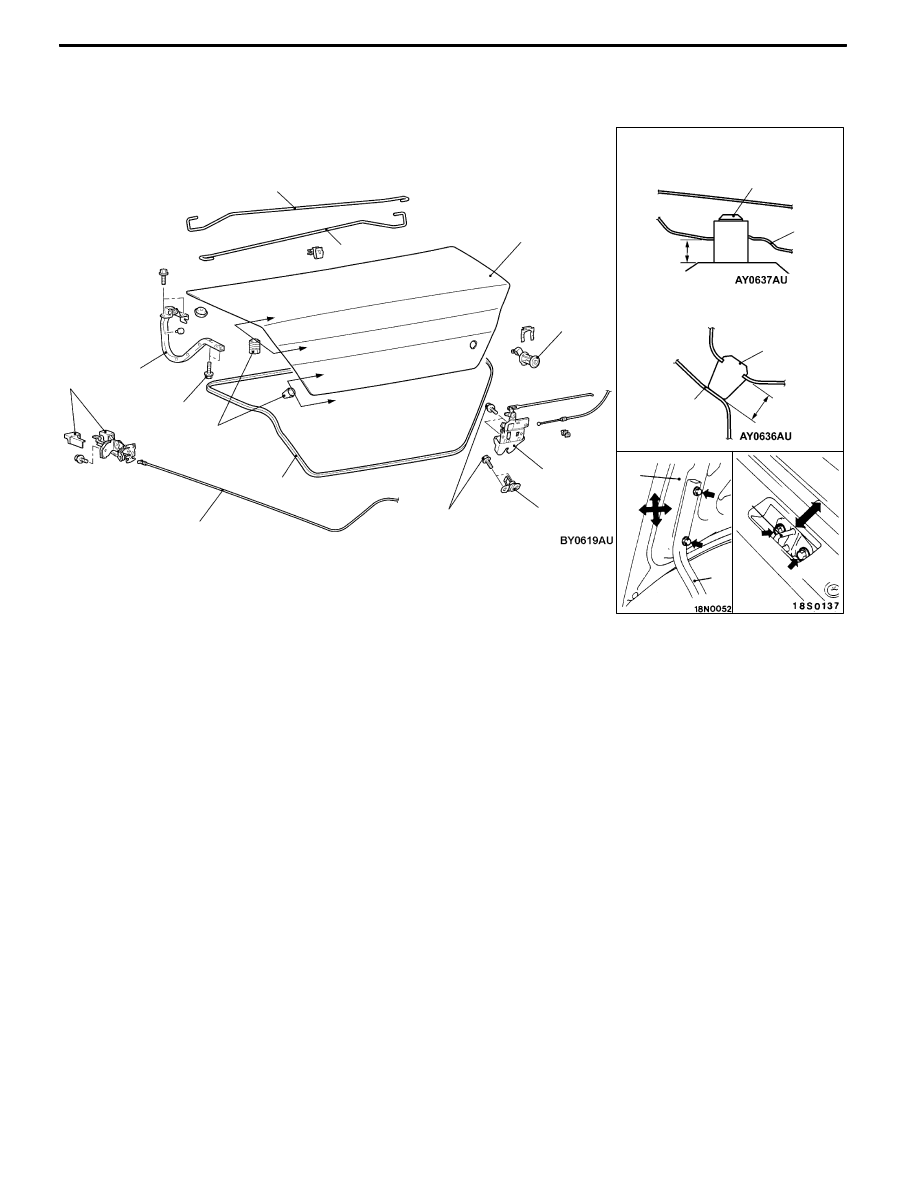

TRUNK LID

REMOVAL AND INSTALLATION

2

3

4

5

6

7

8

9

10

1

11

12

A

A

B

B

5

5

9

9

14

Measure of

length mm

15

4

9

12

8.9 ± 1.9 N·m

Section A-A

Section B-B

Trunk lid weatherstrip removal

steps

D

Rear end trim <RS-Ⅱ> (Refer to

GROUP 52A.)

"

BA 1. Trunk lid weatherstrip

Trunk lid release cable and trunk

lid release handle removal steps

D

Trunk rear side trim (Left side)

(Refer to GROUP 52A.)

D

Rear seat (Refer to GROUP 52A.)

D

Center pillar lower trim (Refer to

GROUP 52A.)

D

Cowl side trim

D

Accelerator pedal stopper

2. Trunk lid release handle

3. Trunk lid release cable

Trunk lid striker removal steps

D

Rear end trim <RS-Ⅱ> (Refer to

GROUP 52A.)

4. Trunk lid striker

Trunk lid panel removal steps

5. Trunk lid bumper

6. Trunk lid lock cylinder

7. Trunk lid latch assembly

8. Trunk lid hinge mounting bolt

9. Trunk lid panel assembly

Trunk lid latch assembly removal

7. Trunk lid latch assembly

Trunk lid hinge removal steps

D

Rear shelf trim

D

Rear seat (Refer to GROUP 52A.)

9. Trunk lid panel assembly

A

A" "AA 10. Trunk lid torsion bar (Right side)

A

A" "AA 11. Trunk lid torsion bar (Left side)

12. Trunk lid hinge

BODY -

Trunk lid

42-42

Grease application area

6

7

2

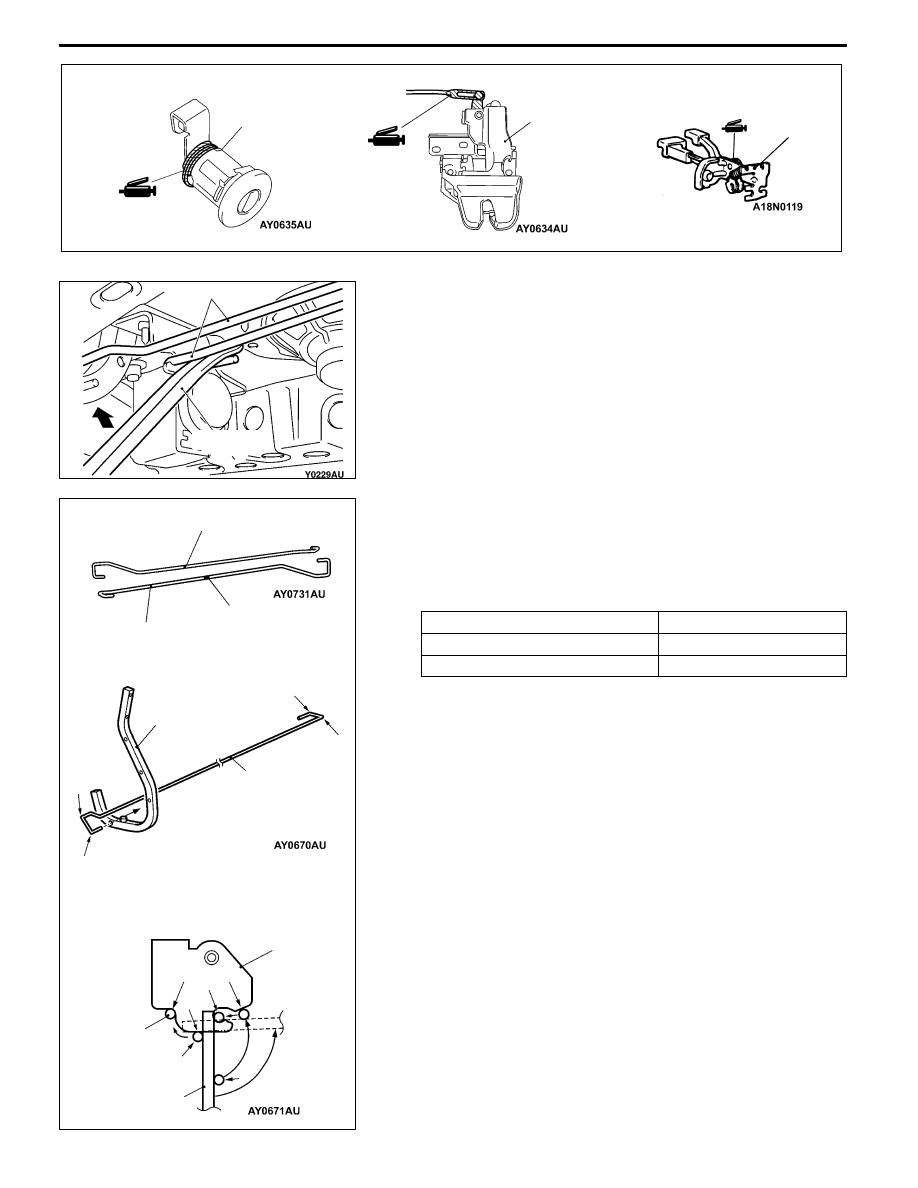

REMOVAL SERVICE POINT

A

ATRUNK LID TORSION BAR REMOVAL

Insert the tire lever into the torsion bar, and then pull upward

the tire lever to remove the torsion bar as shown in the

illustration.
NOTE

As the left and right trunk lid torsion bars are crossed at

the center, first remove the front trunk lid torsion bar at

the center.

INSTALLATION SERVICE POINTS

"

ATRUNK LID TORSION BAR INSTALLATION

Install the trunk lid torsion bar by the following procedure.

1. Ensure that there is the identification color at the center

of the trunk lid torsion bar.

Trunk lid torsion bar

Identification color

Left side

-

Right side

Red

Caution

As the trunk lid torsion bar (Right side) is painted

with differentiation color in the middle to differentiate

between RH and LH, be careful when installing.

2. Install the trunk lid torsion bar (Left side) as follows.

(1) For terminal A, insert the trunk lid hinge (Left side)

into the fixed hole B

(2) For terminal C, touch the trunk lid hinge (Right side)

against portion E.

(3) For terminal D, insert the trunk lid hinge (Right side)

into portion F until portion G while twisting with the

tool such as a tire lever, etc.

(4) For terminal C, set the trunk lid hinge (Right side)

at portion H while twisting with the tool such as a

tire lever etc.

3. Install the trunk lid torsion bar (Right side) in the same

way as above.

Trunk lid torsion bar

Tire lever

Tire lever

D

Trunk lid torsion

bar

H

Identification

color

Trunk lid torsion bar

(Right side)

Trunk lid torsion bar

(Left side)

Trunk lid hinge (Left side)

A

B

C

D

Trunk lid hinge

(Right side)

C

F

G

E

Trunk lid torsion bar (Left side)

BODY -

Trunk Lid

42-43

"

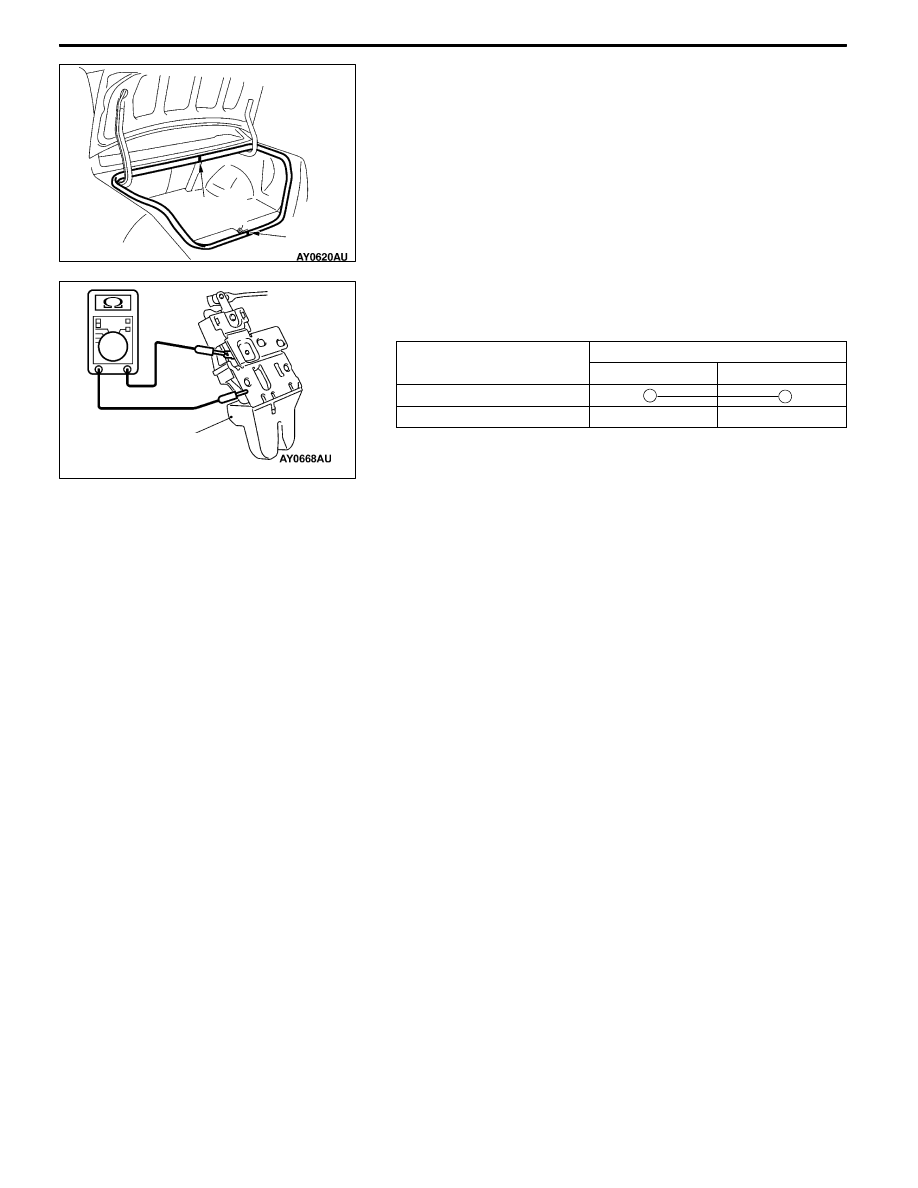

BTRUNK LID WEATHERSTRIP INSTALLATION

aligning the trunk lid weatherstrip marking section at the body

center to install.

INSPECTION

TRUNK LID LATCH SWITCH CONTINUITY CHECK

Switch position

Terminal No.

p

1

Earth

Latch open
Latch closed

Marking

section

Joint

section

Trunk lid latch

assembly

NOTES
