Mitsubishi Lancer Evolution 7. Manual - part 143

GENERAL -

Support Locations for Lifting and Jacking

00-25

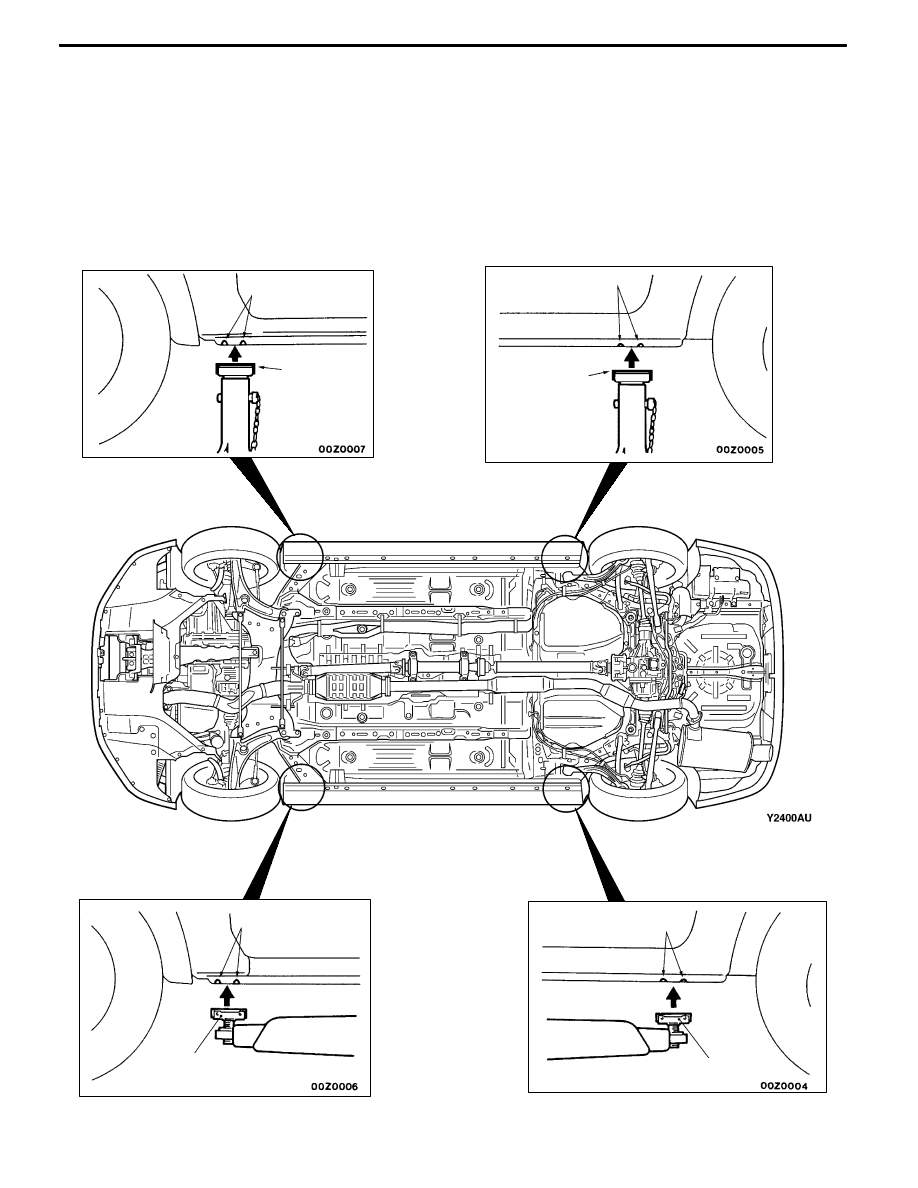

SUPPORT POSITIONS FOR AXLE STANDS AND A SINGLE-POST LIFT OR

DOUBLE-POST LIFT

Caution

1. If rubber attachments with grooves that are too thick are used at the front support positions,

the front fender may become bent, so be sure to use rubber attachments with groove thicknesses

of 18 mm or less.

2. If attachments which are not high enough are used, they may damage areas such as the side

step. Be sure to use attachments which are high enough, or remove the side step if not using

attachments.

Bolts

Rubber

Bolts

Side sill rear end

Attachment

AXLE STANDS

SINGLE-POST

LIFT OR DOUBLE-

POST LIFT

GENERAL -

Support Locations for Lifting and Jacking

00-26

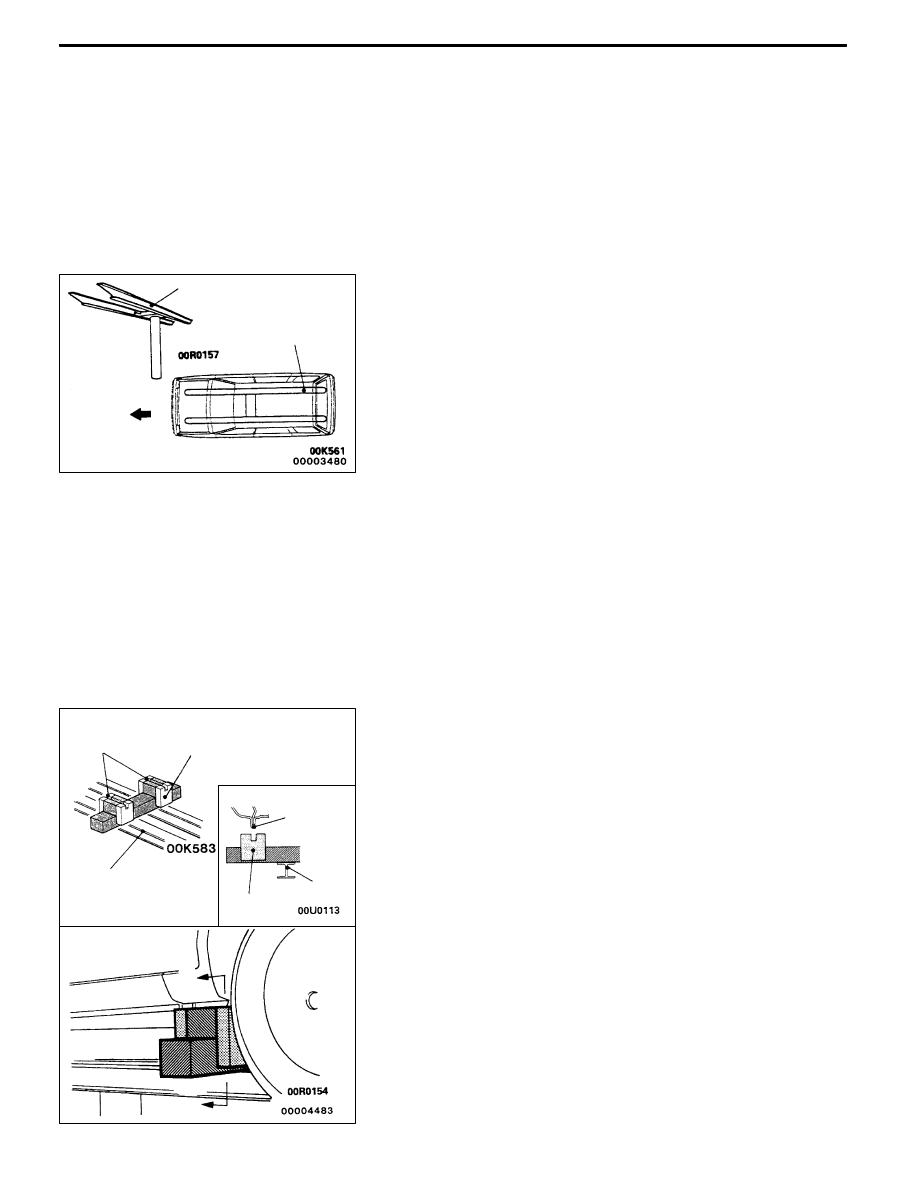

PLATE TYPE LIFT
To avoid damaging the side sill garnish, put a wooden block between the side sill and a lift.
NOTE

The wooden block should be 100 mm wide and 50 mm high.

SUPPORT POSITIONS AND SUPPORT METHOD

FOR AN H-BAR LIFT

Caution

When service procedures require removing the rear

suspension, fuel tank, spare tyre and rear bumper, place

additional weight on rear end of vehicle or anchor vehicle

to hoist to prevent tipping of centre of gravity changes.
When H-bar lift is used to lift up vehicles, use of metallic

attachment attached to the H-bar lift may cause damage

to the suspension arm etc. Therefore, lift up the vehicle by

the following procedure.

1. Place the vehicle on the H-bar lift (same direction).

2. Place attachments on the H-bar lift at the designated

chassis-support positions. When making the attachments,

refer to the section concerning making them.
Caution

If support is at any location other than the designated

positions, the body or suspension might be deformed

or otherwise damaged, so care should be taken to

support only at the correct (designated) positions.

3. Raise the H-bar lift to the height at which the vehicle

is slightly raised and check to be sure that the vehicle

is correctly and sufficiently secured; then raise the vehicle.

H-bar lift

Chassis-sup-

port position

(side sill)

Attachment

H-bar lift

Section A-A

Side sill

Attachment

H-bar lift

GENERAL -

Support Locations for Lifting and Jacking

00-27

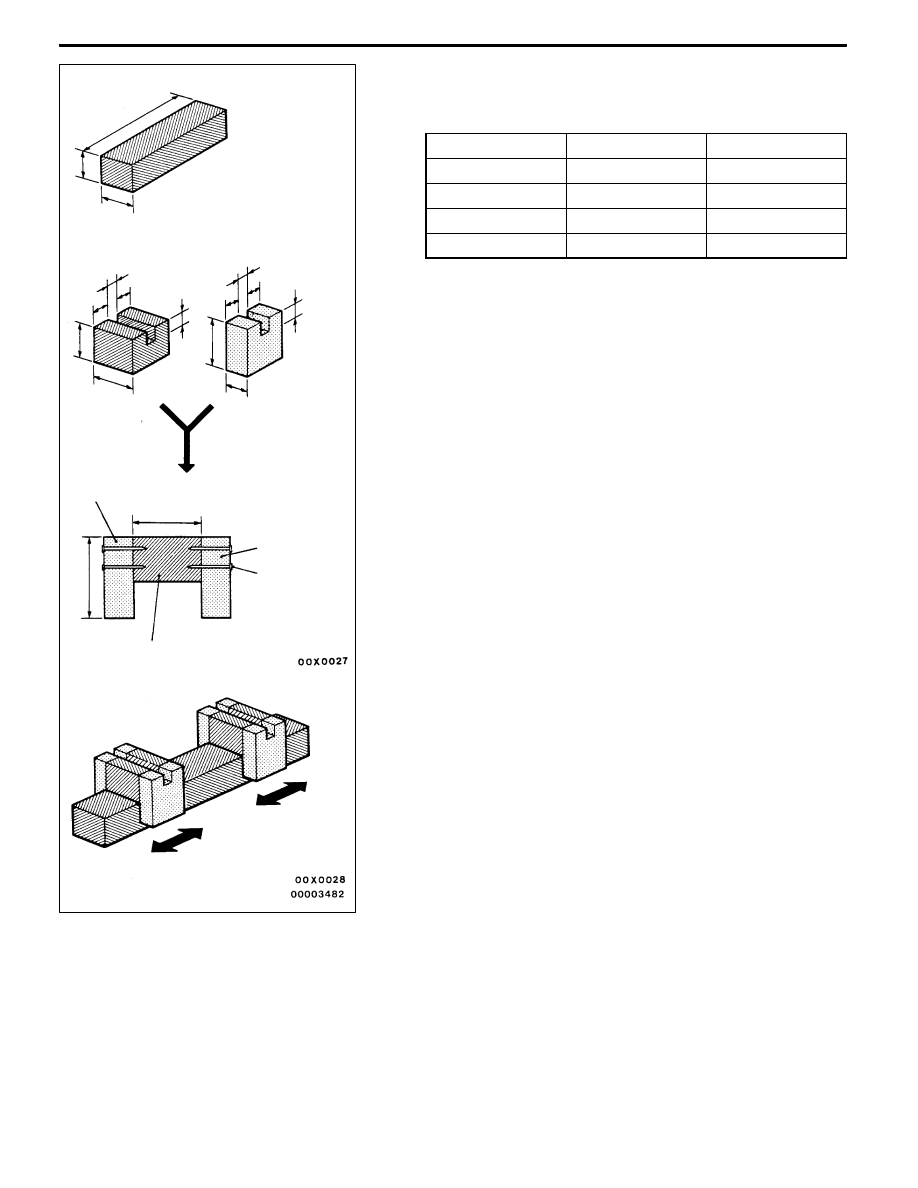

PREPARATION OF “ATTACHMENTS”
1. Prepare the blocks (wooden) and nails as shown in the

figure.

Item

Dimensions mm

Quantity

Block (A)

90 × 95 × 1,800

Block (B)

60 × 100 × 95

Block (C)

140 × 40 × 95

Nail

70 or more

Caution

The wood selected for the blocks must be hard.

2. For the (B) blocks and (C) blocks, use a saw and chisel

or similar tool to make grooves of the dimensions shown

in the figure.

3. Make four “ATTACHMENTS” such as shown in the figure

nailing (B) and (C) blocks so that each (B) blocks is

sandwiches between (C) blocks.

Block (A)

1,800

Block (B)

Block (C)

100

140

Block (C)

140

100

Block (C)

Nail

Block (B)

Finished attachment

Movable according

to vehicle width

GENERAL -

Standard Part/Tightening-Torque Table

00-28

STANDARD PART/TIGHTENING-TORQUE TABLE

Each torque value in the table is a standard value

for tightening under the following conditions.

(1) Bolts, nuts and washers are all made of steel

and plated with zinc.

(2) The threads and bearing surface of bolts and

nuts are all in dry condition.

The values in the table are not applicable:

(1) If toothed washers are inserted.

(2) If plastic parts are fastened.

(3) If bolts are tightened to plastic or die-cast

inserted nuts.

(4) If self-tapping screws or self-locking nuts are

used.

Standard bolt and nut tightening torque

Thread size

Torque N·m

Bolt nominal

diameter (mm)

Pitch (mm)

Head mark “4”

Head mark “7”

Head mark “8”

0.8

2.50.5

5.01.0

6.01.0

1.0

5.01.0

9.02.0

102

1.25

122

224

254

M10

1.25

244

4410

537

M12

1.25

418

8312

9812

M14

1.5

7312

14020

15525

M16

1.5

11020

21030

23535

M18

1.5

16525

30040

34050

M20

1.5

22535

41060

48070

M22

1.5

30040

55585

64595

M24

1.5

39555

735105

855125

Flange bolt and nut tightening torque

Thread size

Torque N·m

Bolt nominal

diameter (mm)

Pitch (mm)

Head mark “4”

Head mark “7”

Head mark “8”

1.0

5.01.0

102

122

1.25

132

244

275

M10

1.25

264

499

587

M10

1.5

244

458

5510

M12

1.25

468

9515

10515

M12

1.75

438

8312

9812

NOTE
1. Be sure to use only the specified bolts and nuts, and always tighten them to the specified torques.

2. Bolts marked with indications such as 4T or 7T are reinforced bolts. The larger the number, the

greater the bolt strength.
