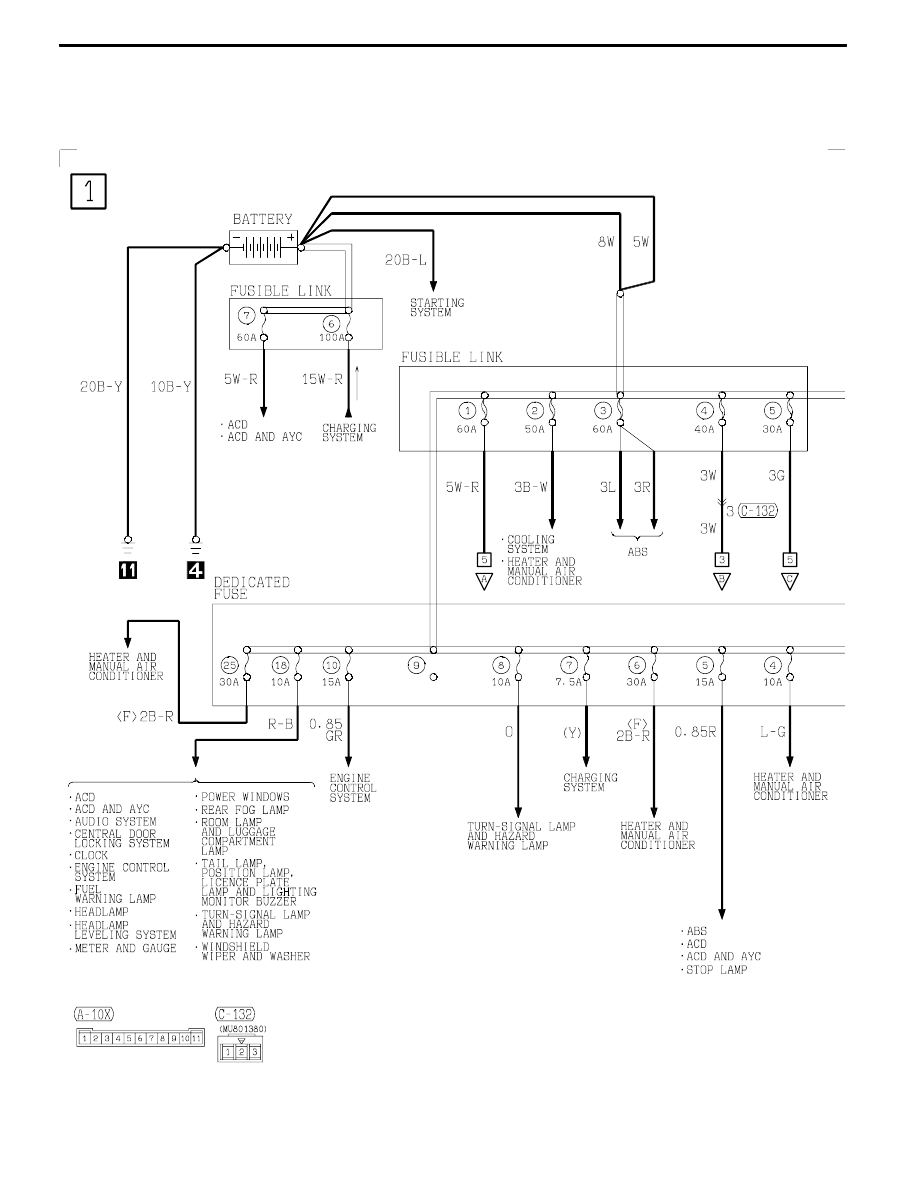

CIRCUIT DIAGRAMS
B-71

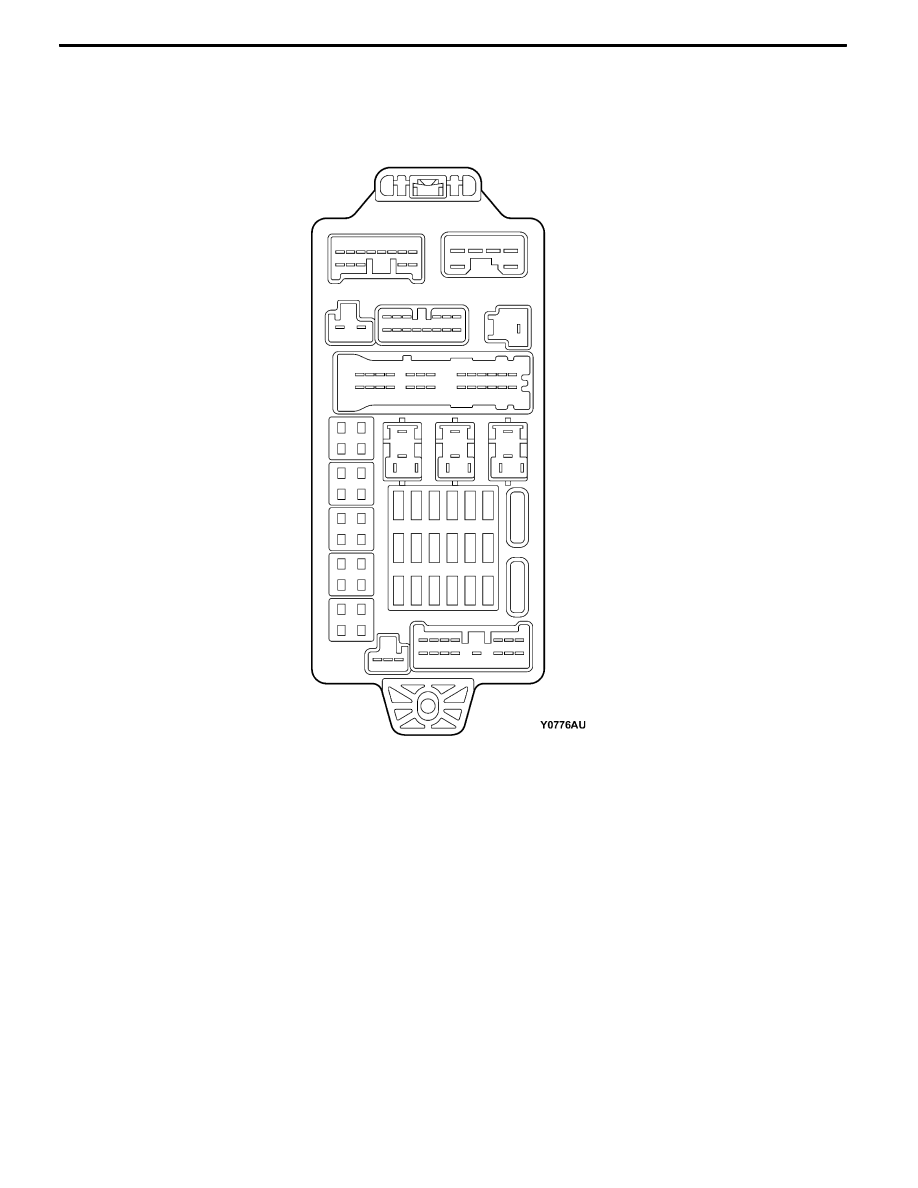

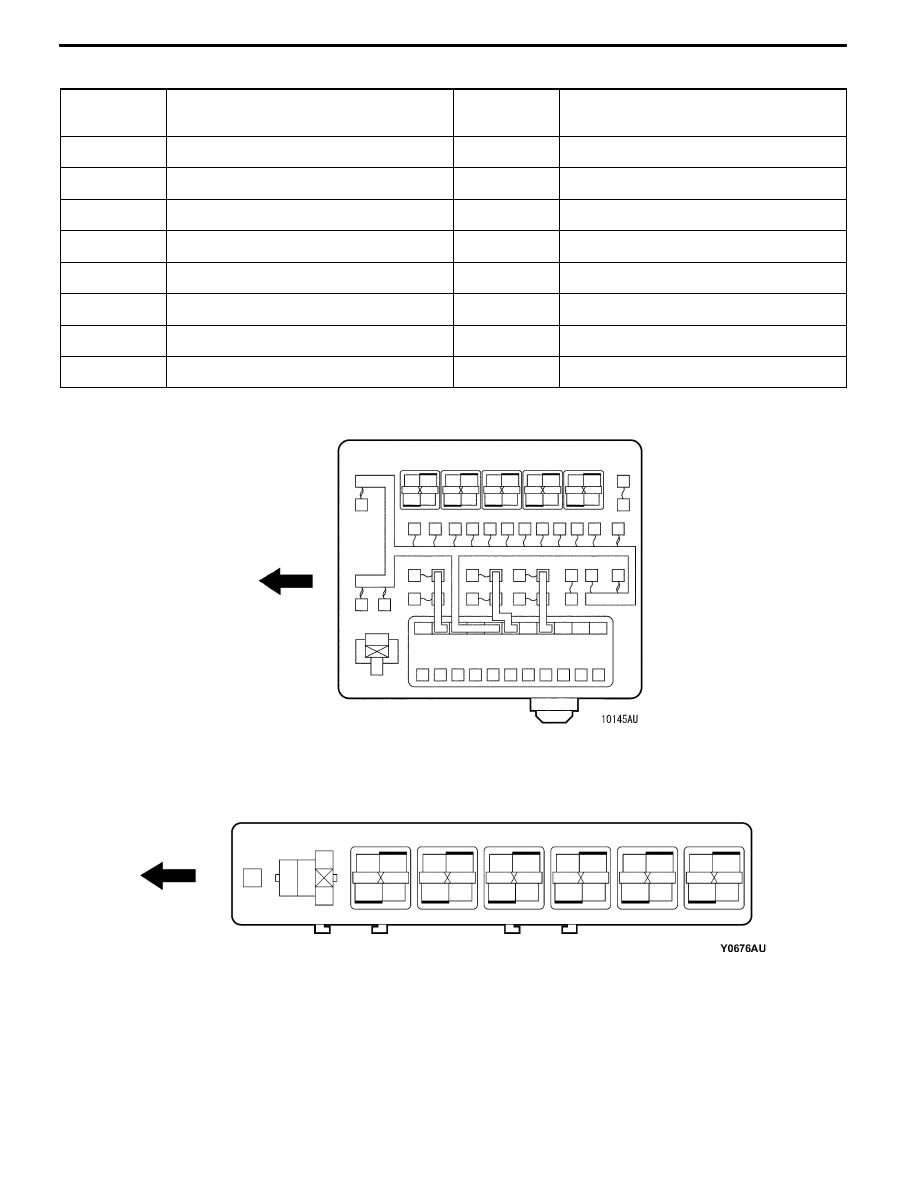

MULTI-PURPOSE FUSE (In junction block)
Power supply
circuit
No.
Rated
capacity (A)
Identification
colour
Circuit
Ignition
switch
IG1
1
10
Red
Ignition coil
switch
2
7.5
Brown
Column switch, combination meter, ETACS-ECU,
SRS-ECU, vehicle speed sensor and ACD mode
changeover switch
3
7.5
Brown
ETACS-ECU and SRS-ECU
4
-
-
-
IG2
5
7.5
Brown
A/C compressor relay, A/C-ECU, blower relay,
condenser fan relay, defogger relay, front-ECU,
4WD-ECU, steering wheel sensor and inter cooler
water splay relay
Multi-purpose fuse
No. 20 (Defogger
relay)
6
-
-
-
Ignition
switch
ACC
7
20
Yellow
Front-ECU and windshield wiper motor
switch
IG1
8
7.5
Brown
Engine-ECU and fuel pump relay (1) and fuel pump
relay (2)
ACC
9
15
Blue
Cigarette lighter
10
-
-
-
11
7.5
Brown
A/C-ECU and remote controlled mirror switch
IG2
12
7.5
Brown
ABS-ECU, G-sensor (longitudinal) and G-sensor
(lateral)
ACC
13
-
-
-
14
-
-
-
Fusible link No. 1
Battery/alternator
15
15
Blue
Diagnosis connector
Battery/alternator
16
10
Red
Rear fog lamp relay
17
10
Red
ETACS-ECU
18
-
-
-
19
30
Green
Blower motor and resistor
20
30
Green
Defogger
