WIRING AND PIPING DIAGRAM -

Wiring and Piping Diagram

G-2

WIRING AND PIPING DIAGRAM

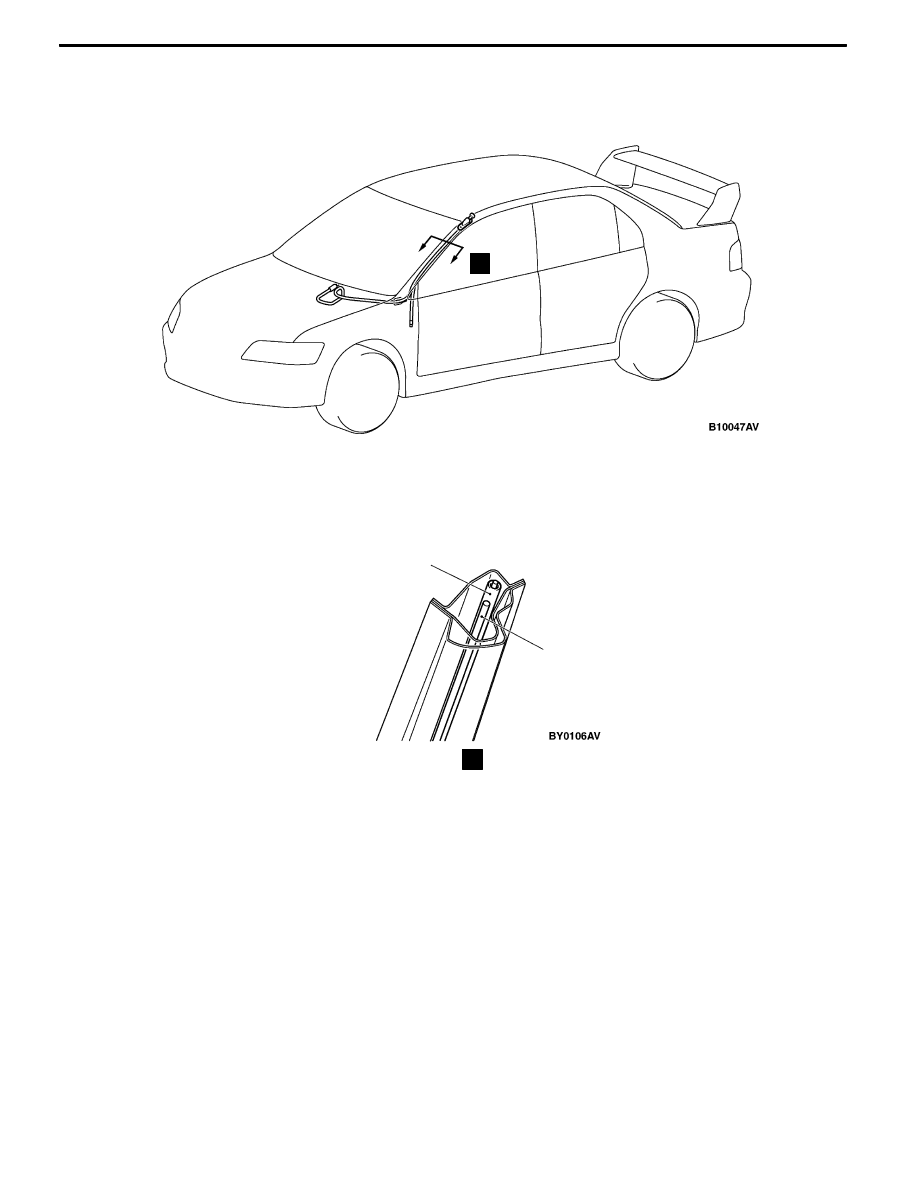

Pole antennas are routed in some parts of closed-section structures of the body construction. These

pole antennas must be removed before body panels in these areas can be replaced.

Pole antenna

(Vehicles with pole antennas)

Antenna feeder-line

(Vehicles with pole antennas)

RJAK104003-378

HOW TO READ THE WIRING DIAGRAMS -

Composition and Contents of Wiring Diagrams

A-2

COMPOSITION AND CONTENTS OF WIRING DIAGRAMS

(1) This manual consists of wiring harness diagrams, installation locations of individual parts, circuits

diagrams and index.

(2) In each section, all specifications are listed, including optional specifications. Accordingly, some

specifications may not be applicable for individual vehicles.

Section

Basic contents

Wiring harness

configuration

diagrams

Connector locations and harness wiring configurations on actual vehicles are illustrated.

Single part

installation position

Locations are shown for each point of relays, electronic control units, sensors, solenoids,

solenoid valves, diodes, inspection connectors, spare connectors, fusible links, fuses, etc. In the

part’s lists, parts are listed in alphabetical order.

Circuit diagrams

Circuits from power supply to earth are shown completely, classified according to system. There

is a main division into power circuits, and circuits classified by system. The circuits classified by

system also include operation and troubleshooting hints.
D

Junction block

The entire circuit for the junction block is described, because only the part of the junction

block needed is normally shown in each circuit diagram.

Joint connectors

The internal circuits for all joint connectors are described, because only the part needed

is shown in each circuit diagram.

Power supply circuits

Circuits from the battery to fusible link, dedicated fuses, ignition switch, general purpose

fuses, etc.

Circuits classified by system

For each system, the circuits are shown from fuse to earth, excluding the power supply

sections.

Operation

The standard operation of each system is briefly described, following the route of current

flow.

Troubleshooting hints

This is a brief explanation of the inspection points that serve as hints when troubleshooting.

Explanations of the circuits controlled by the electronic control unit are omitted. Refer

to the related publications as required.

Index

All components used are listed by connector number and component name.
