Mitsubishi Lancer Evolution 7. Manual - part 35

INTERIOR –

Supplemental Restraint System (SRS)

6-9

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS air bag is a system to be effective once

the seat belt is worn. The system is designed

to be a supplemental system of the seat belt.

The system protects head and chest of a front

seat passenger from the frontal collision by

inflating the air bag to soften the impact when

the impact applied from the front of the vehicle

is greater than the set value.

To enhance impact safety, all models are

equipped with driver’s/front passenger’s SRS

air bag as standard.

An inflator that does not contain sodium azide

has been adopted for all types of the air bag

modules.

Seat belt with pre-tensioner featured for the

driver’s and front passenger’s seats is designed

for instantly taking up the slack in the seat

belt at the time of impact to improve restraint

effect on a passenger. It is activated

approximately at the same time as SRS airbag

is activated to improve protection effect on a

passenger.

Caution

Never disassemble the SRS air bag compo-

nents. And never subject the SRS air bag com-

ponents to impact.

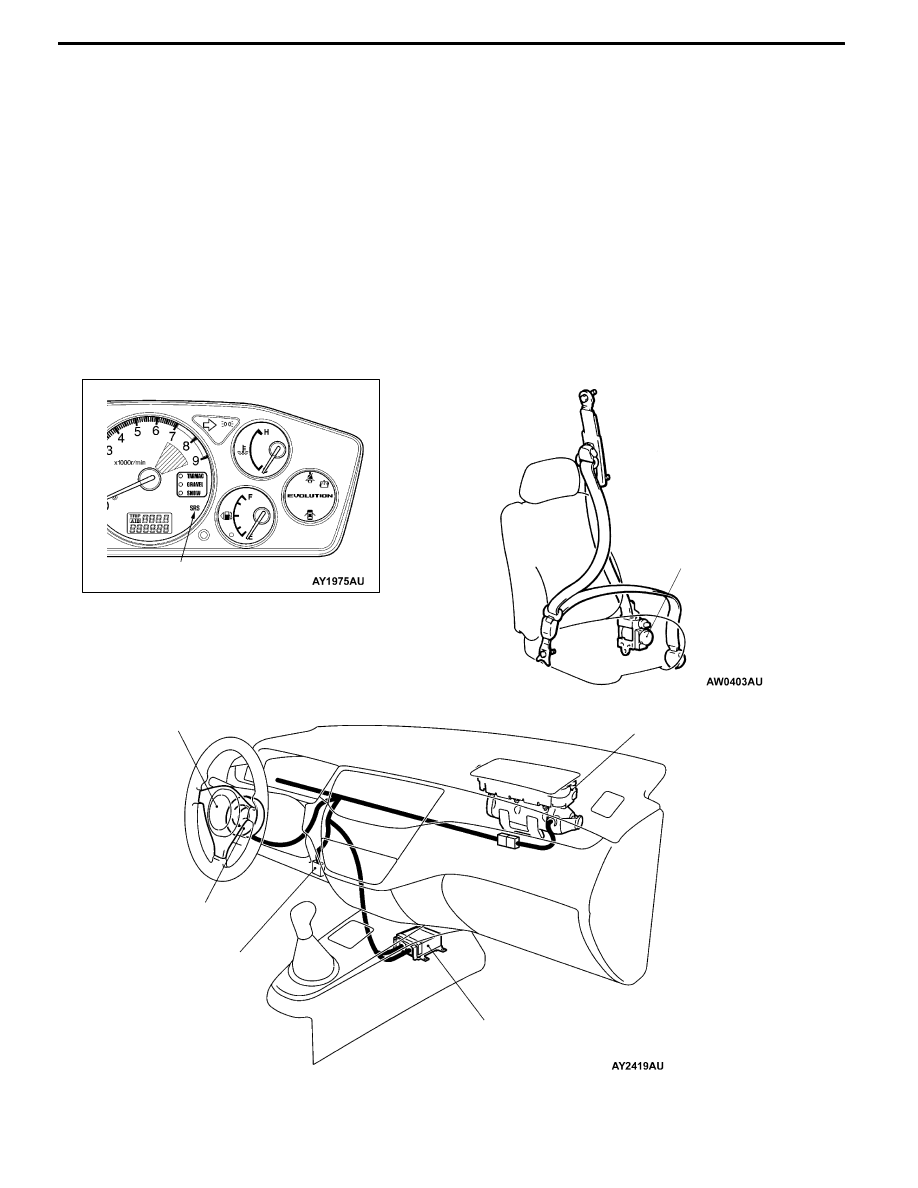

CONSTRUCTION DIAGRAM

SRS warning lamp

Front passenger’s side air bag

module

Driver’s side air bag module

Clock spring

Diagnosis connector

SRS-ECU

Seat belt with pretensioner

INTERIOR –

Supplemental Restraint System (SRS)

6-10

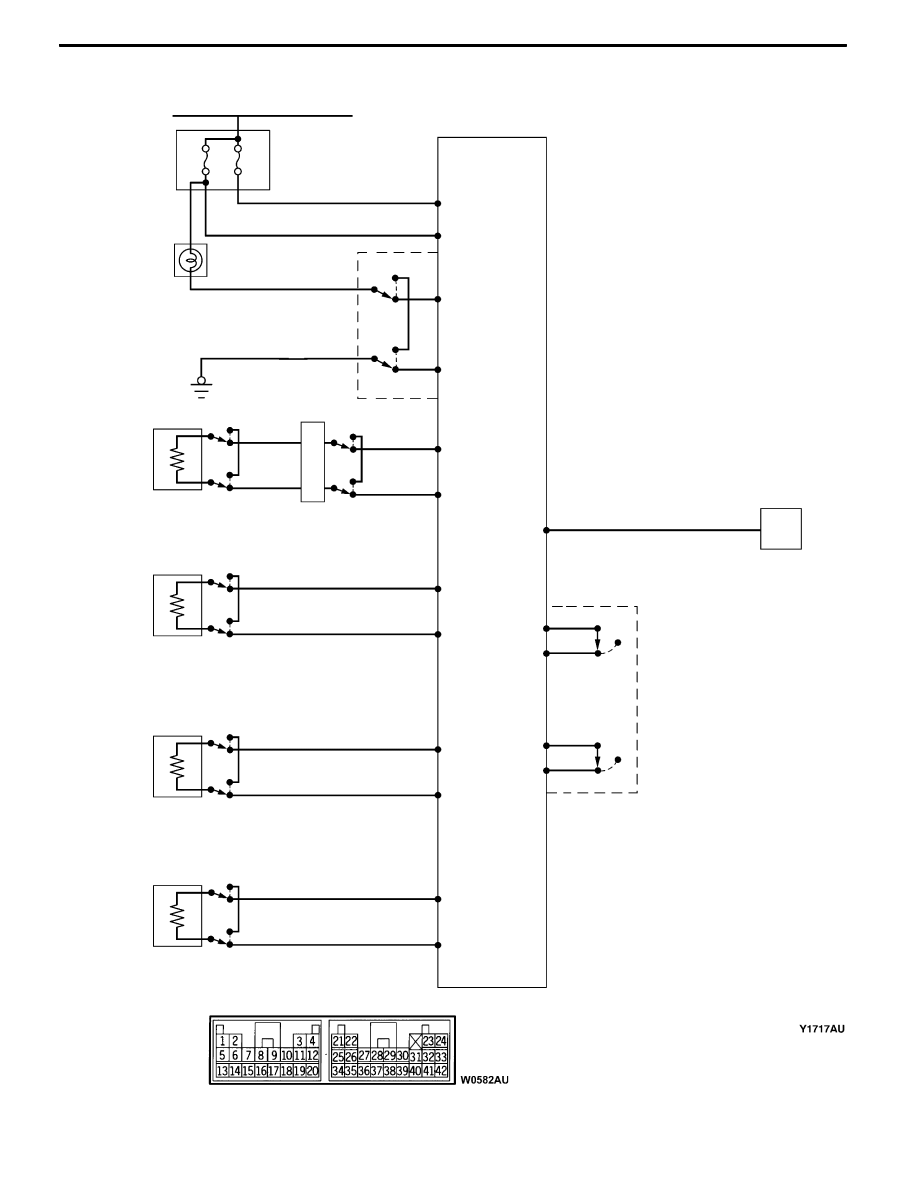

SRS SYSTEM CIRCUIT DIAGRAM

Ignition switch (IG

)

J/B

(multi-purpose fuse)

Combination meter

Connector lock switch*

OFF

Driver’s side

air bag module

(squib)

Passenger ’s

side air bag

module(squib)

Seatbelt with

pre-tensioner

(L.H.)

Clock spring

OFF

Diagnosis connector

SRS-ECU

N_23

7.5A

N_2

7.5A

OFF

C-207

C-204

C-109

D-28

D-26

C-22

SRS-ECU connector

Connector short-circuit system*

NOTE:

When the connector is installed: ON

When the connector is removed: OFF

Connector short-circuit system*

Connector lock switch*

Seatbelt with

pre-tensioner

(R.H.)

INTERIOR –

Supplemental Restraint System (SRS)

6-11

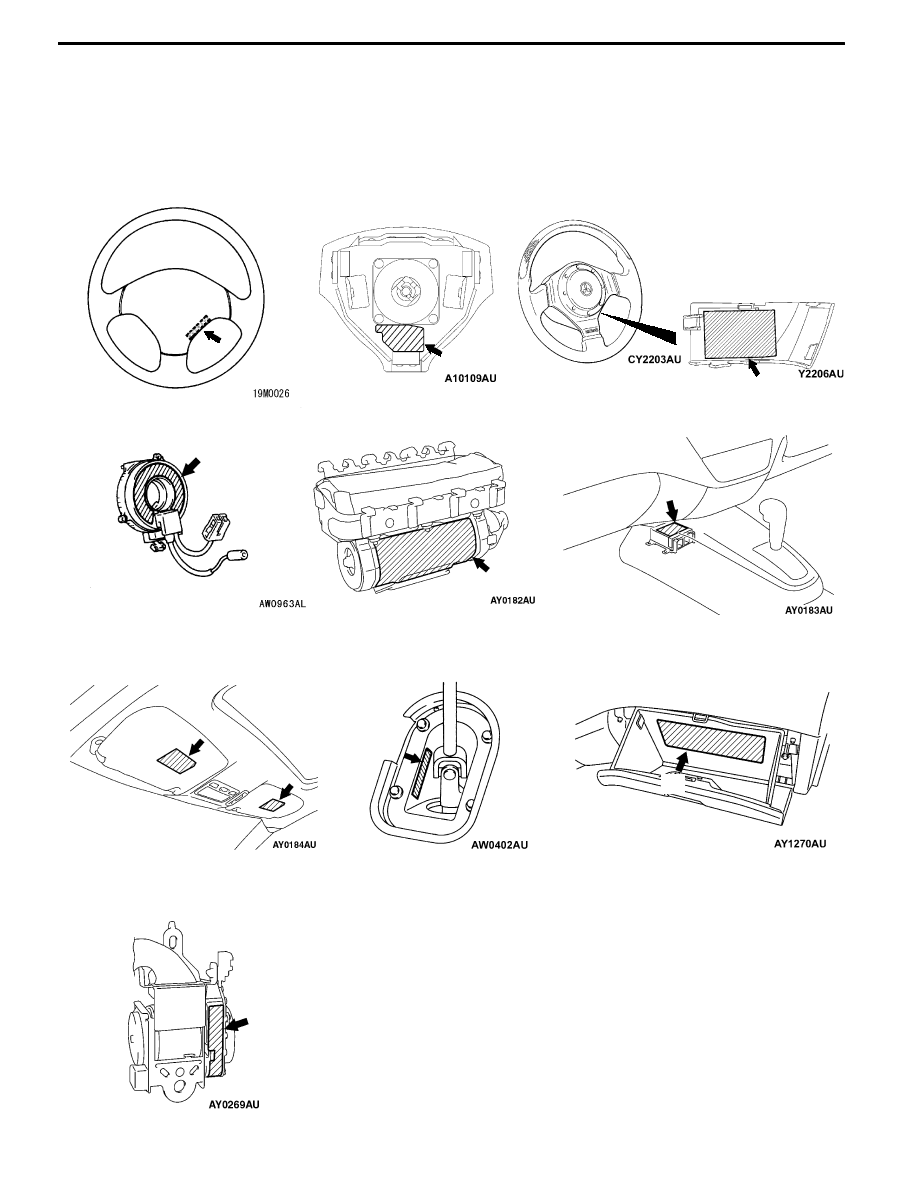

CAUTION LABELS

Labels to indicate cautions regarding the handling

and the services of SRS air bag are attached on the

position shown in the following illustration.

Steering wheel

Driver’s side bag module

Clock spring

Front passenger’s side air bag module

SRS-ECU

Sun visor

Steering joint cover

Glove box

Cover

Seat belt with pretensioner

<TYPE 1>

<TYPE 2>

NOTE

(1) Type 1 : Steering wheel/air bag module separation type

(2) Type 2 : Steering wheel/air bag module integrated type

INTERIOR –

Supplemental Restraint System (SRS)

6-12

A. CAUTION: SRS

BEFORE REPLACING STEERING WHEEL,

READ SERVICE MANUAL,THIS AIR BAG

MODULE CANNOT BE REPAIRED. DO NOT

DISASSEMBLE OR TAMPER.

B. DANGER

CONTENTS ARE EXTREMELY FLAMMABLE.

DO NOT PROBE WITH ELECTRICAL DE-

VICES OR OTHER WISE TEMPER WITH IN

ANY WAY.

C. CAUTION: SRS CLOCK SPRING

THIS IS NOT A REPAIRABLE PART. IF DE-

FECTIVE, REPLACE ENTIRE UNIT ACCORD-

ING TO THE SERVICE MANUAL IN-

STRUCTIONS. TO RE-CENTER: ROTATE

CLOCKWISE UNTIL TIGHT. THEN ROTATE

IN OPPOSITE DIRECTION ROUGHLY 3

TURNS AND ALIGN ARROWS "A.

D. WARNING: FLAMMABLE/EXPLOSIVE SRS

AIR BAG MODULE TO AVOID SERIOUS INJU-

RY:
D

DO NOT REPAIR, DISASSEMBLE OR

TAMPER.

AVOID CONTACT WITH FLAME OR

ELECTRICITY.

DO NOT DIAGNOSE/USE NO TEST

EQPT OR PROBES.

STORE BELOW 200°F (93°C).

BEFORE DOING ANY WORK INVOLVING

MODULE, READ SERVICE MANUAL FOR

IMPORTANT FURTHER DATA.

E. CAUTION:

DO NOT DISASSEMBLE OR DROP. IF DE-

FECT, REFER TO SERVICE MANUAL.

F. WARNING TO AVOID SERIOUS INJURY:

THE AIR BAG DOES NOT SAFETY BELT.

FOR MAXIMUM SAFETY PROTECTION

IN ALL TYPES OF CRASHES,YOU MUST

ALWAYS WEAR YOUR SAFETY BELT.

DO NOT INSTALL REARWARD-FACING

CHILD SEATS IN ANY FRONT PAS-

SENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY

CLOSE TO THE AIR BAG.

DO NOT PLACE ANY OBJECTS OVER

THE AIR BAG OR BETWEEN THE AIR

BAG AND YOURSELF.

SEE THE OWNER’S MANUAL FOR FUR-

THER INFORMATION AND EXPLANA-

TIONS.

G. WARNING: SRS

FIX STRG. WHEEL AT TIRES STRAIGHT

AHEAD BEFORE GEARBOX REMOVAL.

OTHER WISE, MAY DAMAGE SRS CLOCK

SPRING MAKING SRS SYSTEM INOPERA-

TIVE, RISKING SERIOUS DRIVER INJURY.

H. AIR BAG SYSTEM INFORMATION

THIS VEHICLE HAS AN AIR BAG SYSTEM

WHICH WILL SUPPLEMENT THE SEAT BELT

IN CERTAIN FRONTAL COLLISIONS. THE

AIR BAG IS NOT A SUBSTITUTE FOR THE

SEAT BELT IN ANY TYPE OF COLLISION.

THE DRIVER AND ALL OTHER OCCUPANTS

SHOULD WEAR SEAT BELTS AT ALL TIME.

WARNING!

IF THE “SRS” WARNING LIGHT DOES NOT

ILLUMINATE FOR SEVERAL SECONDS

WHEN THE IGNITION KEY IS TURNED TO

“ON” OR THE ENGINE IS STARTED, OR IF

THE WARNING LIGHT STAYS ON WHILE

DRIVING, TAKE THE VEHICLE TO YOUR

NEAREST AUTHORIZED DEALER IMMEDI-

ATELY. ALSO, IF VEHICLE FOR SERVICE

IMMEDIATELY.

THE AIR BAG SYSTEM MUST BE IN-

SPECTED BY AN AUTHORIZED DEALER

TEN

YEARS

AFTER

THE

VEHICLE

MANUFACTURE DATE SHOWN ON THE

CERTIFICATION LABEL LOCATED ON THE

LEFT FRONT DOOR-LATCH POST OR DOOR

FRAME.

READ THE “SRS” SECTION OF YOUR OWN-

ER’S MANUAL BEFORE DRIVING FOR IM-

PORTANT INFORMATION ABOUT OPERA-

TION AND SERVICE OF THE AIR BAG SYS-

TEM.

WHEN YOU ARE GOING TO DISCARD YOUR

GAS GENERATOR OR VEHICLE, PLEASE

SEE YOUR DEALER.

DANGER: SEAT BELT PRETENSIONER
D

DO NOT IMPACT. DISMANTLE OR

INSTALL IT INTO ANOTHER VEHICLE.

SERVICE OR DISPOSE OF IT AS DI-

RECTED IN THE REPAIR MANUAL.
