CIRCUIT DIAGRAMS –

Central Door Locking System
<With Keyless Entry System>

C-60

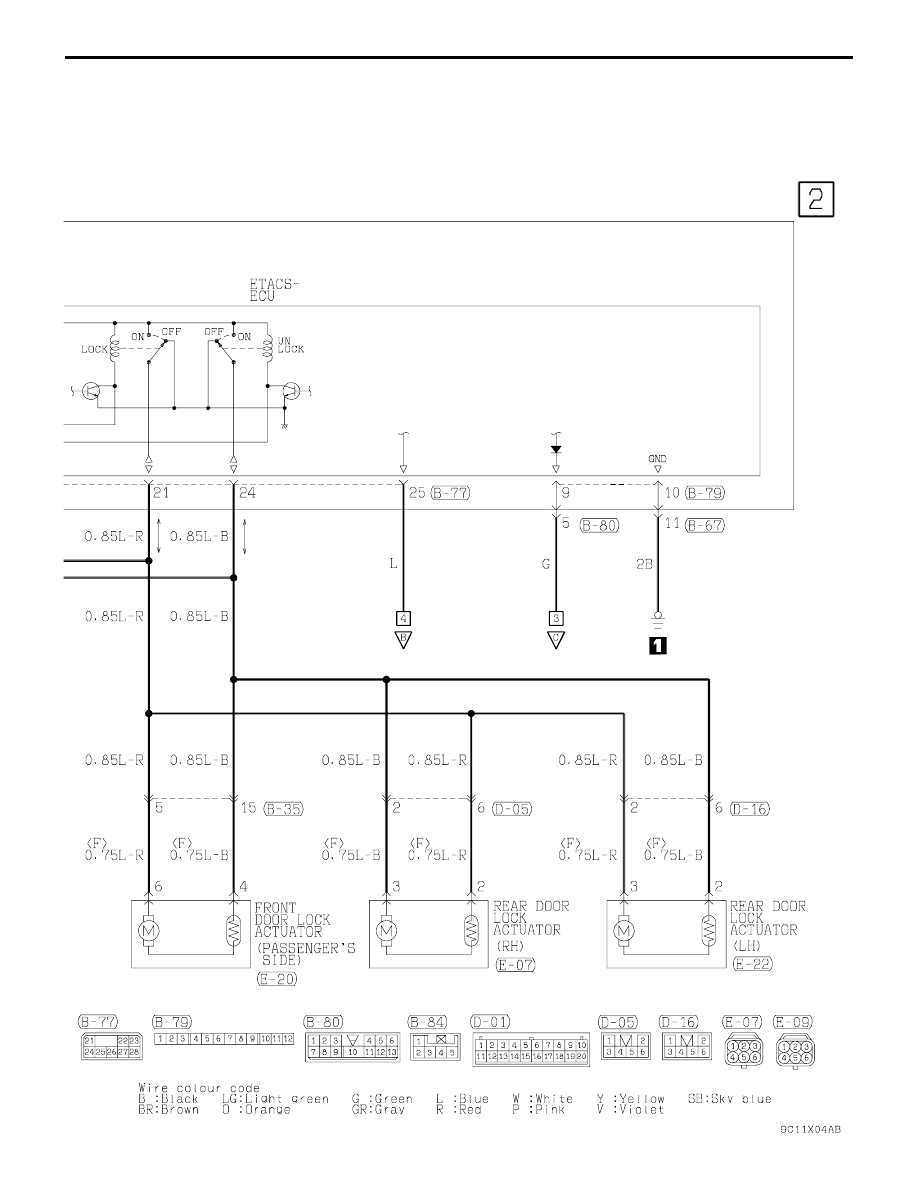

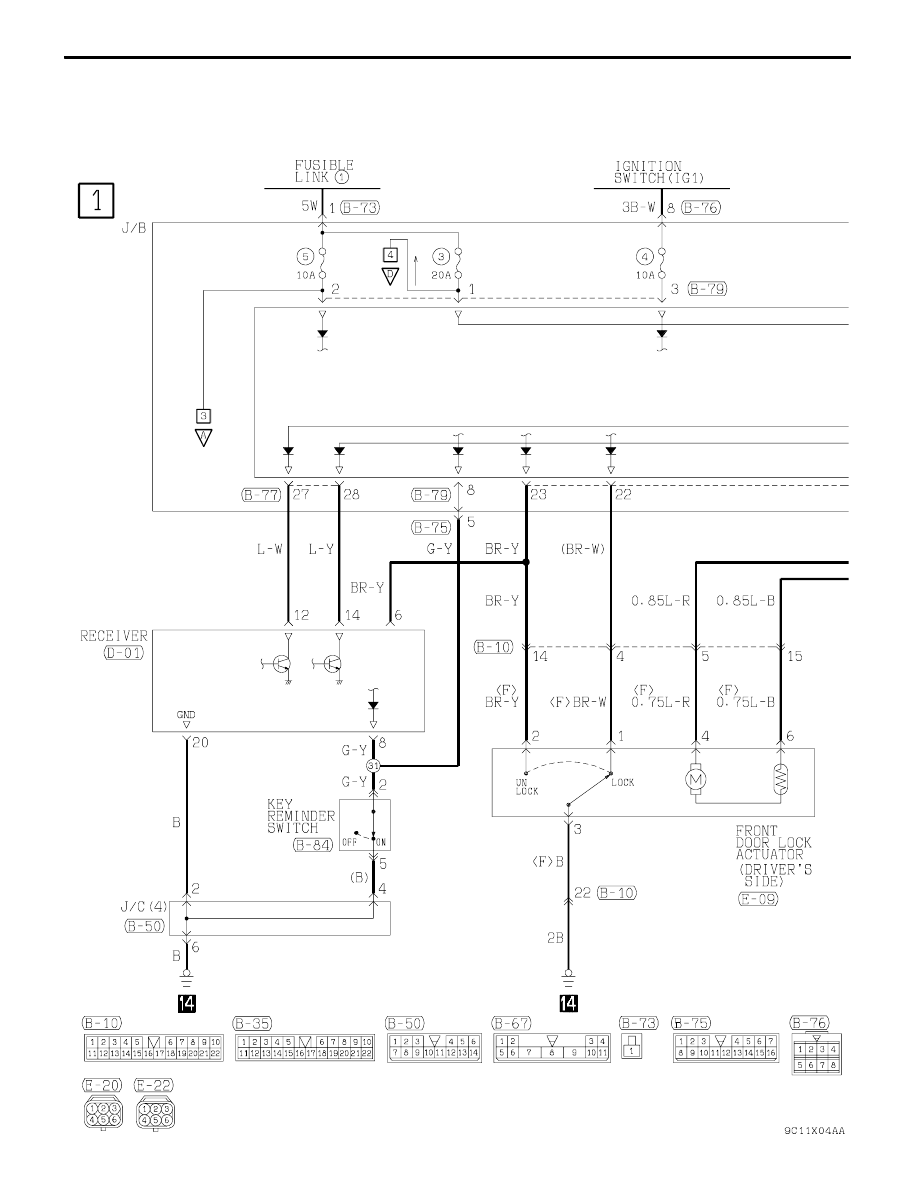

CENTRAL DOOR LOCKING SYSTEM
 <WITH KEYLESS ENTRY SYSTEM>

CIRCUIT DIAGRAMS –

Central Door Locking System
<With Keyless Entry System>

C-61

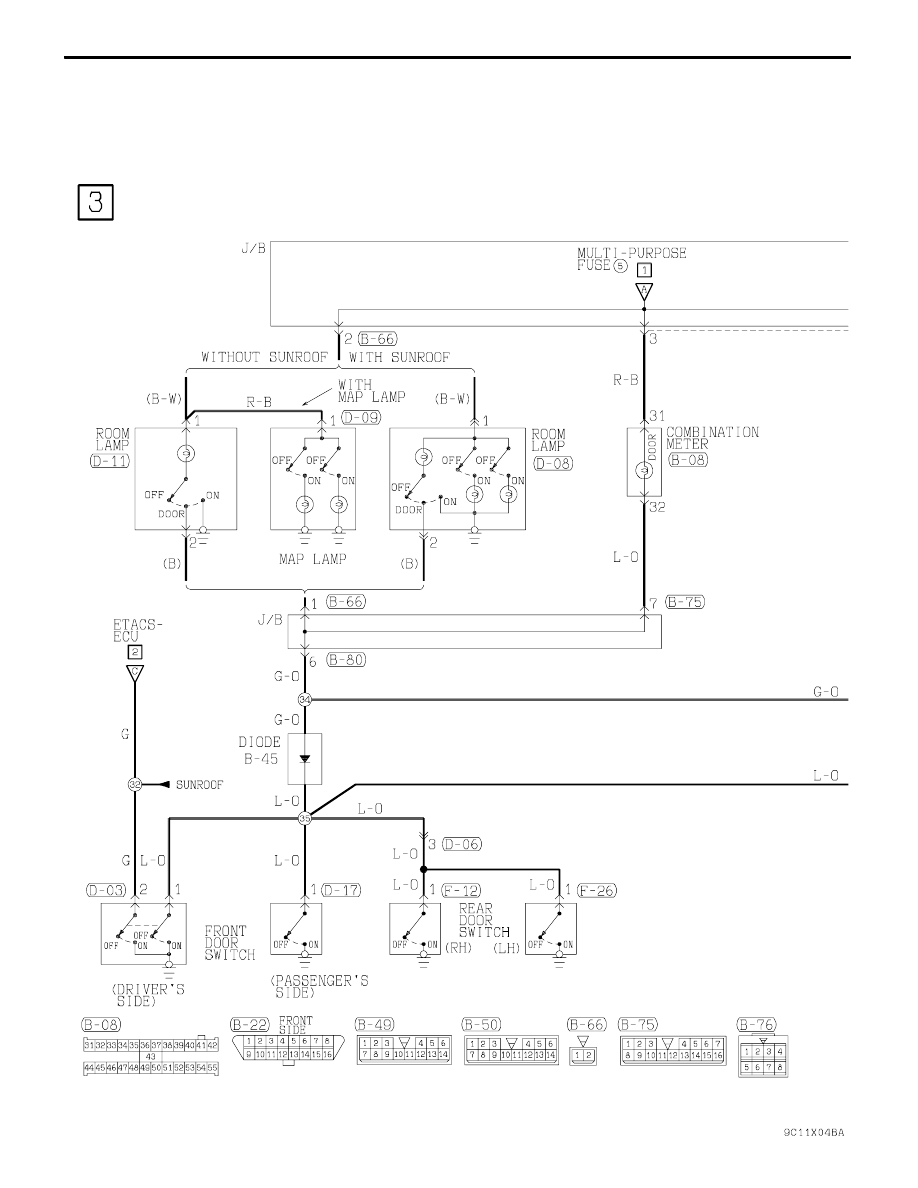

CIRCUIT DIAGRAMS –

Central Door Locking System
<With Keyless Entry System>

C-62

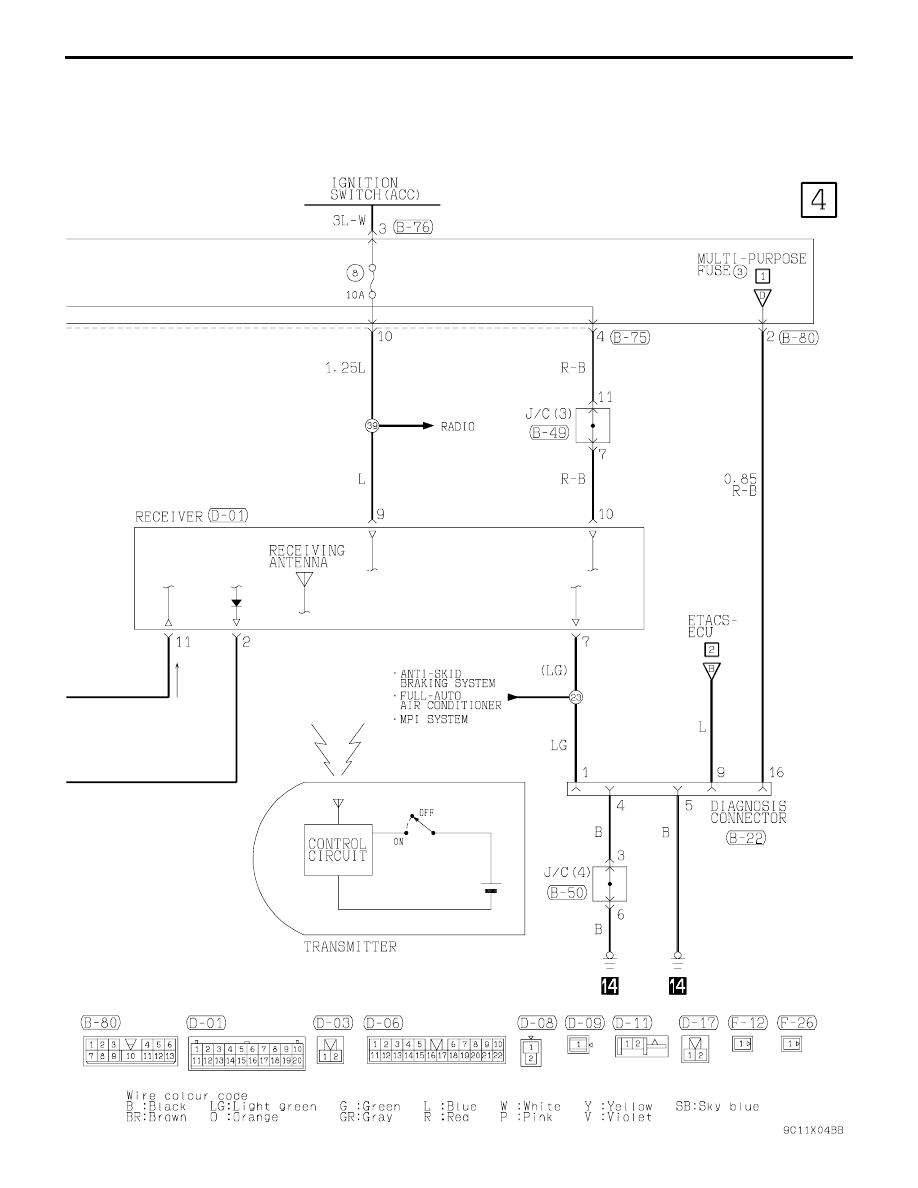

CENTRAL DOOR LOCKING SYSTEM <WITH KEYLESS ENTRY SYSTEM>
(CONTINUED)

CIRCUIT DIAGRAMS –

Central Door Locking System
<With Keyless Entry System>

C-63
