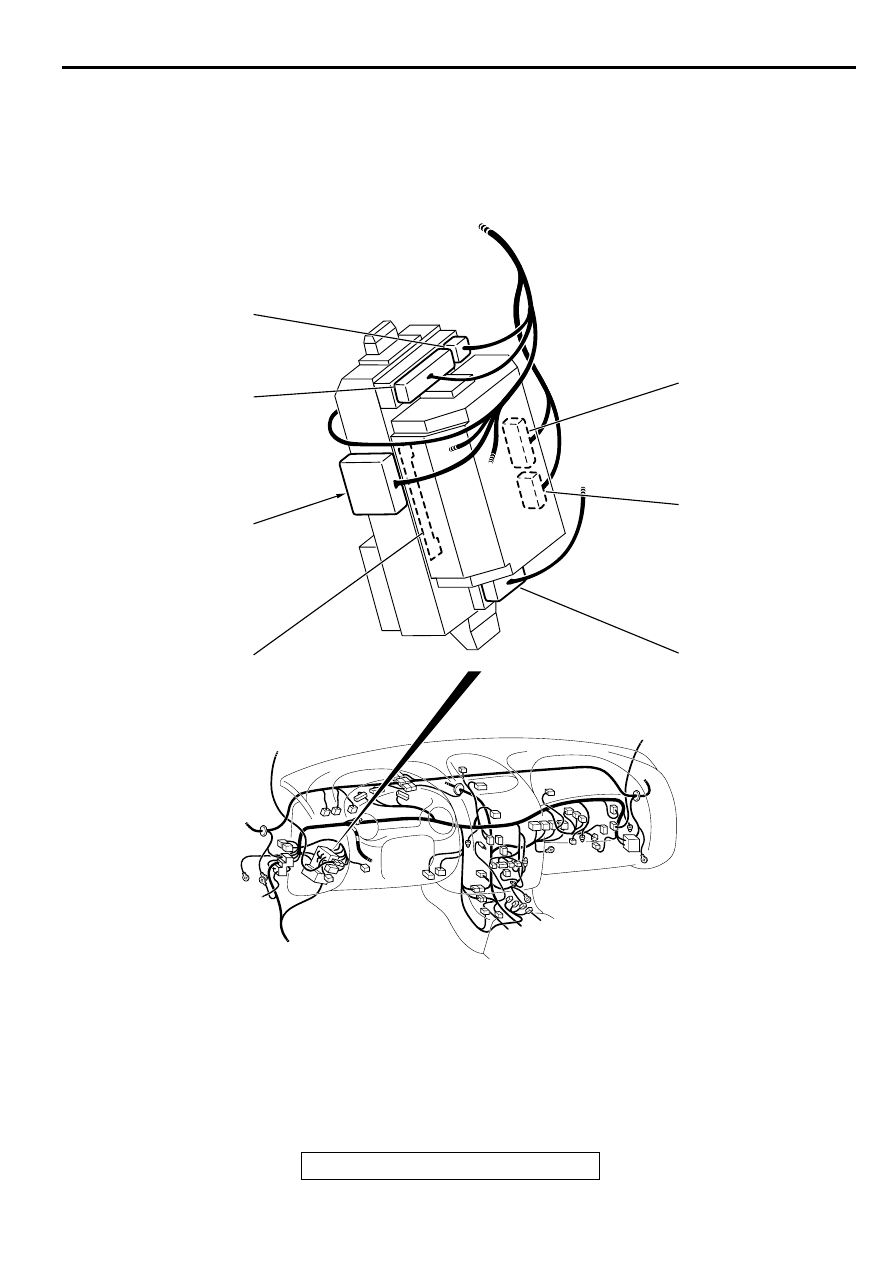

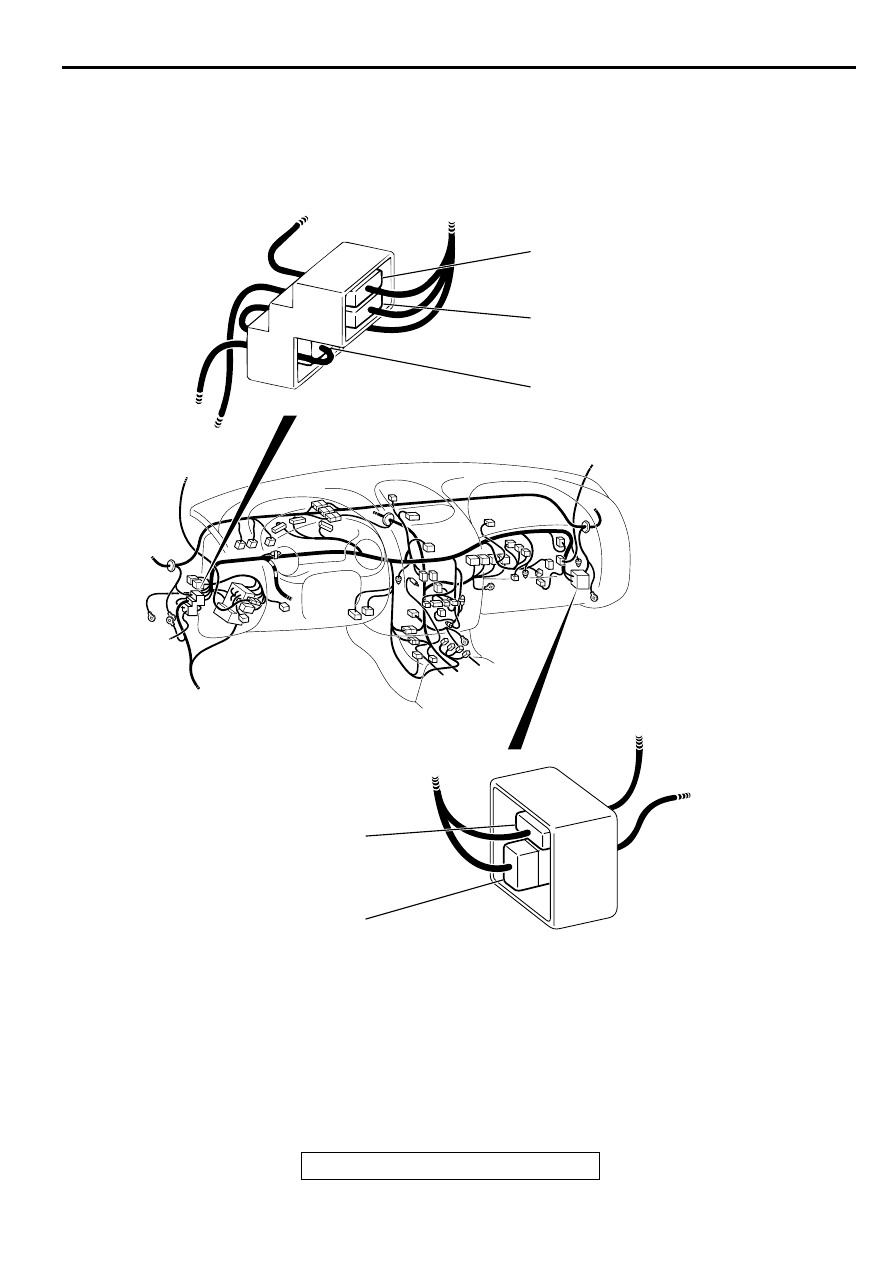

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-21

ACX02057

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

AG

CONNECTOR BLOCK (LH)

CONNECTOR BLOCK (RH)

C-89

C-90

C-91

C-94

C-95

C-91

(32-B)

INSTRUMENT PANEL WIRING
HARNESS AND DOOR WIRING
HARNESS (LH) COMBINATION

C-94

(14)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS (RH) COMBINATION

C-95

(32)

INSTRUMENT PANEL WIRING
HARNESS AND DOOR WIRING
HARNESS (RH) COMBINATION

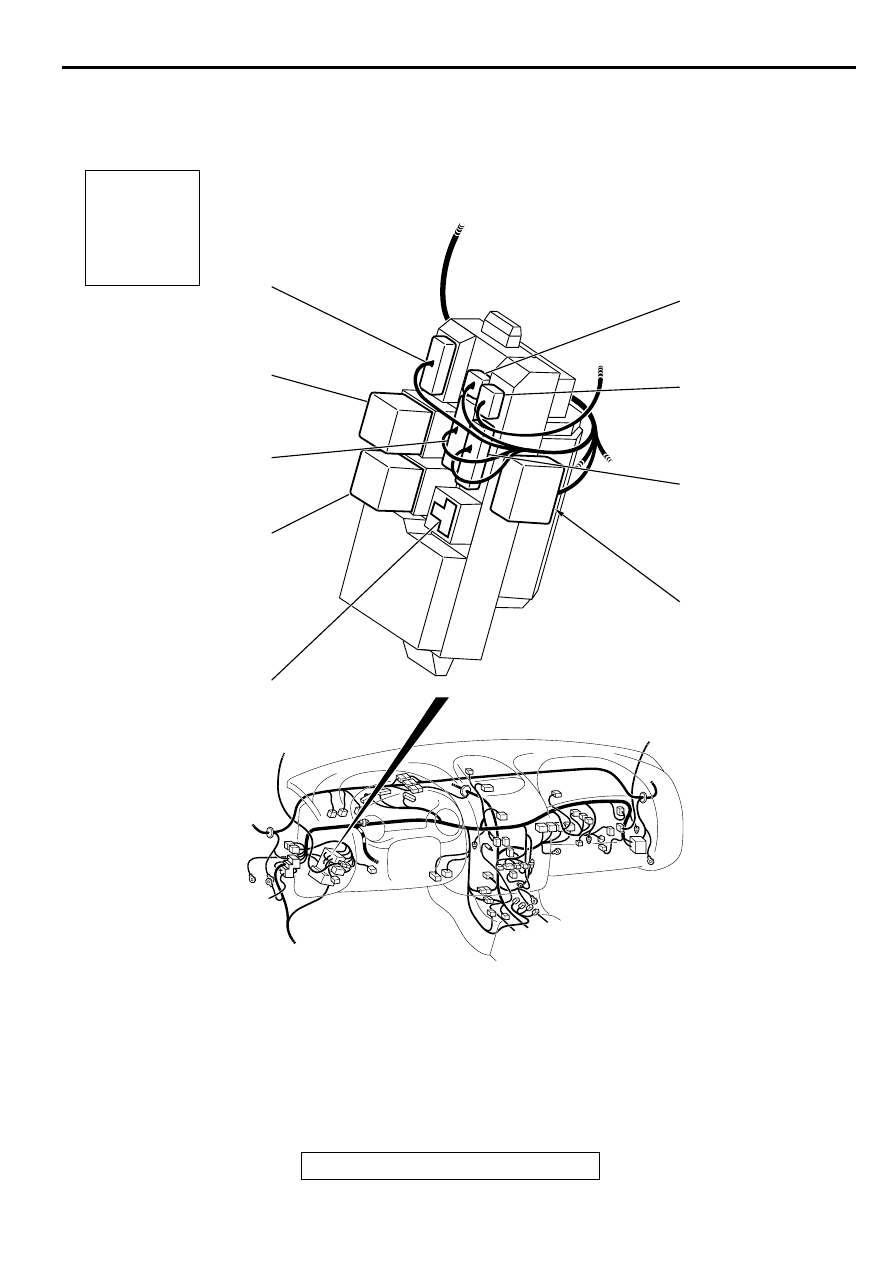

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-22

AC003024

Connector
symbol

-101
thru
-114

C

A

JUNCTION BLOCK

(FRONT VIEW)

C-101

C-108

C-107

C-106

C-105

C-102

C-103

C-104

DEDICATED
FUSE

C-101 (6-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-102 (10-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-103 (6-B)

ROOF WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-104 (20-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-105 (3)

NO CONNECTION

C-106 (5)

DEFOGGER RELAY

C-107 (22-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-23

ACX02059 AC

JUNCTION BLOCK

(REAR VIEW)

C-110

C-109

DEDICATED
FUSE

C-114

C-113

C-111

C-112

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

C-108 (5)

BLOWER RELAY

C-109 (18-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-110 (1-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-111 (16-B)

ETACS-ECU

C-112 (20-B)

ETACS-ECU

C-113 (19-B)

FLOOR WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-114 (20)

ETACS-ECU

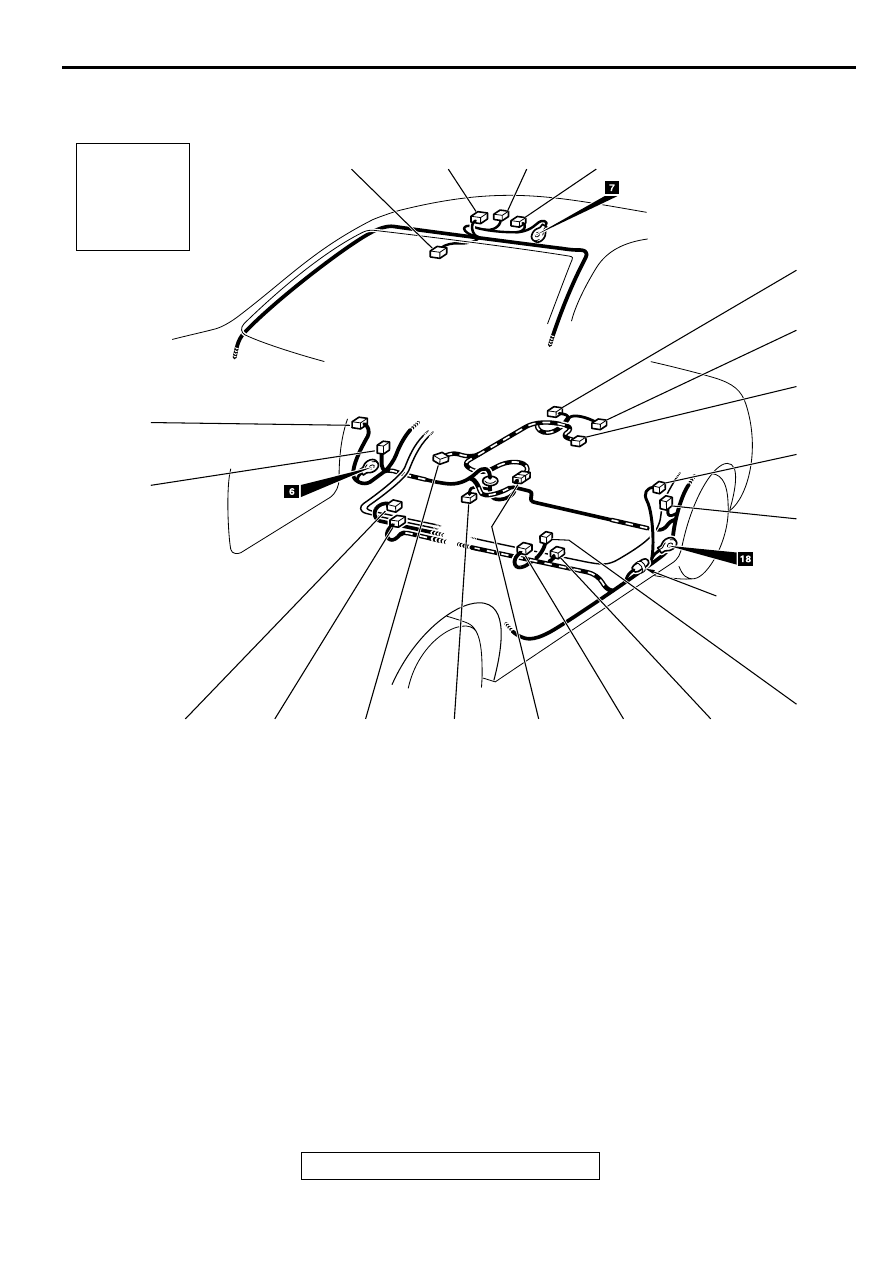

FLOOR AND ROOF <ECLIPSE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-24

FLO O R  A N D  R O O F <ECLIPSE>

M1801000900060

AC002708

Connector
symbol

D

AB

D-23

D-03
D-04

D-05

D-06

D-08

D-09

D-10

D-11

D-12

JOINT
GROUND
POINT (2)

D-13

D-14

D-15

D-16

D-17

D-18

D-19

D-20

D-02

D-01

D-01

(3)

DOOR SWITCH (RH)

D-02

(2)

SIDE IMPACT SENSOR (RH)
<WITH SIDE AIR BAG>

D-03

(4-B)

DOME LIGHT <WITH SUNROOF>

D-04

(3)

DOME LIGHT
<WITHOUT SUNROOF>

D-05

(6-B)

SUNROOF SWITCH

D-06

(10)

SUNROOF ASSEMBLY

D-08

(2-GR)

WHEEL SPEED SENSOR
(REAR: RH) <ABS>

D-09

(2-B)

WHEEL SPEED SENSOR
(REAR: LH) <ABS>

D-10

(2-B)

EVAPORATIVE EMISSION
VENTILATION SOLENOID

D-11

(3)

DOOR SWITCH (LH)

D-12

(2)

SIDE IMPACT SENSOR (LH)
<WITH SIDE AIR BAG>

D-13

(2)

SEAT BELT SWITCH

D-14

(2)

POWER SEAT ASSEMBLY

D-15

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(LH)

D-16

(10-B)

FLOOR WIRING HARNESS AND
FUEL WIRING HARNESS
COMBINATION

D-17

(5-GR)

FUEL PUMP AND GAUGE UNIT

D-18

(3-B)

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

D-19

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(RH)

D-20

(18)

AMPLIFIER <7-SPEAKER SYSTEM>

D-23

(5-B)

COMPASS SENSOR
