CONDENSER AND CONDENSER FAN MOTOR

TSB Revision

HEATING AND AIR CONDITIONING

55-41

REMOVAL SERVICE POINT

<<A>> LIQUID PIPE A/DISCHARGE HOSE
DISCONNECTION

CAUTION

Seal the hoses completely, otherwise the compressor oil
and receiver will absorb water vapor easily, possibly
damaging the compressor and deteriorating performance.
Plug the disconnected pipe, hose and condenser nipple to
prevent foreign material from getting into them.

INSTALLATION SERVICE POINT

>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount
of compressor oil and install it. (to the vehicle).

••••

Compressor oil: SUN PAG 56

••••

Quantity: 15 cm

3

 (0.5 floz)

INSPECTION

M1552006800068

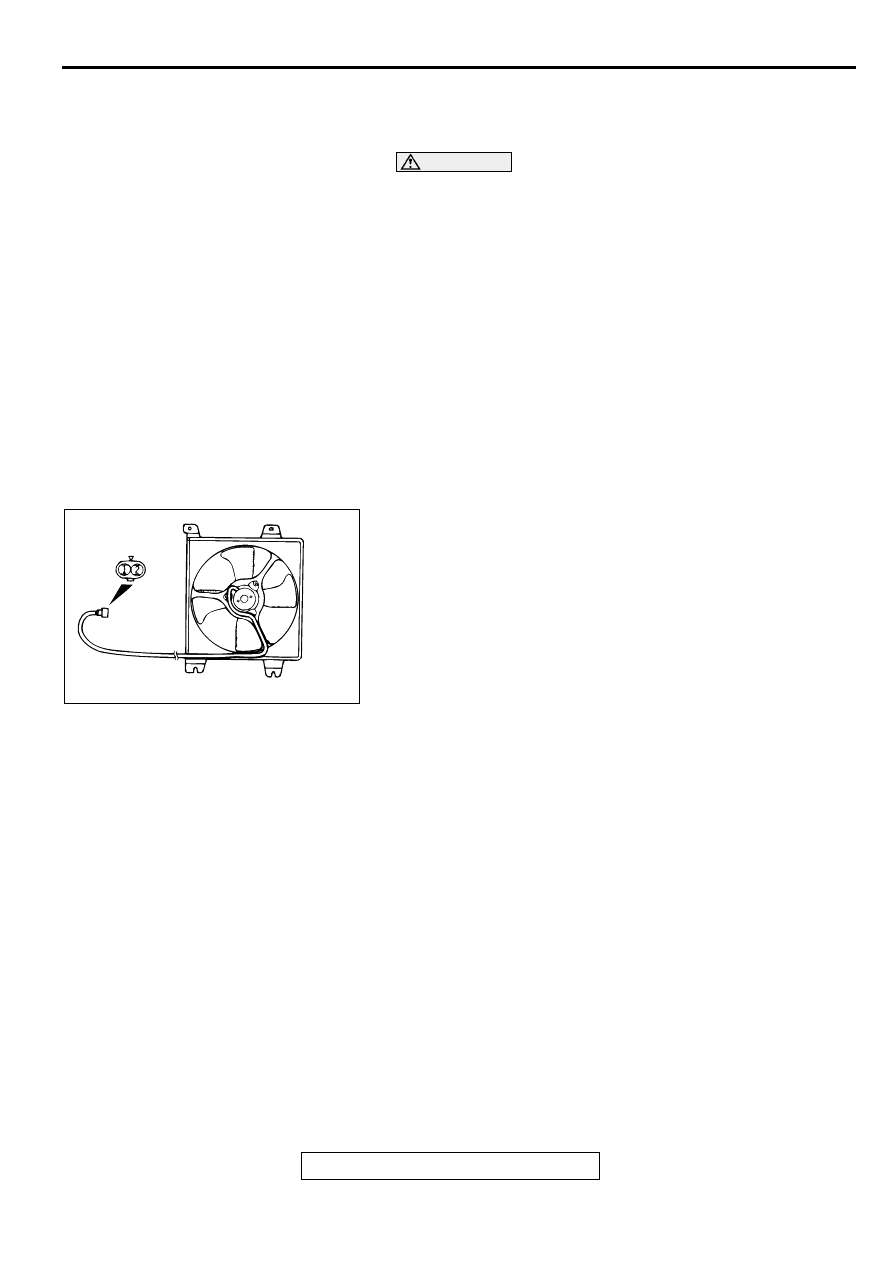

CONDENSER FAN MOTOR CHECK

Check to be sure that the condenser fan motor operates when
battery voltage is applied to terminal 2 and terminal 1
grounded.

AC001417AB

REFRIGERANT LINE

TSB Revision

HEATING AND AIR CONDITIONING

55-42

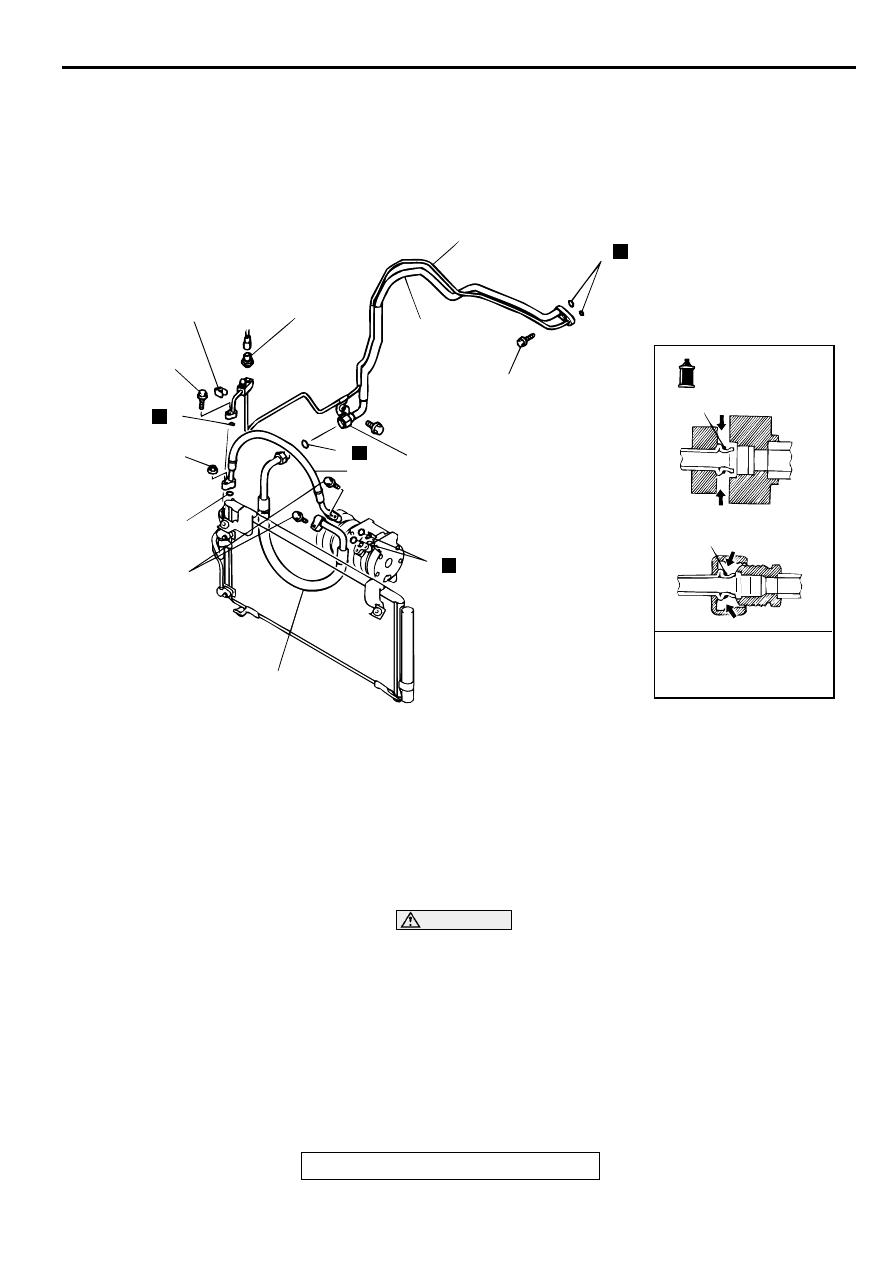

R EFR IG ER A N T LIN E

M1552006400071

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

•

Refrigerant Discharging and Charging (Refer to

P.55-21

.)

REMOVAL SERVICE POINT

<<A>> HOSE/PIPE DISCONNECTION

CAUTION

Seal the hoses completely, otherwise the compressor oil
and receiver will absorb water vapor easily, possibly
damaging the compressor and deteriorating performance.
Plug the disconnected hose, the condenser, the evaporator and
the compressor nipple to prevent foreign material from getting
into them.

AC001418

1

2

3

4

5

6

6

6

6

6

7

4.9 ± 1.0 N·m
44 ± 8 in-lb

4.9 ± 1.0 N·m
44 ± 8 in-lb

25 ± 4 N·m
18 ± 4 in-lb

4.9 ± 1.0 N·m
44 ± 8 in-lb

13 ± 2 N·m
109 ± 21 in-lb

N

N

N

N

PIPNG CONNECTION

6

6

COMPRESSOR OIL:
SUN PAG 56

AB

REMOVAL STEPS

1.

CLAMP

<<A>>

>>A<<

2.

SUCTION HOSE

<<A>>

3.

DISCHARGE HOSE

<<A>>

4.

LIQUID PIPE A

<<A>>

5.

A/C PIPE

6.

O-RING

7.

DUAL PRESSURE SWITCH

REMOVAL STEPS (Continued)

REFRIGERANT LINE

TSB Revision

HEATING AND AIR CONDITIONING

55-43

INSTALLATION SERVICE POINT

>>A<< SUCTION HOSE INSTALLATION
When replacing the suction hose, refill them with a specified
amount of compressor oil, and then install them.

Compressor oil: SUN PAG 56

Quantity:

••••

Suction hose: 10 cm

3

 (0.3 floz)

VENTILATORS

TSB Revision

HEATING AND AIR CONDITIONING

55-44

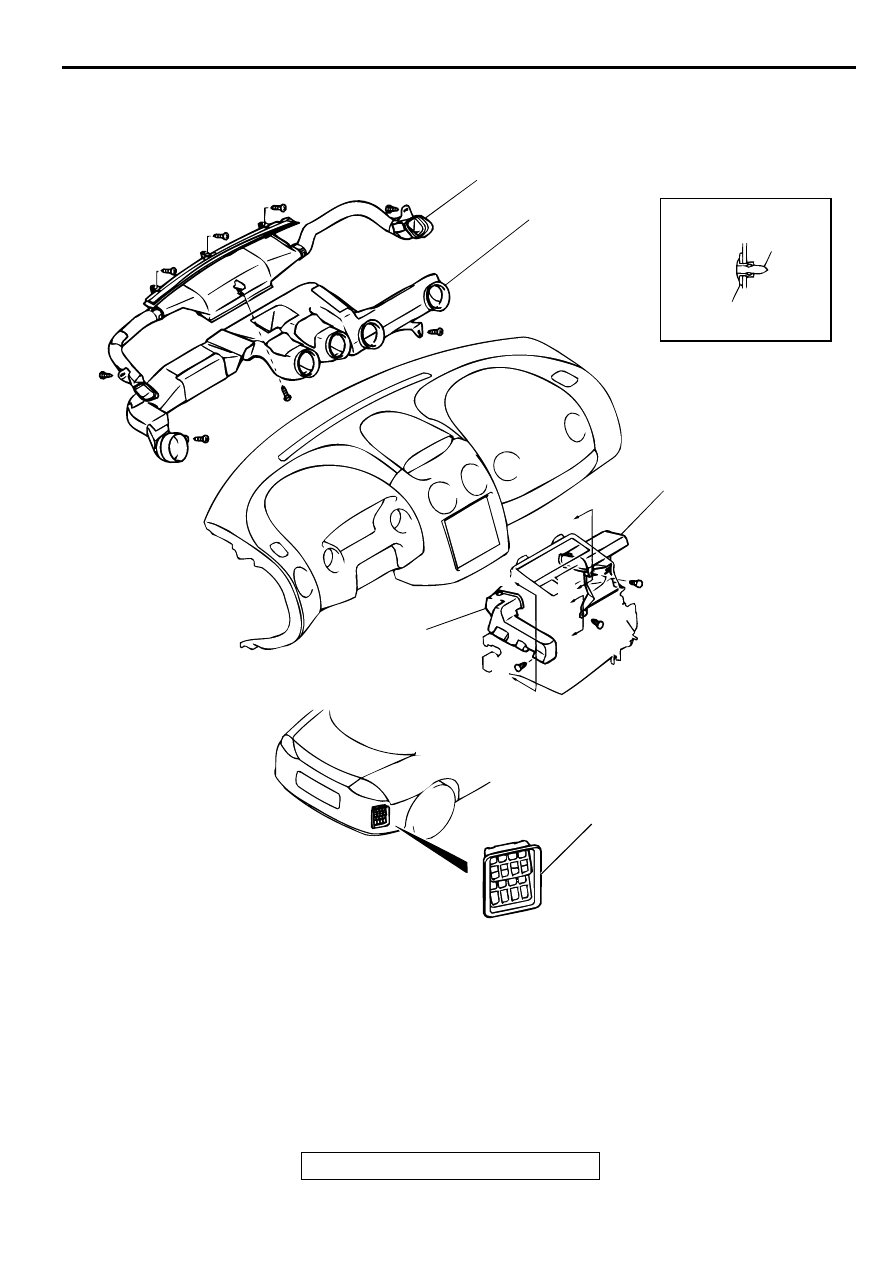

VEN TILATO R S

M1553001600073

REMOVAL AND INSTALLATION

AC001419

1

2

3

3, 4

4

CLIP

A

A

A

A

A

A

SECTION A - A

AB

AC003602

5

DISTRIBUTION DUCT AND
DEFROSTER NOZZLE
ASSEMBLY REMOVAL STEPS

•

INSTRUMENT PANEL
ASSEMBLY (REFER TO GROUP
52A, INSTRUMENT PANEL

P.52A-4

.)

1.

DISTRIBUTION DUCT

2.

DEFROSTER NOZZLE
ASSEMBLY
