HEATER CONTROL ASSEMBLY AND A/C SWITCH

TSB Revision

HEATING AND AIR CONDITIONING

55-29

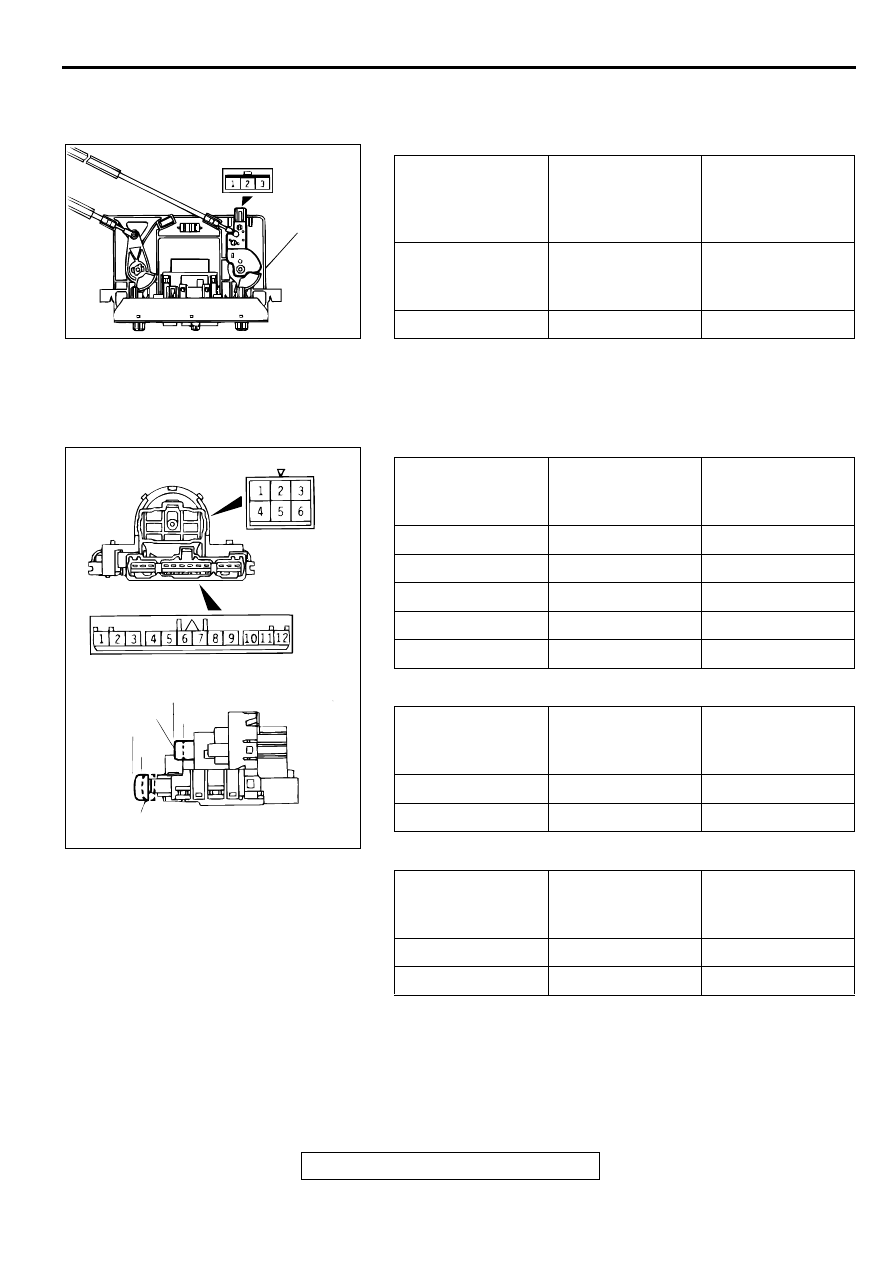

INSPECTION

M1552002500032

DEFROSTER SWITCH CONTINUITY CHECK

BLOWER SWITCH ASSEMBLY CONTINUITY
CHECK

1. BLOWER SWITCH

2. A/C SWITCH

3. INSIDE/OUTSIDE AIR CHANGEOVER SWITCH

AIR OUTLET
CHANGEOVER
CONTROL KNOB
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

DEFROSTER,
DEFROSTER/
FOOT

2-3

Less than two ohm

OTHER POSITION 1-3

Less than two ohm

AC001398

HEATER
CONTROL
ASSEMBLY

AB

SWITCH
POSITION

TESTER
CONNECTION
(CONNECTOR A)

SPECIFIED
CONDITION

0 (OFF)

-

Open circuit

1 (LO)

3-5

Less than two ohm

2 (ML)

1-3

Less than two ohm

3 (MH)

3-6

Less than two ohm

4 (HI)

3-4

Less than two ohm

SWITCH
POSITION

TESTER
CONNECTION
(CONNECTOR B)

SPECIFIED
CONDITION

Off

-

Open circuit

On

5-6

Less than two ohm

SWITCH
POSITION

TESTER
CONNECTION
(CONNECTOR B)

SPECIFIED
CONDITION

Inside air

-

Open circuit

Outside air

4-5

Continuity

AC001399

CONNECTOR A

CONECTOR B

OFF

ON

OFF

ON

A/C SWITCH

AB

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY, EVAPORATOR UNIT

TSB Revision

HEATING AND AIR CONDITIONING

55-30

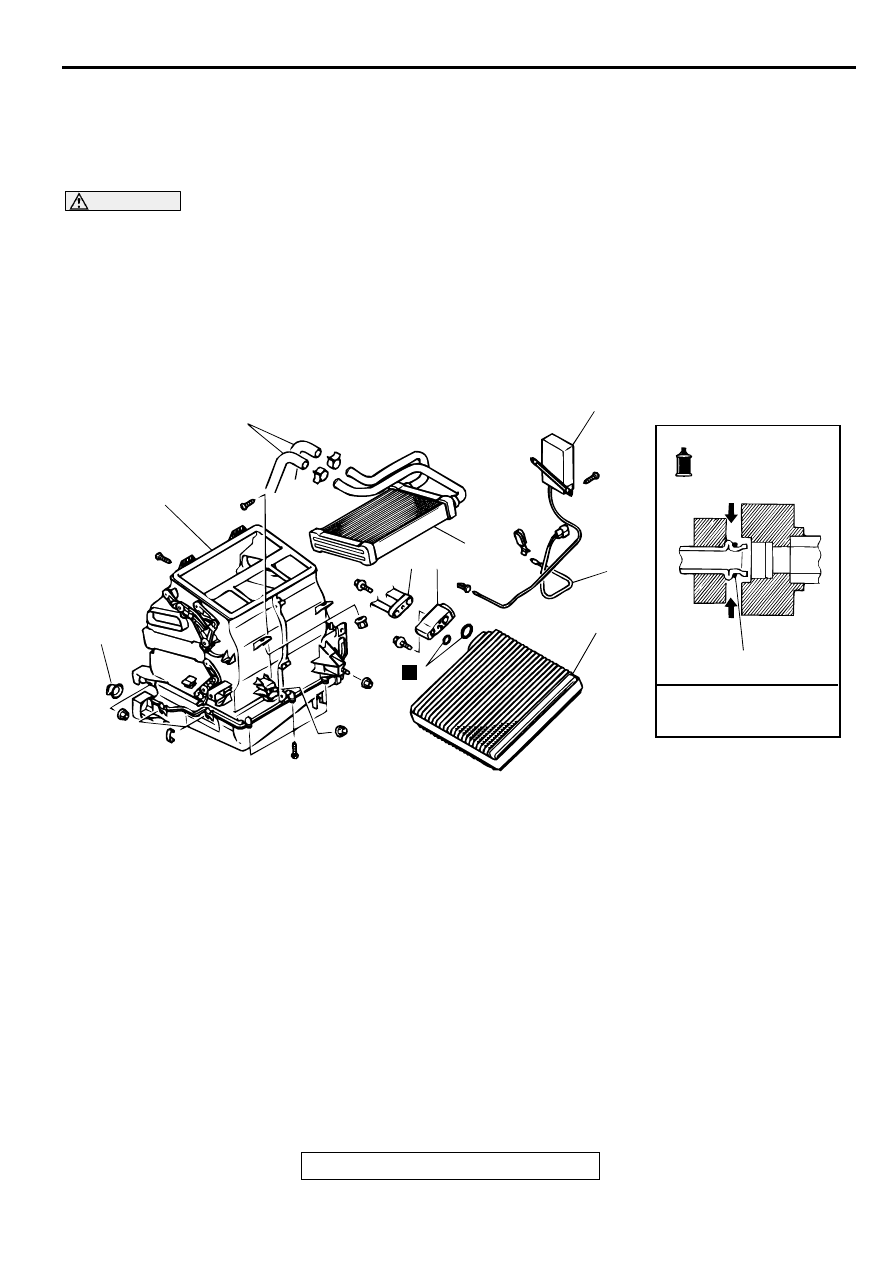

HEATER  U NIT, H EATER C O R E, B LO W ER  ASSEM B LY,

EVA PO R ATO R  U NIT

M1552011600037

REMOVAL AND INSTALLATION

WARNING

When removing and installing the heater unit, do not let it bump against the SRS-ECU or the
components.

Pre-removal and Post-installation Operation

•

Front Driver's Side Under Cover, Center Panel
Assembly, Glove Box and Front Passenger's
Side Under Cover Removal and Installation
(Refer to GROUP 52A, Instrument Panel

P.52A-

4

.)

•

Joint Duct Removal and Installation (Refer to

P.55-32

.)

AC001400

1

2

3

4

5

6

7

8

9

10

N

AB

PIPING CONNECTOR

O-RING

COMPRESSOR OIL:
SUN PAG 56

REMOVAL STEPS

1.

AUTOMATIC COMPRESSOR
CONTROLLER <VEHICLES
WITH A/C>

•

REFRIGERANT DISCHARGING
AND CHARGING <VEHICLES
WITH A/C> (REFER TO

P.55-21

.)

<<A>>

2.

A/C PIPE <VEHICLES WITH A/
C>

3.

EXPANSION VALVE

4.

O-RING <VEHICLES WITH A/C>

>>A<<

5.

EVAPORATOR

6.

THERMISTOR SENSOR

7.

DRAIN HOSE <VEHICLES WITH
A/C>

•

ENGINE COOLANT DRAINING
AND REFILLING [REFER TO
GROUP 00E, MAINTENANCE
SERVICE - ENGINE COOLANT
(CHANGE)

P.00-52

.]

8.

HEATER HOSE

•

RADIO AND TAPE PLAYER
(REFER TO GROUP 54A, AUDIO
SYSTEM - RADIO, TAPE
PLAYER, CD PLAYER AND CD
AUTO CHANGER

P.54A-180

.)

•

HEATER CONTROL ASSEMBLY
(REFER TO

P.55-26

.)

•

INSTRUMENT PANEL
ASSEMBLY (REFER TO GROUP
52A, INSTRUMENT
PANEL

P.52A-4

.)

•

FRONT DECK CROSSMEMBER

REMOVAL STEPS (Continued)

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY, EVAPORATOR UNIT

TSB Revision

HEATING AND AIR CONDITIONING

55-31

REMOVAL SERVICE POINT

<<A>> A/C PIPE REMOVAL

CAUTION

Seal the pipes completely, otherwise the compressor oil
and receiver will absorb water vapor easily, possibly
damaging the compressor and deteriorating performance.
Plug the disconnected pipe and the evaporator nipple to
prevent foreign material from getting into them.

INSTALLATION SERVICE POINT

>>A<< EVAPORATOR INSTALLATION
When replacing the evaporator, refill with a specified amount of
compressor oil and install it.

Compressor oil: SUN PAG 56

Quantity: 60 cm

3

 (2.0 floz)

•

FLOOR CONSOLE (REFER TO
GROUP 52A, FLOOR CONSOLE

P.52A-9

.)

•

INSTRUMENT PANEL CENTER
REINFORCEMENT (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-4

.)

•

FOOT DUCT (LH/RH) (REFER
TO

P.55-44

.)

9.

HEATER/COOLER UNIT

10. HEATER CORE

REMOVAL STEPS (Continued)

BLOWER ASSEMBLY AND RESISTOR

TSB Revision

HEATING AND AIR CONDITIONING

55-32

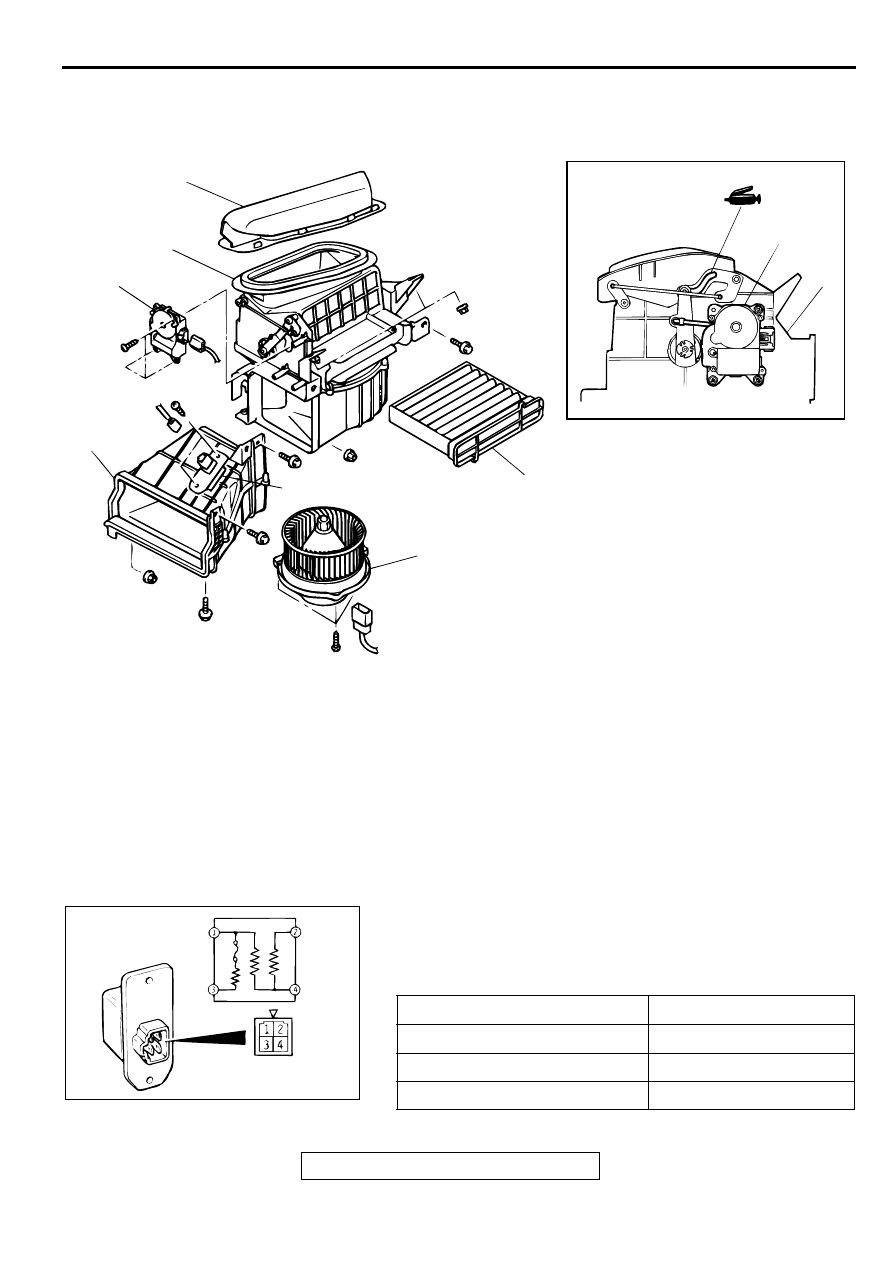

B LO W ER A SSEM B LY A N D  RESISTO R

M1551002800063

REMOVAL AND INSTALLATION

INSPECTION

M1551002900060

RESISTOR CHECK

Use an ohmmeter to measure the resistance between the
terminals. Check that the measured value is at the standard
value.

Standard value:

AC001401

1

2

3

4

5

5

6

6

7

(MOVING
PARTS)

AB

REMOVAL STEPS

•

GLOVE BOX (OUTER AND
INNER) (REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

.)

1.

AIR PURIFIER ASSEMBLY

2.

JOINT DUCT

3.

RESISTOR

4.

BLOWER FAN AND MOTOR

5.

INSIDE/OUTSIDE AIR
CHANGEOVER DAMPER
MOTOR

6.

BLOWER ASSEMBLY

7.

BLOWER DUCT

REMOVAL STEPS (Continued)

MEASUREMENT TERMINAL

STANDARD VALUE

Ω

Between terminals 3 and 2 (LO)

2.3

Between terminals 3 and 4 (ML)

1.1

Between terminals 3 and 1 (MH)

0.4

AC001402AB
