Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 696

ON-VEHICLE SERVICE

TSB Revision

HEATING AND AIR CONDITIONING

55-21

RECEIVER DRIER TEST

M1552008600060

Operate the unit and check the piping temperature by touching
the receiver drier outlet and inlet.
If there is a difference in the temperatures, the receiver drier is
restricted.
Replace the receiver drier.

PRESSURE SWITCH CHECK

M1552010400063

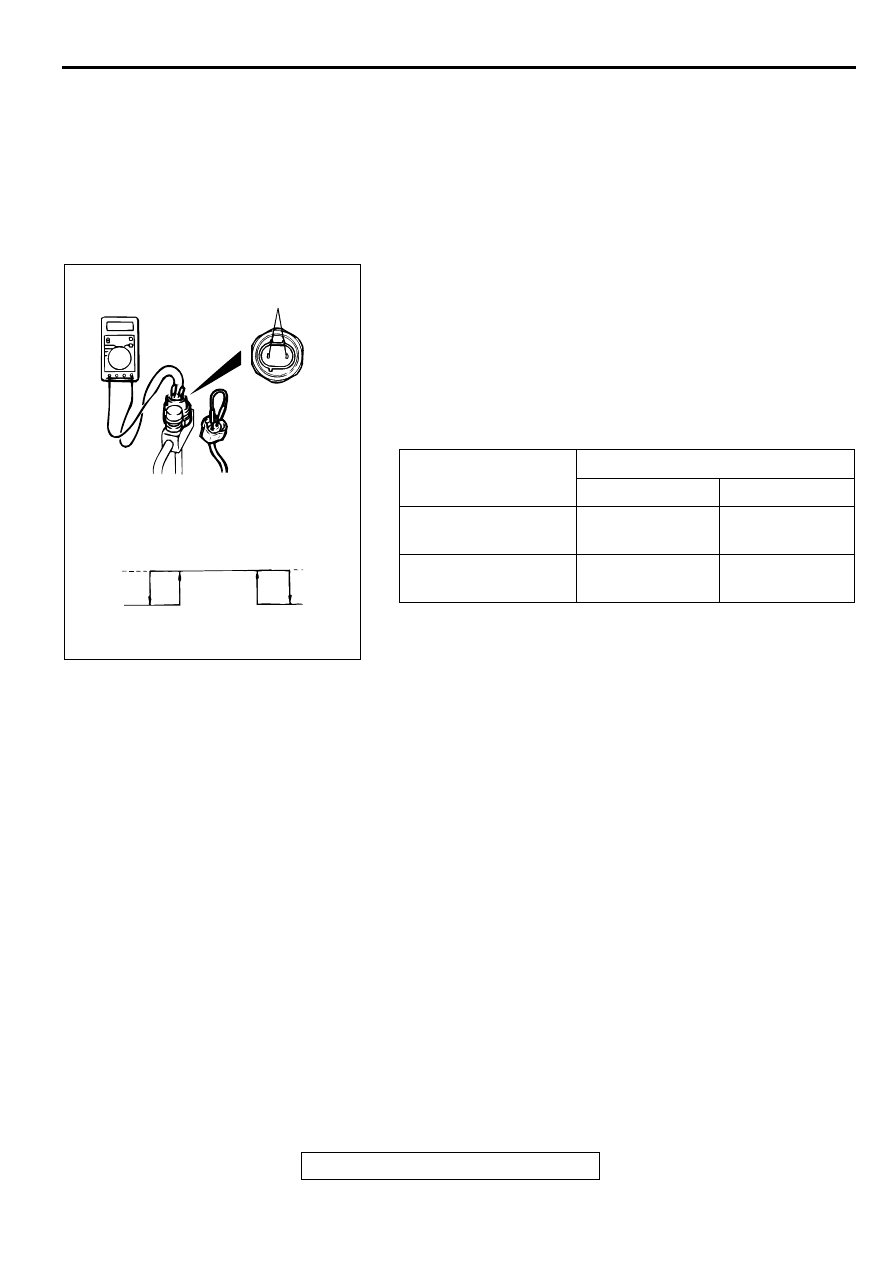

1. Remove the dual pressure switch connector and connect

the high/low pressure side terminals located on the harness
side as shown in the illustration.

2. Install a gauge manifold to the high-pressure side service

valve of the refrigerant line. (Refer to

P.55-22

3. When the high/low pressure sides of the dual pressure

switch are at operation pressure (ON) and there is continuity
between the respective terminals, then the condition is
normal. If there is no continuity, replace the switch.

COMPRESSOR DRIVE BELT ADJUSTMENT

M1552001000067

Refer to GROUP 00, Maintenance Service

−

Drive Belts

P.00-

CHARGING

M1552001200072

Use the refrigerant recovery station to charge the refrigerant.

METHOD BY USING REFRIGERANT RECOVERY
AND RECYCLING UNIT

Using the refrigerant recovery and recycling unit, refill the
refrigerant.

NOTE: Refer to that Refrigerant Recovery and Recycling Unit
Instruction Manual for operation of the unit.

DISCHARGING SYSTEM

Use the refrigerant recovery unit to discharge refrigerant gas
from the system.

NOTE: Refer to that Refrigerant Recovery and Recycling Unit
Instruction Manual for operation of the unit.

ITEMS

SWITCH POSITION

OFF

→

OFF

Low-pressure side
kPa (psi)

221 (32.1)

196 (28.4)

High-pressure side
kPa (psi)

2,354 (341.4)

2,942 (426.7)

AC001368 AB

HIGH/LOW
PRESSURE SIDE

LOW-PRESSURE
SIDE

HIGH-PRESSURE
SIDE

OFF

ON-VEHICLE SERVICE

TSB Revision

HEATING AND AIR CONDITIONING

55-22

REFILLING OF OIL IN THE A/C SYSTEM

Too little oil will provide inadequate compressor lubrication and
cause a compressor failure. Too much oil will increase
discharge air temperature.
When a compressor is installed at the factory, it contains 120

(4.1 floz) of refrigerant oil. While the A/C system is in

operation, the oil is carried through the entire system by the
refrigerant. Some of this oil will be trapped and retained in
various parts of the system.
When the following system components are changed, it is
necessary to add oil to the system to replace the oil being
removed with the component.

Compressor oil: SUN PAG 56

Quantity:

••••

Evaporator: 60 cm

(2.0 floz)

••••

Condenser: 15 cm

(0.5 floz)

••••

Suction hose: 10 cm

(0.3 floz)

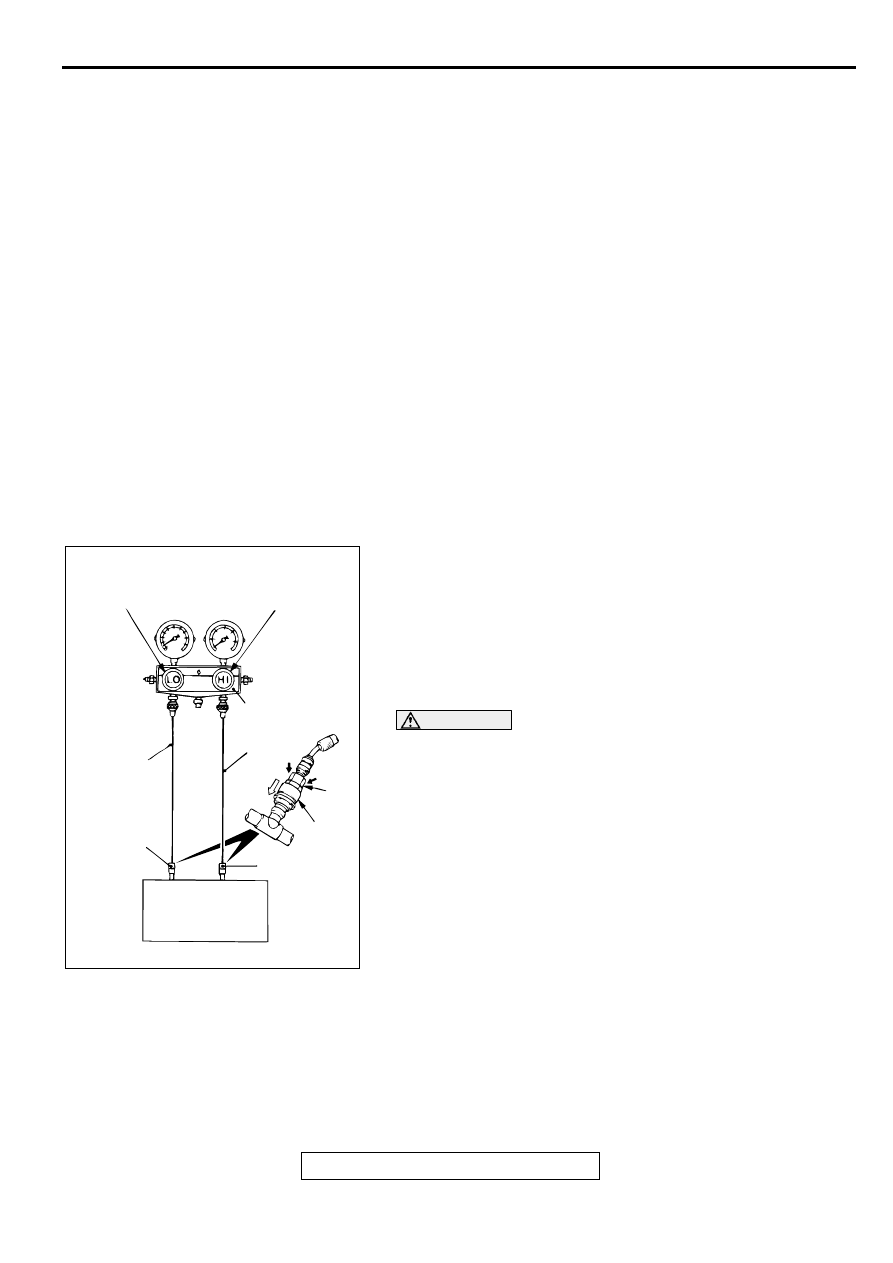

PERFORMANCE TEST

M1552001400065

1. The vehicles to be tested should be in a place that is not in

direct sunlight.

2. Close the high and low-pressure valve of the gauge

manifold.

3. Connect the charging hose (blue) to the low-pressure valve

and connect the charging hose (red) to the high-pressure
valve of the gauge manifold.

4. Install the quick joint (for low-pressure) to the charging hose

(blue), and connect the quick joint (for high-pressure) to the
charging hose (red).

CAUTION

•

To connect the quick joint, press section A firmly
against the service valve until a click is heard.

•

When connecting, run your hand along the hose while
pressing to ensure that there are no bends in the hose.

NOTE: The high-pressure service valve is on A/C pipe and the
low-pressure service valve is on the suction hose.
5. Connect the quick joint (for low-pressure) to the low-

pressure service valve and connect the quick joint (for high-
pressure) to the high-pressure service valve.

6. Start the engine.

7. Set the A/C controls as follows:

•

A/C switch: A/C

−

ON position

•

Mode selection: FACE position

•

Temperature control: MAXIMUM COOLING position

•

Air selection: RECIRCULATION position

•

Blower switch: "4" (Fast) position

8. Adjust engine speed to 1,500 r/min with A/C clutch engaged.

9. Engine should be warmed up with doors and windows

closed.

AC001388

LOW-PRESSURE
VALVE

HIGH-PRESSURE
VALVE

GAUGE MANIFOLD

CHARGING
HOSE (RED)

SLEEVE

CHARGING
HOSE (BLUE)

ADAPTOR
VALVE
(FOR
LOW-PRES-
SURE)

ADAPTOR
VALVE
(FOR HIGH-
PRESSURE)

LOW-
PRESSURE
SERVICE
VALVE

HIGH-
PRESSURE
SERVICE
VALVE

ON-VEHICLE SERVICE

TSB Revision

HEATING AND AIR CONDITIONING

55-23

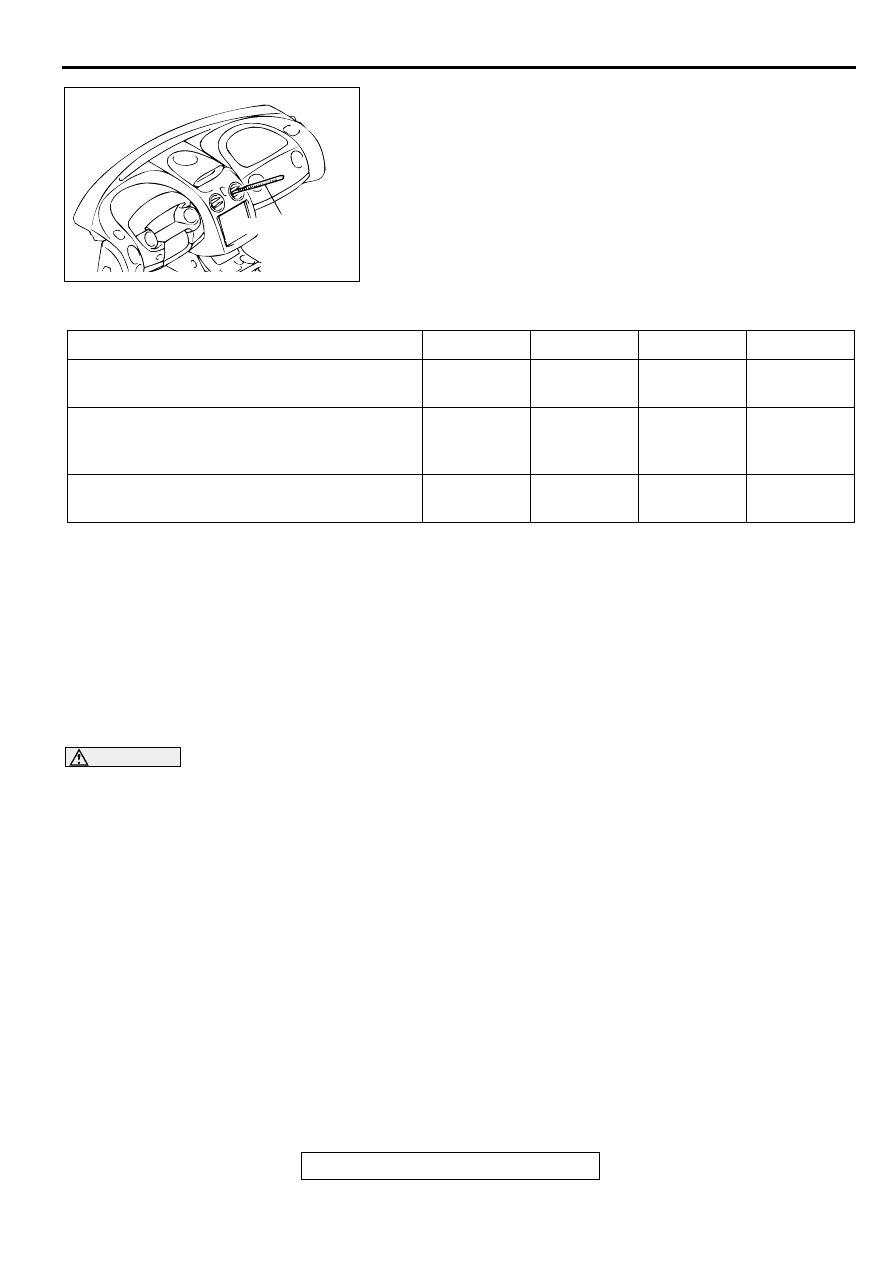

10.Insert a thermometer in the center air outlet and operate the

engine for 20 minutes.

NOTE: If the clutch cycles, take the reading before the clutch
disengages.
11.Note the discharge air temperature.

Performance Temperature Chart

REFRIGERANT LEAK REPAIR PROCEDURE

M1552001500062

LOST CHARGE

If the system has lost all charge due to a leak:
1. Evacuate the system. (Refer to

P.55-21

2. Charge the system with approximately 0.453 kg

(1 pound) of refrigerant.

3. Check for leaks.

4. Discharge the system.

5. Repair leaks.

CAUTION

Replacement filter-drier units must be sealed
while in storage. The drier used in these units
will saturate water quickly upon exposure to the
atmosphere. When installing a drier, have all
tools and supplies ready for quick assembly to
avoid keeping the system open any longer than
necessary.
6. Replace receiver drier.

7. Evacuate and charge system.

LOW CHARGE

If the system has not lost all of its refrigerant charge;
locate and repair all leaks. If it is necessary to
increase the system pressure to find the leak
(because of an especially low charge) add
refrigerant. If it is possible to repair the leak without
discharging the refrigerant system, use the
procedure for correcting low refrigerant level.

HANDLING TUBING AND FITTINGS

Kinks in the refrigerant tubing or sharp bends in the
refrigerant hose lines will greatly reduce the capacity
of the entire system. High pressures are produced in
the system when it is operating. Extreme care must
be exercised to make sure that all connections are
pressure tight. Dirt and moisture can enter the
system when it is opened for repair or replacement of
lines or components. The following precautions must
be observed. The system must be completely
discharged before opening any fitting of connection
in the refrigeration system. Open fittings with caution
even after the system has been discharged. If any
pressure is noticed as a fitting is loosened, allow
trapped pressure to bleed off very slowly.
Never attempt to rebend formed lines to fit. Use the
correct line for the installation you are servicing. A
good rule for the flexible hose lines is keep the radius
of all bends at least 10 times the diameter of the
hose.
Sharper bends will reduce the flow of refrigerant. The
flexible hose lines should be routed so that they are
at least 80 mm (3.1 inches) from the exhaust
manifold. It is good practice to inspect all flexible
hose lines at least once a year to make sure they are
in good condition and properly routed.
On standard plumbing fittings with O-rings, these
O-rings are not reusable.

AC001389

THERMOMETER

GARAGE AMBIENT TEMPERATURE

C (

20 (68)

25 (77)

35 (95)

40 (104)

Discharge air temperature

C (

5.0

−

10.0

(42

−

50)

6.0

−

10.5

(43

−

51)

7.5

−

12.0

(46

−

54)

7.5

−

12.5

(46

−

55)

Compressor high pressure kPa (psi)

1,540

−

1,935
(224

−

281)

1,618

−

2,000
(235

−

290)

2,070

−

2,205
(301

−

320)

2,140

−

2,620
(311

−

380)

Compressor low pressure kPa (psi)

125

−

155

(18

−

23)

125

−

155

(18

−

23)

150

−

180

(22

−

26)

145

−

190

(21

−

28)

ON-VEHICLE SERVICE

TSB Revision

HEATING AND AIR CONDITIONING

55-24

COMPRESSOR NOISE CHECK

M1552008700067

You must first know the conditions when the noise
occurs. These conditions are: weather, vehicle
speed, in gear or neutral, engine temperature or any
other special conditions.
Noises that develop during A/C operation can often
be misleading. For example: what sounds like a
failed front bearing or connecting rod, may be
caused by loose bolts, nuts, mounting brackets, or a
loose clutch assembly. Verify accessory drive belt
tension (power steering or generator).
Improper accessory drive belt tension can cause a
misleading noise when the compressor is engaged
and little or no noise when the compressor is
disengaged.
Drive belts are speed-sensitive. That is, at different
engine speeds, and depending upon belt tension,
belts can develop unusual noises that are often
mistaken for mechanical problems within the
compressor.

ADJUSTMENT

1. Select a quiet area for testing. Duplicate

conditions as much as possible. Switch
compressor on and off several times to clearly
identify compressor noise. To duplicate high
ambient conditions (high head pressure), restrict
air flow through condenser. Install manifold gauge
set to make sure discharge pressure doesn't
exceed 2,070 kPa (300.2 psi).

2. Tighten all compressor mounting bolts, clutch

mounting bolt, and compressor drive belt. Check
to assure clutch coil is tight (no rotation or
wobble).

3. Check refrigerant hoses for rubbing or

interference that can cause unusual noises.

4. Check refrigerant charge. (Refer to

P.55-21

5. Recheck compressor noise as in Step 1.

6. If noise still exists, loosen compressor mounting

bolts and retighten. Repeat Step 1.

7. If noise continues, replace compressor and repeat

Step 1.

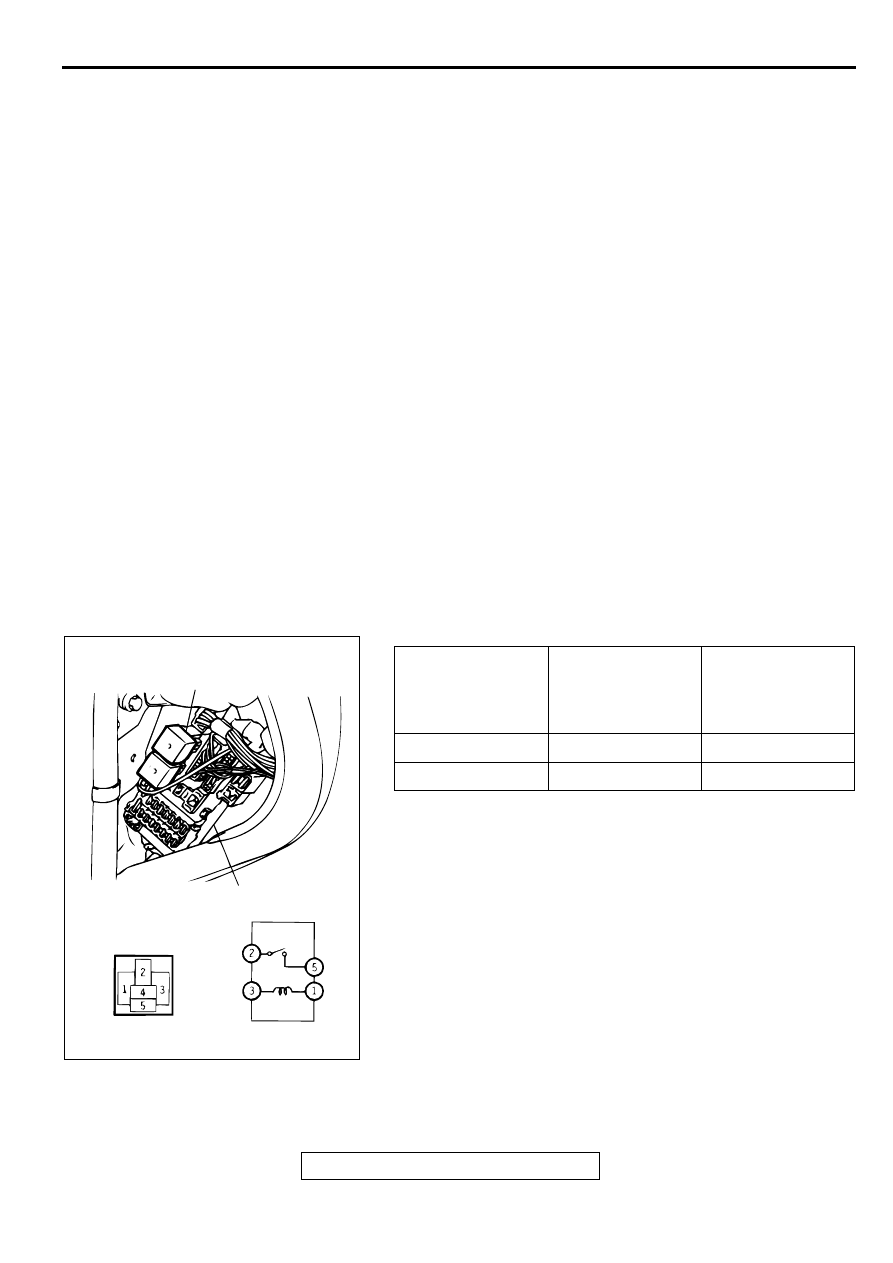

POWER RELAY CHECK

M1552008800064

BLOWER RELAY

BATTERY
VOLTAGE

TERMINAL NO.
TO BE
CONNECTED TO
BATTERY

TERMINAL NO.
TO BE
CONDUCTED

SUPPLIED

1-3

2-5

NOT SUPPLIED

1-3

AC001390

BLOWER RELAY

JUNTION BLOCK
