Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 689





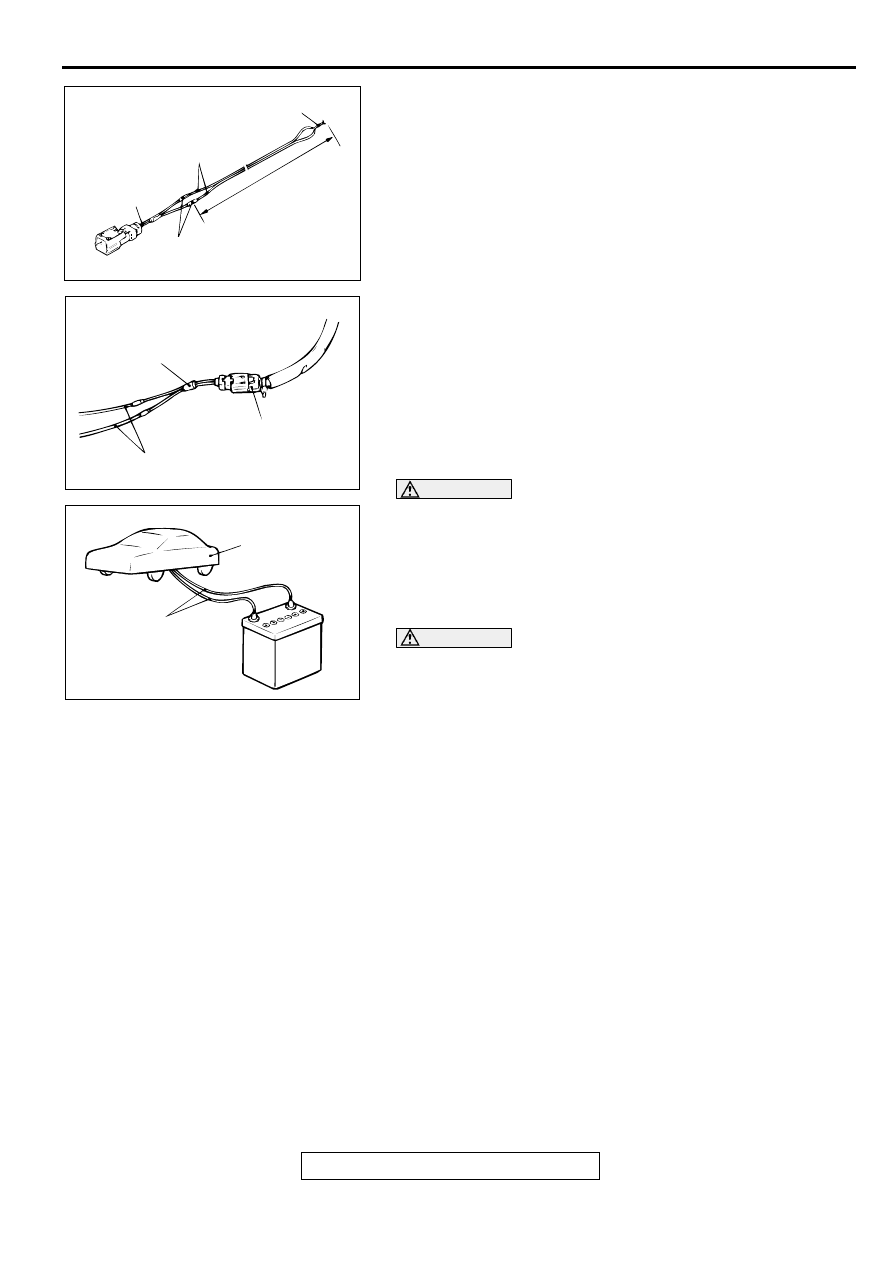

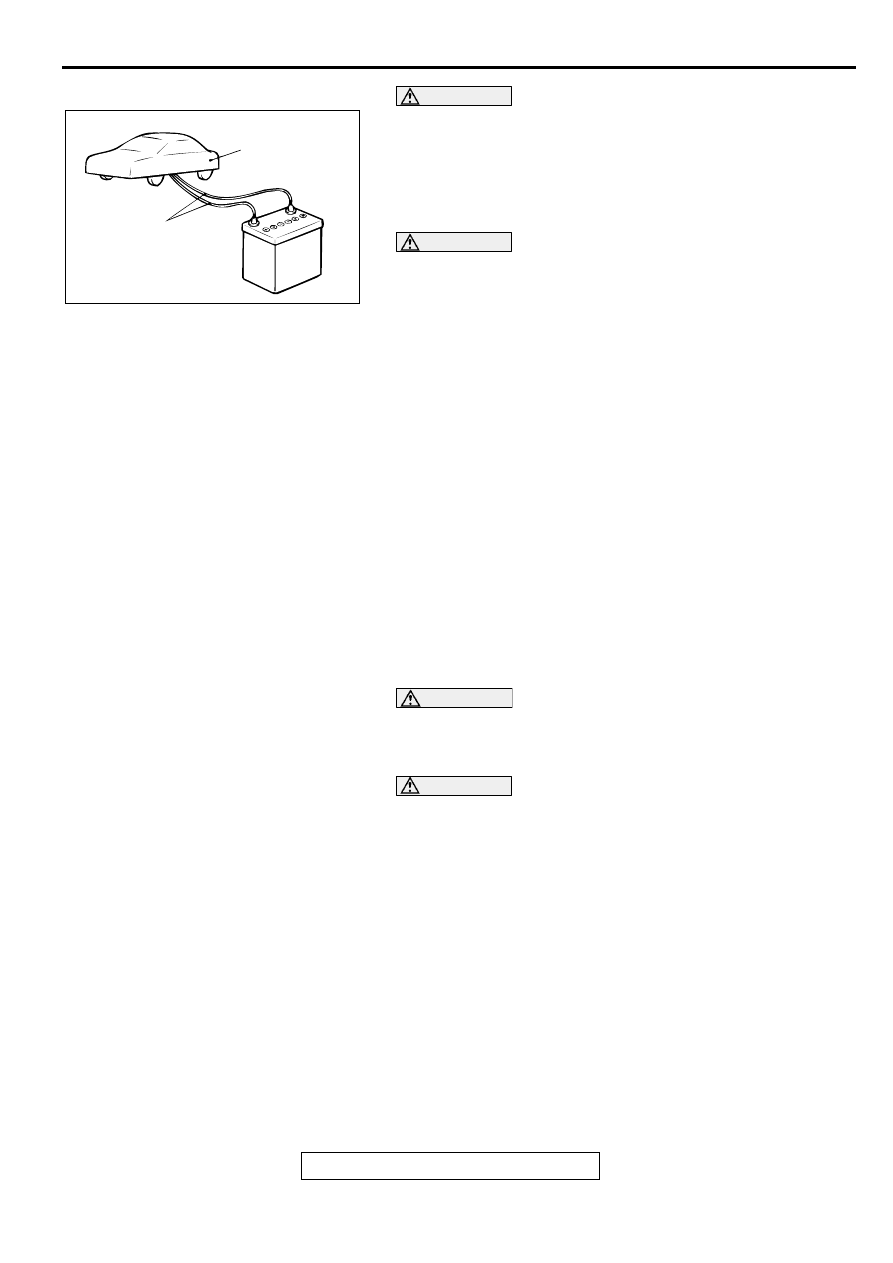

AIR BAG MODULE DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-83

5. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB686560, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other (short-
circuited), to prevent sudden unexpected deployment of the
air bag module.

6. Connect the clock spring, air bag module (front passenger's

side) two-pin connector to special tool MB686560 and move
the deployment wires out of the vehicle.

WARNING

If the glass is scratched, air bag deployment could
cause it to crack and fly out of the vehicle, so always
put a cover over the vehicle.

7. To suppress the operation sound as much as possible

completely close all door windows, close the doors and put
the cover on the vehicle.

WARNING

Before deploying the air bag in this manner, first
check to be sure that there is no one in or near the
vehicle. Wear safety glasses.

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
the air bag deployment. See Deployed Air Bag
Module Disposal Procedures (Refer to

P.52B-90

.)

for post-deployment handling instructions.

If the air bag module fails to deploy, do not go near
the module. Contact the MMSA Tech Line.

8. At a location as far away from the vehicle as possible,

disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag

9. After deployment, dispose of the air bag module according

to the Deployed Air Bag Module Disposal Procedures.
(Refer t

P.52B-90

.)

DEPLOYMENT INSIDE THE VEHICLE (when disposing of a
vehicle) <Side air bag module>
1. Move the vehicle to an isolated spot.

AC001932

CONNECTION

DEPLOYMENT WIRES

MR686560

INSULATOR TAPE

6 m(20 ft)
LONG OR
MORE

AB

AC000406AB

MB686560

TWO-PIN CONNECTOR
(RED)

DEPLOYMENT WIRES

ACX01308AC

DEPLOYMENT WIRE
6 m (20 ft)OR LONGER

COVER

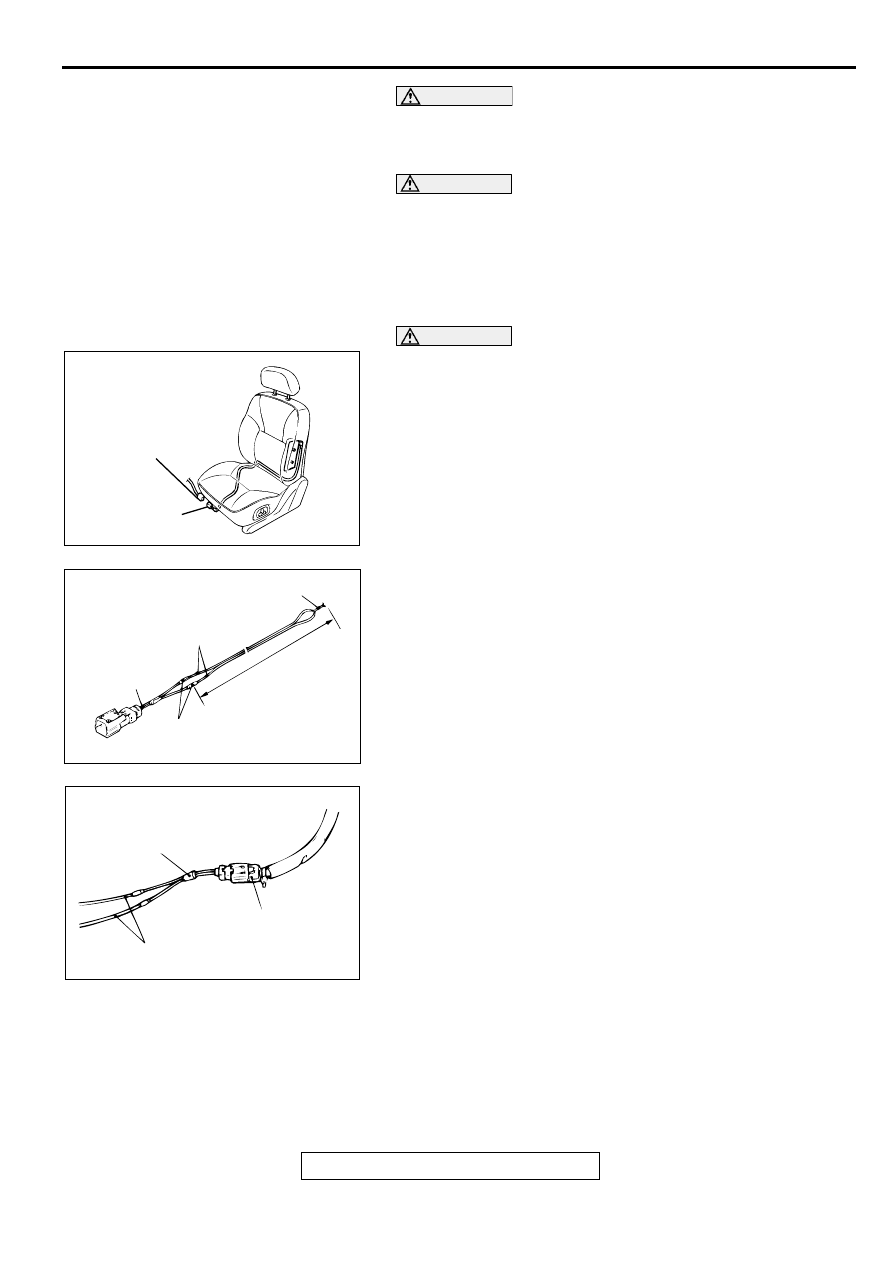

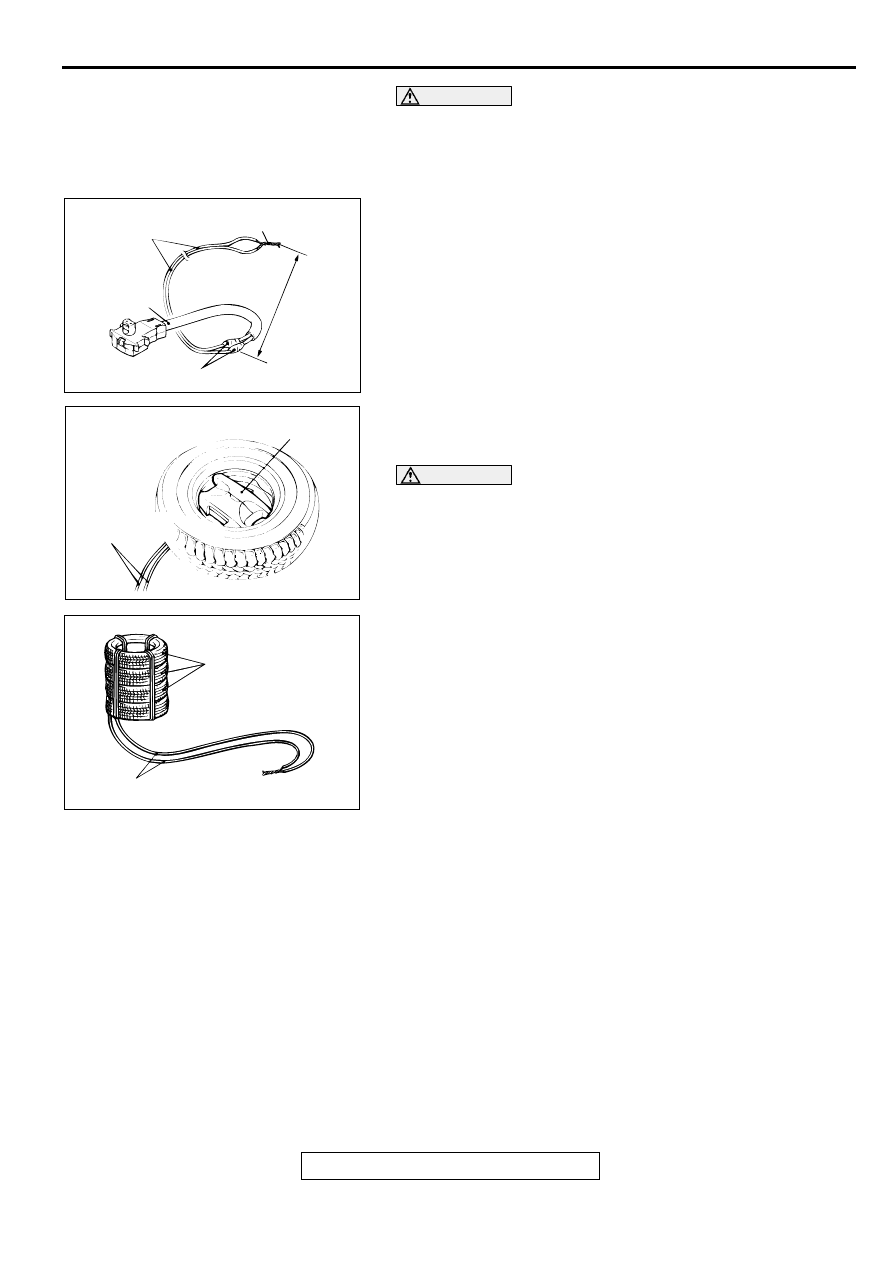

AIR BAG MODULE DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-84

DANGER

Wait at least 60 seconds after disconnecting the
battery cables before doing any further work. (Refer
to

P.52B-15

.)

WARNING

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

2. Disconnect the negative (-) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle. (Refer to GROUP 54A, Battery

P.54A-8

.)

WARNING

The side air bag modules for both the driver's side
and passenger's side should be deployed.

3. To deploy the side air bag module: Remove the connection

between the side air bag module connector (red two-pin)
and the side air bag wiring harness connector.

NOTE: If the air bag module connector is disconnected from
the body wiring harness, both electrodes of the air bag
module connector will be automatically shorted to prevent
unintended deployment of the air bag due to static
electricity, etc.

4. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB686560, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other (short-
circuited), to prevent sudden unexpected deployment of the
air bag module.

5. Connect the clock spring, side air bag module two-pin

connector to special tool mb686560 and move the
deployment wires out of the vehicle.

AC003705AB

BODY WIRING HARNESS
CONNECTOR (2-PIN)

SIDE AIR BAG
MODULE 2-PIN
CONNECTOR (RED)

AC001932

CONNECTION

DEPLOYMENT WIRES

MR686560

INSULATOR TAPE

6 m(20 ft)
LONG OR
MORE

AB

AC000406AB

MB686560

TWO-PIN CONNECTOR
(RED)

DEPLOYMENT WIRES

AIR BAG MODULE DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-85

WARNING

If the glass is scratched, air bag deployment could
cause it to crack and fly out of the vehicle, so always
put a cover over the vehicle.

6. To suppress the operation sound as much as possible

completely close all door windows, close the doors and put
the vehicle.

WARNING

Before deploying the air bag in this manner, first
check to be sure that there is no one in or near the
vehicle. Wear safety glasses.

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
the air bag deployment. See Deployed Air Bag
Module Disposal Procedures (Refer to

P.52B-90

.)

for post-deployment handling instructions.

If the air bag module fails to deploy, do not go near
the module. Contact the MMSA Tech Line.

7. At a location as far away from the vehicle as possible,

disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

8. After deployment, Air bag Module Disposal Procedures.

(Refer t

P.52B-90

.)

DEPLOYMENT OUTSIDE THE VEHICLE <Air bag module
(driver's side)>

DANGER

Wait at least 60 seconds after disconnecting the
battery cables before doing any further work. (Refer
to

P.52B-15

.)

WARNING

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

Deploy the air bag in a wide, flat area at least 6
meters (20 feet) away from obstacles and other
people.

Do not perform deployment outside if a strong
wind is blowing. If there is a slight breeze, place
the air bag module downwind from the battery.

1. Disconnect the negative (-) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle. (Refer to GROUP 54A, Battery

P.54A-8

.)

ACX01308AC

DEPLOYMENT WIRE
6 m (20 ft)OR LONGER

COVER

AIR BAG MODULE DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-86

WARNING

Store the air bag module on a flat surface with the pad
cover facing up. Do not place anything on top of it.

2. Remove the air bag module from the vehicle. (Refer to

P.52B-69

.)

3. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB628919 or
MB203491, and cover the connections with insulation tape.
The other ends of the deployment wires should be
connected to each other (short-circuited), to prevent sudden
unexpected deployment of the air bag module.

4. Take special tool MB628919 or MR203491 that is connected

to the wires, pass it beneath an old tire wheel assembly, and
connect it to the air bag module.

CAUTION

The adapter harness below the wheel should be loose. If it
is too tight, the reaction when the air bag deploys could
damage the adaptor harness.

5. Pass the thick wire through the air bag module mounting

hole, and then secure the air bag module to an old tire with a
wheel in it so that the pad on the module is facing upwards.

6. Place three old tires without wheels on top of the tire

secured to the air bag module, and secure all tires together
with ropes (four locations).

AC001937

MB628919 OR
MB203191

DEPLOYMENT WIRES

CONNECTION

6 m(20 ft)
LONG OR
MORE

INSULATOR TAPE

AB

AC000407AB

DEPLOYMENT
WIRES

AIR BAG MODULE

ACX00611

TIRES WITHOUT
WHEELS

DEPLOYMENT
WIRES

AB
