SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-39

STEP 3. Check for DTC.

Q: Is any of DTC 71, 72, 75 or 76 output?

YES : Replace the SRS-ECU. Refer to

P.52B-66

NO :  This diagnosis is compleate.(If no malfunctions are

not found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

 How to

Cope with Intermittent Malfunction

P.00-6

.)

DTC 79: Left hand side-air bag module (squib) system fault 5 for power supply circuit
DTC 93: Left hand side-air bag module (squib) system fault 6 for communication system

AC003886AB

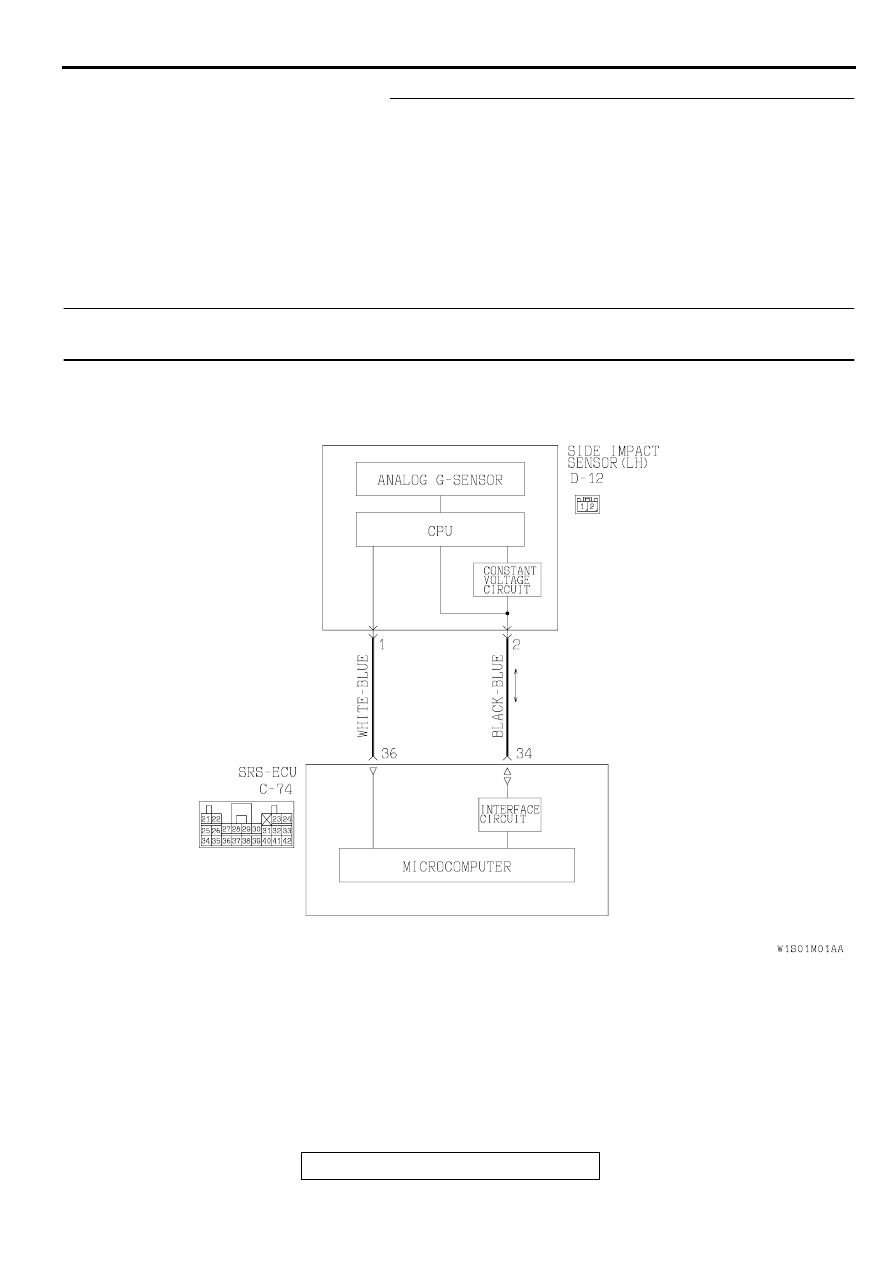

Side Impact Sensor (LH) Circuit

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-40

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is
by detecting signals from the left and right side
impact sensors and the analog G-sensor. If the
impact is over a predetermined level, the SRS-
ECU outputs an ignition signal. At this time, if the
safing G-sensor is on, the SRS air bag will inflate.

DTC SET CONDITIONS

These DTC are output if communication between
the side impact sensor (LH) and the SRS-ECU is
not possible or communication is faulty.

TROUBLESHOOTING HINTS

Damaged wiring harnesses or connectors

Malfunction of the side impact sensor (LH)

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tool:

MB991502: Scan Tool (MUT-II)

STEP 1. Check the side impact sensor
(1) Replace the side impact sensor (LH) with the side impact

sensor (RH).

(2) Connect the negative battery terminal.
(3) Erase DTC memory.

Q: Is DTC 79 or 93 erased or DTC 89 or 96 output?

YES : Replace the side impact sensor (LH) with a new one.

Refer to

P.52B-76

Then go to Step 3.

NO :  Go to Step 2.

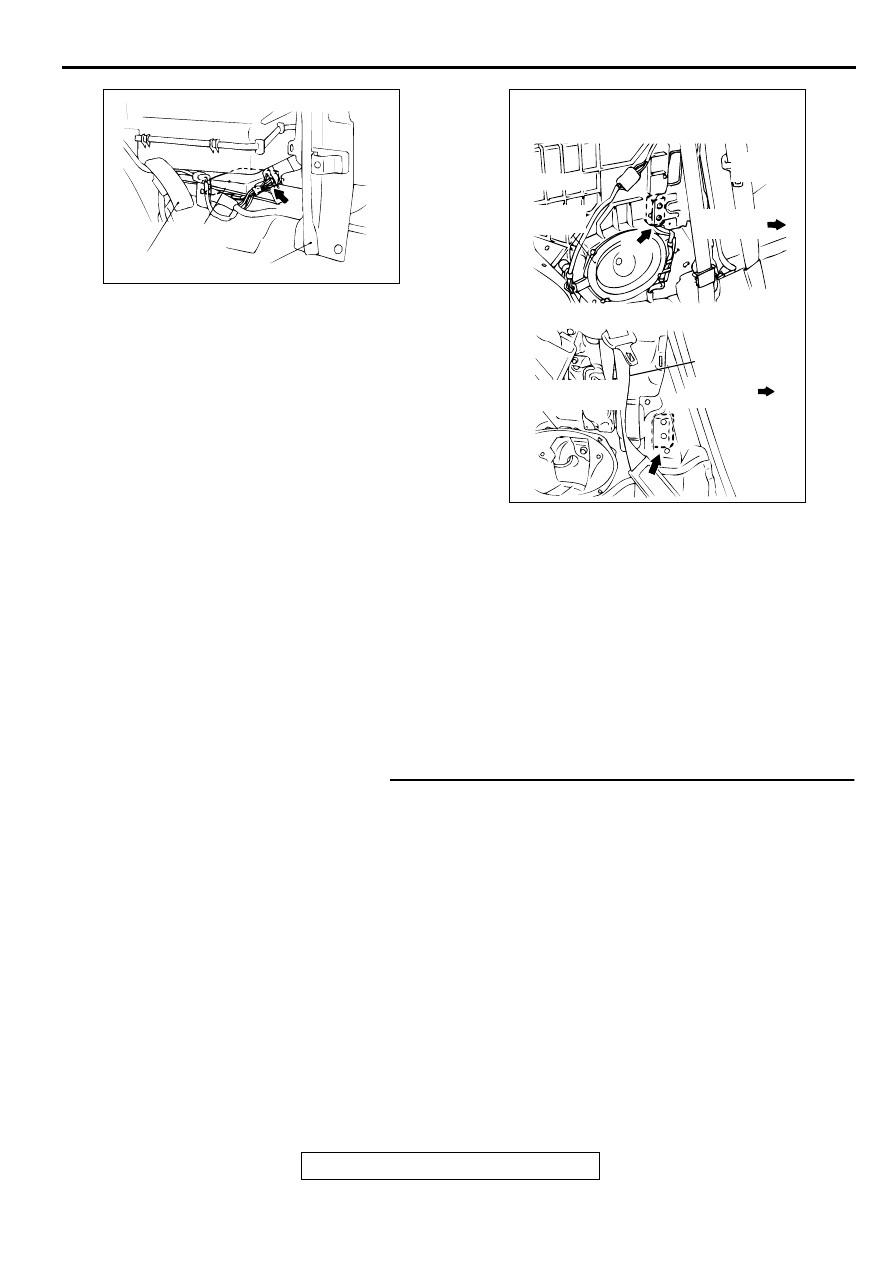

AC000358AF

CONNECTOR: C-74

SRS-ECU

ACCELERATOR PEDAL

CENTER REINFORCEMENT (LH)

AC003136AB

CONNECTOR: D-12

<ECLIPSE>

<ECLIPSE SPYDER>

FRONT
SEAT BELT

FRONT OF
VEHICLE

REAR
SPEAKER

FRONT
SEAT BELT

FRONT OF
VEHICLE

REAR SPEAKER
BRACKET

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-41

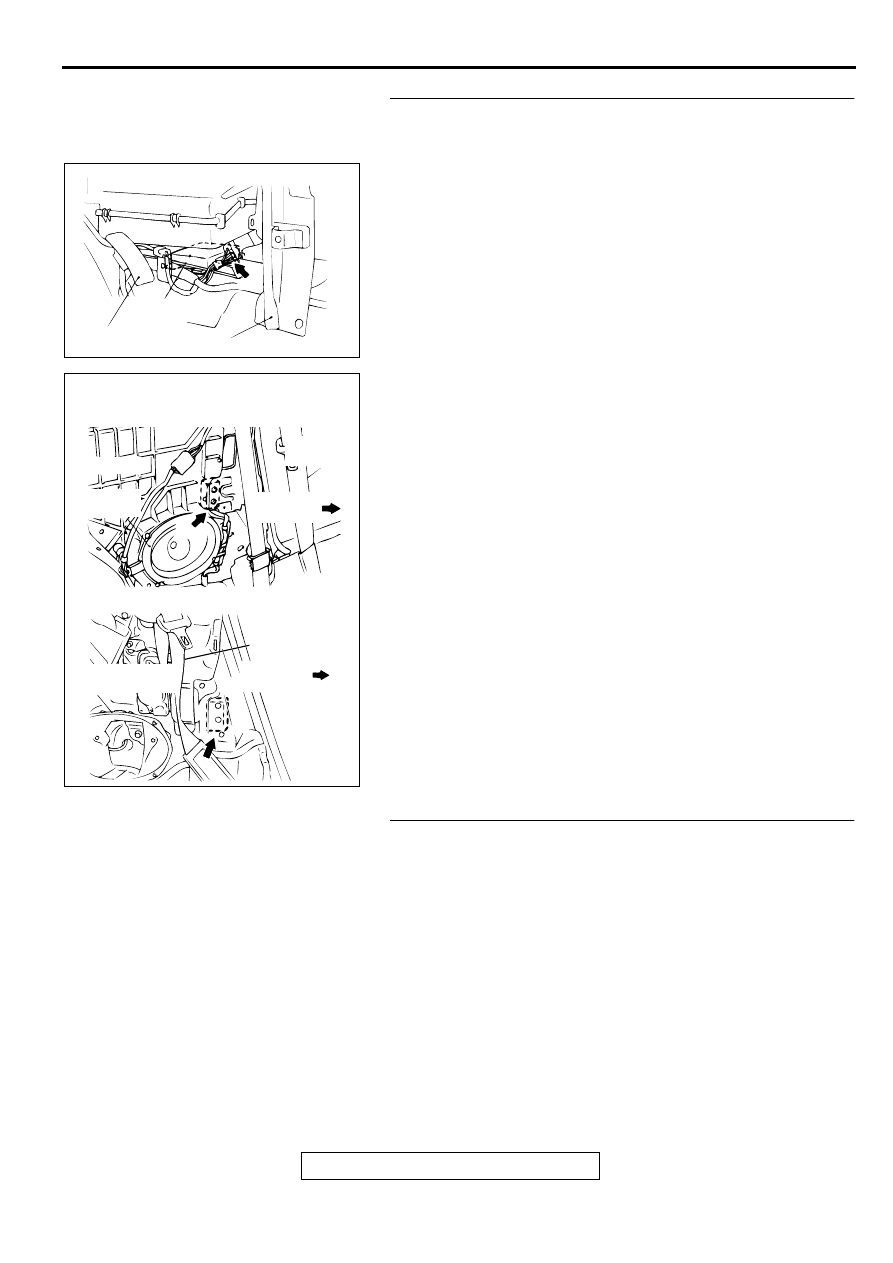

STEP 2. Check the harness wires between SRS-ECU
connector C-74 and side impact sensor (LH) connector D-
12.
Q: Are the harness wires between SRS-ECU connector C-

74 and side impact sensor (LH) connector D-12 in good
condition?
YES :
Go to Step 3.
NO :  Repair them. Then go to Step 3.

STEP 3. Check for DTC.

Q: Is any of DTC 79 or 93 output?

YES : Replace the SRS-ECU. Refer to

P.52B-66

.

NO :  This diagnosis is compleate.(If no malfunctions are

not found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

 How to

Cope with Intermittent Malfunction

P.00-6

.)

AC000358AF

CONNECTOR: C-74

SRS-ECU

ACCELERATOR PEDAL

CENTER REINFORCEMENT (LH)

AC003136AB

CONNECTOR: D-12

<ECLIPSE>

<ECLIPSE SPYDER>

FRONT
SEAT BELT

FRONT OF
VEHICLE

REAR
SPEAKER

FRONT
SEAT BELT

FRONT OF
VEHICLE

REAR SPEAKER
BRACKET

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-42

DTC 81: Left hand side-air bag module (squib) system fault 1
DTC 82:Left hand side-air bag module (squib) system fault 2
DTC 85:Left hand side-air bag module (squib) system fault power squib circuit
DTC 86:Left hand side-air bag module (squib) system fault ground circuit

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is
by detecting signals from the left and right side
impact sensors and the analog G-sensor. If the
impact is over a predetermined level, the SRS-
ECU outputs an ignition signal. At this time, if the
safing G-sensor is on, the SRS air bag will inflate.

The ignition signal is input to the air bag module
to inflate the air bag.

DTC SET CONDITIONS

These DTC are output if communication between
the side impact sensor (LH) and the SRS-ECU is
not possible or communication is faulty.

TROUBLESHOOTING HINTS

Damaged wiring harnesses or connectors

Malfunction of the side impact sensor (LH)

Malfunction of the SRS-ECU

AC002964AB

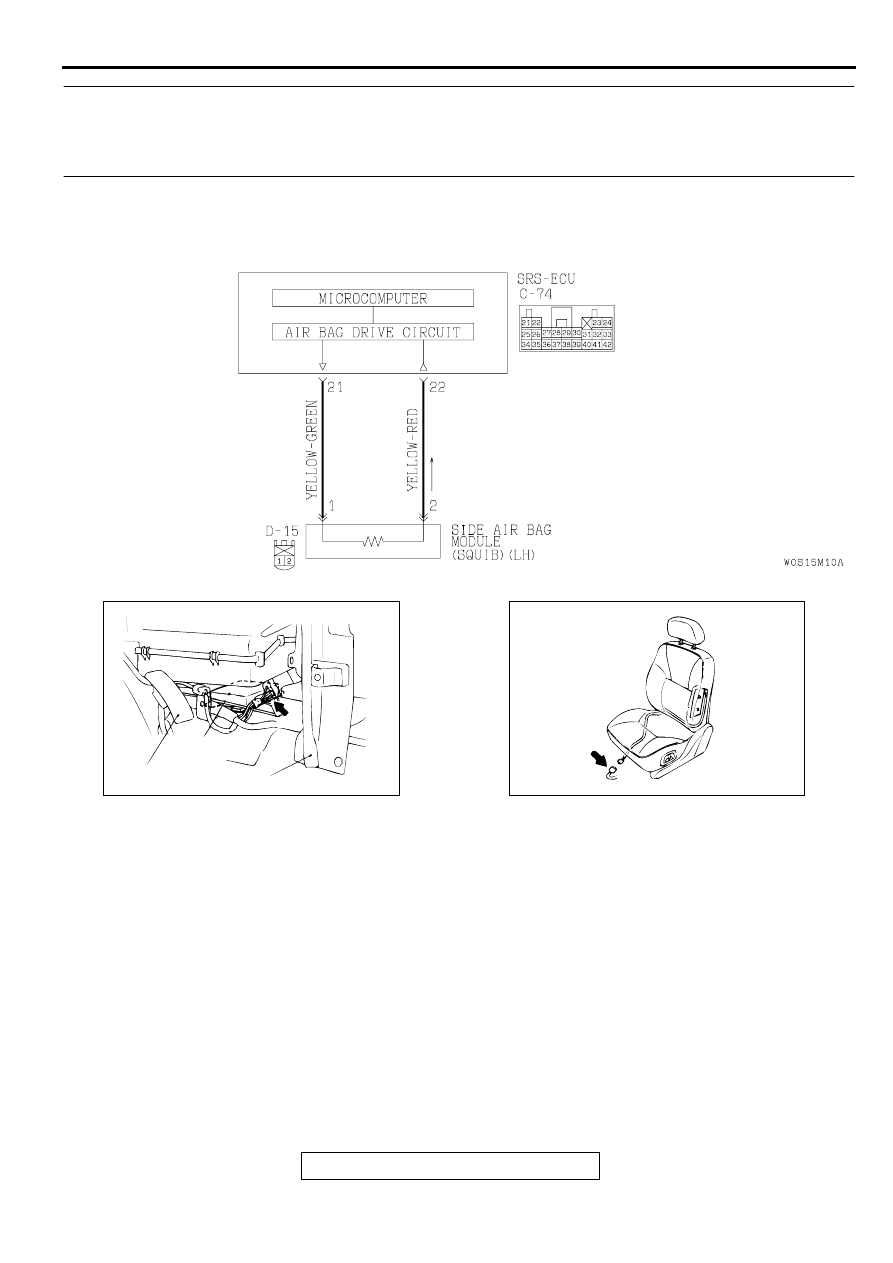

Side Air Bag Module (LH) (Squib) Circuit

AC000358AF

CONNECTOR: C-74

SRS-ECU

ACCELERATOR PEDAL

CENTER REINFORCEMENT (LH)

AC002981AB

CONNECTOR: D-15
