GARNISHES AND MOULDINGS

TSB Revision

EXTERIOR

51-11

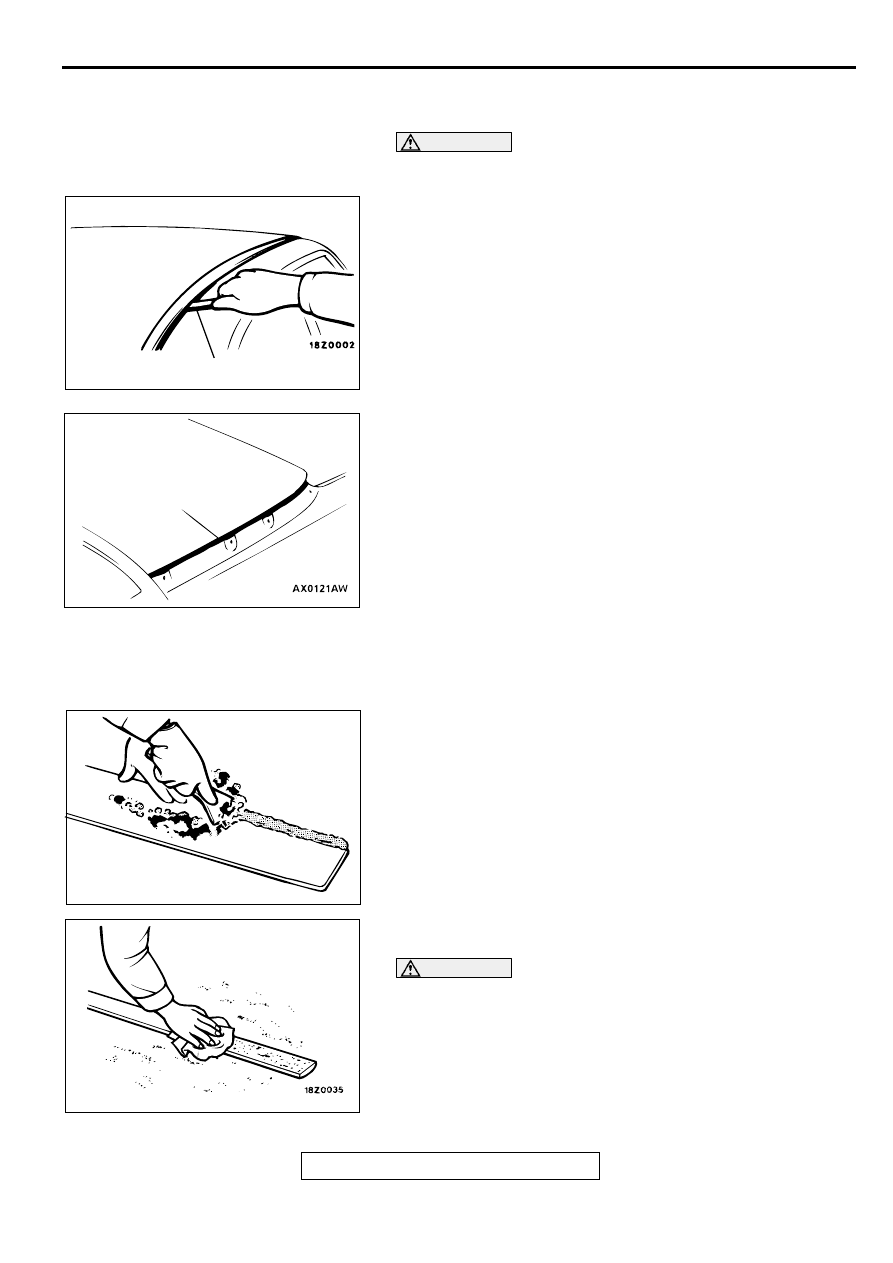

REMOVAL SERVICE POINTS

<<A>> ROOF DRIP MOLDING REMOVAL

CAUTION

If the molding has become warped, it should not be
reused.
Use special tool MB990449 to lever out the molding.

<<B>> REAR PILLAR GARNISH REMOVAL

1. Use a resin spatula to scrape off the double-sided tape.

2. Wipe the body surface and clean it with a shop towel

moistened with isopropyl alcohol.

INSTALLATION SERVICE POINTS

>>A<< REAR PILLAR GARNISH INSTALLATION
Double-sided tape affixing to the garnish (When reusing)
1. Scrape off the double-sided tape with a resin spatula or

gasket scraper.

2. Use a shop towel moistened with 3M

 AAD Part number

8906 or equivalent to wipe the rear piller garnish surface.

CAUTION

Do not remove all of the residual adhesive.

3. Remove only a small portion of the residual adhesive.

AC003626AB

MB990449

AC003627

DOUBLE-SIDE TAPE

AB

AC000422

AC003628

GARNISHES AND MOULDINGS

TSB Revision

EXTERIOR

51-12

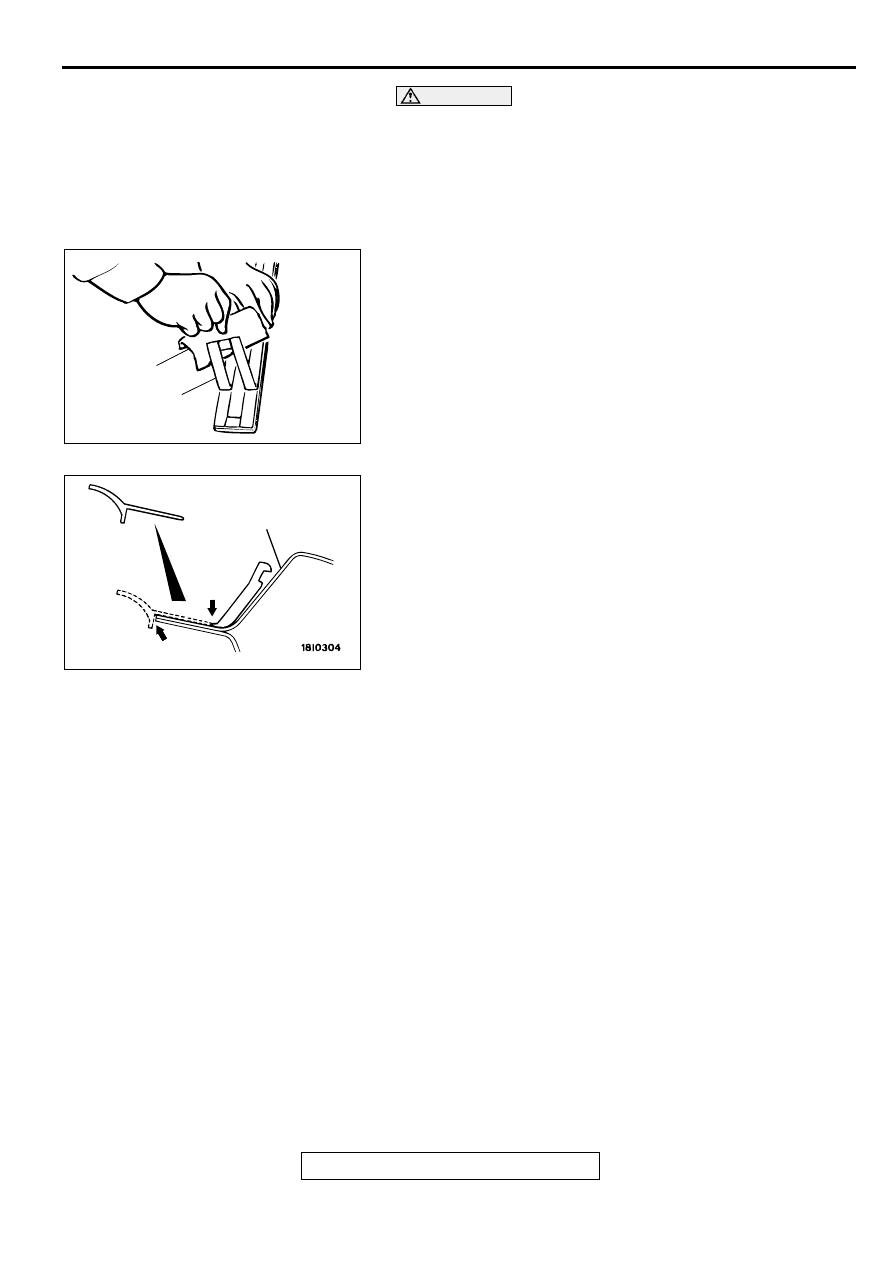

CAUTION

Always apply it evenly on the entire surface, because a
lot or little will reduce its strength.

Do not touch the painted surface.

4. Affix the specified double-sided tape [3 mm (0.1 inch) wide

and 5 mm (0.2 inch) thick].

REAR PILLAR GARNISH INSTALLATION.
1. Tear off the double-sided tape backing paper.

NOTE: If you attach the adhesive tape to the edge of the
backing paper, if will be easy to tear off.

2. Install the rear pillar garnish.

NOTE:  If the double-sided tape is difficult to affix in cold
temperature, etc., warm the bonding surfaces of the body
and rear pillar garnish to about 40 - 60

°

C (104 - 140

°

F)

before affixing the tape.

3. Firmly press in the rear pillar garnish.

>>B<< ROOF DRIP MOLDING INSTALLATION
After installing the clip to the outer front pillar in alignment with
its section A, cut from section B.

AC000423AB

ADHESIVE TAPE

BACKING PAPER

AC003629

FRONT PILLAR
OUTER

SECTION
 B

SECTION A

AB

AERO PARTS

TSB Revision

EXTERIOR

51-13

A ER O  PA R TS

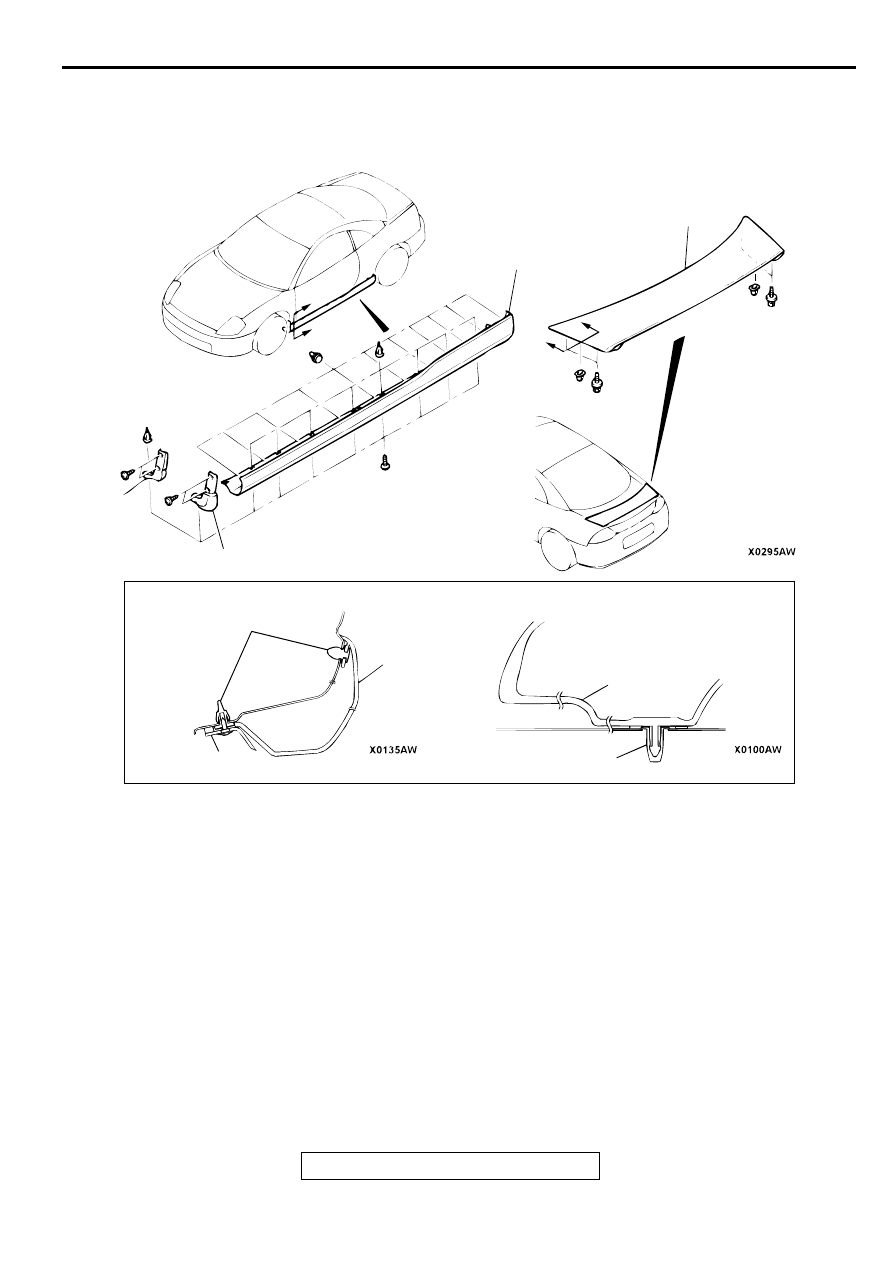

REMOVAL AND INSTALLATION

M1511005000039

REMOVAL STEPS
1. STONE GUARD <VEHICLES

WITHOUT SIDE AIR DAM>

2. FRONT SIDE AIR DAM
3. REAR SIDE AIR DAM
4. REAR SPOILER

AC003621

SECTION A – A

SECTION B – B

A

A

B

B

1

2

3

4

2

3

4

CLIP

CLIP

AB

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-14

W IN D SH IELD  W IPER  A N D  WA SH ER

GENERAL DESCRIPTION

M1511000100116

OPERATION
Windshield Low-speed (and High-speed) Wiper

Operation

If the wiper switch is turned to the "LO" position
with the ignition switch at the "ACC" or "ON"
position, the column switch sends a low-speed
wiper ON and high-speed wiper OFF signals to
the front-ECU. This turns the wiper signal on and
the wiper speed switching relay off (low-speed),
causing the wipers to operate at low-speed.

If the wiper switch is turned to the "HI" position,
the column switch sends a low-speed wiper OFF
and high-speed wiper ON signals to the front-
ECU. This turns both the wiper signal and the
wiper speed switching relay on (high-speed),
causing the wipers to operate at high-speed.

Windshield Intermittent Wiper Operation

The ETACS-ECU calculates the wiper operation
interval according to the voltage signal sent from
the column switch. Then the ETACS-ECU sends
a signal to the front-ECU. The front-ECU
determines the wiper operation interval and turns
on the wiper relay signal. This causes the wiper
auto stop relay to turn on. Then the wiper auto
stop relay will turn off after the wipers reach the
park position. This causes the wiper signal relay
and then the wipers to turn off. If the wiper signal
relay remains off for the wiper operation interval,
the relay turns on again, causing the wipers to
operate in intermittent mode.

Windshield Mist Wiper Operation

If the wiper switch is turned to the "MIST" position
with the ignition switch at "ACC" or "ON" position,
the mist wiper high-speed operation signal is sent
to the front-ECU. This signal turns on the wiper
speed switching relay, causing the wipers to work
at high-speed while the mist switch is on.

While the mist wiper switch remains turned on
when the intermittent mode is still working, the
wipers work as the mist wiper. However, the
wipers return to the intermittent mode again when
the wiper auto stop signal turns on after the mist
wiper switch is turned off.

Windshield Washer Operation

If the wiper switch is turned to the "WASHER"
position with the ignition switch at "ACC" or "ON"
position, the washer ON signal is sent to the
front-ECU, causing the wiper signal to turn on
after 0.6 seconds. After the washer switch signal
turns off, the wiper signal turns off in three
seconds. If the wiper switch is turned the
"WASHER" position while the wiper is at
intermittent mode, the washer works for that
period when the washer switch remains on. Then
the wipers return to the intermittent mode.

WINDSHIELD WIPER AND WASHER DIAGNOSIS

M1511000700099

The windshield wiper and washer are controlled by
ETACS-ECU. For troubleshooting, refer to GROUP
54B, SWS Diagnosis.
