DISASSEMBLY AND ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-348

D ISASSEM BLY AN D A SSEM BLY

M1231006800062

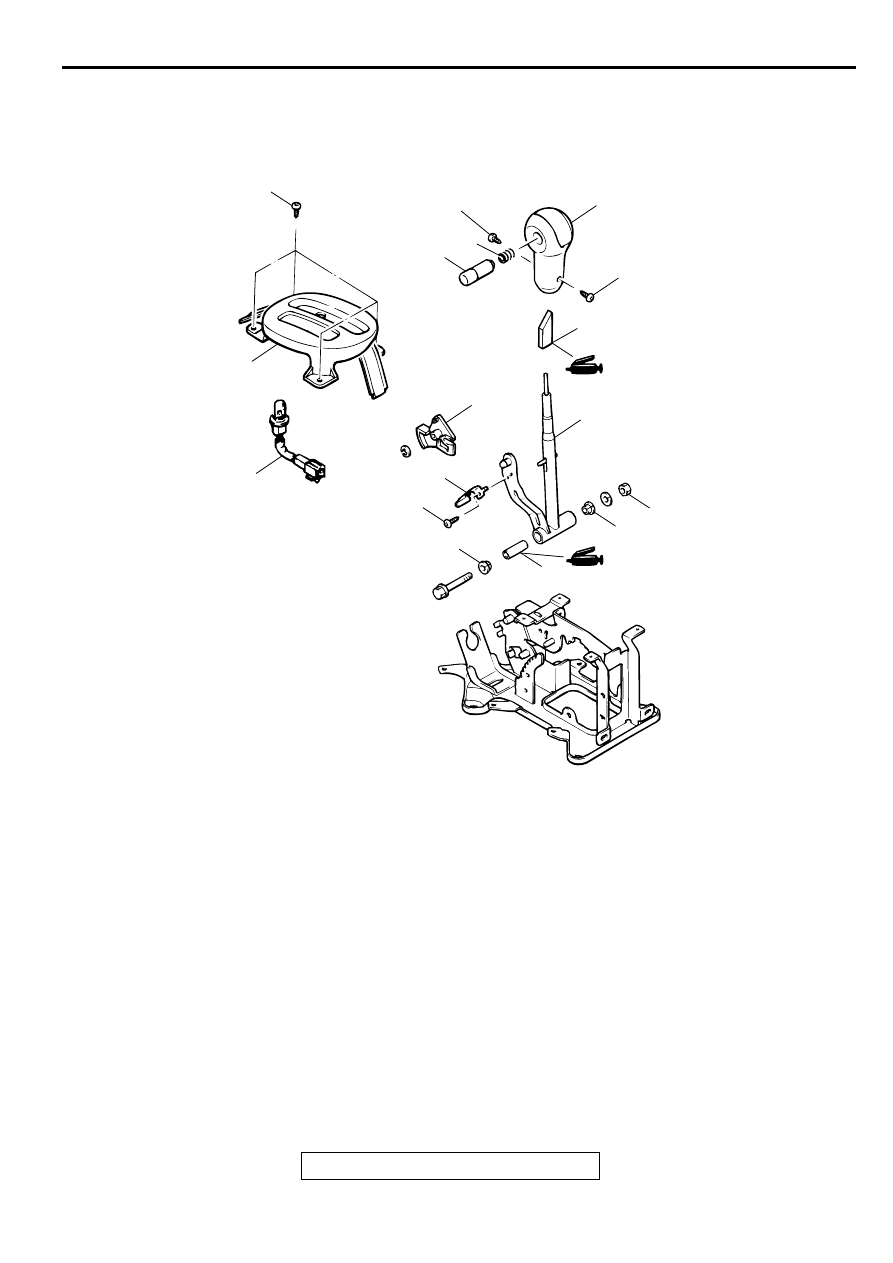

<VEHICLES WITHOUT SPORT MODE>

AC001633AB

7

7

12 ± 2 N·m
102 ± 22 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

10

11

1.8 ± 0.2 N·m
16 ± 2 in-lb

8

3

9

5

4

1.5 ± 0.5 N·m
14 ± 4 in-lb

1

2

1.8 ± 0.2 N·m
16 ± 2 in-lb

6

REMOVAL STEPS

1.

PUSH BUTTON

2.

SPRING

3.

SHIFT KNOB

4.

INDICATOR PANEL ASSEMBLY

5.

LOCK CAM

6.

SLEEVE

7.

BUSH

8.

PIPE

9.

LEVER ASSEMBLY

10. DETENTE SPRING
11. POSITION INDICATOR LAMP

ASSEMBLY

12. BASE BRACKET

REMOVAL STEPS (Continued)

DISASSEMBLY AND ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-349

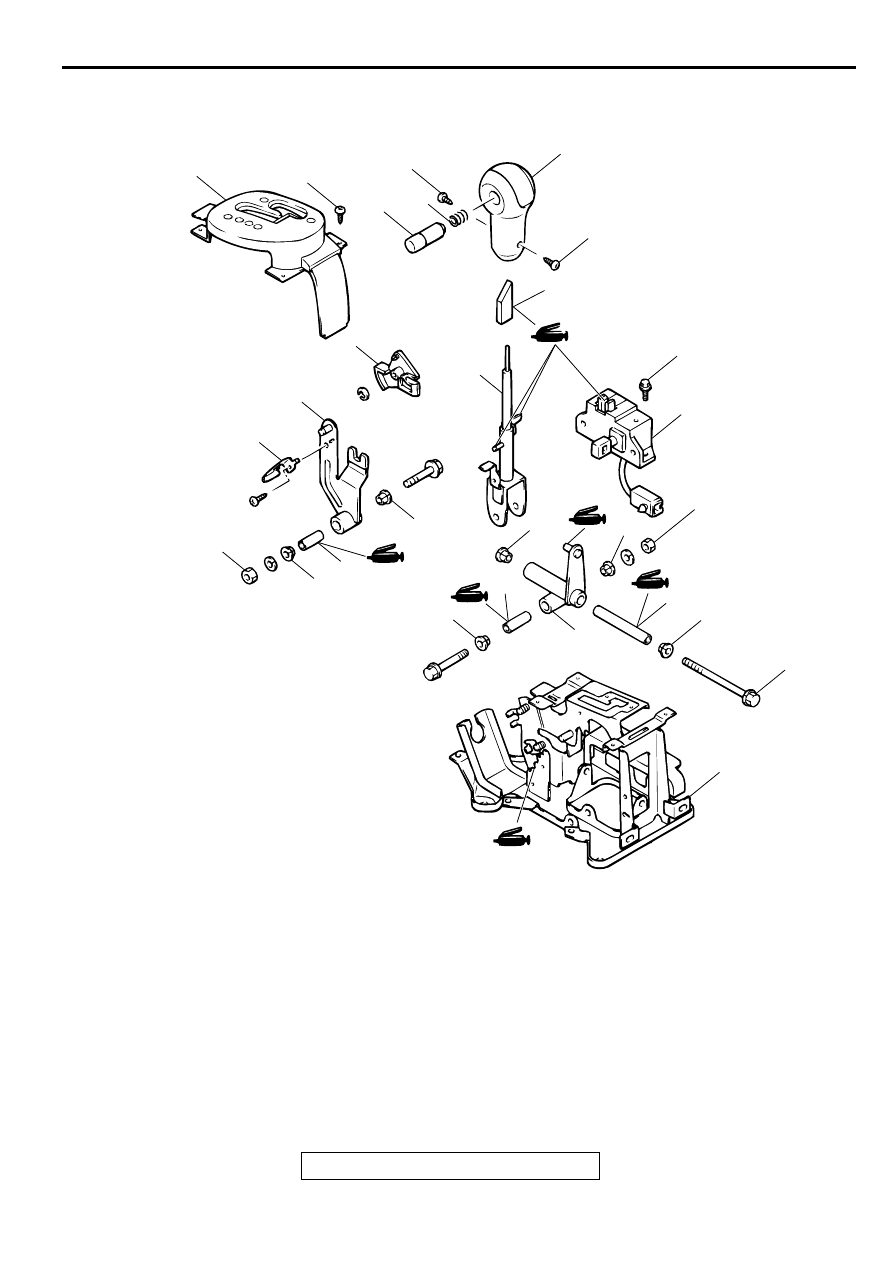

<VEHICLES WITH SPORT MODE>

AC001634AB

12 ± 2 N·m
102 ± 22 in-lb

18

4

1.5 ± 0.5 N·m
14 ± 4 in-lb

1

2

1.8 ± 0.2 N·m
16 ± 2 in-lb

1.8 ± 0.2 N·m
16 ± 2 in-lb

17

5.0 ± 1.0 N·m
44 ± 9 in-lb

5

12 ± 2 N·m
102 ± 22 in-lb

8

7

11

6

7

12

11

13

16

14

15

14

12 ± 2 N·m
102 ± 22 in-lb

9

3

10

REMOVAL STEPS

1.

PUSH BUTTON

2.

SPRING

3.

SHIFT KNOB

4.

INDICATOR PANEL ASSEMBLY

5.

SHIFT SWITCH

6.

SELECT LEVER

7.

BUSH

8.

PIPE

9.

LEVER ASSEMBLY

10. SLEEVE
11. BUSH
12. PIPE
13. CABLE ARM
14. BUSH
15. PIPE
16. DETENTE SPRING
17. LOCK CAM
18. BASE BRACKET

REMOVAL STEPS (Continued)

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

TSB Revision

AUTOMATIC TRANSAXLE

23A-350

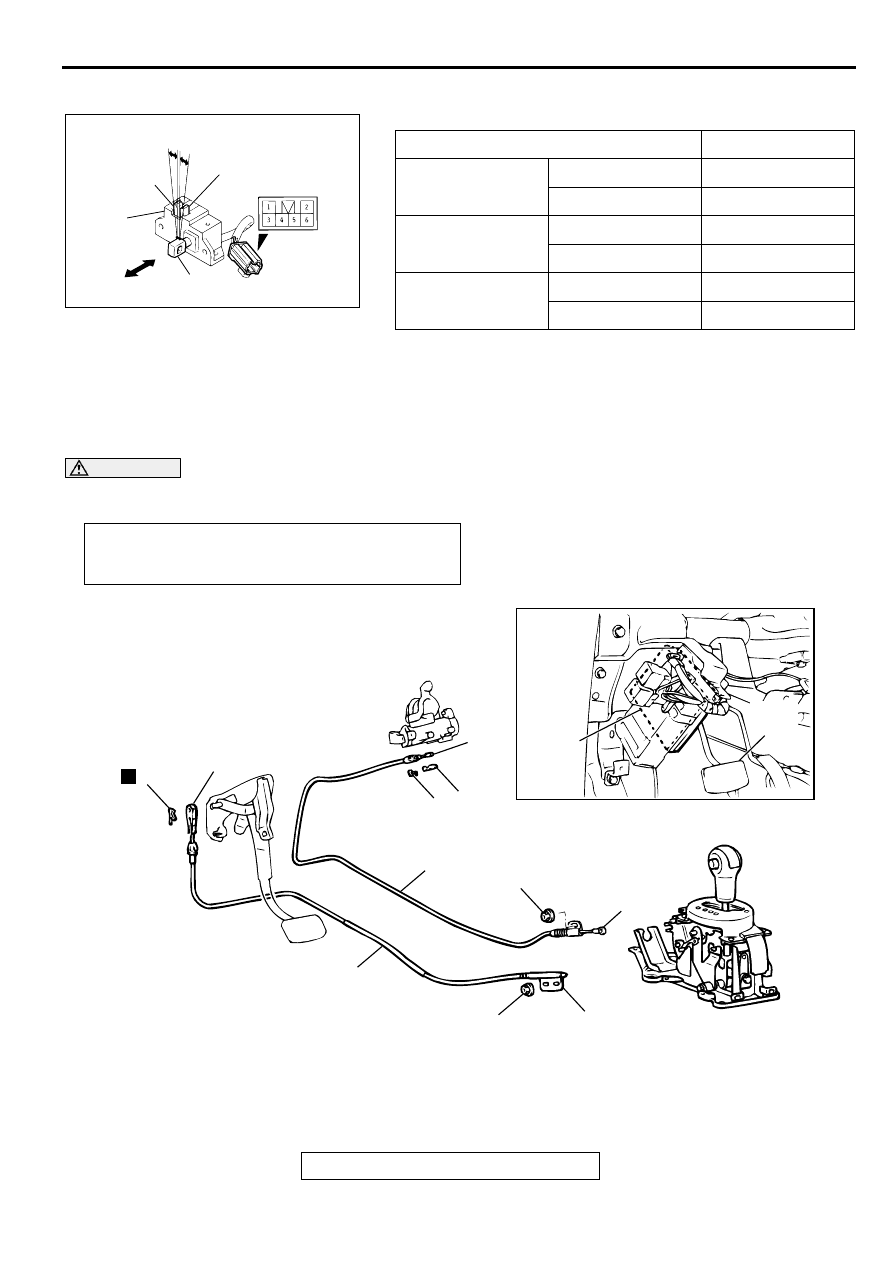

INSPECTION

M1231006900058

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

A /T K EY IN TER LO C K  A N D  SH IFT LO C K  M EC H A N ISM S

REMOVAL AND INSTALLATION

M1232001200057

CAUTION

When removing and installing the transmission control cable and shift lock cable unit, be careful not
to impact the SRS-ECU.

SWITCH POSITION

TERMINAL NO.

Select switch

ON

1-5

OFF

1-2

Shift switch (up
shift)

ON

3-6

OFF

Shift switch (down
shift)

ON

4-6

OFF

AC001635AB

SELECT
SWITCH

SHIFT SWITCH
(DOWNSHIFT)

SHIFT
SWITCH
ASSEMBLY

ON

OFF

OFF

ON

ON

SHIFT SWITCH
(UPSHIFT)

Pre-removal and Post-installation Operation
Floor Console Removal and Installation (Refer to GROUP
52A, Floor Console

P.52A-9

.)

AC001636AB

12 ± 2 N·m
102 ± 22 in-lb

7

N

6

9

BRAKE
PEDAL

1

10

12 ± 2 N·m
102 ± 22 in-lb

5

4

3

2

8

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

TSB Revision

AUTOMATIC TRANSAXLE

23A-351

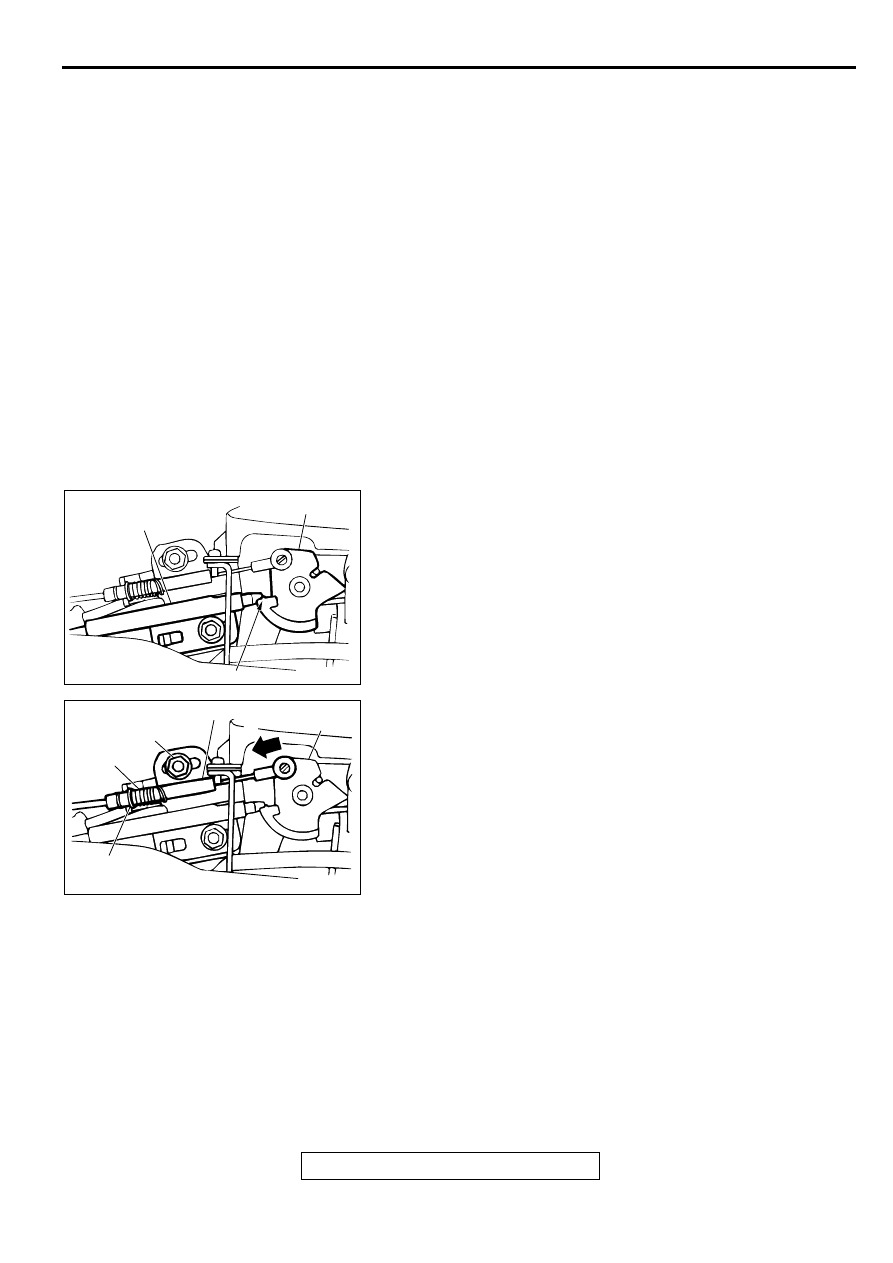

INSTALLATION SERVICE POINTS

>>A<< SHIFT LOCK CABLE (SELECTOR LEVER SIDE)
INSTALLATION
1. Place the selector lever in position "P."
2. Fasten the shift lock cable at the position where the end of

the shift lock cable is positioned above the red marking.

>>B<< KEY INTERLOCK CABLE (STEERING LOCK
CYLINDER SIDE) INSTALLATION
Turn the ignition key to the "LOCK" (OFF) position and install
the key interlock cable.

>>C<< KEY INTERLOCK CABLE (SELECTOR LEVER SIDE)
INSTALLATION
1. Install the key interlock cable on the lock cam.

2. Install the spring and washer of the key interlock cable as

shown.

3. While lightly pushing the cable coupling portion of the lock

cam in the direction A, tighten the locking nut to the
specified torque.

Tightening torque: 12

±

 2 N

⋅

 m (102

±

 in-lb)

INSPECTION

M1232001300054

Check the cable assembly for function and for damage.

KEY INTERLOCK CABLE
REMOVAL STEPS

>>C<<

1.

KEY INTERLOCK CABLE
CONNECTION (SELECTOR
LEVER SIDE)

•

LOWER COLUMN COVER
(REFER TO GROUP 37A,
STEERING WHEEL AND SHAFT

P.37A-20

.)

2.

COVER

>>B<<

3.

KEY INTERLOCK CABLE
CONNECTION (STEERING LOCK
CYLINDER SIDE)

4.

SLIDER

5.

KEY INTERLOCK CABLE

SHIFT LOCK CABLE REMOVAL
STEPS

>>A<<

6.

SHIFT LOCK CABLE
CONNECTION (SELECTOR
LEVER SIDE)

7.

COTTER PIN

8.

SHIFT LOCK CABLE
CONNECTION (BRAKE PEDAL
SIDE)

9.

SHIFT LOCK CABLE

ETACS-ECU REMOVAL

10. ETACS-ECU

AC001628AC

RED MARKING

SHIFT LOCK CABLE

LOCK CAM

AC0001627AC

SPRING

WASHER

LOCKING NUT

LOCK CAM

KEY INTERLOCK CABLE

A
