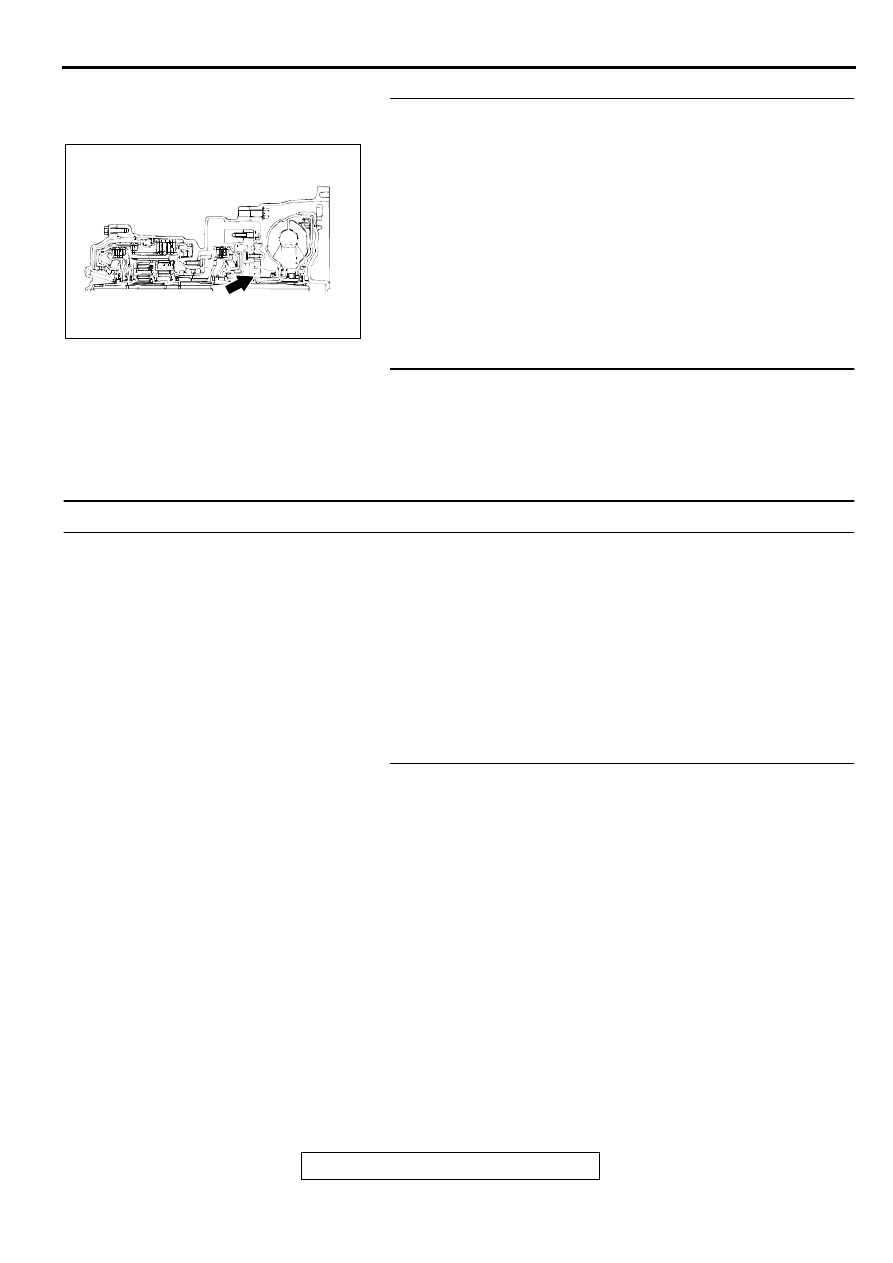

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-260

STEP 4. Replace the oil pump.
(1) Remove the transaxle.
(2) Replace the oil pump (Oil pump cannot be repaired). Refer

to GROUP 23B, Transaxle

P.23B-11

. Then check the

symptom.

Q: Is the symptom eliminated?

YES : Diagnosis is complete.
NO :  Go to Step 5.

STEP 5. Replace the PCM.

Q: Is the symptom eliminated?

YES : Diagnosis is complete.
NO :  Start over at Step 1.

INSPECTION PROCEDURE 5: Engine Stalls when Moving Selector Lever from "N" to "D" or "N" to "R"

COMMENT
If the engine stalls when the selector lever is shifted
from "N" to "D" or "R" range while the engine is idling,
the cause is probably a malfunction of the engine
system, torque converter clutch solenoid valve, valve
body or torque converter (torque converter clutch
malfunction).

TROUBLESHOOTING HINTS (The most likely

causes for this case:)

Malfunction of the engine system

Malfunction of the torque converter clutch
solenoid

Malfunction of the valve body

Malfunction of the torque converter (Malfunction
of the torque converter clutch)

Malfunction of the PCM

DIAGNOSIS

STEP 1. Check the engine system.
Refer to GROUP 13A <2.4L Engine>, Diagnosis

 Trouble

Symptom Chart

 When the engine is hot, it stalls at idl

P.13A-

22

 or GROUP 13B <3.0L Engine>, Diagnosis

 Trouble

Symptom Chart

 When the engine is hot, it stalls at idl

P.13B-

21

.

Q: Is the inspection result good?

YES : Go to Step 2.
NO :  Repair or replace the engine components.

AC001858

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-261

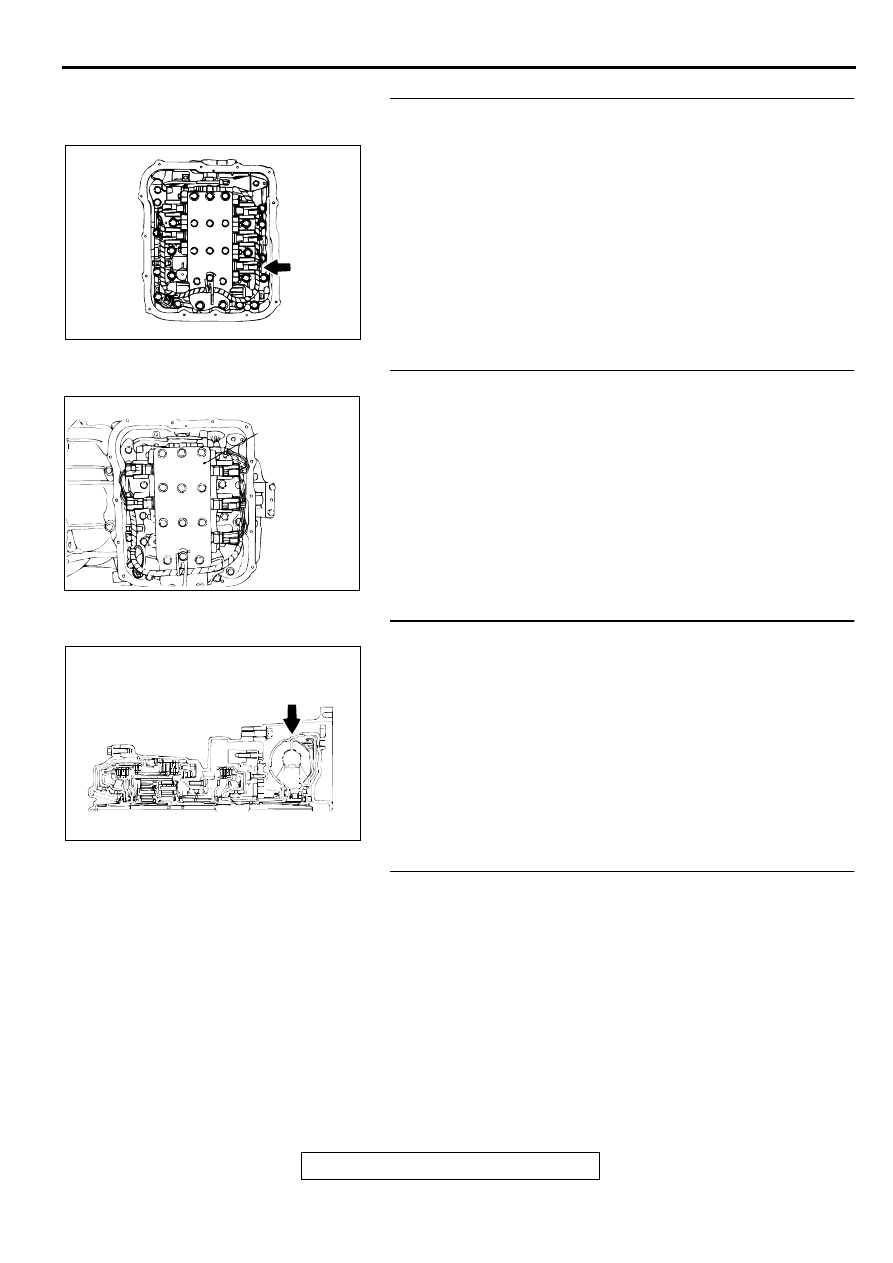

STEP 2. Replace the torque converter clutch solenoid
valve.
Replace the torque converter clutch solenoid valve. Refer to
GROUP 23B, Valve Body

P.23B-69

. Then check the symptom.

Q: Is the symptom eliminated?

YES : Diagnosis is complete.
NO :  Go to Step 3.

STEP 3. Disassemble and clean the valve body.
Check the O-ring installation bolts for looseness and valve
body for damage. Repair or replace the faulty parts. Refer to
GROUP 23B, Valve Body

P.23B-69

.

Q: Is the repair possible and the symptom eliminated?

YES : Diagnosis is complete.
NO :  Replace the valve body assembly. Then check the

symptom. If the symptom is not eliminated, go to Step
4.

STEP 4. Replace the torque converter assembly.
(1) Remove the transaxle.
(2) Replace the torque converter assembly. Refer to GROUP

23B, Transaxle

P.23B-11

. Then check the symptom.

Q: Is the symptom eliminated?

YES : Diagnosis is complete.
NO :  Go to Step 5.

STEP 5. Replace the PCM.

Q: Is the symptom eliminated?

YES : Diagnosis is complete.
NO :  Start over at Step 1.

AC001866

AC001860 AB

VALVE
BODY
ASSEMBLY

AC001857

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-262

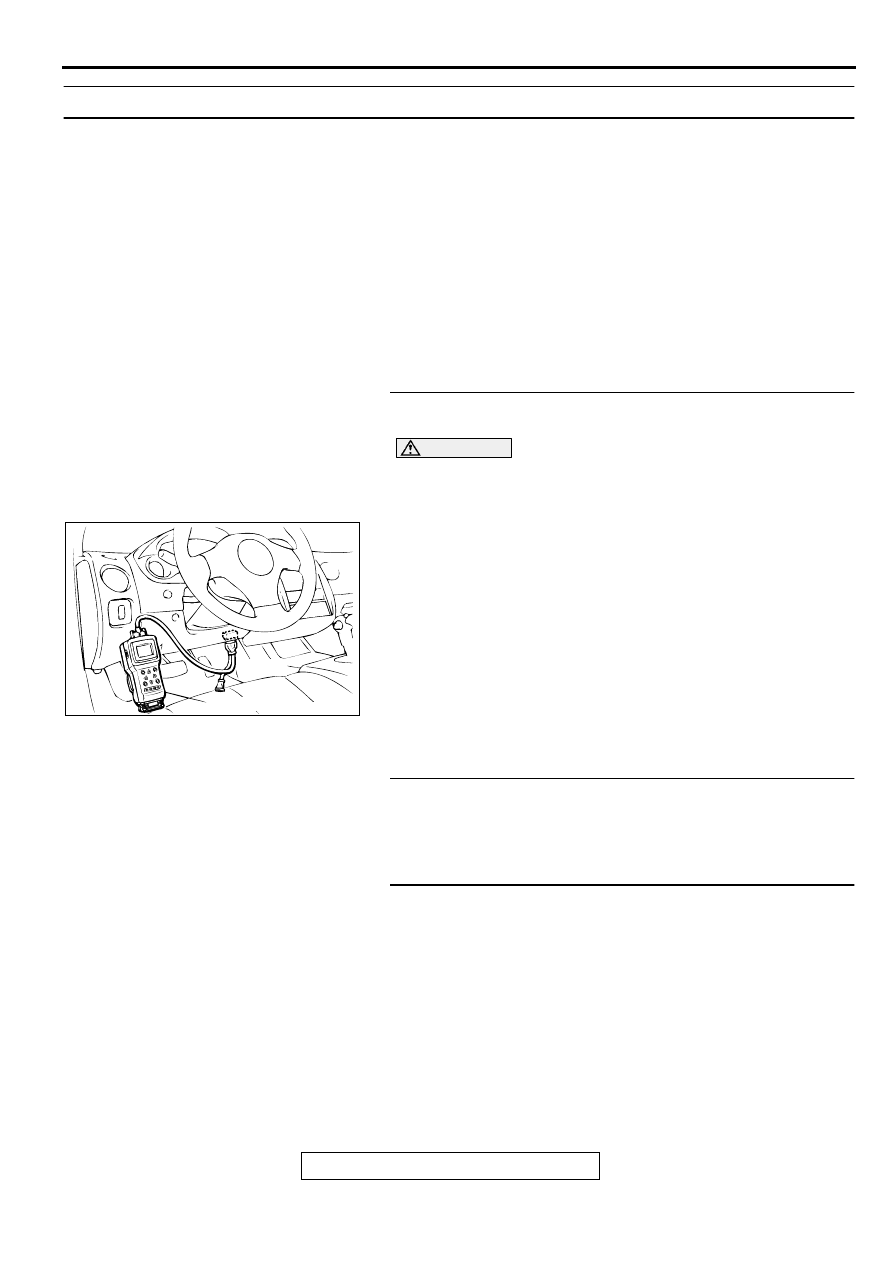

INSPECTION PROCEDURE 6: Shift Shocks when Shifting from "N" to "D" and Long Delay

COMMENT
If abnormal shocks or delay of two seconds or more
occurs when the selector lever is shifted from "N" to
"D" range while the engine is idling, the cause is
probably abnormal underdrive clutch pressure or a
malfunction of the underdrive clutch, valve body or
throttle position sensor.

TROUBLESHOOTING HINTS (The most likely

causes for this case:)

Abnormal underdrive clutch pressure

Malfunction of the underdrive solenoid valve

Malfunction of the underdrive clutch

Malfunction of the valve body

Malfunction of the throttle position sensor

Malfunction of the PCM

DIAGNOSIS

REQUIRED SPECIAL TOOL:
MB991502: Scan Tool (MUT-II)

STEP 1. Using scan tool MB991502, check actuator test
item 02: Underdrive Solenoid Valve.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to actuator test mode for item 02:

Underdrive Solenoid Valve.

An operation sound should be heard from solenoid
valve when solenoid valve is operated.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the solenoid valve operating properly?

YES : Go to Step 2.
NO :  Repair or replace the underdrive solenoid valve.

Refer to GROUP 23B, Valve Body

P.23B-69

Then

confirm that the symptom is eliminated.

STEP 2. Check when shift shocks occur.

Q: When the shift shocks occur?

When engaging from N to D : Go to Step 3.
When the vehicle starts moving : Go to Step 6.

STEP 3. Check the hydraulic pressure (for underdrive
clutch).
Measure the hydraulic pressure for underdrive clutch when the
selector lever is shifted from "N" to "D" range. Check if the
hydraulic pressure is within the standard value. Refer t

P.23A-

30

, Hydraulic Pressure Test.

Q: Is the hydraulic pressure within the standard value?

YES : Go to Step 4.
NO :  Go to Step 8.

AC001252

MB991502

16 PIN

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-263

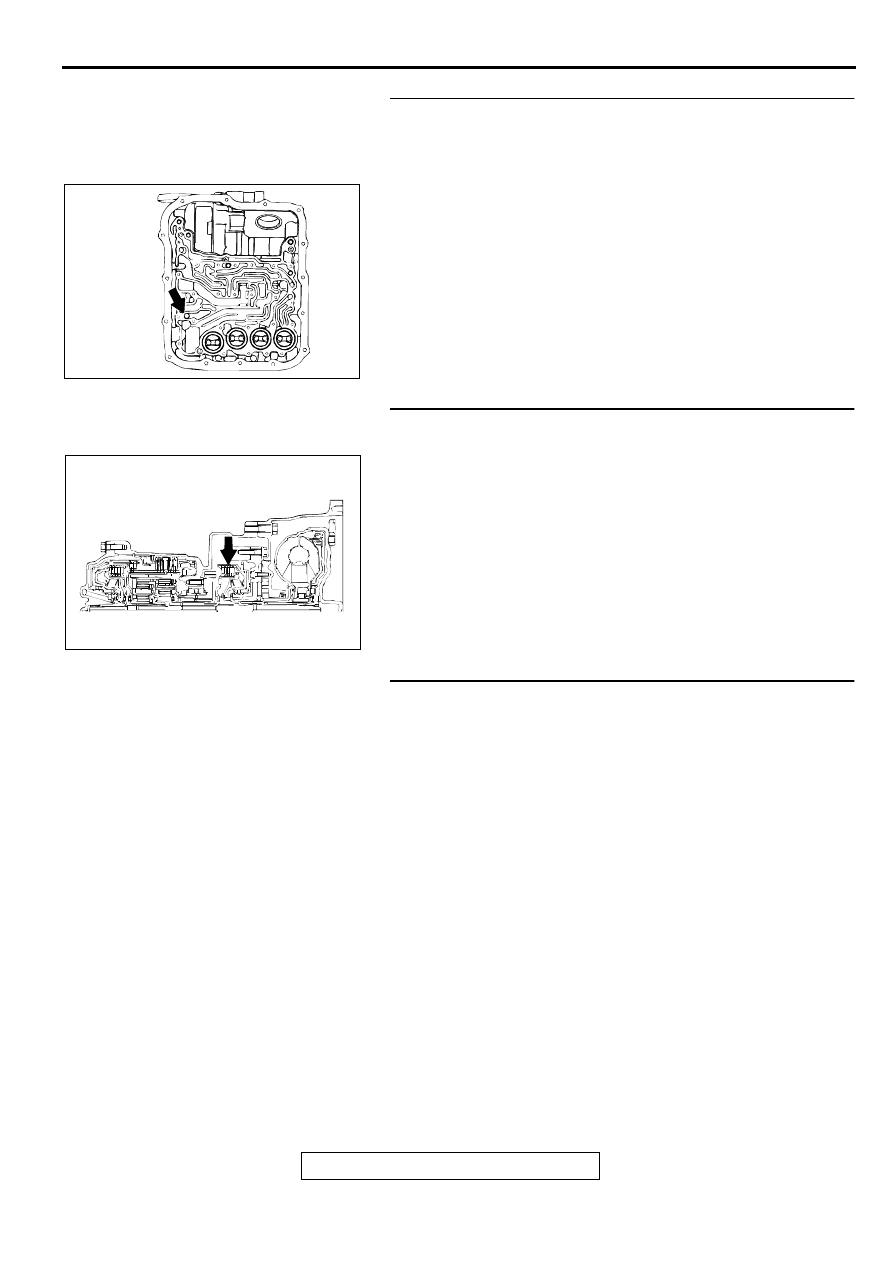

STEP 4. Check the underdrive clutch system.
(1) Remove the valve body cover and valve body. Refer to

P.23A-353

, Transaxle Assembly and GROUP 23B,

Transaxle

P.23B-11

.

(2) Blow compressed air into the underdrive clutch oil orifice of

the transmission case, and check if the underdrive clutch
piston moves and air pressure is maintained in that
condition.

Q: Is the air pressure maintained?

YES : Go to Step 8.
NO :  Go to Step 5.

STEP 5. Check the underdrive clutch.
(1) Remove the transmission assembly.
(2) Check the facing for seizure and the piston seal ring for

damage and interference with the retainer. Repair or
replace the faulty parts. Refer to GROUP 23B

P.23B-52

Underdrive Clutch and Input Shaft. Then check the
symptom.

Q: Is the symptom eliminated?

YES : Diagnosis is complete.
NO :  Go to Step 9.

STEP 6. Check shift shocks.

Q: Do shift shocks occur?

YES : Go to Step 7.
NO :  Go to Step 8.

AC001859

UNDERDRIVE
CLUTCH OIL
ORIFICE

AB

AC001861
