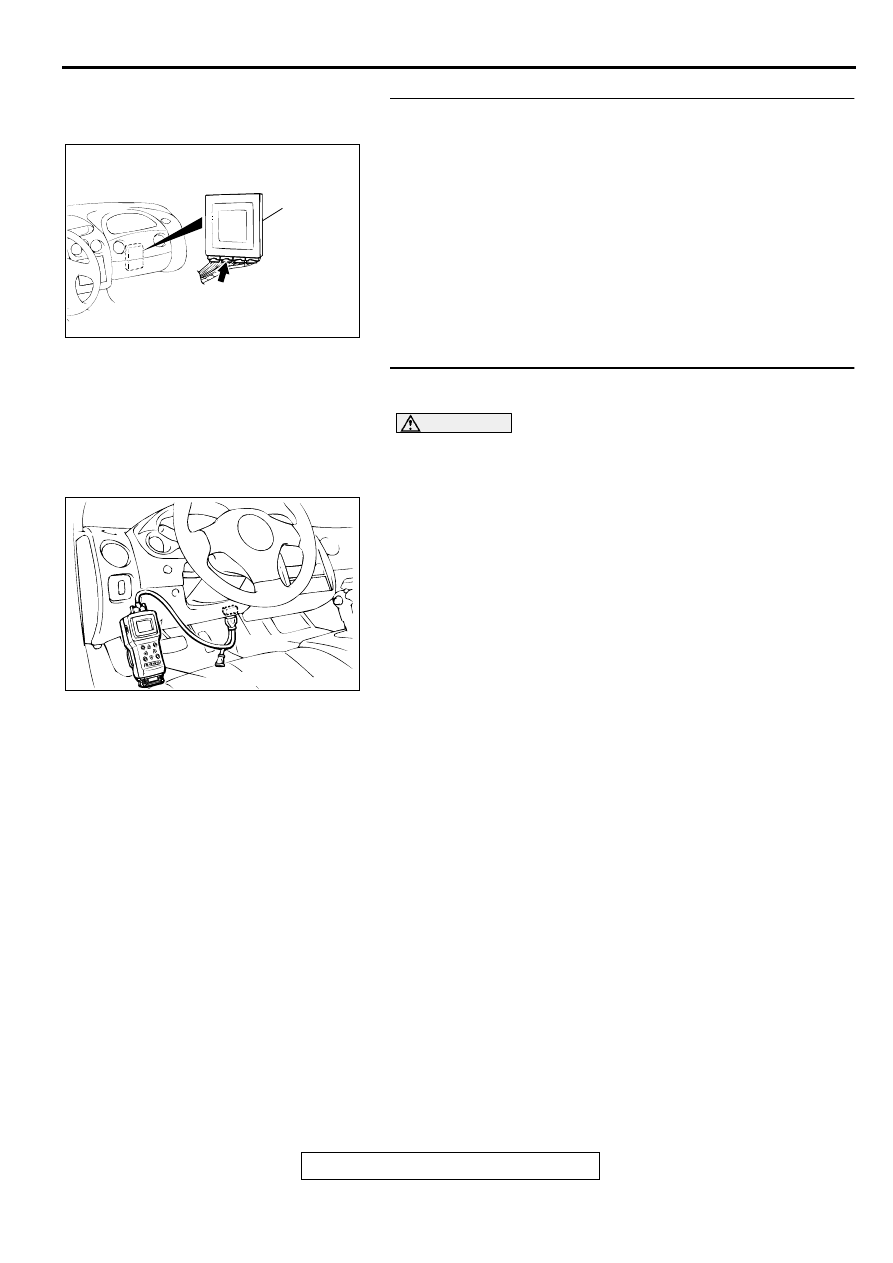

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-103

CIRCUIT OPERATION

A coil built into the input shaft speed sensor
generates 0

 5 volts pulse signal at both ends

of this coil when the input shaft rotates. The pulse
signal frequency increases with a rise in input
shaft speed.

Both ends of the coil are connected to the PCM
(terminals 57 and 103) via the input shaft speed
sensor connector (terminals 1 and 2).

The PCM detects the input shaft speed by the
signal input to terminal 103.

The input shaft speed sensor generates the pulse
signal as the teeth of the underdrive clutch
retainer pass the magnetic tip of the sensor.

DTC SET CONDITIONS
If no output pulse is detected from the input shaft
speed sensor for one second or more while driving in
3rd or 4th gear at a speed of 30 km/h (19 mph) or
more, it is judged to be an open circuit or short circuit
in the input shaft speed sensor and diagnostic
trouble code number "22" is output four times, the
transmission is locked into 3rd gear or 2nd gear as a
fail-safe measure, and the "N" range light flashes
once per second.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set:)

Malfunction of the input shaft speed sensor circuit

Malfunction of the underdrive clutch retainer

Damaged harness, connector

Malfunction of the PCM

DIAGNOSIS

Required Special Tool:
MB991502: Scan Tool (MUT-II)

AC001657

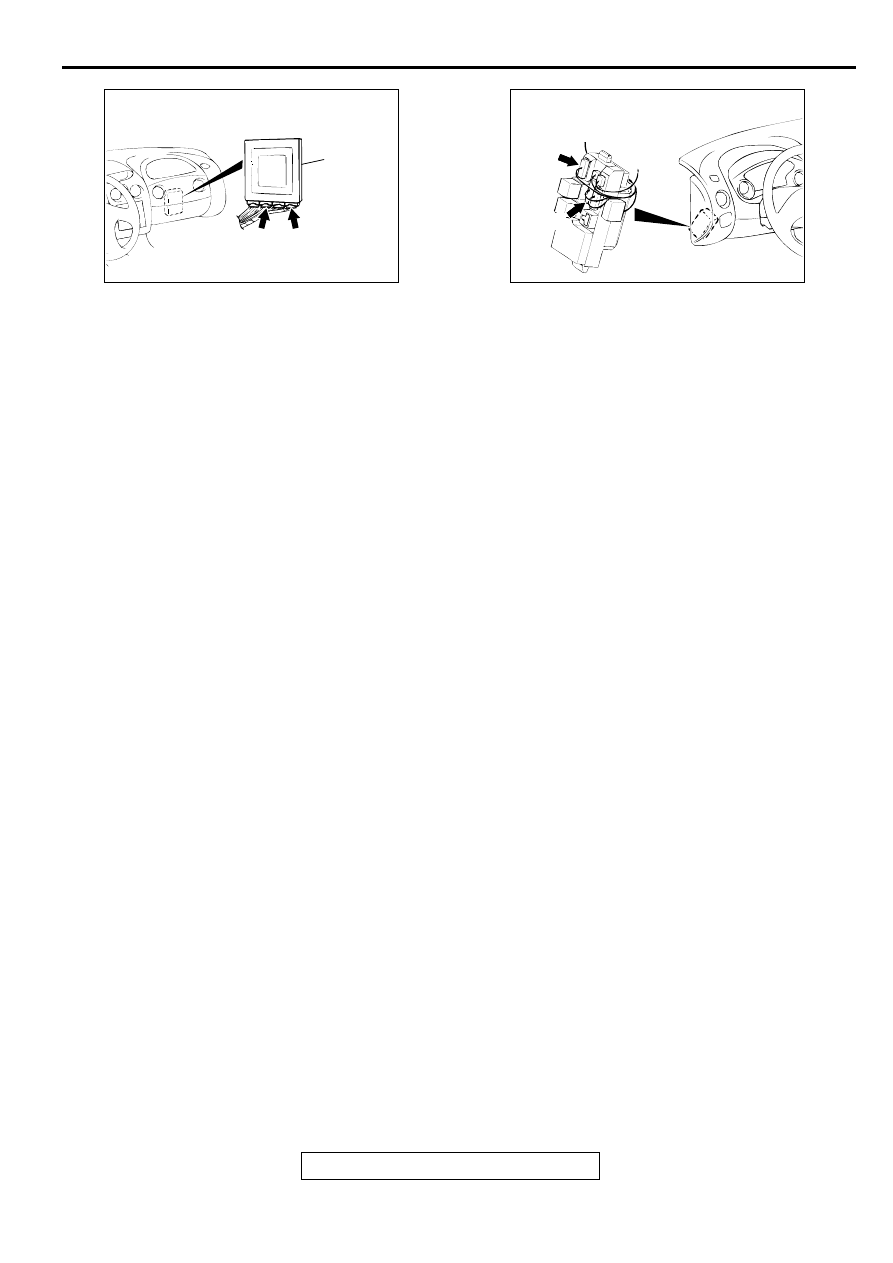

CONNECTORS: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>, C-61 <2.4L ENGINE>
OR C-63 <3.0L ENGINE>

PCM

AM

C-54 <2.4L ENGINE>
OR
C-55 <3.0L ENGINE>

C-61 <2.4L ENGINE>
OR
C-63 <3.0L ENGINE>

AC001691

CONNECTORS: C-101, C-107

C-101

JUNCTION BLOCK
(FRONT VIEW)

C-107

AN

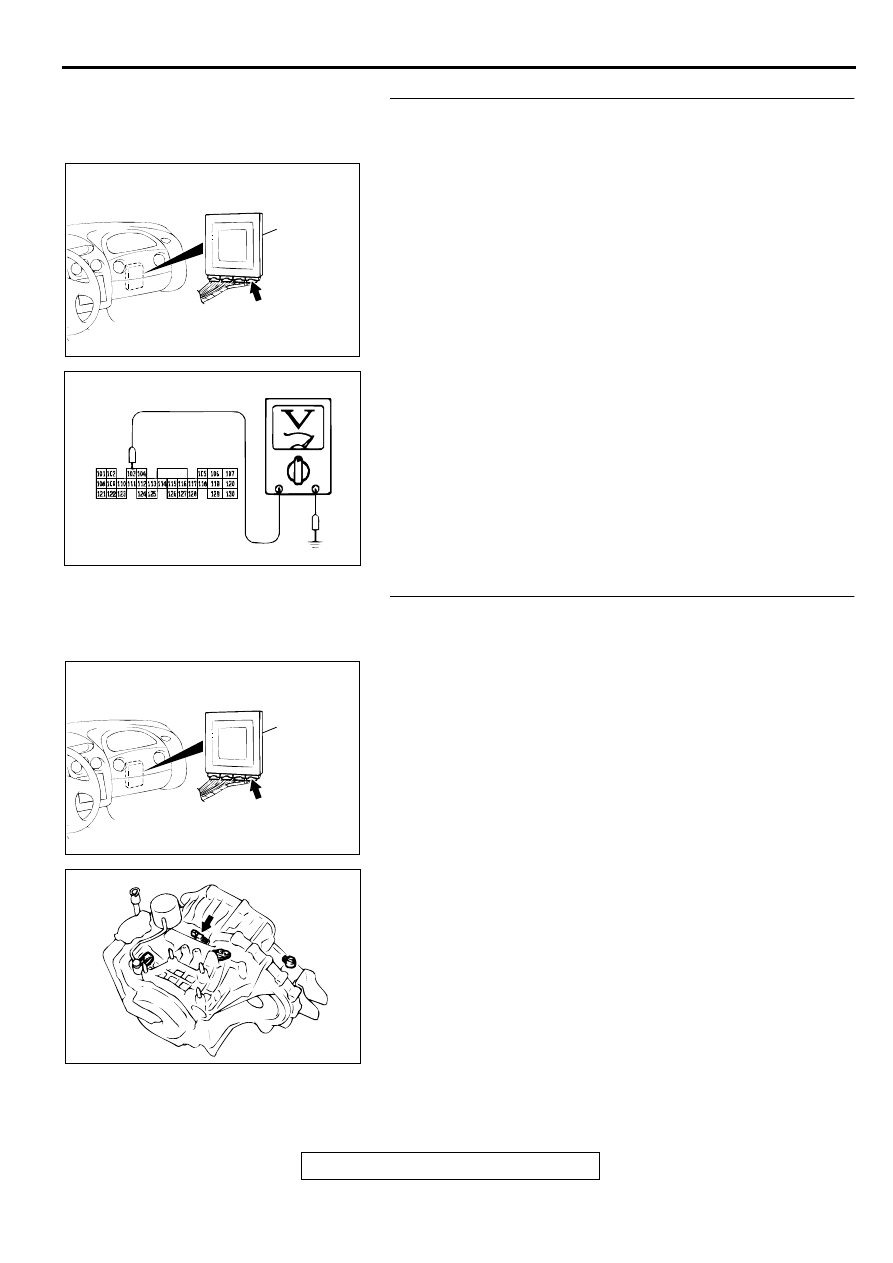

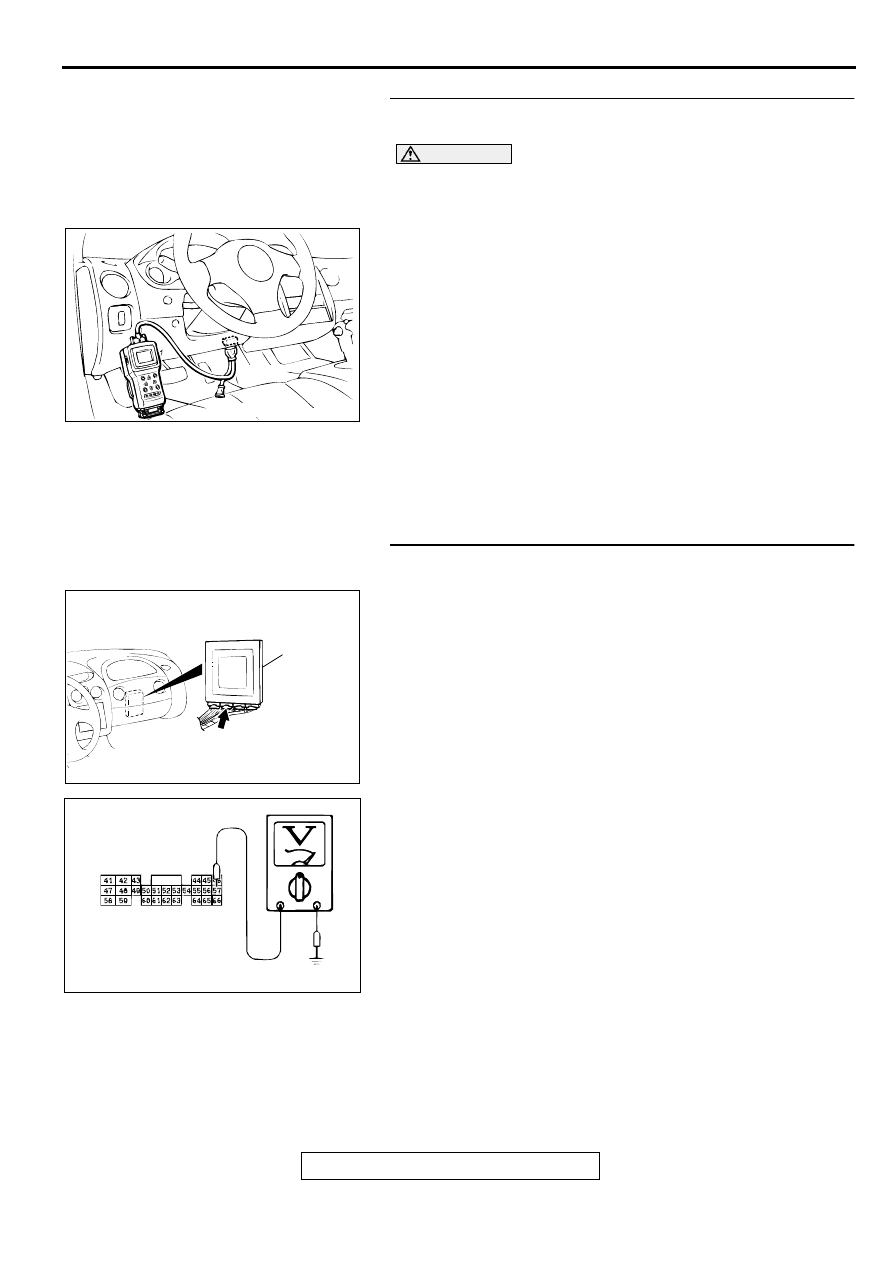

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-104

STEP 1. Using scan tool MB991502, check data list item 22:
Input Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991502 to data reading mode for item 22:

Input Shaft Speed Sensor.

When driving at constant speed of 50km/h (31mph), the
display should be "1,600

 1,900 r/min." <2.4L Engine>,

"1,300

 1,600 r/min." <3.0L Engine> (Gear range: 3rd

gear)

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the sensor operating properly?

YES : This malfunction is intermittent. Refer to GROUP 00,

How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check the ground voltage at PCM connector C-54
<2.4L Engine> or C-55 <3.0L Engine> by backprobing.
(1) Do not disconnect connector C-54 <2.4L Engine> or C-55

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 57 and ground by

backprobing.

Voltage should be 0.5 volt or less.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 5.
NO :  Go to Step 3.

AC001252

MB991502

16 PIN

AB

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

AL

AC001791

C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-105

STEP 3. Check connector C-54 <2.4L Engine> or C-55
<3.0L Engine> at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 4. Using scan tool MB991502, check data list item 22:
Input Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991502 to data reading mode for item 22:

Input Shaft Speed Sensor.

When driving at constant speed of 50km/h (31mph), the
display should be "1,600

 1,900 r/min." <2.4L Engine>,

"1,300

 1,600 r/min." <3.0L Engine> (Gear range: 3rd

gear)

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the sensor operating properly?

YES : This malfunction is intermittent. Refer to GROUP 00,

How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

AL

AC001252

MB991502

16 PIN

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-106

STEP 5. Check the sensor output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Disconnect connector B-42 at the input shaft speed sensor.
(3) Turn the ignition switch to "ON" position.

(4) Measure the voltage between terminal 103 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check connectors C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM and B-42 at input shaft speed
sensor for damage.
Q: Are the connectors in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001810

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001835

CONNECTOR: B-42

AD
