AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-59

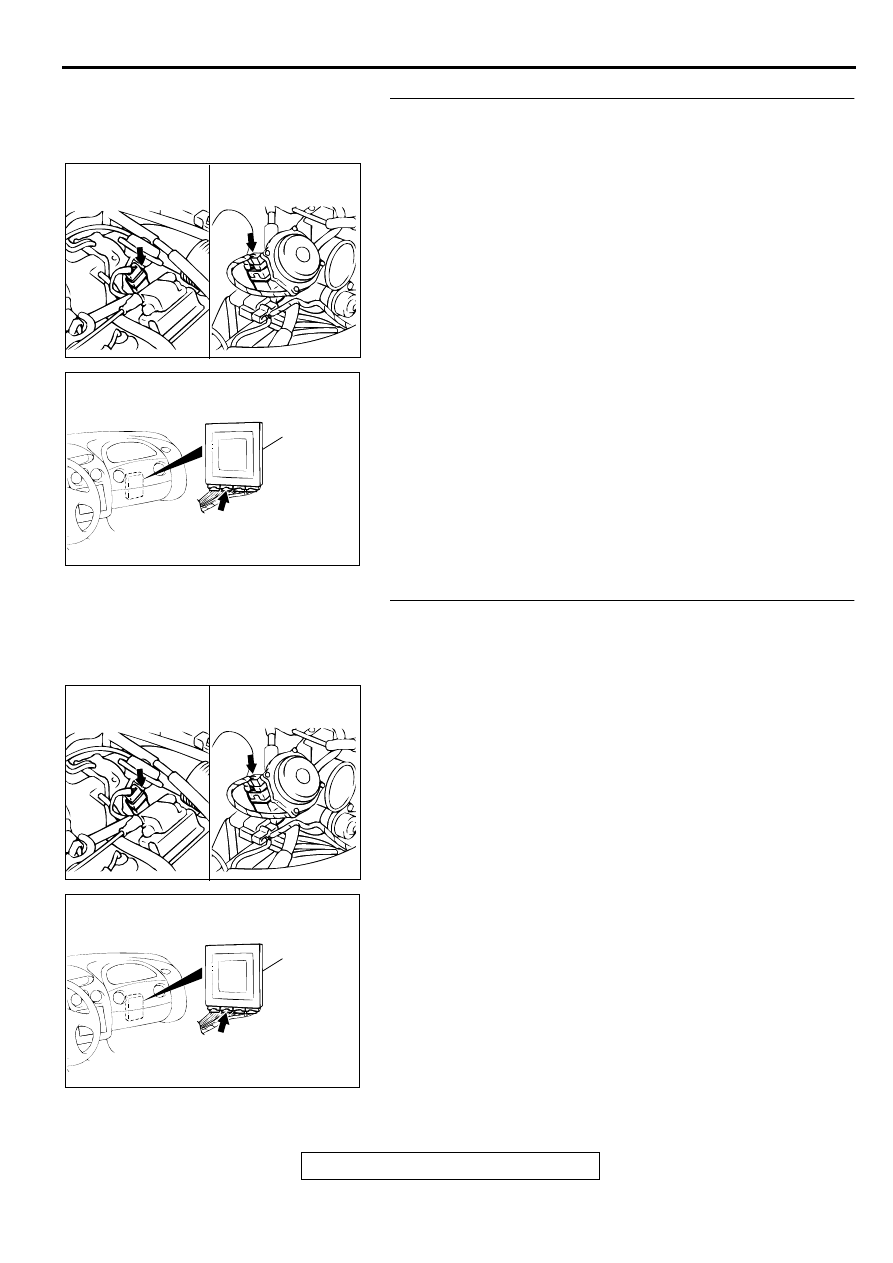

STEP 6. Check connectors B-07 at throttle position sensor
and C-57 <2.4L Engine> or C-59 <3.0L Engine> at PCM for
damage.
Q: Are the connectors in good condition?

YES : Repair it because of harness open circuit or damage

between throttle position sensor connector B-07
terminal 3 and PCM connector C-57 <2.4L Engine> or
C-59 <3.0L Engine> terminal 78.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

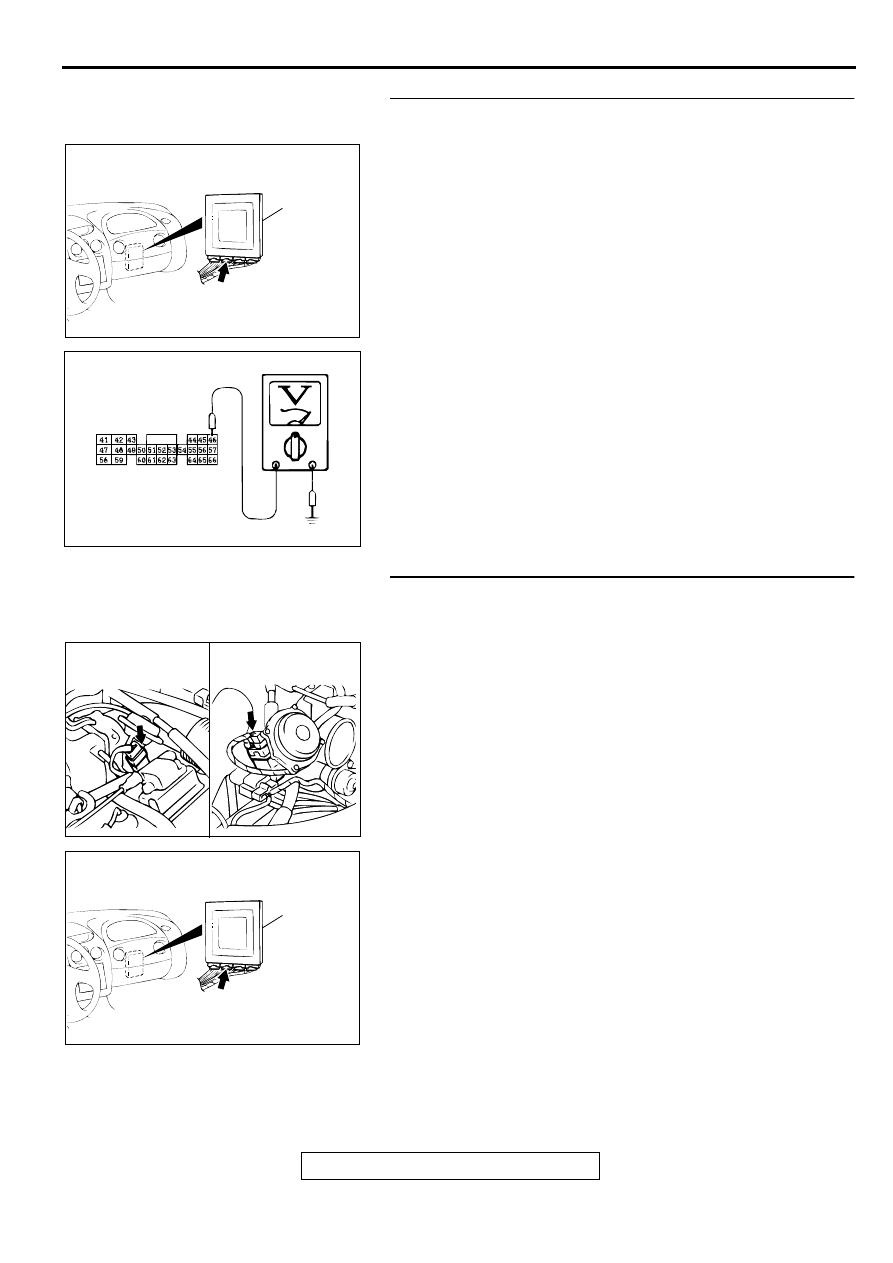

STEP 7. Check the power supply voltage at throttle
position sensor connector B-07 by backprobing.
(1) Do not disconnect connector B-07.
(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 4 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 12.
NO :  Go to Step 8.

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

AC001657

CONNECTOR: C-57 <2.4L ENGINE> OR
C-59 <3.0L ENGINE>

AK

PCM

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

AC001789

B-07 CONNECTOR
HARNESS SIDE VIEW

AC

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-60

STEP 8. Check the power supply voltage at PCM connector
C-54 <2.4L Engine> or C-55 <3.0L Engine> by backprobing.
(1) Do not disconnect connector C-54 <2.4L Engine> or C-55

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 46 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 9.
NO :  Go to Step 10.

STEP 9. Check connectors B-07 at throttle position sensor
and C-54 <2.4L Engine> or C-55 <3.0L Engine> at PCM for
damage.
Q: Are the connectors in good condition?

YES : Repair it because of harness open circuit or damage

between throttle position sensor connector B-07
terminal 4 and PCM connector C-54 <2.4L Engine> or
C-55 <3.0L Engine> terminal 46.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

AL

AC000848

C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

AL

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-61

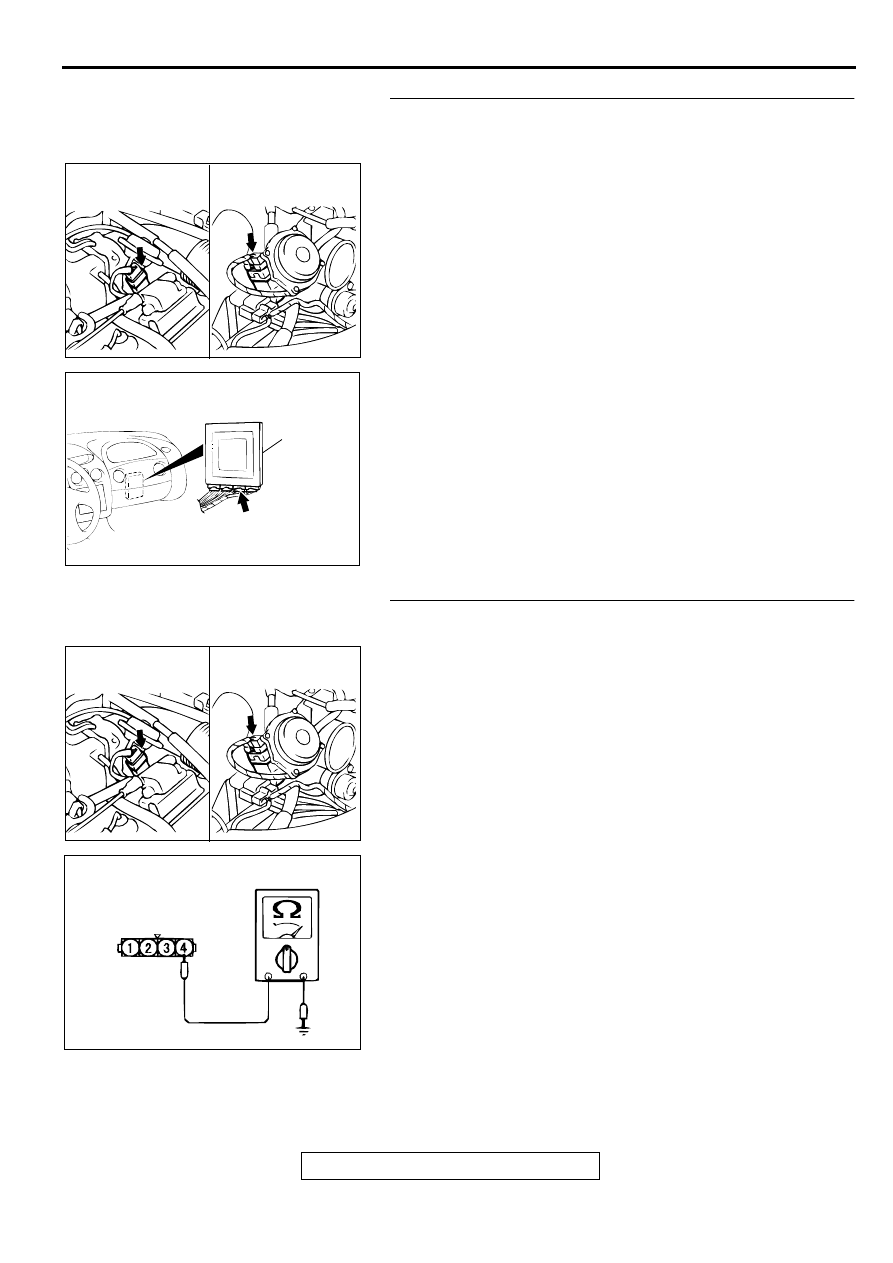

STEP 10. Check connector B-07 at throttle position sensor
and C-54 <2.4L Engine> or C-55 <3.0L Engine> at PCM for
damage.
Q: Are the connectors in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 11. Check harness for short circuit to ground
between throttle position sensor connector B-07 terminal 4
and PCM connector C-54 <2.4L Engine> or C-55 <3.0L
Engine> terminal 46.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it.

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

AL

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

AL

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-62

STEP 12. Check connector B-07 at throttle position sensor
for damage.
Q: Is the connector in good condition?

YES : Go to Step 13.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

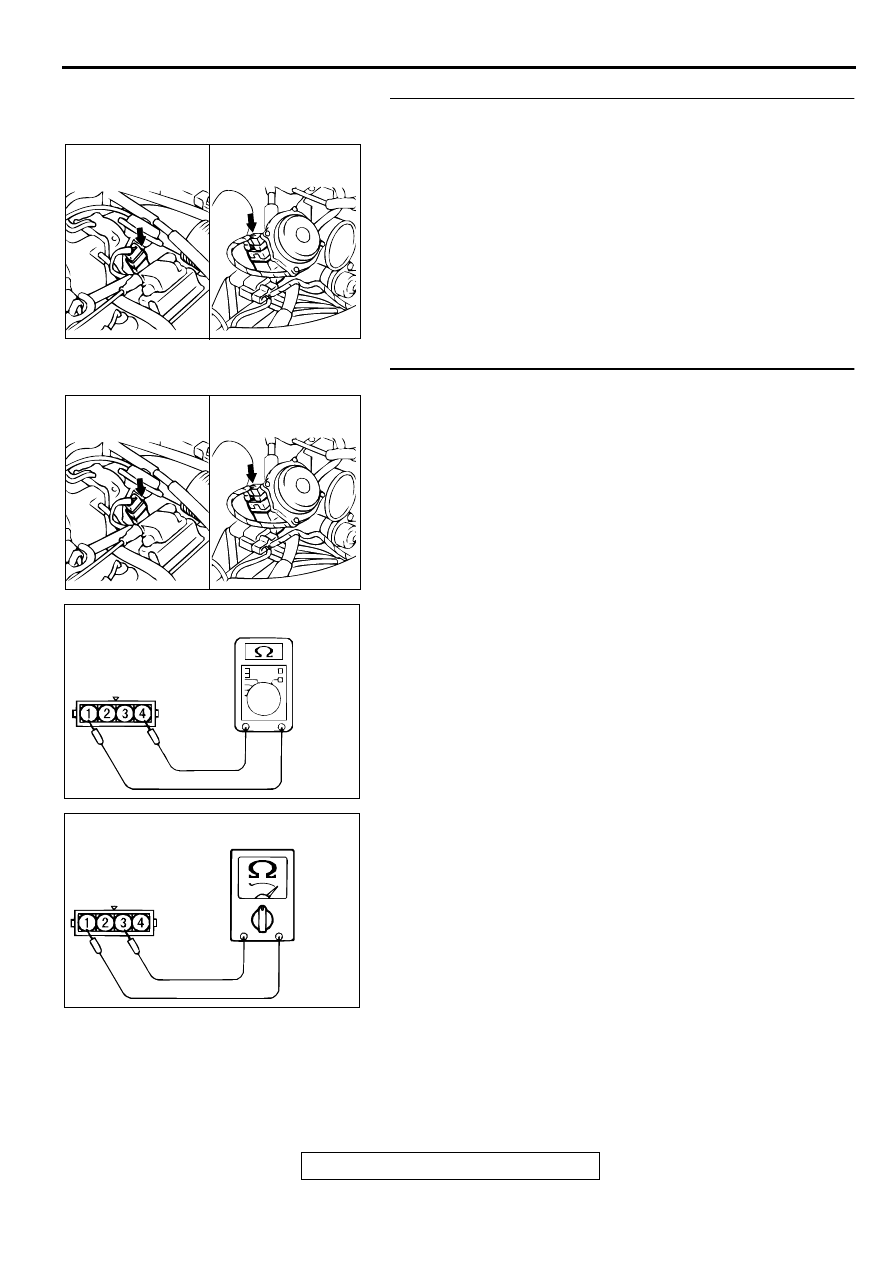

STEP 13. Check the throttle position sensor.
(1) Disconnect connector B-07 and measure at the sensor

side.

(2) Measure the resistance between connector terminal 1 and

4.

Standard value: 3.5 - 6.5 k

(3) Measure resistance between the throttle position sensor

side connector terminal 1 and 3.

(4) Move the throttle valve from the idle position to full-open

position.

Resistance should change smoothly in proportion to
opening angle of the throttle valve.

Q: Is the resistance normal?

YES : Go to Step 14.
NO :  Replace the throttle position sensor. Refer to GROUP

13A <2.4L Engine>, Throttle Body Assembly

P.13A-

488

 or 13B <3.0L Engine>, Throttle Body Assembly

P.13B-563

.

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

AC001831AB

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

ACX02093

HARNESS
CONNECTOR: B-07

AC

ACX02094

HARNESS
CONNECTOR: B-07

AC
