CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-55

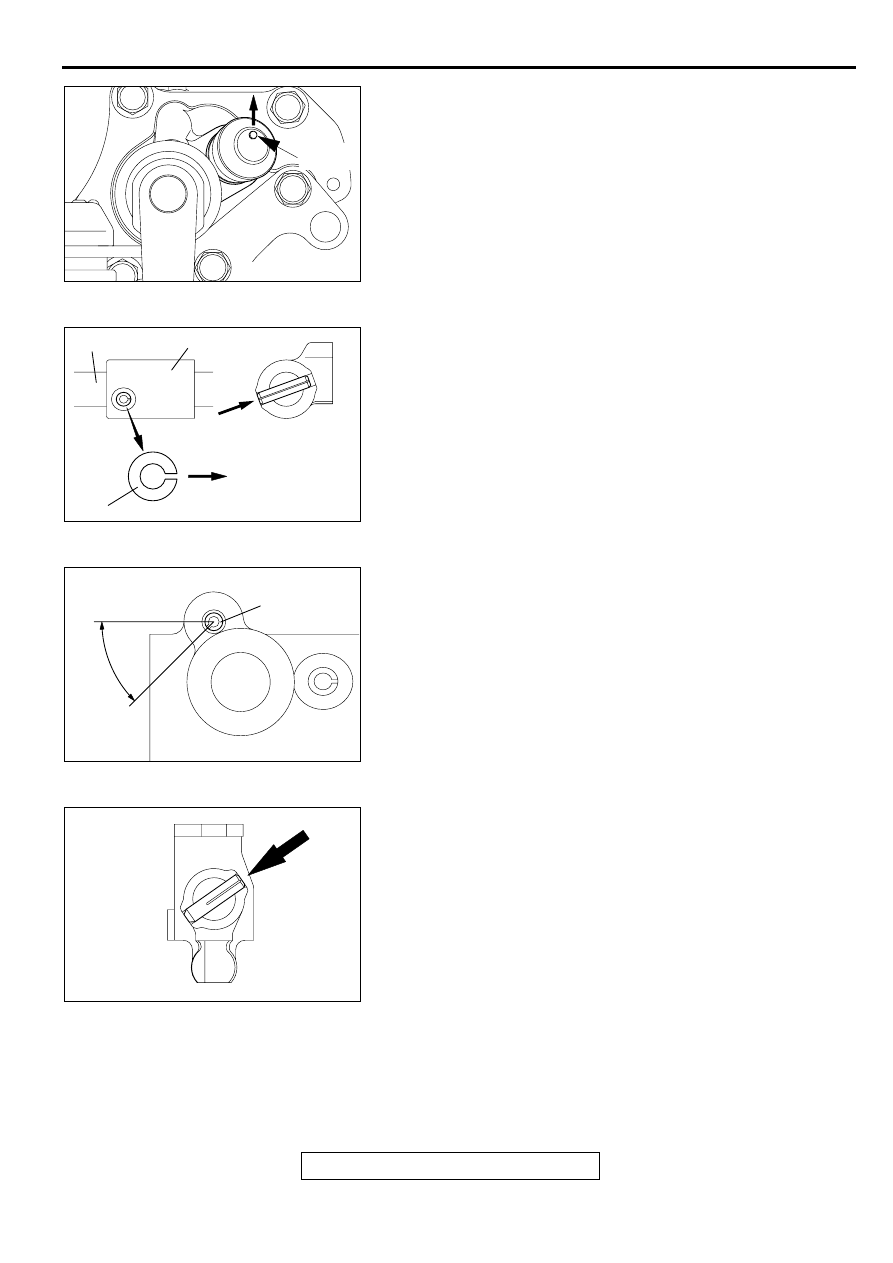

2. Install the air breather so that the embossed mark is in the

direction shown in the figure.

>>D<< SPRING PIN INSTALLATION
Drive in the spring pin so that the slit is in the direction shown in
the figure.

>>E<< SPRING PIN INSTALLATION
Drive in the spring pin so that the slit is in the direction shown in
the figure.

>>F<< LOCK PIN INSTALLATION
Drive the lock pin in from the direction shown in the figure.

AKX00772

EMBOSS
MARK

AB

AKX00922

CONTROL
SHAFT

STOPPER BODY

INSTALLATION
DIRECTION

SLIT

SPRING PIN

AB

AKX00923

SPRING PIN

45˚

SLIT

AB

AKX00859

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-56

CLUTC H  H O U SIN G

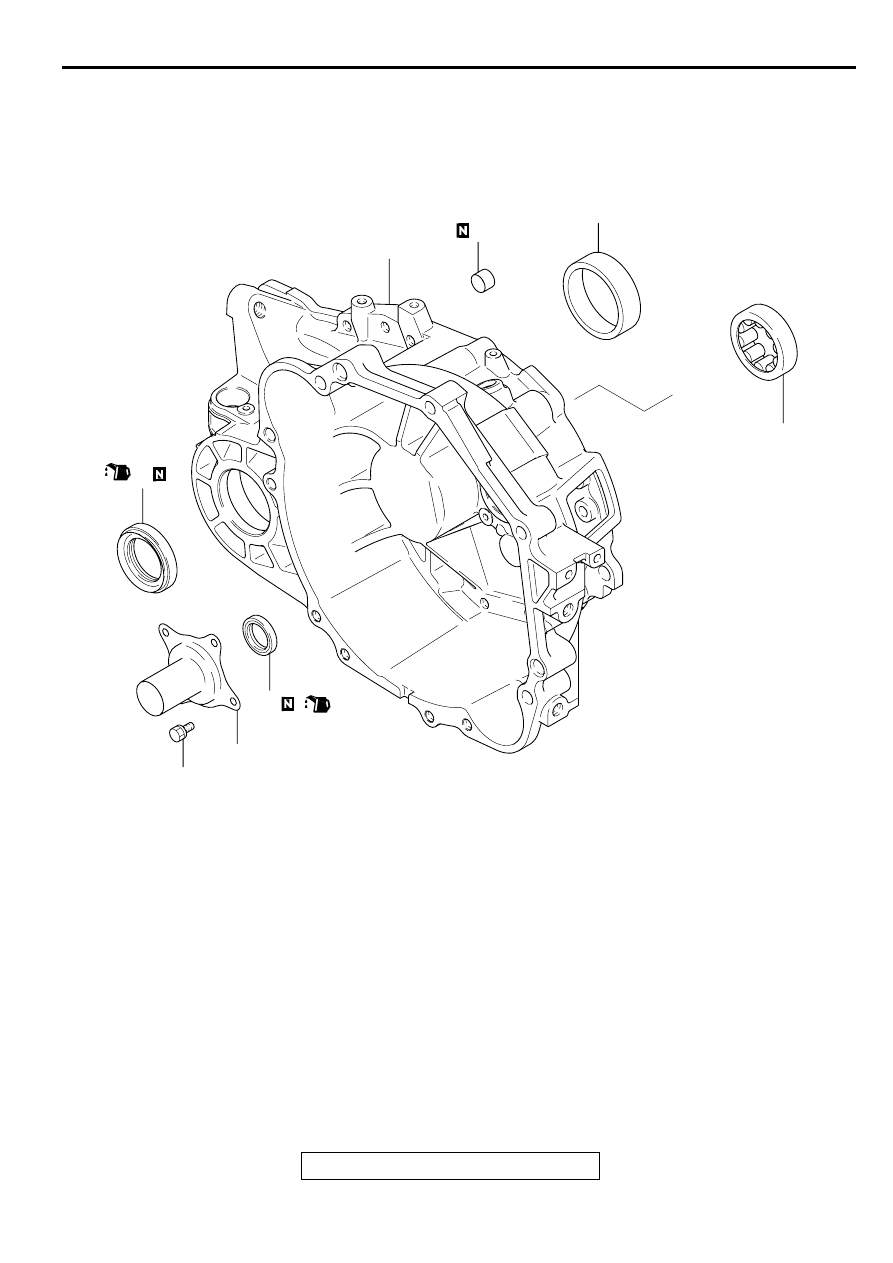

DISASSEMBLY AND ASSEMBLY

M1222003700035

<F5M42>

NOTE: *:Refer to the bushing installation procedures
only when replacing the  clutch housing.

Required Special Tools:
MB990926: Installer Adapter <F5M42>
MB990928: Installer Adapter <F5M51>
MB990934: Installer Adapter <F5M42>
MB990935: Installer Adapter
MB990938: Handle

MB991445: Bushing Remover and Installer Base

<F5M51>

MD998325: Differential Oil Seal Installer <F5M42>
MD998346: Bearing Outer Race Remover <F5M42>
MD998772: Valve Spring Compressor <F5M42>
MD998800: Differential Oil Seal Installer <F5M51>
MD999566: Claw

AKX00936

4

6*

7

5

3

2

1

9.8 ± 2 N·m
87 ± 17 in-lb

AB

DISASSEMBLY STEPS
1. CLUTCH RELEASE BEARING

RETAINER

>>G<<

2. OIL SEAL

>>F<<

3 OIL SEAL

<<A>>

>>E<<

4. OUTER RACE

<<B>>

>>C<<

5. OUTER RACE

>>B<<

6. BUSHING*
7. CLUTCH HOUSING

DISASSEMBLY STEPS (Continued)

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-57

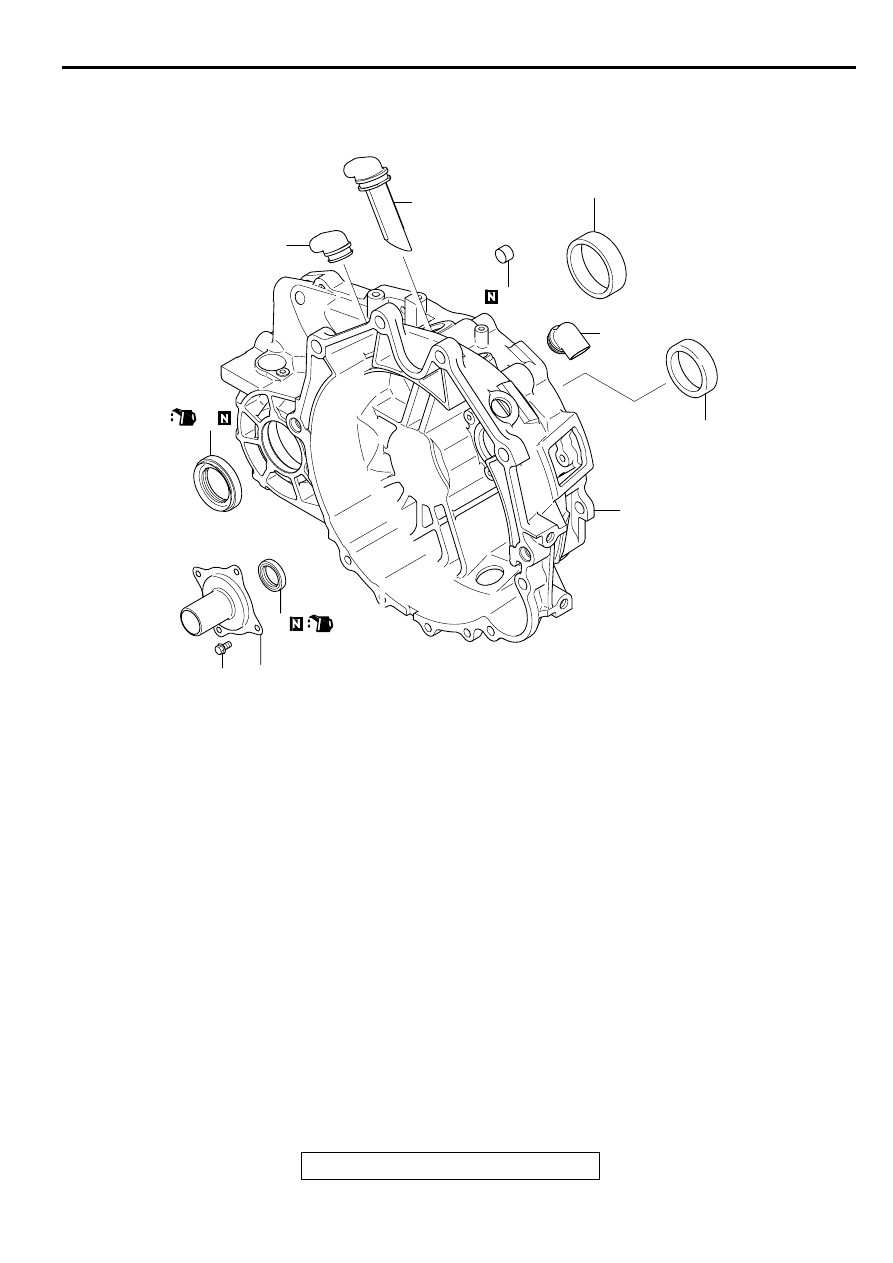

 <F5M51>

NOTE:  *:Refer to the bushing installation
procedures only when replacing the  clutch housing.

AKX00947

4

8

7

6*

7

3

5

9

2

1

9.8 ± 2 N·m
87 ± 17 in-lb

AB

DISASSEMBLY STEPS
1. CLUTCH RELEASE BEARING

RETAINER

>>G<<

2. OIL SEAL

>>F<<

3 OIL SEAL

<<A>>

>>E<<

4. OUTER RACE

<<B>>

>>C<<

5. OUTER RACE

>>B<<

6. BUSHING*

>>A<<

7. COVER-A

>>A<<

8. COVER-B
9. CLUTCH HOUSING

DISASSEMBLY STEPS (Continued)

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-58

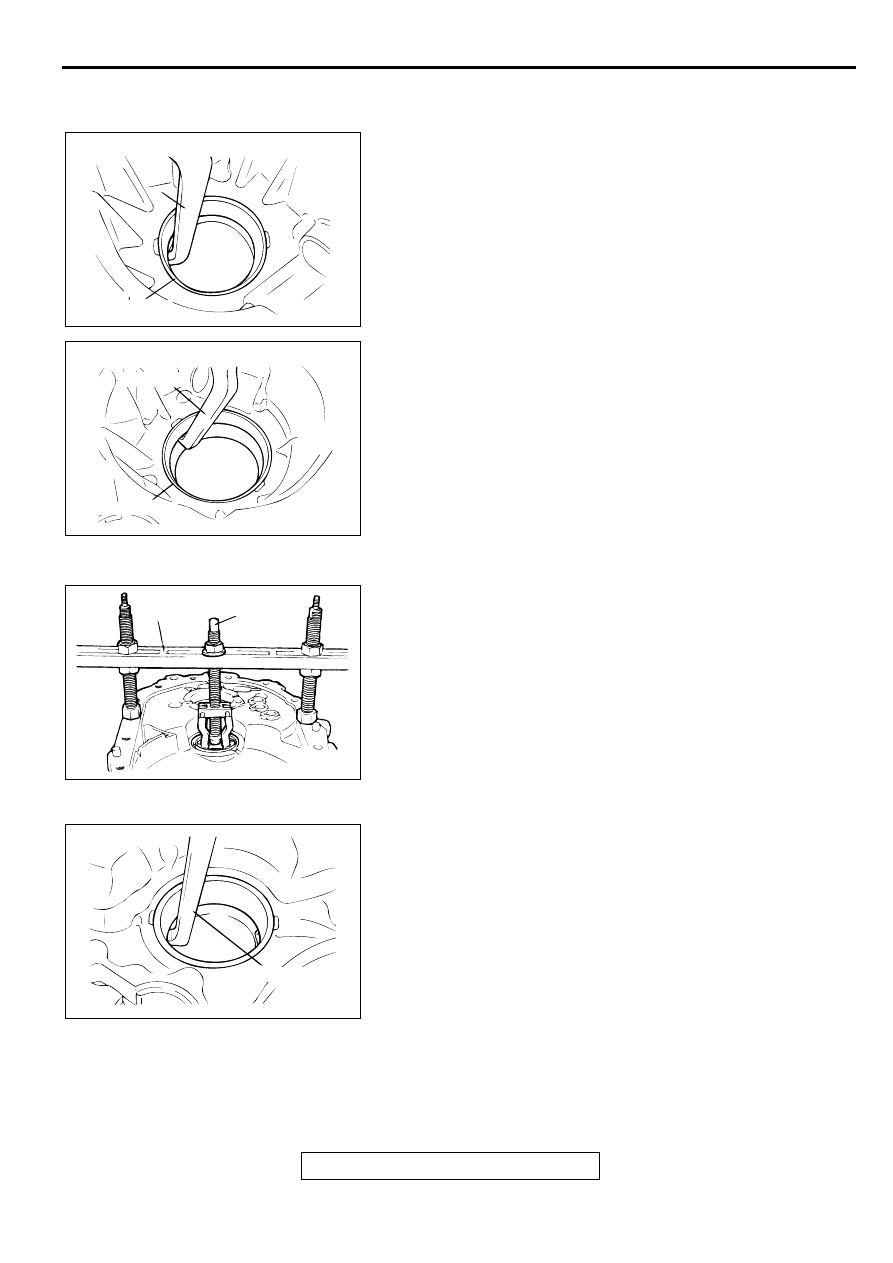

DISASSEMBLY SERVICE POINT

<<A>> OUTER RACE REMOVAL
Using special tool MD999566, remove the outer race from the
clutch housing.

<<B>> OUTER RACE REMOVAL
1. Set special tools MD998772 and MD998346 as indicated in

the figure.

2. Turn the nut on special tool MD998346 to pull up on the tool

and take out the outer race.

<<C>> OUTER RACE REMOVAL
Using special tool MD999566, remove the outer race from the
clutch housing.

AKX00860

<F5M42>

MD999566

AB

AKX00904

<F5M51>

MD999566

OUTER RACE

AB

AKX00861AB

MD998346

MD998772

AKX00905AB

MD999566
