OUTPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-35

DISASSEMBLY SERVICE POINTS

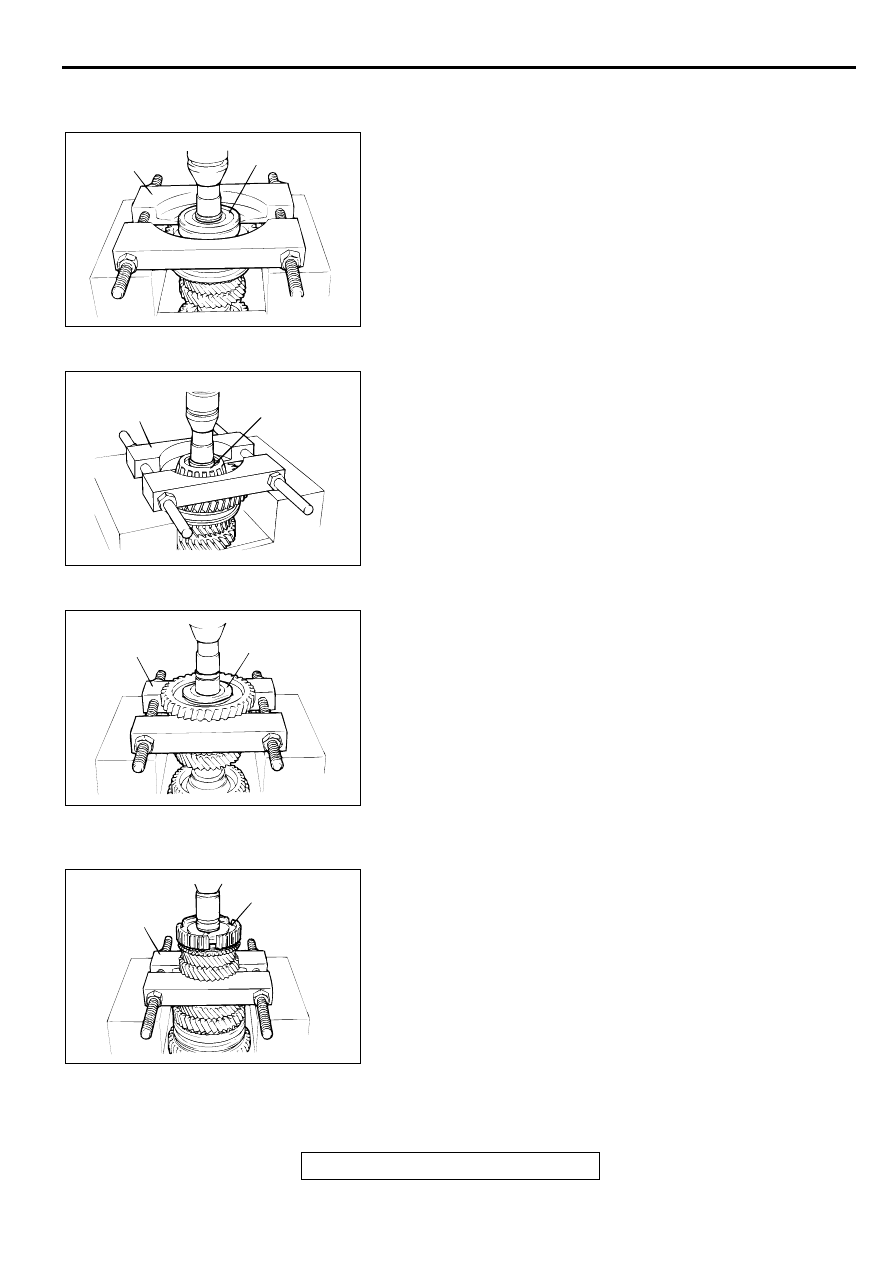

<<A>> BALL BEARING REMOVAL
1. Using special tool MD998917, support the ball bearing, and

then set them on the press.

2. Push down on the output shaft with the press, and take out

the ball bearing.

<<B>> TAPER ROLLER BEARING REMOVAL
1. Using special tool MD998801, support the taper roller

bearing, and then set them on the press.

2. Push down on the output shaft with the press, and take out

the taper roller bearing.

<<C>> REVERSE GEAR BEARING SLEEVE REMOVAL
1. Using special tool MD998801, support the reverse gear, and

then set them on the press.

2. Push down on the output shaft with the press and remove

the reverse gear bearing sleeve.

<<D>> 5TH SPEED-REVERSE SYNCHRONIZER HUB
REMOVAL
1. Using special tool MD998801, support the 4th speed gear,

and then set them on the press.

2. Push down on the output shaft with the press and remove

the 5th speed-reverse synchronizer hub.

AKX00836

BALL BEARING

MD998917

AB

AKX00891

TAPER ROLLER
BEARING

MD998801

AB

AKX00837

REVERSE GEAR
BEARING
SLEEVE

MD998801

AB

AKX00838AB

SYNCHRONIZER
HUB

MD998801

OUTPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-36

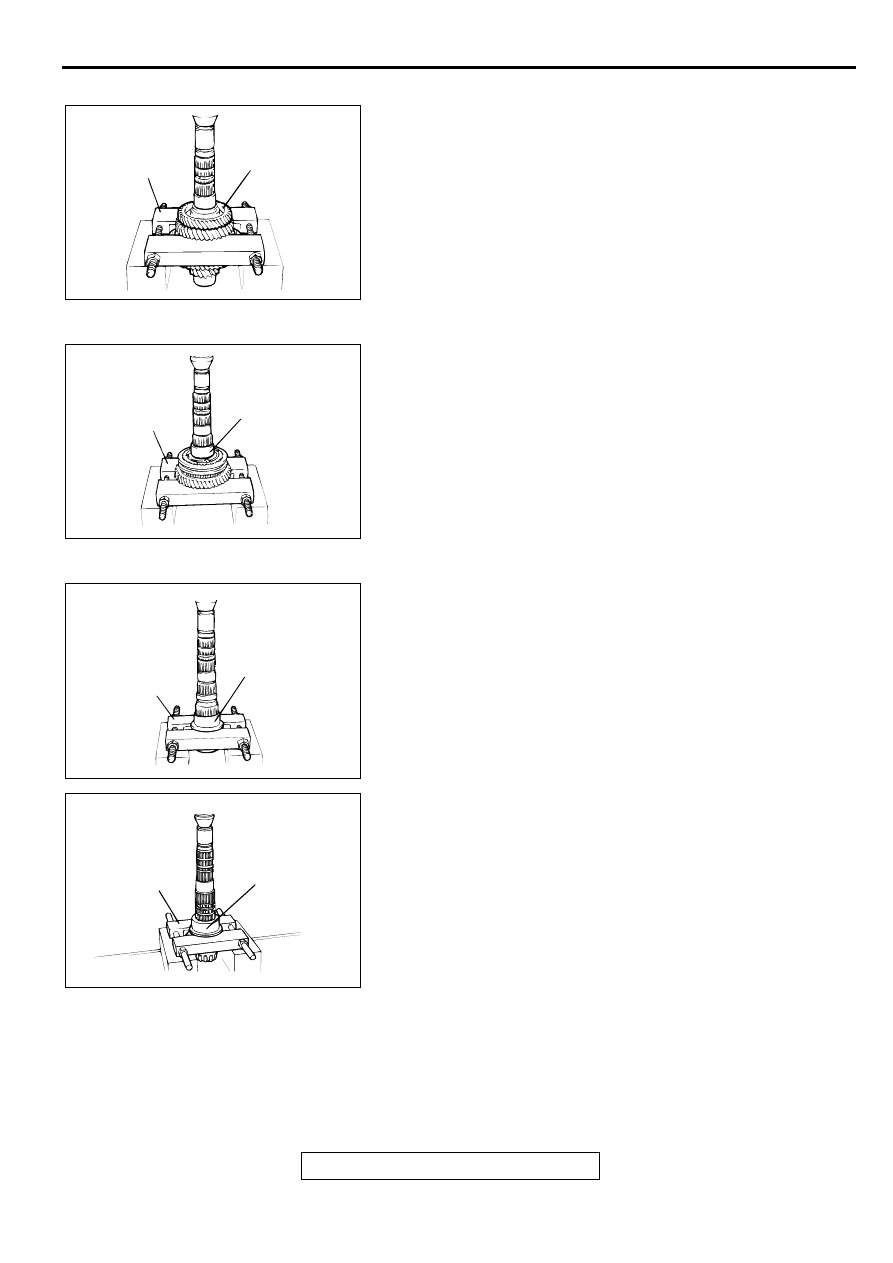

<<E>> 3RD SPEED GEAR REMOVAL
1. Using special tool MD998917, support the 2nd speed gear,

and then set them on the press.

2. Push down on the output shaft with the press and remove

the 3rd speed gear.

<<F>> 2ND SPEED GEAR SLEEVE REMOVAL
1. Using special tool MD998917, support the 1st speed gear,

and then set them on the press.

2. Push down on the output shaft with the press and remove

the 2nd speed gear sleeve.

<<G>> 1ST SPEED GEAR SLEEVE REMOVAL
1. Using special tool MD998801, support the 1st speed gear

sleeve, and then set them on the press.

2. Push down on the output shaft with the press and remove

the 1st speed gear sleeve.

AKX00839

3RD SPEED GEAR

MD998917

AB

AKX00840

MD998917

2ND SPEED GEAR
SLEEVE

AB

AKX00841

<F5M42>

1ST SPEED
GEAR SLEEVE

MD998801

AB

AKX00892

<F5M51>

1ST SPEEDGEAR
SLEEVE

MD998801

AB

OUTPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-37

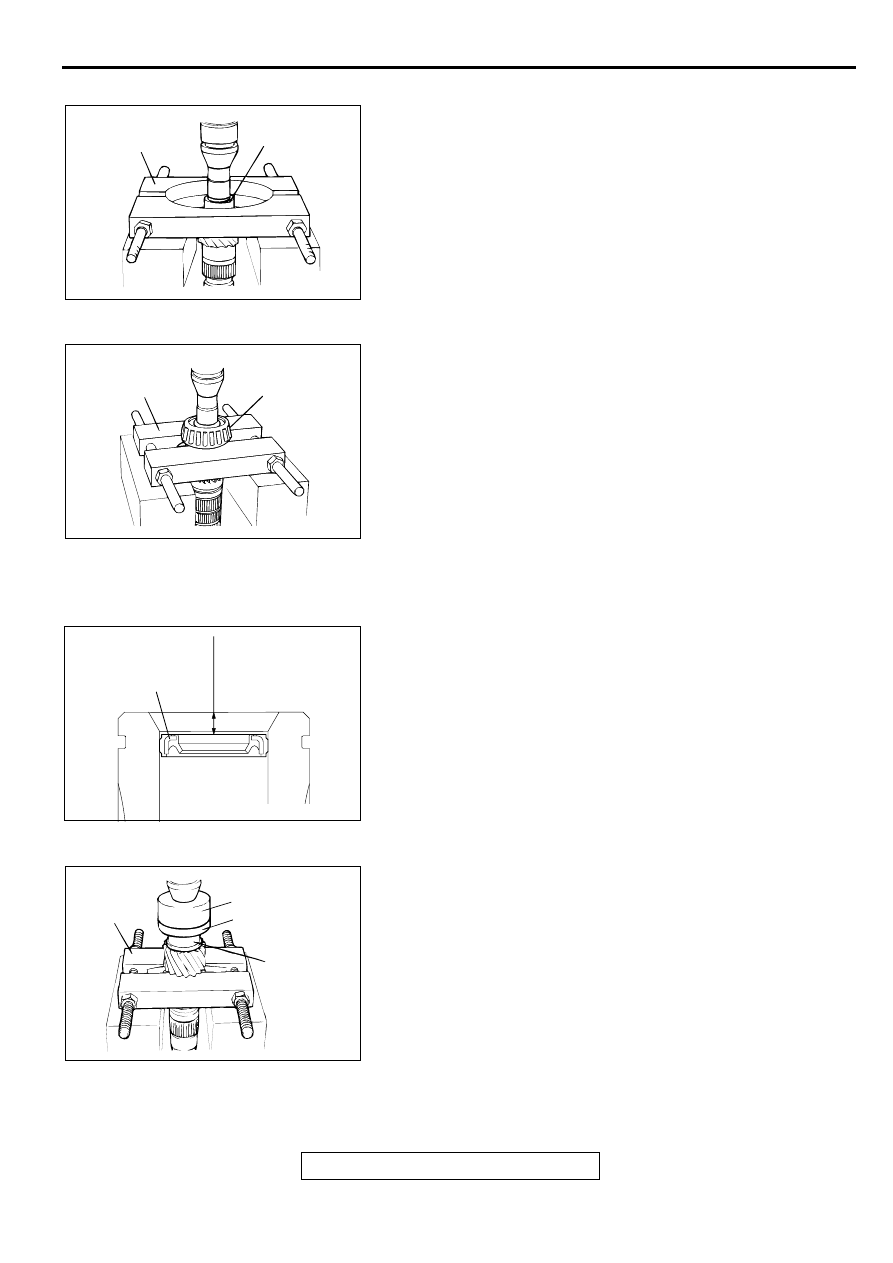

<<H>> ROLLER BEARING INNER RACE REMOVAL
1. Using special tool MD998917, support the roller bearing

inner race, and then set them on the press.

2. Push down on the output shaft with the press and remove

the roller bearing inner race.

<<I>> TAPER ROLLER BEARING REMOVAL
1. Using special tool MD998801, support the taper roller

bearing, and then set them on the press.

2. Push down on the output shaft with the press and remove

the taper roller bearing.

ASSEMBLY SERVICE POINTS

>>A<< OIL SEAL INSTALLATION
Make sure that the oil seal is pressed into the position shown in
the illustration.

>>B<< ROLLER BEARING INNER RACE INSTALLATION
1. Using special tool MD998801, support the output shaft gear,

and then set them on the press.

2. Using special tools MD998812 and MD998818, press install

the roller bearing inner race with the press.

AKX00842

ROLLER BEARING
INNER RACE

MD998917

AB

AKX00893

TAPER ROLLER
BEARING

MD998801

AB

AKX00827

3.5 mm (0.138 in)

OIL SEAL

AB

AKX00844

MD998812

MD998801

MD998818

ROLLER
BEARING
INNER RACE

AB

OUTPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-38

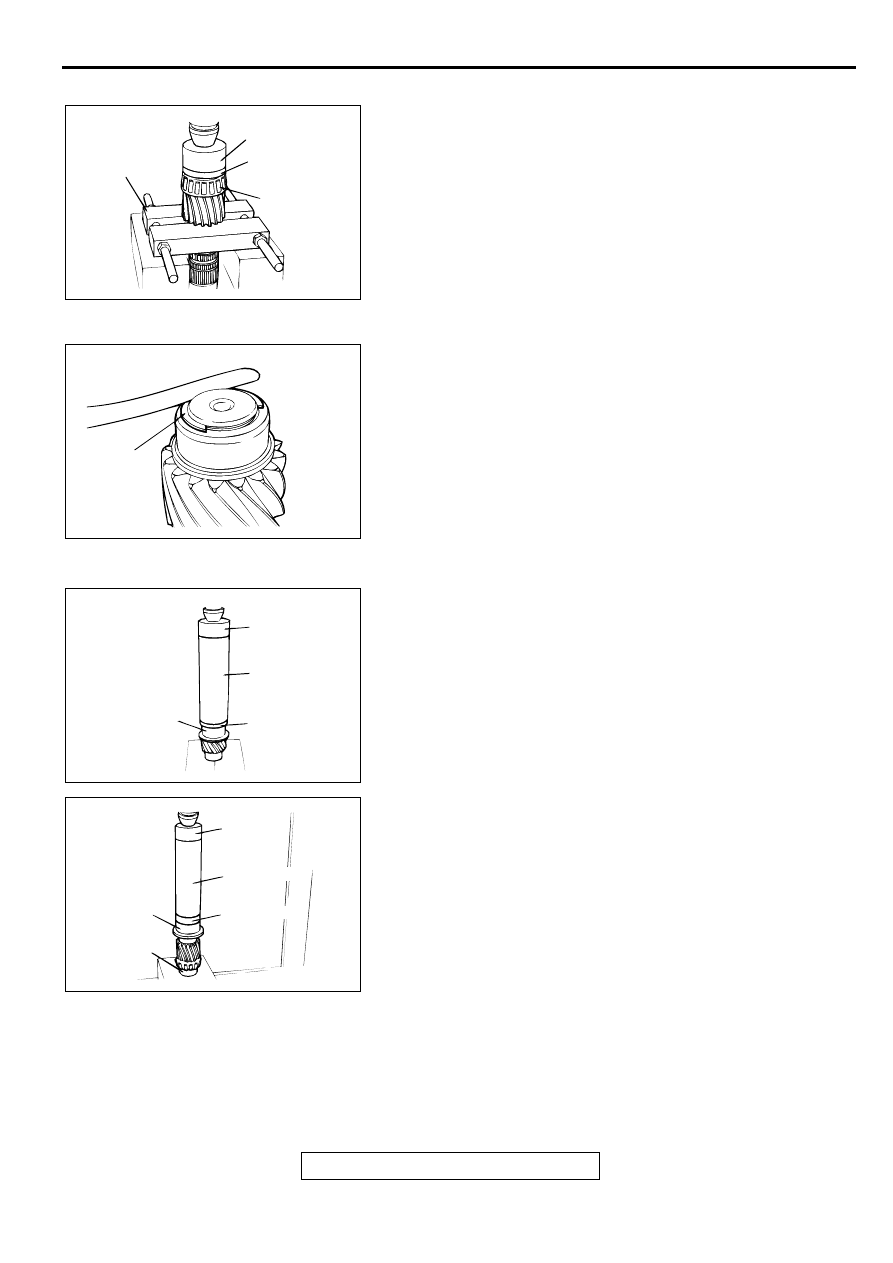

>>C<< TAPER ROLLER BEARING INSTALLATION
1. Using special tool MD998801, support the output shaft gear,

and then set them on the press.

2. Using special tools MD998812 and MD998819, press install

the taper roller bearing with the press.

>>D<< SNAP RING INSTALLATION
1. Install the thickest snap ring that can be fitted in the groove

of output shaft.

2. Make sure that the roller bearing inner race end play meets

the standard value.

Standard value: 0

 0.12 mm (0

 0.0047 inch)

>>E<< 1ST SPEED GEAR SLEEVE INSTALLATION
1. Set the output shaft on the press support stand.

2. Using special tools MD998812, MD998814, MD998825

<F5M42>, MD998824 <F5M51> and MD998364 <F5M51>,
press install the 1st speed gear sleeve with the press.

AKX00894

MD998812

MD998819

MD998801

TAPER
ROLLER
BEARING

AB

AKX00845

SNAP RING

AB

AKX00846

<F5M42>

MD998812

MD998814

1ST SPEED
GEAR
SLEEVE

MD998825

AB

AKX00895

<F5M51>

MD998812

MD998364

1ST SPEED
GEAR SLEEVE

MD998814

MD998824

AB
