AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-79

CLUTCH PEDAL POSITION SWITCH

1. Disconnect the connector.

2. Check for continuity between the terminals of the switch.

PARK/NEUTRAL POSITION SWITCH ("N"
POSITIN)

Refer to GROUP 23A, On-vehicle Service

−

 Essential Service

P.23A-340

.

THROTTLE POSITION SENSOR

For 2.4L engine, refer to GROUP 13A, On-vehicle Service

−



Throttle Position Sensor Check

P.13A-480

.

For 3.0L engine, refer to GROUP 13B, On-vehicle Service

−



Throttle Position Sensor Check

P.13B-557

.

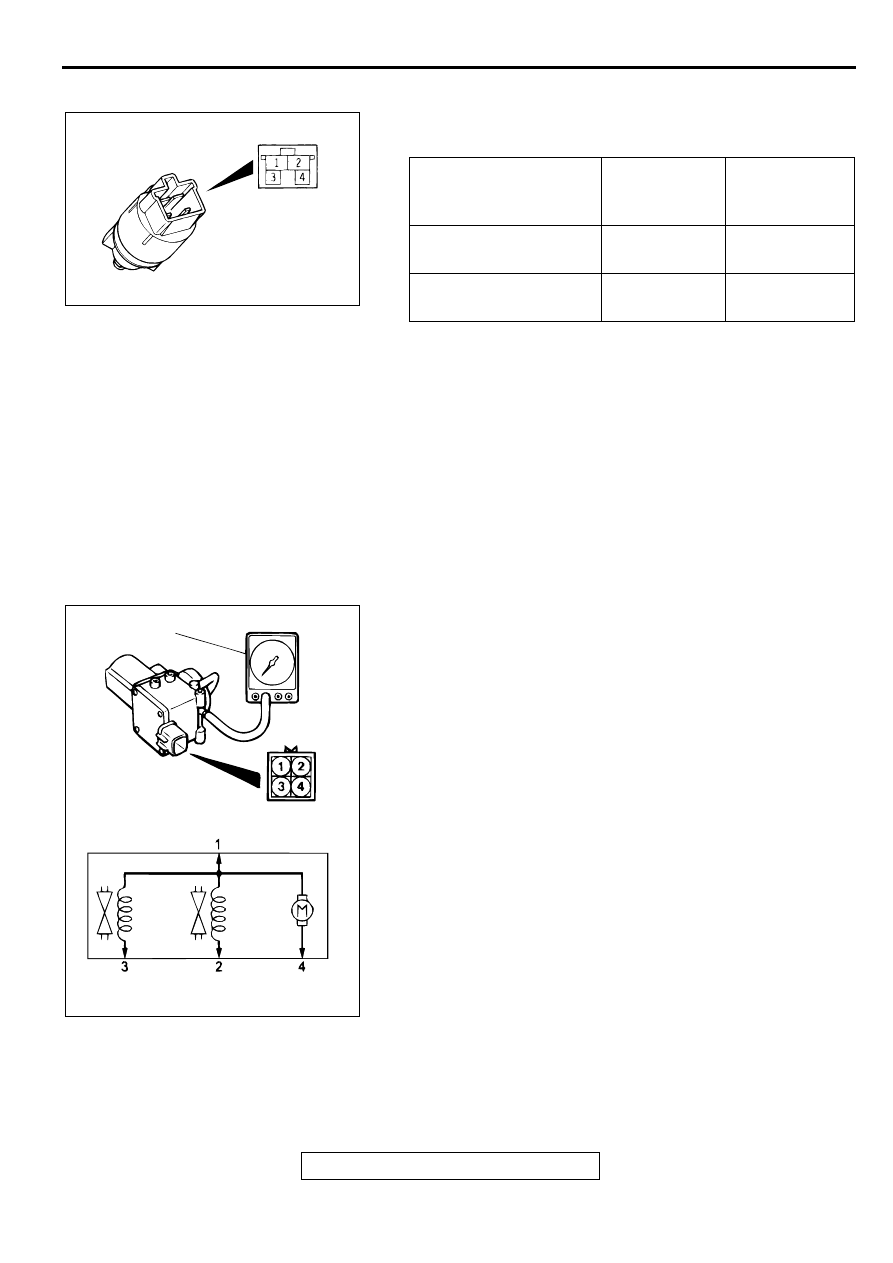

AUTO-CRUISE VACUUM PUMP

1. Disconnect the vacuum hose from the auto-cruise vacuum

pump and connect a vacuum gauge to the vacuum pump.

2. Disconnect the vacuum pump connector.

3. Check the auto-cruise vacuum pump and valves according

to the following procedure:

(1) Connect the positive battery terminal to auto-cruise

vacuum pump connector terminal 1, and the negative
battery terminal to terminals 2, 3, and 4.
Then the vacuum gauge should read 27 kPa (8.0 in Hg)
or more.

(2) The vacuum should be maintained when terminal 4 is

disconnected from the negative battery terminal while
terminals 1, 2, and 3 remain connected.
Then the vacuum gauge should read 0 kPa (0 in Hg)
when terminal 2 is disconnected from the negative
battery terminal while terminals 1, and 3 remain
connected.

(3) The vacuum should be maintained when terminal 4 is

disconnected from the negative battery terminal while
terminals 1, 2, and 3 remain connected.
Then the vacuum gauge should read 0 kPa (0 in Hg)
when terminal 3 is disconnected from the negative
battery terminal while terminals 1, and 2 remain
connected.

MEASUREMENT
CONDITIONS

TERMINAL
CONNECTOR
OF TESTER

SPECIFIED
CONDITION

When clutch pedal is
depressed.

1

−

 2

Continuity

When clutch pedal is not
depressed.

1

−

 2

No continuity

ACX01180 AB

ACX01181AB

VACUUM
GAUGE

CONTROL
VALVE

RELEASE
VALVE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-80

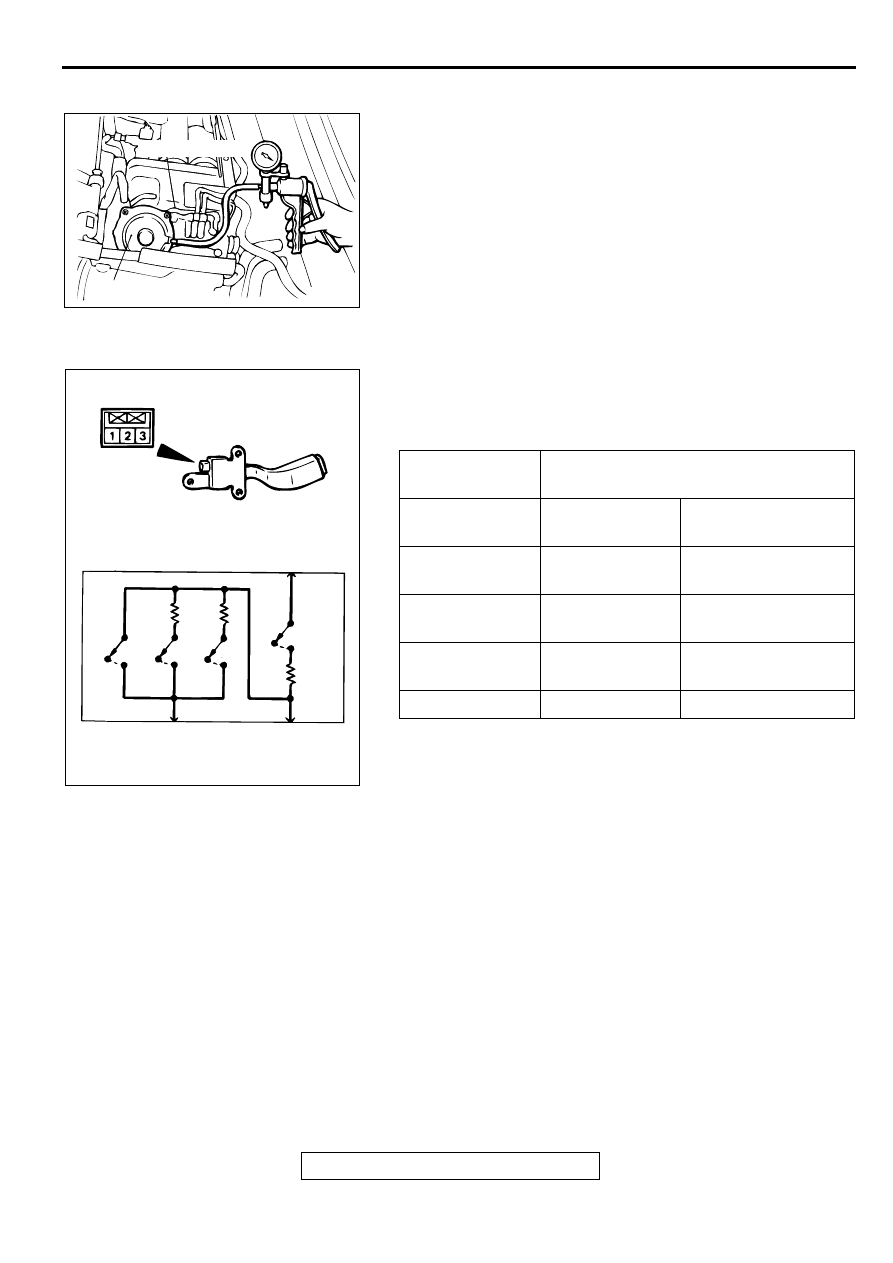

VACUUM ACTUATOR

1. Disconnect the vacuum hose from the vacuum actuator, and

connect a hand vacuum pump to the actuator.

2. Check that the throttle lever operates when applying

vacuum, and the vacuum is maintained.

AUTO-CRUISE CONTROL CHECK

Measure the resistance between the terminals when each of
the "SET," "RESUME," "CANCEL" and "MAIN" switches is
pressed. If the values measured at the time correspond to
those in the table below, the resistance values are correct.

VEHICLE SPEED SENSOR CHECK

Refer to GROUP 54A, Combination Meters Assembly and
Vehicle Speed Sensor

P.54A-67

.

AC001493

THROTTLE BODY

VACUUM ACTUATOR

AB

SWITCH
POSITION

RESISTANCE BETWEEN TERMINALS

"MAIN" switch
OFF

Terminals 1 and 2 Less than 2

Ω

"MAIN" switch
ON

Terminals 1 and 2 Approximately 3.9 k

Ω

"CANCEL" switch
ON

Terminals 2 and 3 Approximately 0

Ω

"RESUME"
switch ON

Terminals 2 and 3 Approximately 910

Ω

"SET" switch ON

Terminals 2 and 3 Approximately 220

Ω

ACX01178 AB

OFF

OFF

OFF

OFF

ON

ON

ON

ON

CAN

MAIN

RES

SET

1

2

3

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-81

AUTO-CRUISE CONTROL

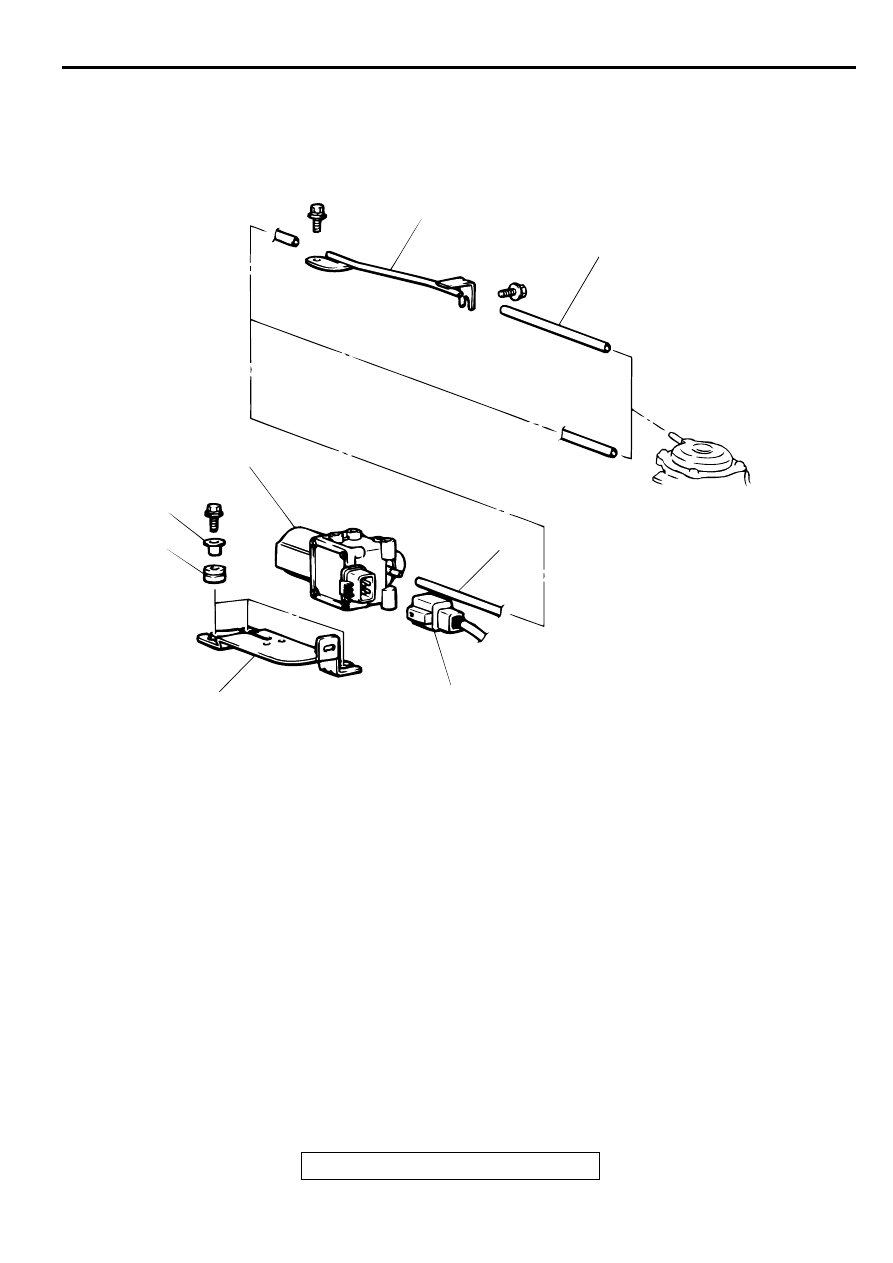

REMOVAL AND INSTALLATION

M1172001400069

<ACTUATOR>

AC001494

<2.4L ENGINE>

2

1

1

4

5

6

7

3

<3.0L ENGINE>

AB

REMOVAL STEPS

1.

VACUUM HOSE

2.

VACUUM PIPE

3.

WIRING CONNECTOR

4.

VACUUM PUMP ASSEMBLY

5.

SPACER

6.

RUBBER MOUNT

7.

PUMP BRACKET

REMOVAL STEPS (Continued)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-82

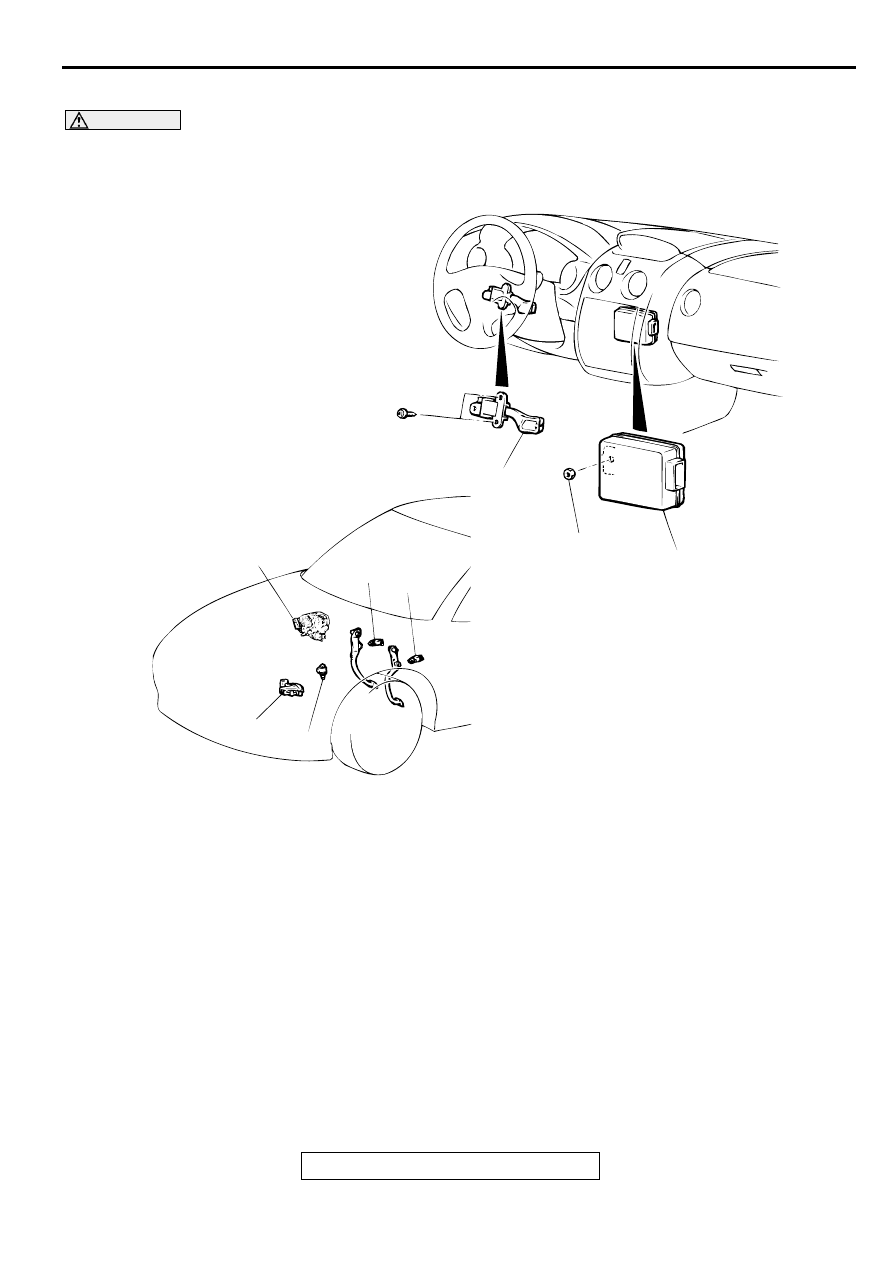

<SWITCHES, CONTROL UNIT AND SENSORS>

WARNING

Before removal of the air bag module, refer to GROUP 52B, SRS Service Precautions and
GROUP 52B, Air Bag Module and Clock Spring.

AC001495

1

2

4.9 ± 1.0 N·m
44 ± 8 in-lb

3

4

5

6

7

AC

CONTROL SWITCH REMOVAL
STEPS

•

STEERING WHEEL (REFER TO
GROUP 37A, STEERING WHEEL
AND SHAFT

P.37A-20

.)

1.

AUTO-CRUISE CONTROL
SWITCH
CONTROL UNIT REMOVAL
STEPS

•

CENTER PANEL ASSEMBLY
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

.)

2.

AUTO-CRUISE CONTROL-ECU

SENSOR REMOVAL STEPS

3.

THROTTLE POSITION SENSOR

4.

STOPLIGHT SWITCH (REFER TO
GROUP 35A, BRAKE PEDAL

P.35A-31

.)

5.

CLUTCH PEDAL POSITION
SWITCH (REFER TO GROUP
21A, CLUTCH PEDAL

P.21A-10

.)

6.

PARK/NEUTRAL POSITION
SWITCH <A/T>

7.

VEHICLE SPEED SENSOR
