Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 389





AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-75

CHECK AUTO-CRUISE CONTROL-ECU TERMINALS

M1172002700063

ACX02234

TERMINAL
NO.

INSPECTION
ITEM

INSPECTION CONDITIONS

NORMAL
CONDITION

1

Throttle
position
sensor input

When accelerator pedal is fully depressed

4.0

 5.5 V

When accelerator pedal is released

0.3

 1.0 V <2.4L>

0.5

 0.7 V <3.0L>

2

Powertrain
control module
output (Idle
switch)

When accelerator pedal is depressed

4.0

 5.5 V

When accelerator pedal is not depressed

2.5 V or less

3

A/T control
output

No "OD-OFF" request

Battery positive
voltage

"OD-OFF" request

0 V

4

Stoplight
switch input

When brake pedal is depressed When stoplight

switch is ON

Battery positive
voltage

When brake pedal is not
depressed

When stoplight
switch is OFF

0 V

5

Pump power
supply

Ignition switch: "ON" position
Stoplight switch: OFF

10 V or more

6

ECU power
supply

Ignition switch: "ON" position

Battery positive
voltage

7

Release valve

When decelerating with the "SET" switch while driving
at constant speed

1 V or less

8Control valve

10 V or more

7

Release valve

When cancelling constant speed driving with the
"CANCEL" switch

10 V or more

8Control valve

Battery positive
voltage

9

Auto-cruise
control switch
input

When main switch is "ON"

Approximately 7.0 V

When input switch has not been
operated

When all switches
are OFF

3.5

 5.0 V

When input switch is pushed
down

When "SET" switch
is ON

0.4

 2.3 V

When input switch is pushed up When "RESUME"

switch is ON

2.3

 3.5 V

When input switch is pulled
forward

When "CANCEL"
switch is ON

0.4 V or less

10

Vehicle speed
sensor input

When vehicle is moved forwards
and backwards, sensor turns
ON and OFF repeatedly

When sensor is ON

0 V

When sensor is OFF 4.5 V or more

Ignition switch: "ON" position

Move the vehicle
forward slowly

0 and 8

 12 V

alternate

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-76

11

Diagnosis
control input

When ignition switch is "ON" position

4 V or more

12

ACC power
supply

When ignition switch is in "ACC" position
Main switch: "ON"

Battery positive
voltage

13

Clutch pedal
position switch
input <M/T>

When pedal is not depressed

When clutch pedal
position switch is
OFF

Battery positive
voltage

When pedal is depressed

When clutch pedal
position switch is ON

0 V

Park/neutral
position switch
input <A/T>

When select lever is in a position
other than N range

When park/neutral
position switch is
OFF

Battery positive
voltage

When select lever is in N range

When park/neutral
position switch is ON

0 V

14

Ground

At any time

0 V

15

Indicator light
input (inside
combination
meter)

When indicator light is illuminated

0 V

When indicator light is switch off

Battery positive
voltage

16

Auto-cruise
vacuum pump
motor input

When driving at constant speed
using the "SET" switch

Motor stopped/
running

Battery positive
voltage/0 V

When accelerating with the
"RESUME" switch while driving
at constant speed

Motor stopped/
running

Battery positive
voltage/0 V

When decelerating with the
"SET" switch while driving at
constant speed

Motor stopped

Battery positive
voltage

When cancelling constant speed
driving with the "CANCEL"
switch

Motor stopped

Battery positive
voltage

TERMINAL
NO.

INSPECTION
ITEM

INSPECTION CONDITIONS

NORMAL
CONDITION

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-77

ON-VEHICLE SERVICE

AUTO-CRUISE CONTROL SWITCH CHECK

M1172001100079

1. Turn the ignition switch to "ON" position.

2. Check that the indicator light within the combination meter

illuminates when the main switch is switched "ON".

AUTO-CRUISE CONTROL SETTING

1. Switch "ON" the main switch.

2. Drive at the desired speed, above approximately 40 km/h.

(25 mph)

3. Push the auto-cruise control switch in the direction of arrow.

4. Check to be sure that when the switch is released the speed

is the desired constant speed.

NOTE: If the vehicles speed decreases to approximately 15
km/h (9 mph) below the set speed because of climbing a hill
for example, the auto-cruise control will be cancelled.

SPEED-INCREASE SETTING

1. Set to the desired speed.

2. Push the auto-cruise control switch in the direction of arrow.

3. Check to be sure that acceleration continues while the

switch is held, and that after it is released the constant
speed at the time when it was released becomes the driving
speed.

NOTE: Acceleration can be continued even if the vehicle
speed has passed the high-speed limit [approximately 200
km/h (124 mph)].
But the speed when the auto-cruise control switch is
released will be recorded as the high-speed limit.

AC001491

AUTO-CRUISE
INDICATOR LIGHT

AB

ACX01172

AD

ACX01172

AE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-78

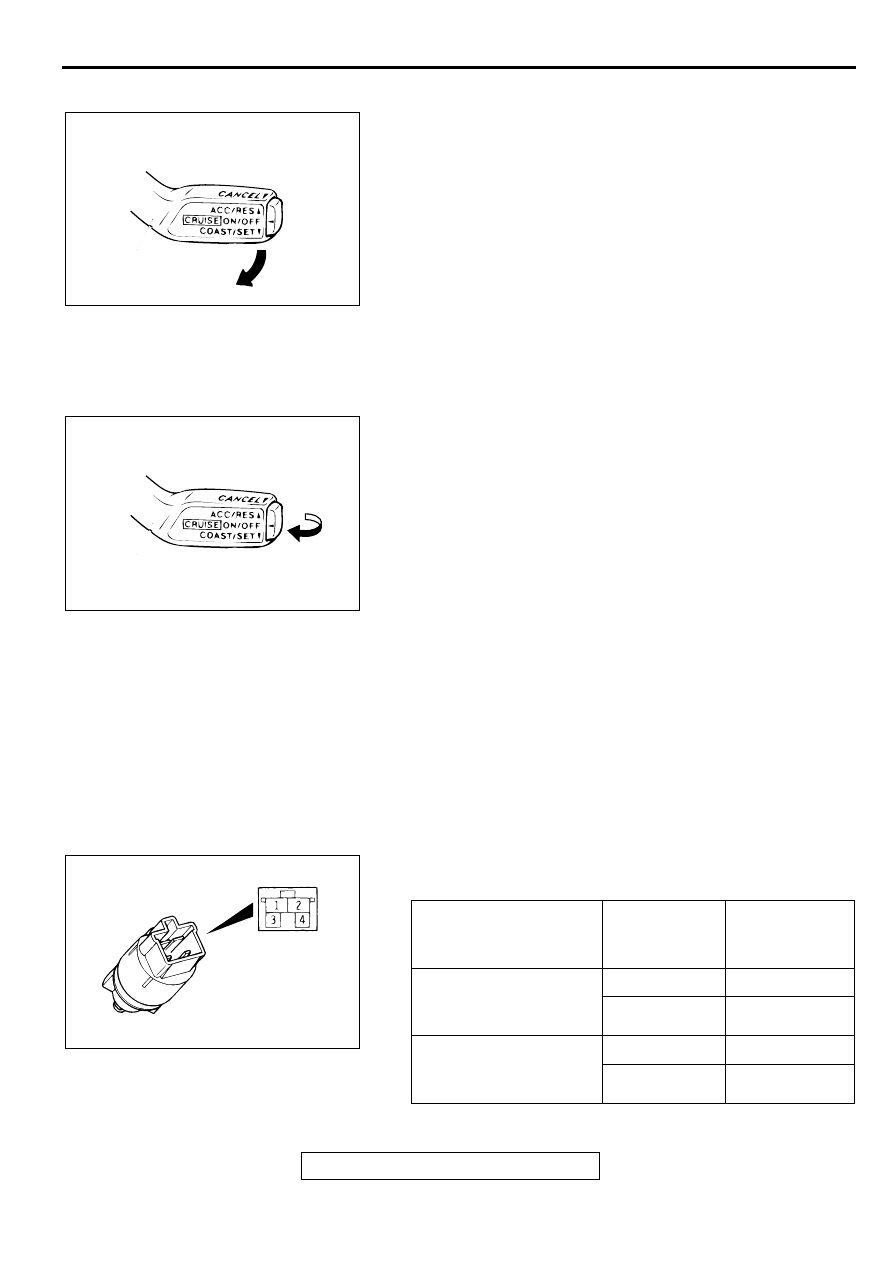

SPEED-REDUCTION SETTING

1. Set to the desired speed.

2. Push the auto-cruise control switch in the direction of arrow.

3. Check to be sure that deceleration continues while the

switch is pressed, and that after it is released the constant
speed at the time when it was released becomes the driving
speed.

NOTE: When the vehicle speed reaches the low limit
[approximately 40 km/h (25 mph)] during deceleration, the
auto-cruise control will be cancelled.

RETURN TO THE SET SPEED BEFORE
CANCELLATION AND AUTO-CRUISE CONTROL
CANCELLATION

1. Set the auto-cruise speed control.

2. When any of the following operations are performed while at

constant speed during auto-cruise control, check if normal
driving is resumed and deceleration occurs.

(1) The auto-cruise control switch is pushed in the direction

of arrow.

(2) The brake pedal is depressed.
(3) The clutch pedal is depressed. (M/T)
(4) The selector lever is moved to the "N" range. (A/T)

3. At a vehicle speed of 40 km/h (25 mph) or higher, check if

when the "RESUME" switch is switched "ON," the vehicle
speed returns to the speed before auto-cruise control driving
was cancelled, and constant speed driving occurs.

4. When the main switch is turned to "OFF" while driving at

constant speed, check if normal driving is resumed and
deceleration occurs.

AUTO-CRUISE CONTROL SYSTEM COMPONENT
CHECK

M1172001700071

STOPLIGHT SWITCH

1. Disconnect the connector.

2. Check for continuity between the terminals of the switch.

ACX01172

AD

ACX01172

AG

MEASUREMENT
CONDITIONS

TERMINAL
CONNECTOR
OF TESTER

SPECIFIED
CONDITION

When brake pedal is
depressed. (for stoplight
circuit)

 2

Continuity

 4

No continuity

When brake pedal is not
depressed. (for auto-
cruise control circuit)

 2

No continuity

 4

Continuity

ACX01180 AB
