MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-543

Point B:

Height of coil back electromotive force

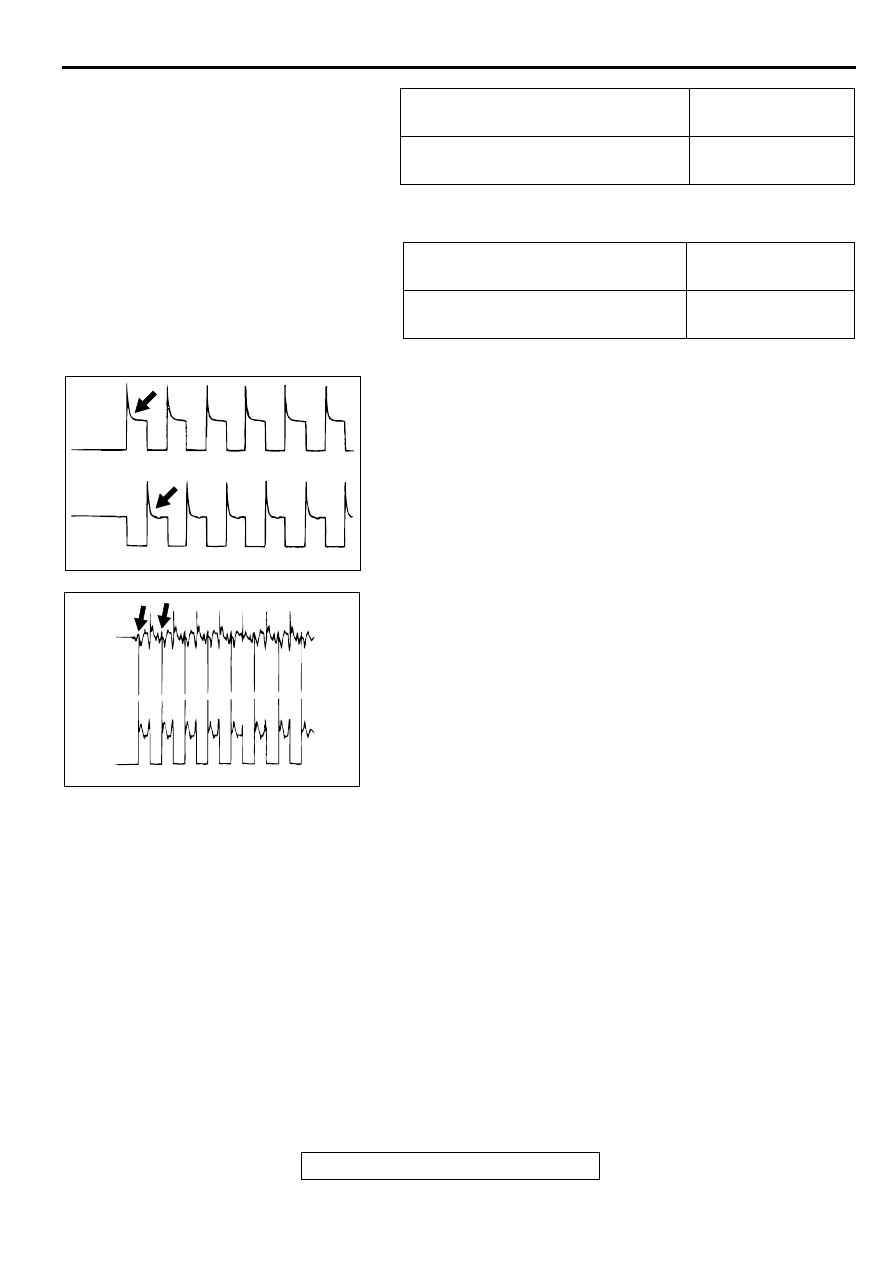

Examples of Abnormal Wave Patterns
Example 1

Cause of problem
Malfunction of motor. (Motor is not operating.)

Wave pattern characteristics
Induced electromotive force from the motor turning does not
appear.

Example 2

Cause of problem
Open circuit in the line between the idle air control motor
and the ECM <M/T> or PCM <A/T>.

Wave pattern characteristics
Current is not supplied to the motor coil on the open circuit
side. (Voltage does not drop to 0 volt.) Furthermore, the
induced electromotive force wave pattern at the normal side
is slightly different from the normal wave pattern.

IGNITION COIL AND IGNITION POWER
TRANSISTOR

Required Special Tool:
MB991348: Test Harness Set

CONTRAST WITH STANDARD
WAVE PATTERN

PROBABLE CAUSE

Induced electromotive force does not
appear or is extremely small

Malfunction of motor

CONTRAST WITH STANDARD
WAVE PATTERN

PROBABLE CAUSE

Coil reverse electromotive force does
not appear or is extremely small

Short in the coil

AKX01608 AB

AKX01609

OPEN
CIRCUIT
SIDE

NORMAL
SIDE

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-544

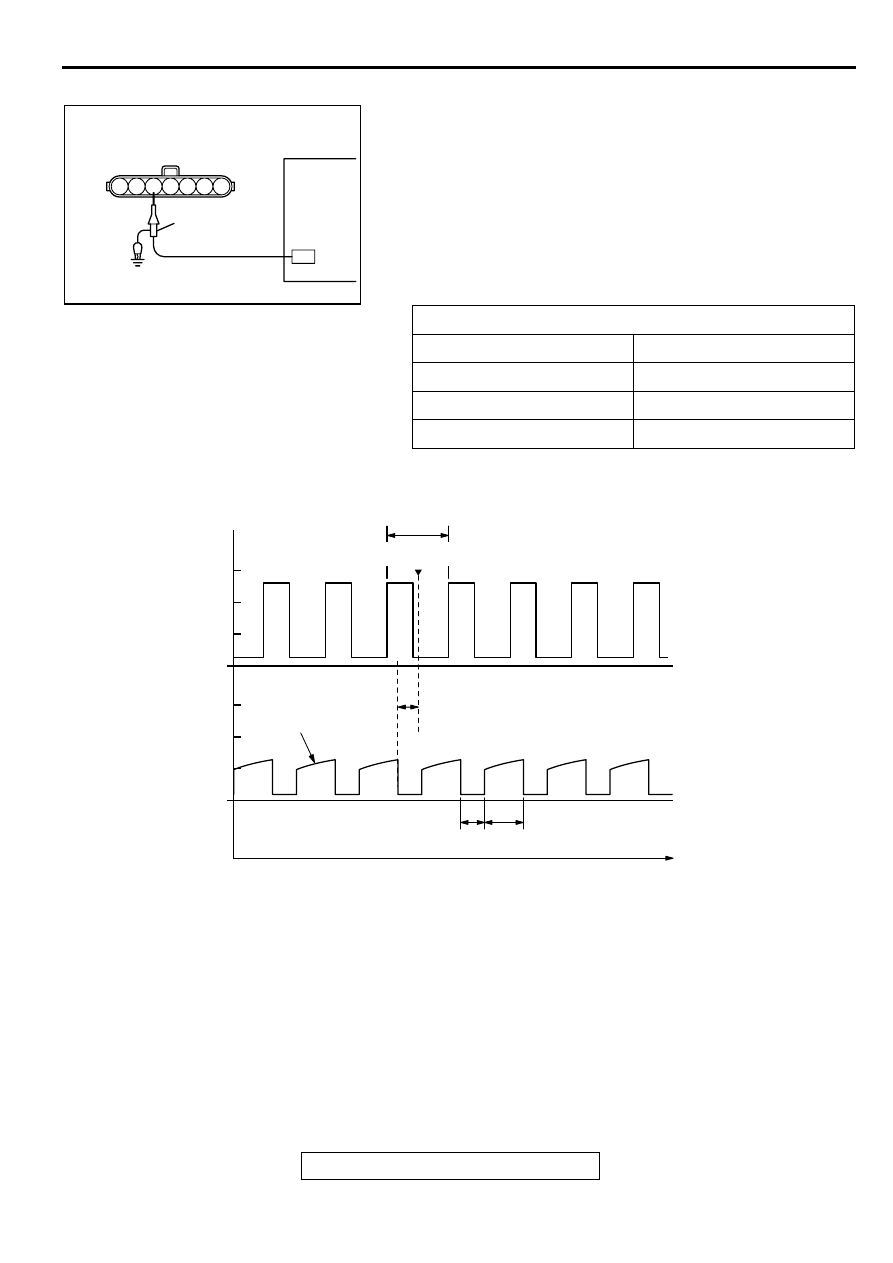

Measurement Method
1. Disconnect the connector, and connect test harness special

tool, (MB991348), in between. (All terminals should be
connected.)

2. Connect the oscilloscope probe to ignition coil connector

terminal 3.

Alternate method (Test harness not available)

1. Connect the oscilloscope probe to ECM <M/T> or PCM <A/

T> terminal 11.

Standard Wave Pattern

Wave Pattern Observation Points
Point: Condition of wave pattern build-up section and maximum

voltage (Refer to abnormal wave pattern examples 1 and 2.

Observation conditions

Function

Special pattern

Pattern height

Low

Pattern selector

Display

Engine r/min

Approximately 1,200 r/min

AK000067

1 2 3 4 5 6 7

OSCILLOSCOPE

DISTRIBUTOR
CONNECTOR

OSCILLO

SCOPE

PLOBE

AB

AK000069

CRANKSHAFT

POSITION

SENSOR OUTPUT

WAVE PATTERN

(REFERENCE)

IGNITION POWER

TRANSISTOR

CONTROL SIGNAL

WAVE PATTERN

POINT:

WAVE BUILD-UP

SECTION

Standard wave pattern

θ

θ

: SPARK ADVANCE ANGLE

ON

DWELL SECTION

TIME

OFF

T

T : CRANKSHAFT ANGLE (120˚)

COMPRESSION
TOP DEAD CENTER

0

2

4

6

0

2

4

6

(V)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-545

Examples of Abnormal Wave Patterns
Example 1 (Wave pattern during engine cranking)

Cause of problem
Open-circuit in ignition primary circuit

Wave pattern characteristics
Top-right part of the build-up section cannot be seen, and
voltage value is approximately 2 volts too low.

Example 2 (Wave pattern during engine cranking)

Cause of problem
Malfunction in ignition power transister

Wave pattern characteristics
Power voltage results when the ignition power transistor is
ON.

CONDITION OF WAVE PATTERN
BUILD-UP SECTION AND
MAXIMUM VOLTAGE

PROBABLE CAUSE

Rises from approximate 2 volts to
approximate 4.5 volts at the top-right

Normal

2-volt rectangular wave

Open-circuit in ignition
primary circuit

Rectangular wave at power voltage

Ignition power
transistor malfunction

AKX01612

NORMAL WAVE
PATTERN

2V

AB

AKX01613

BATTERY
POSITION
VOLTAGE

NORMAL WAVE
PATTERN

AB

SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-546

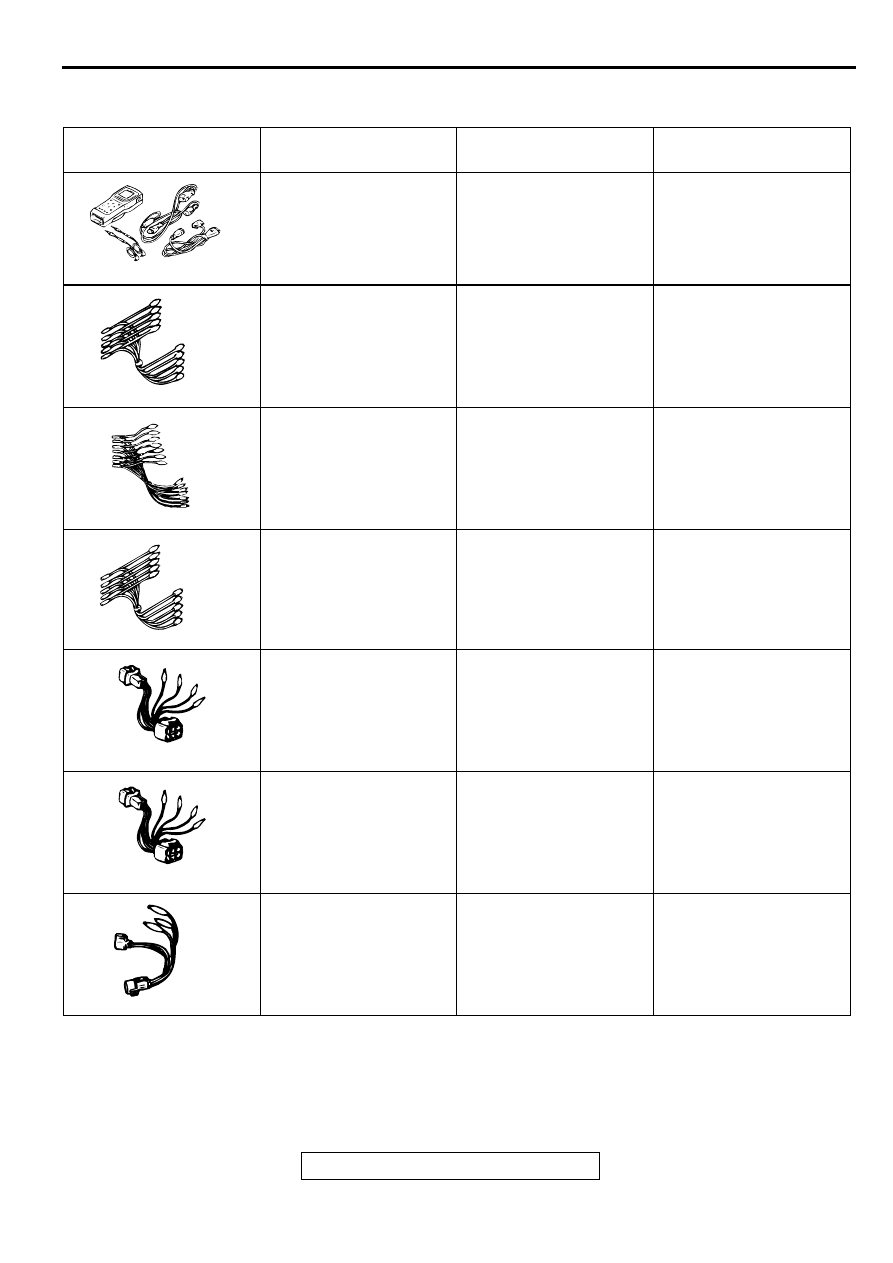

SPECIA L TO O LS

M1131000600063

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991502
Scan tool <MUT-II>

MB991496-OD

Reading diagnostic
trouble code

MFI system inspection

Measurement of fuel
pressure

MB991348
Test harness set

MB991348-01

Adjustment of throttle
position sensor

Inspection using an
oscilloscope

MB991709
Test harness set

MB991709-01

Inspection using an
oscilloscope

Inspection of idle air
control motor

MB991658
Test harness set

Tool not available

Inspection of heated
oxygen sensor

MD998464
Test harness (4 pin,
square)

MD998464-01

Inspection of heated
oxygen sensor

Inspection using an
oscilloscope

MB991316
Test harness (4 pin,
square)

Tool not available

Inspection of heated
oxygen sensor

MD998478
Test harness (3 pin,
triangle)

MD998478-01

Inspection using an
oscilloscope

B991502
