MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-411

SYMPTOM PROCEDURES

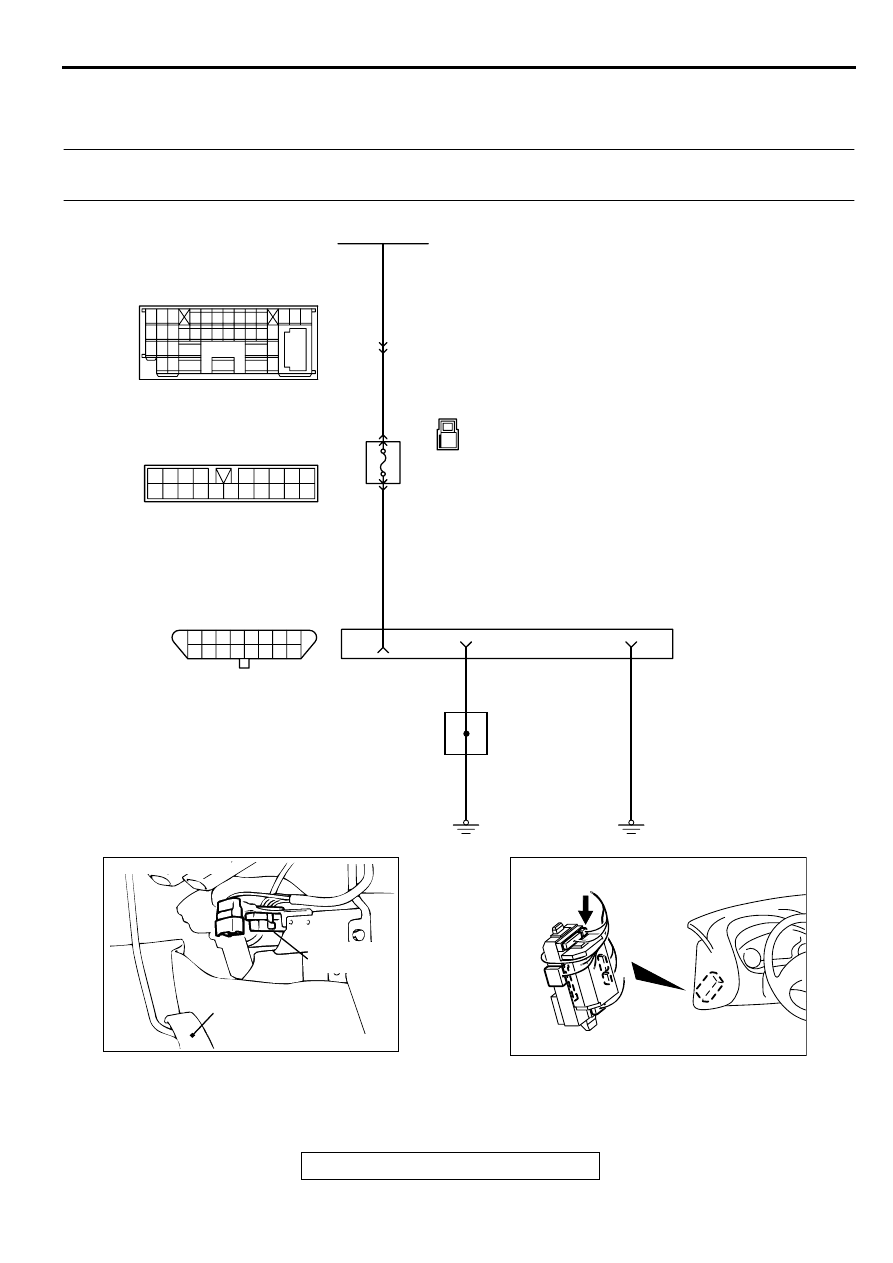

INSPECTION PROCEDURE 1: Communication with Scan Tool Is Not Possible. (Comunication with All
Systems Is Not Possible.)

AK000673

15

14

13

12

11

10

1 2 3 4 5 6 7 8
9

16

1

1

6

4

5

11

10

12 13

15

17

16

14

19

18

8 9

7

20

2

15 16

26 27 28 29

32 33 34

17 18 19 20 21 22 23 24 25

30 31

36 37

35

38

10

11 12 13

1 2 3

4 5 6 7 8 9

14

3

RED

RED

RED-BLA

CK

BLA

CK

BLA

CK

BLA

CK

FUSIBLE LINK(2)

C-89

C-110

    C-104
MU801457

C-29

DATA LINK
CONNECTOR

38

1

18

16

JOINT
GROUND
POINT

4

5

JUNCTION
BLOCK

ACX02447

CONNECTOR:C-29

ACCELERATOR
PEDAL

DATA  LINK
CONNECTOR

AI

AK000355 AC

CONNECTOR:C-110

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-412

CIRCUIT OPERATION

A battery positive voltage is applied on the data
link connector power terminal (terminal 16). The
ground terminals (terminal 4, 5) are grounded to
the vehicle body.

COMMENT

The cause is probably a defect in power supply
system (including ground) for the on-board
diagnostic test mode line.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Malfunction of the data link connector.

Damaged harness wire.

DIAGNOSIS

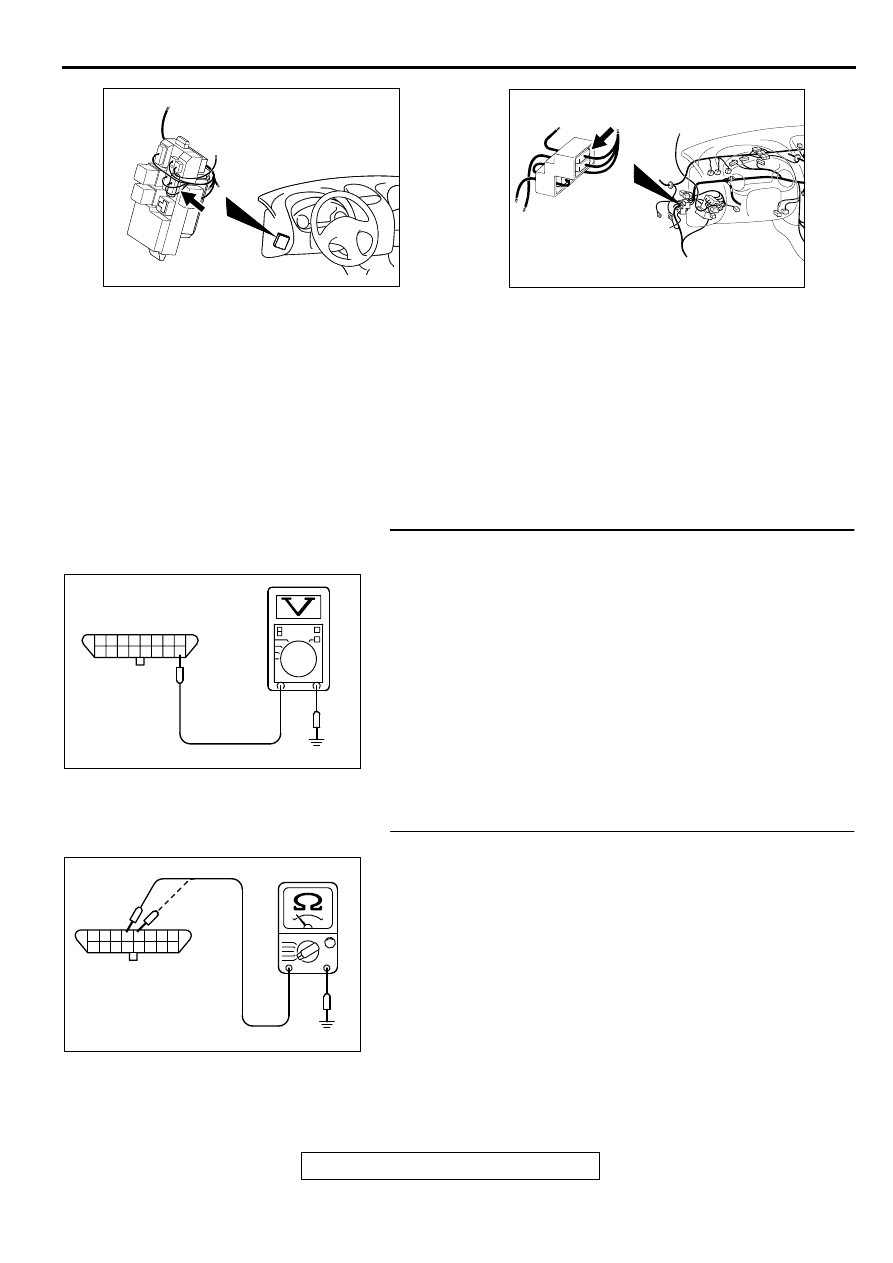

STEP 1. Check the power supply voltage at data link
connector C-29.
(1) Measure voltage between terminal 16 and ground.

Voltage should be battery positive voltage.

Q: Is the voltage normal?

YES : Go to step 2.
NO :  Check harness connectors C-104, C-110 and C-89 at

intermediate connector for damage, and repair or
replace as required. Refer to GROUP 00E, Harness
Connector Inspection (

P.00E-2

). If intermediate

connectors are in good condition, repair harness wire
between fusible link (2) and data link connector C-29
terminal 16 because of open circuit. Then confirm that
the malfunction symptom is eliminated.

STEP 2. Check the continuity at data link connector C-29.
(1) Check for the continuity between terminal 4, 5 and ground.

Should be less than 2 ohm.

Q: Is the continuity normal?

YES :  Replace the scan tool. Then confirm that the

malfunction symptom is eliminated.

NO :  Repair harness wire between data link connector C-

29 terminal 4, 5 and ground because of open circuit or
harness damage. Then confirm that the malfunction
symptom is eliminated.

AK000311

AK000311

CONNECTOR:C-104

AC

AK000345AE

CONNECTOR:C-89

AKX01430AF

1 2 3 4 5 6 7 8
9 10 111213141516

C-29 HARNESS
SIDE CONECTOR

AKX01431AE

1 2 3 4 5 6 7 8
9 10 111213141516

C-29 HARNESS
SIDE CONECTOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-413

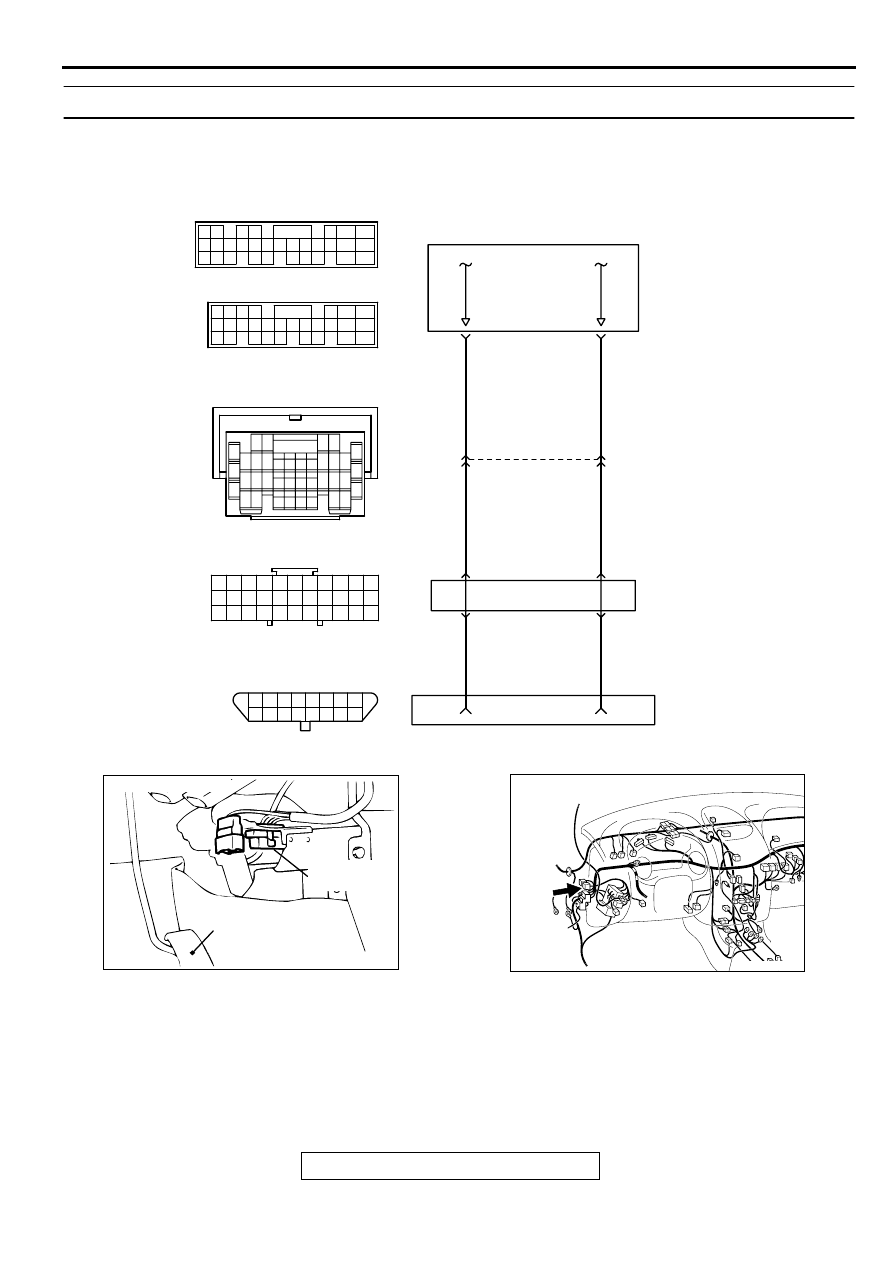

INSPECTION PROCEDURE 2: Scan Tool Communication with ECM or PCM Is Not Possible.

AK000711

GRA

Y

-

RED

GRA

Y

-

RED

GRA

Y

-

RED

RED-

WHITE

RED-

WHITE

RED-

WHITE

ENGINE CONTROL
MODULE(ECM)<M/T>
OR
POWERTRAIN CONTROL
MODULE(PCM)<A/T>

JOINT
CONNECTOR(1)

DATA LINK
CONNECTOR

1

11

8

9

10

12

15

7

84

85

C-28

7 8

5

3 4

35

34

10 11 12

2122 23 24

13 14 15

25 26 27

16

28

17

18 19 20

29

30 31

32 33

36 37

38

9

1 2

6

C-77

16

15

18

17

14

20

22

21

9

7

1 2

5

19

3

33

32

30 31

29

28

25

24

23

27

26

6

11

13

4

10

8

12

C-29

15

14

13

12

11

10

1 2 3 4 5 6 7 8
9

16

98

78

71

88 89

76 77

72
79
91

73
80

74

75

81
92

82 83
93

84 85

94

86 87

95 96

90

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97

96

100

89

78

71

90

76 77

75

72
79

97

 C-62<M/T>
(MU803783)

C-59<A/T>
(MU803782)

ACX02447

CONNECTOR:C-29

ACCELERATOR
PEDAL

DATA  LINK
CONNECTOR

AI

AK000312AH

CONNECTOR:C-77

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-414

CIRCUIT OPERATION

A diagnostic output is made from the ECM
(terminal 85) <M/T> or PCM (terminal 85) <A/T>
to the diagnostic output terminal (terminal 7) of
the data link connector.

When diagnostic test mode control terminal
(terminal 1) of the data link connector is
grounded, the ECM (terminal 84) <M/T> PCM
(terminal 84) <A/T> changes to the diagnostic
test mode.

COMMENT

No power supply to ECM <M/T> or PCM <A/T>.

Defective ground circuit of ECM <M/T> or PCM
<A/T>.

Defective ECM <M/T> or PCM <A/T>.

Improper communication line between ECM <M/
T> or PCM <A/T> and scan tool.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Malfunction of ECM <M/T> or PCM <A/T> power
supply circuit.

Malfunction of the ECM <M/T> or PCM <A/T>.

Open circuit between ECM <M/T> or PCM <A/T>
and data link connector.

DIAGNOSIS

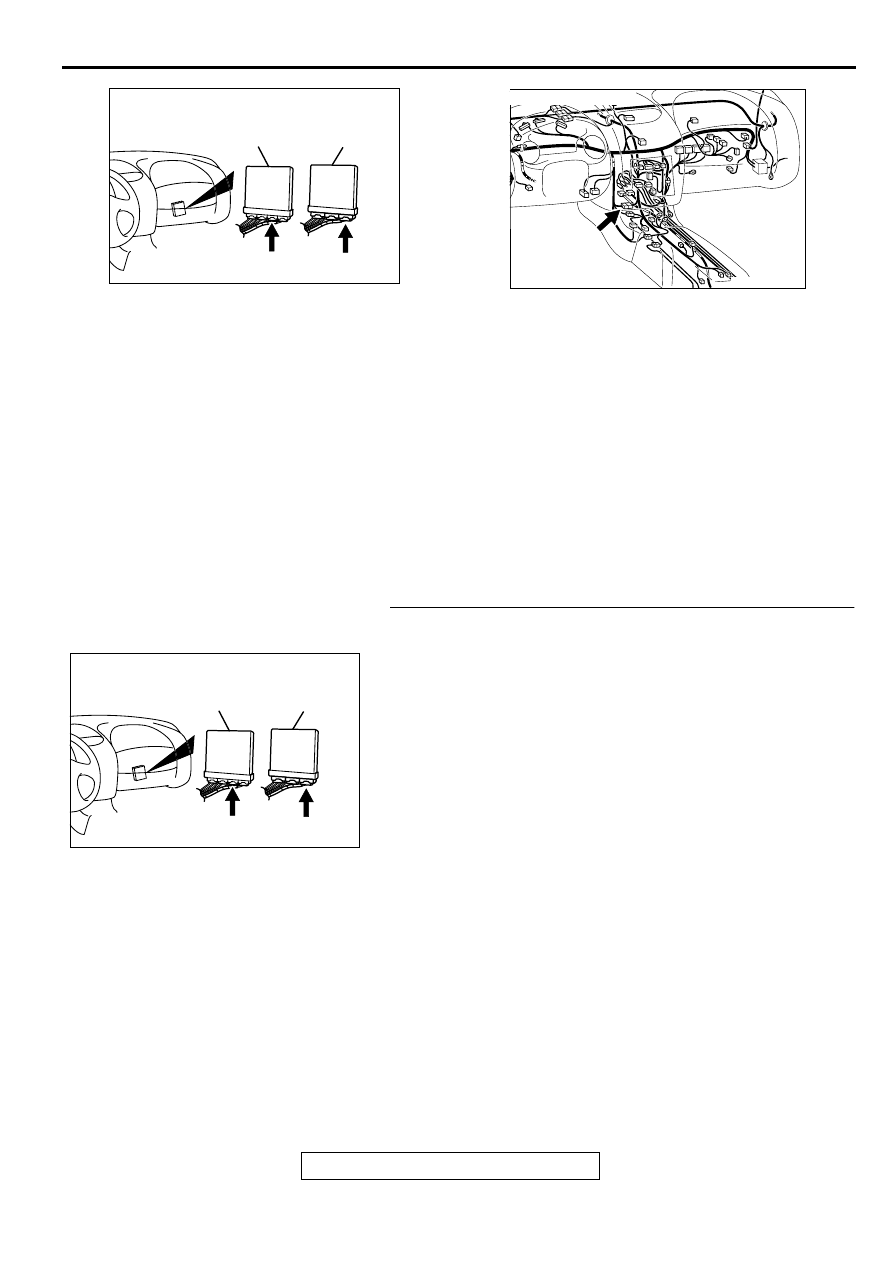

STEP 1. Check connector C-62 at ECM <M/T> or connector
C-59 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES :  Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then confirm that

the malfunction symptom is eliminated.

AK000225

CONNECTOR : C-62<M/T>, C-59<A/T>

C-59

C-62

PCM<A/T>

ECM<M/T>

AL

AK000733AC

CONNECTOR:C-28

AK000225

CONNECTOR : C-62<M/T>, C-59<A/T>

C-59

C-62

PCM<A/T>

ECM<M/T>

AL
