MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-239

STEP 12. Replace the injector.
(1) Replace the injector.
(2) Carry out a test drive with the drive cycle pattern. Refer to,

Procedure 6

 Other Monitor (

P.13B-4

).

(3) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0300 is output?

YES : Replace the ECM or PCM. Then go to Step 13.
NO :  The inspection is complete.

STEP 13. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to,

Procedure 6

 Other Monitor (

P.13B-4

).

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0300 is output?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

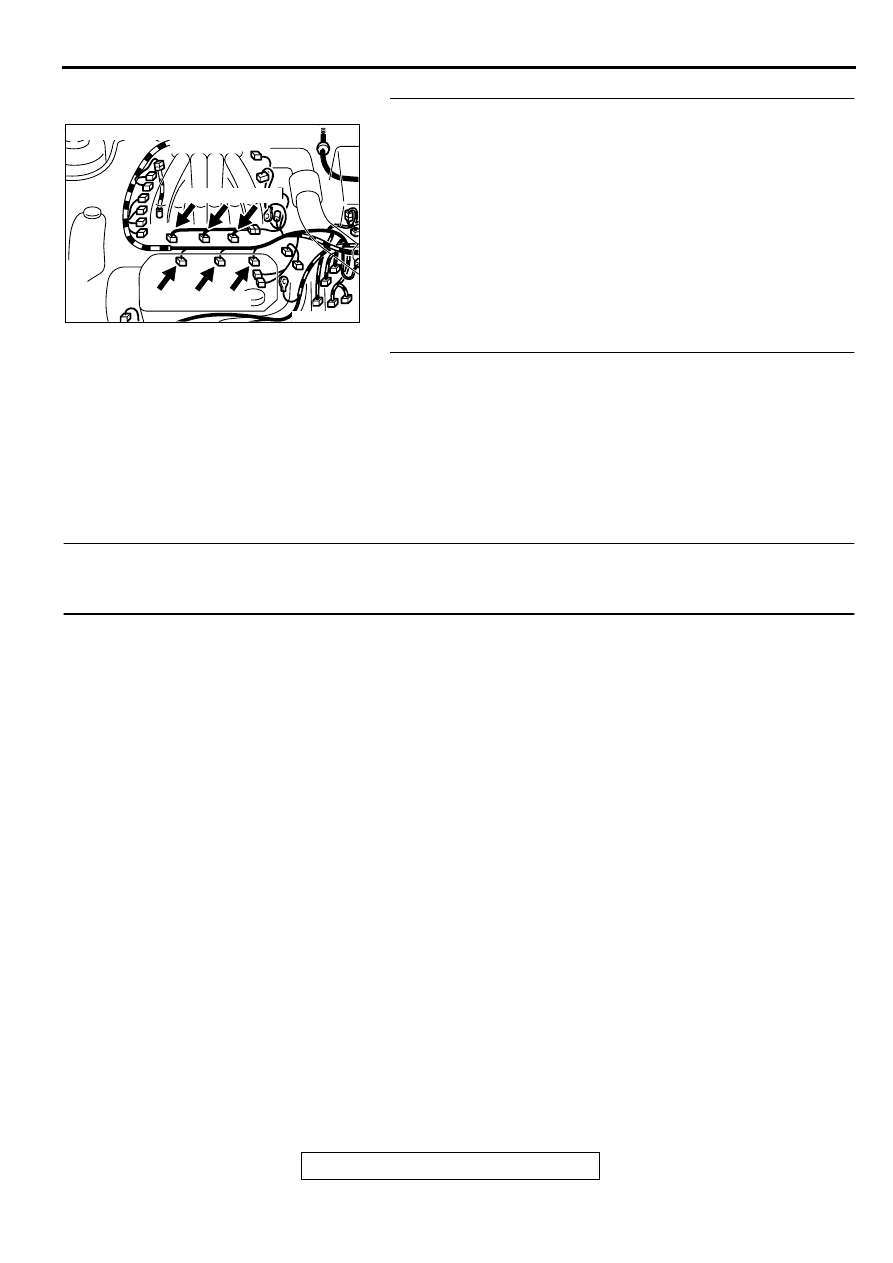

DTC P0301: Cylinder 1 Misfire Detected, DTC P0302: Cylinder 2 Misfire Detected, DTC P0303: Cylinder
3 Misfire Detected, DTC P0304: Cylinder 4 Misfire Detected, DTC P0305: Cylinder 5 Misfire Detected,
DTC P0306 Cylinder 6 Misfire Detected

Misfire Detected Circuit

Refer to, DTC P0201, P0203, P0205

  Injector

Circuit (

P.13B-219

).

Refer to, DTC P0202, P0204, P0206

  Injector

Circuit (

P.13B-227

).

CIRCUIT OPERATION

Refer to, DTC P0201, P0203, P0205

  Injector

Circuit (

P.13B-219

).

Refer to, DTC P0202, P0204, P0206

  Injector

Circuit (

P.13B-227

).

TECHNICAL DESCRIPTION

If a misfire occurs while the engine is running, the
engine speed changes for an instant.

The ECM <M/T> or PCM <A/T> checks for such
changes in engine speed.

DTC SET CONDITIONS

Check Conditions

Five seconds or more have passed after the
engine was started.

Engine speed is between 440 and 6,000 r/min.

Engine coolant temperature is higher than -10

°

(14

°

F).

Intake air temperature is higher than -10

°

C (14

°

F).

Barometric pressure is at between 77kPa (11psi)
and 106kPa (15psi).

Adaptive learning is complete for the vane which
generates a crankshaft position signal.

While the engine is running, excluding gear
shifting, deceleration, sudden acceleration/
deceleration and A/C compressor switching.

Vehicle speed is 2.5km/h (1.6mph) or more.

The throttle deviation is -0.059v/10ms to +0.059v/
10ms.

Judgement Criteria (change in the angular

acceleration of the crankshaft is used for
misfire detection).

Misfire has occurred in 4 or more of the last 200
revolutions [when the catalyst temperature is
higher than 950

°

 C (1,742

°

 F)].

or

Misfire has occurred in 20 or more of the last
1,000 revolutions (corresponding to 1.5 times the
limit of emission standard).

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

Ignition system related part(s) failed.

AK000215

AK000215

B-01 B-05 B-26

B-02 B-06 B-25

AB

CONNECTORS : B-01, B-02, B-05, B-06,
                            B-25, B-26

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-240

Low compression pressure.

Injector failed.

ECM failed. <M/T>

PCM failed. <A/T>

DIAGNOSIS

Required Special Tools
MB991502: Scan Tool (MUT-II)

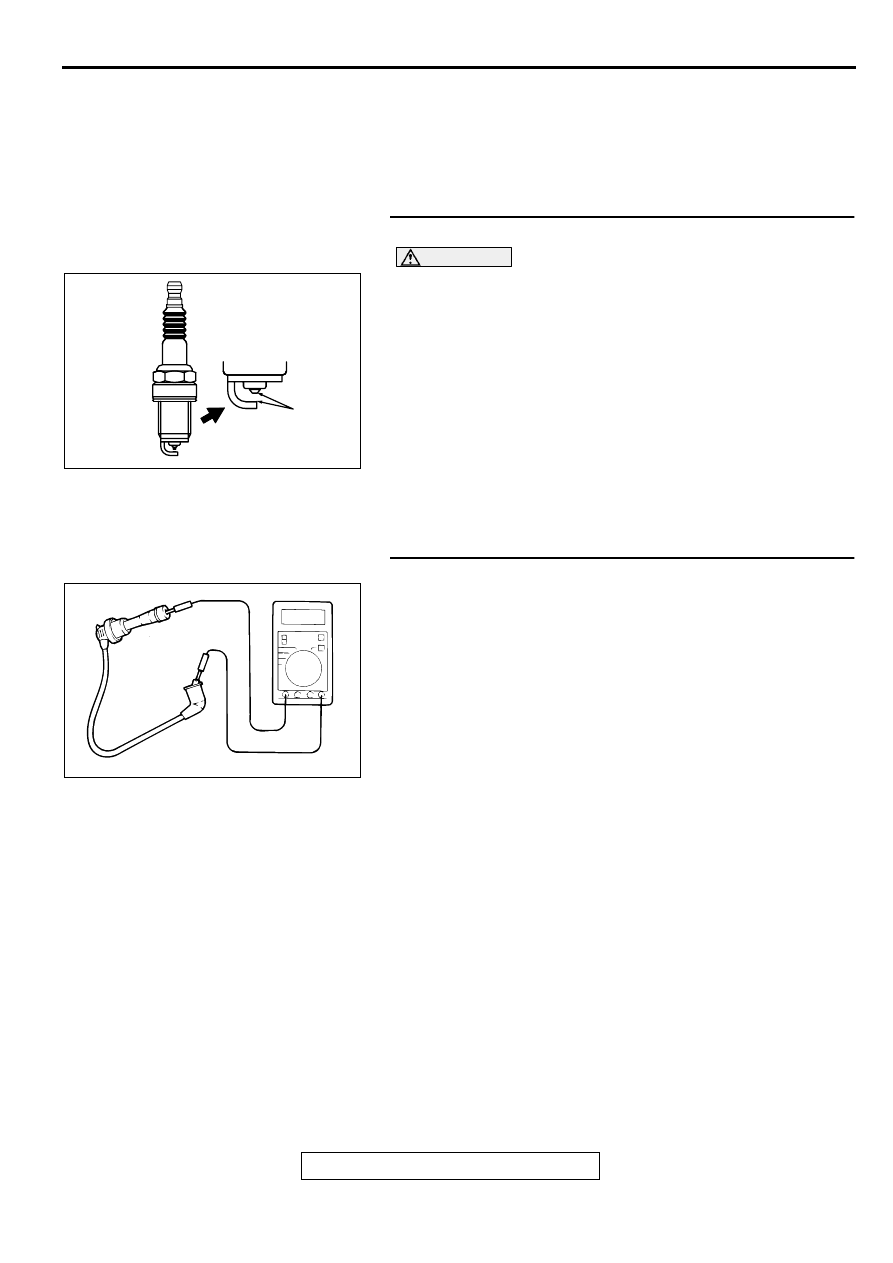

STEP 1. Check the spark plugs.

CAUTION

Do not attempt to adjust the gap of the platinum plug.
Cleaning of the platinum plug may result in damage to the
platinum tips. Therefore, if carbon deposits must be
removed, use a plug cleaner and complete cleaning within
20 seconds to protect the electrode. Do not use a wire
brush.
(1) For the right bank cylinder, remove the intake manifold.
(2) Check the plug gap and replace if the limit is exceeded.

Standard value: 1.0

 1.1 mm (0.039

 0.043 inch)

Limit: 1.3 mm (0.051 inch)

Q: Is the plug gap at the standard value?

YES : Go to Step 2.
NO :  Replace the spark plug. Then go to Step 9.

STEP 2. Check the spark plug cable.
(1) Check the cap and coating for cracks.
(2) Measure the resistance.

Limit: maximum 22 k

Q: Is the resistance normal?

YES : Go to Step 3.
NO :  Replace the spark plug cable. Then go to Step 9.

AKX00383

AKX00383

Platinum
tips

AB

AKX00382

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-241

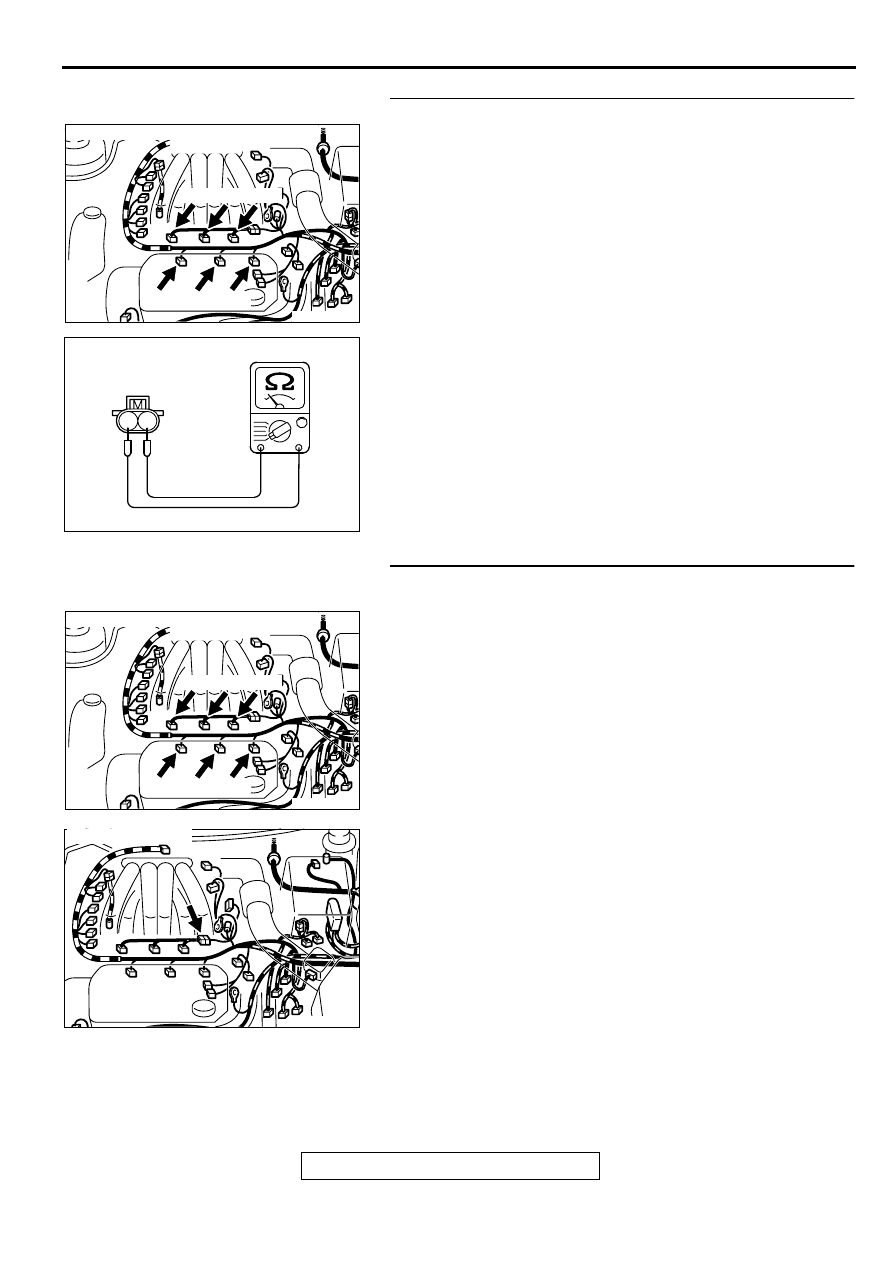

STEP 3. Check the injector.
(1) Disconnect the injector connector B-01 <No.1 cylinder>, B-

02 <No.2 cylinder>, B-05 <No.3 cylinder>, B-06 <No.4
cylinder>, B-26 <No.5 cylinder>, B-25 <No.6 cylinder>.

(2) Measure the resistance between injector side connector

terminal 1 and 2.

Standard value: 13

 16 ohm [at 20

°

C (68

°

 F)]

Q: Is the resistance standard value?

YES : Go to Step 4.
NO :  Replace the injector. Then go to Step 9.

STEP 4. Check connector at injector and injector
intermediate connector for damage.

a. Check the connector B-01 at injector and connector B-48 at

injector intermediate connector when checking No.1
cylinder.

b. Check the connector B-02 at injector and connector B-48 at

injector intermediate connector when checking No.2
cylinder.

c. Check the connector B-05 at injector and connector B-48 at

injector intermediate connector when checking No.3
cylinder.

d. Check the connector B-06 at injector and connector B-48 at

injector intermediate connector when checking No.4
cylinder.

e. Check the connector B-26 at injector and connector B-48 at

injector intermediate connector when checking No.5
cylinder.

f. Check the connector B-25 at injector and connector B-48 at

injector intermediate connector when checking No.6
cylinder.

Q: Is the connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace the injector. Refer to GROUP 00E,

Harness Connector Inspection (

P.00E-2

). Then go to

Step 9.

AK000215

AK000215

B-01 B-05 B-26

B-02 B-06 B-25

AB

CONNECTORS : B-01, B-02, B-05, B-06,
                            B-25, B-26

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

AK000215

AK000215

B-01 B-05 B-26

B-02 B-06 B-25

AB

CONNECTORS : B-01, B-02, B-05, B-06,
                            B-25, B-26

AK000209AC

CONNECTOR:B-48

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-242

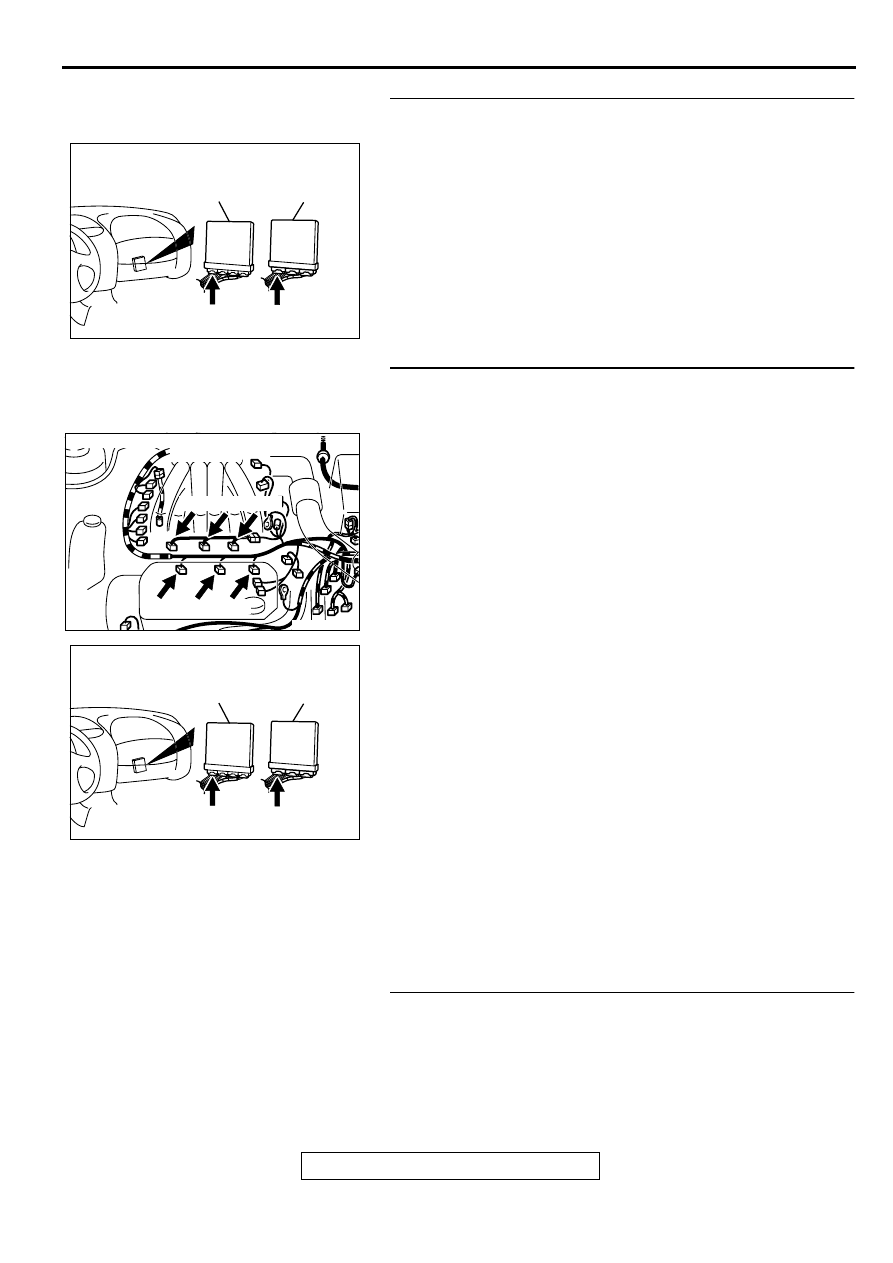

STEP 5. Check connector C-51 at ECM <M/T> or connector
C-52 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 9.

STEP 6. Check for harness damage between injector
connector and ECM connector <M/T> or PCM connector
<A/T>.

a. Check the harness wire between injector connector B-01

terminal 2 and ECM connector C-51 terminal 1 <M/T> or
PCM connector C-52 terminal 1 <A/T> when checking No.1
cylinder.

b. Check the harness wire between injector connector B-02

terminal 2 and ECM connector C-51 terminal 9 <M/T> or
PCM connector C-52 terminal 9 <A/T> when checking No.2
cylinder.

c. Check the harness wire between injector connector B-05

terminal 2 and ECM connector C-51 terminal 24 <M/T> or
PCM connector C-52 terminal 24 <A/T> when checking
No.3 cylinder.

d. Check the harness wire between injector connector B-06

terminal 2 and ECM connector C-51 terminal 2 <M/T> or
PCM connector C-52 terminal 2 <A/T> when checking No.4
cylinder.

e. Check the harness wire between injector connector B-26

terminal 2 and ECM connector C-51 terminal 10 <M/T> or
PCM connector C-52 terminal 10 <A/T> when checking
No.5 cylinder.

f. Check the harness wire between injector connector B-25

terminal 2 and ECM connector C-51 terminal 25 <M/T> or
PCM connector C-52 terminal 25 <A/T> when checking
No.6 cylinder.

Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair it. Then go to Step 9.

STEP 7. Check the compression.
Refer to GROUP 11C, On-Vehicle Service-Compression
Pressure Check (

P.11C-8

).

Q: Are there any abnormalities?

YES : Go to Step 8.
NO :  Repair or replace it. Then go to Step 9.

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ

AK000215

AK000215

B-01 B-05 B-26

B-02 B-06 B-25

AB

CONNECTORS : B-01, B-02, B-05, B-06,
                            B-25, B-26

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ
