MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-147

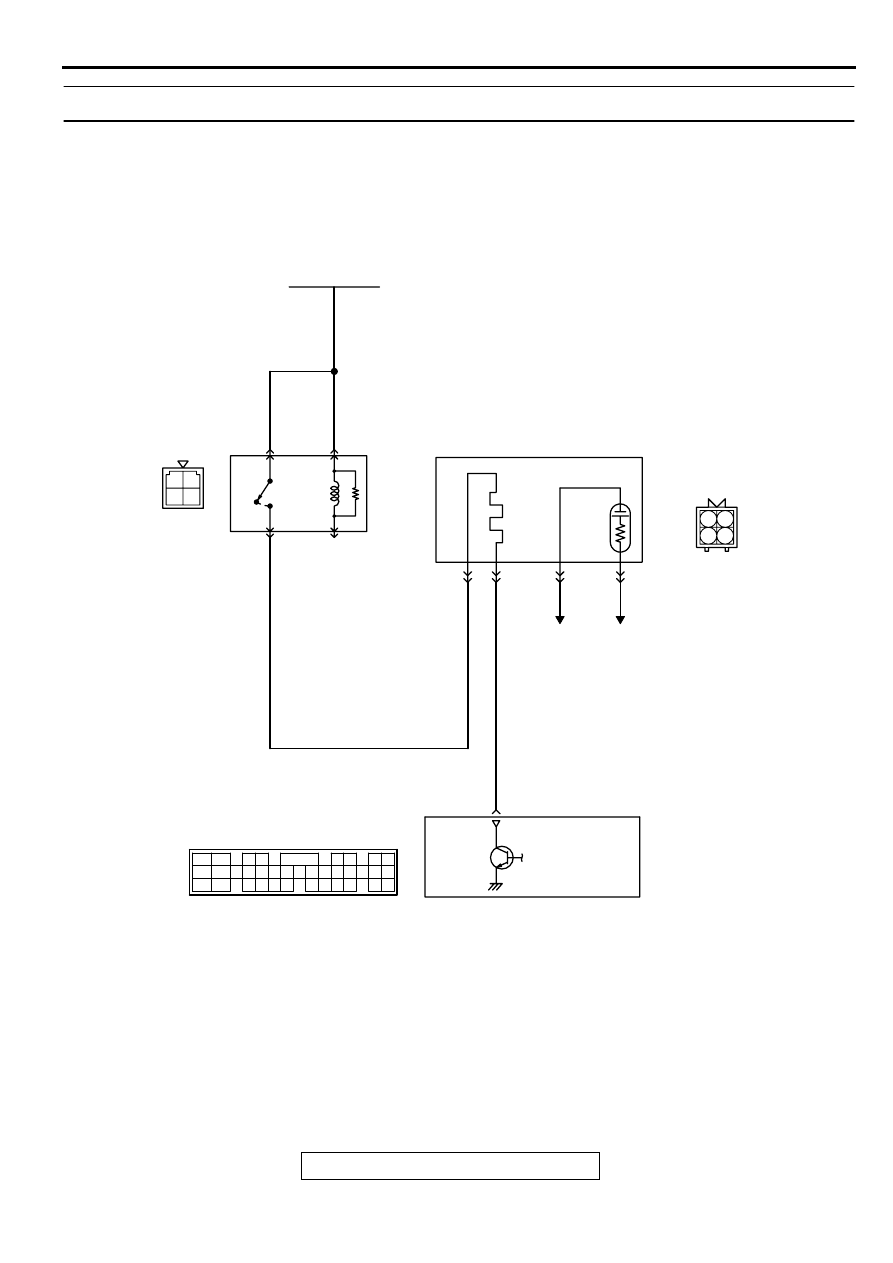

DTC P0141: O

2

 Sensor Heater Circuit Malfunction (bank 1 sensor 2)

AK000693

3 4

1 2

RED-

WHITE

RED-

WHITE

RED-

WHITE

RED

BR

O

W

N

3 4

1 2

BATTERY

A-21X

MFI
RELAY

RIGHT BANK HEATED
OXYGEN SENSOR(REAR)

TO ECM
OR PCM

TO ECM
OR PCM

1

2

3

4

4

2

1

3

ENGINE CONTROL
MODULE(ECM)<M/T>
OR
POWERTRAIN CONTROL
MODULE(PCM)<A/T>

27

     B-28
MU802665

C-51<M/T>,C-52<A/T>
        (MU803784)

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-148

CIRCUIT OPERATION

Power is supplied from the MFI relay (terminal 1)
to the right bank heated oxygen sensor (rear)
heater.

The ECM (terminal 27) <M/T> or PCM (terminal
27) <A/T> controls continuity to the right bank
heated oxygen sensor (rear) heater by turning
the power transistor in the ECM <M/T> or PCM
<A/T> "ON" and "OFF."

BACKGROUND

The ECM <M/T> or PCM <A/T> checks whether
the heater current is within a specified range
when the heater is energized.

DTC SET CONDITIONS

Check Conditions

Engine coolant temperature is higher than 20

°

 C

(68

°

 F).

While the right bank heated oxygen sensor (rear)
heater is on.

Battery positive voltage is at between 11 and 16
volts.

Judgment Criteria

Heater current of the right bank heated oxygen
sensor (rear) heater has continued to be lower
than 0.2 ampere or higher than 3.5 ampere for 6
seconds.

Only one monitor during one drive cycle

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

Open or shorted right bank heated oxygen
sensor (rear) heater circuit.

Open circuit in right bank heated oxygen sensor
(rear) heater.

ECM failed. <M/T>

PCM failed. <A/T>

DIAGNOSIS

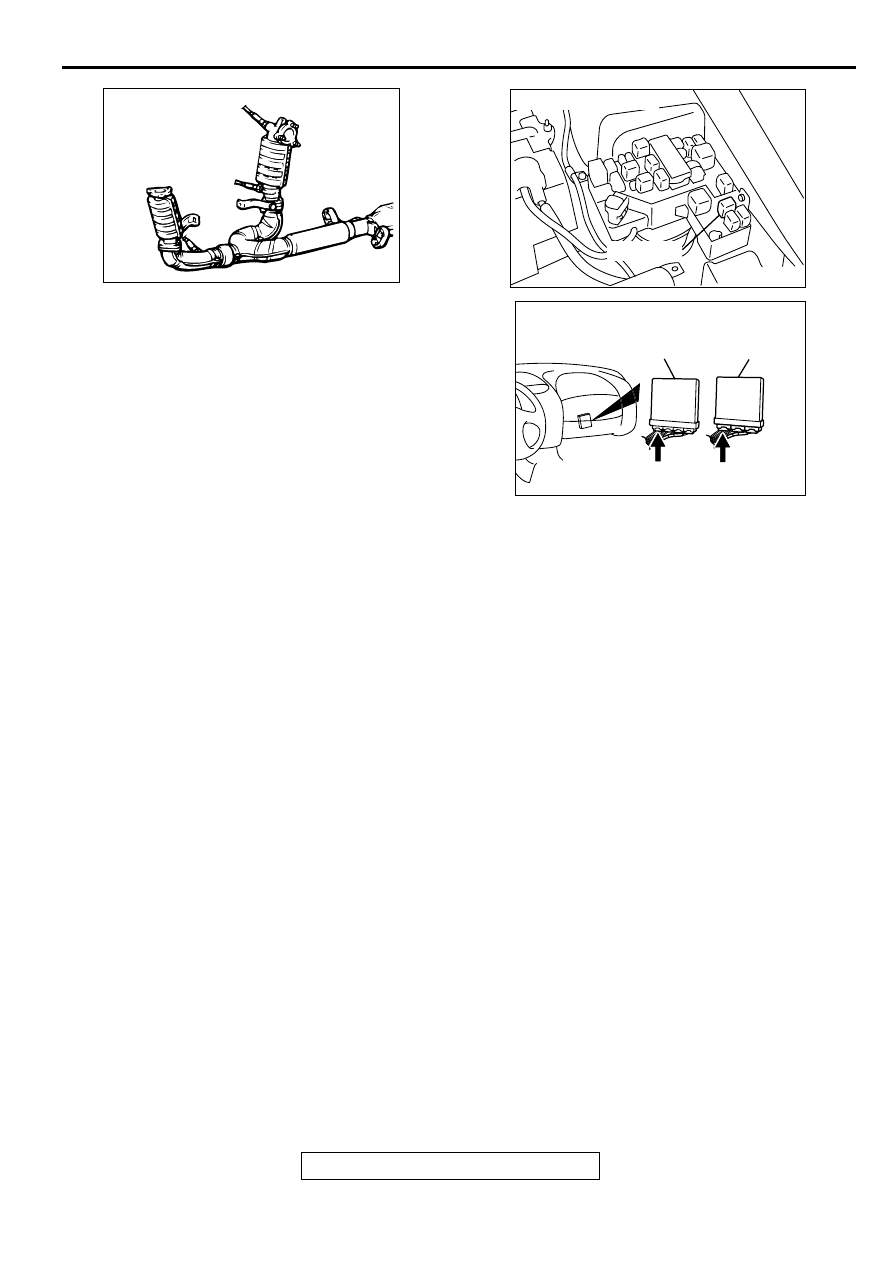

Required Special Tools
MB991316: Test Harness

ACX02493AC

CONNECTOR : B-28

RIGHT BANK
HEATED OXYGEN
SENSOR(REAR)

AK000226

AK000226AB

CONNECTOR : A-21X

MFI RELAY

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-149

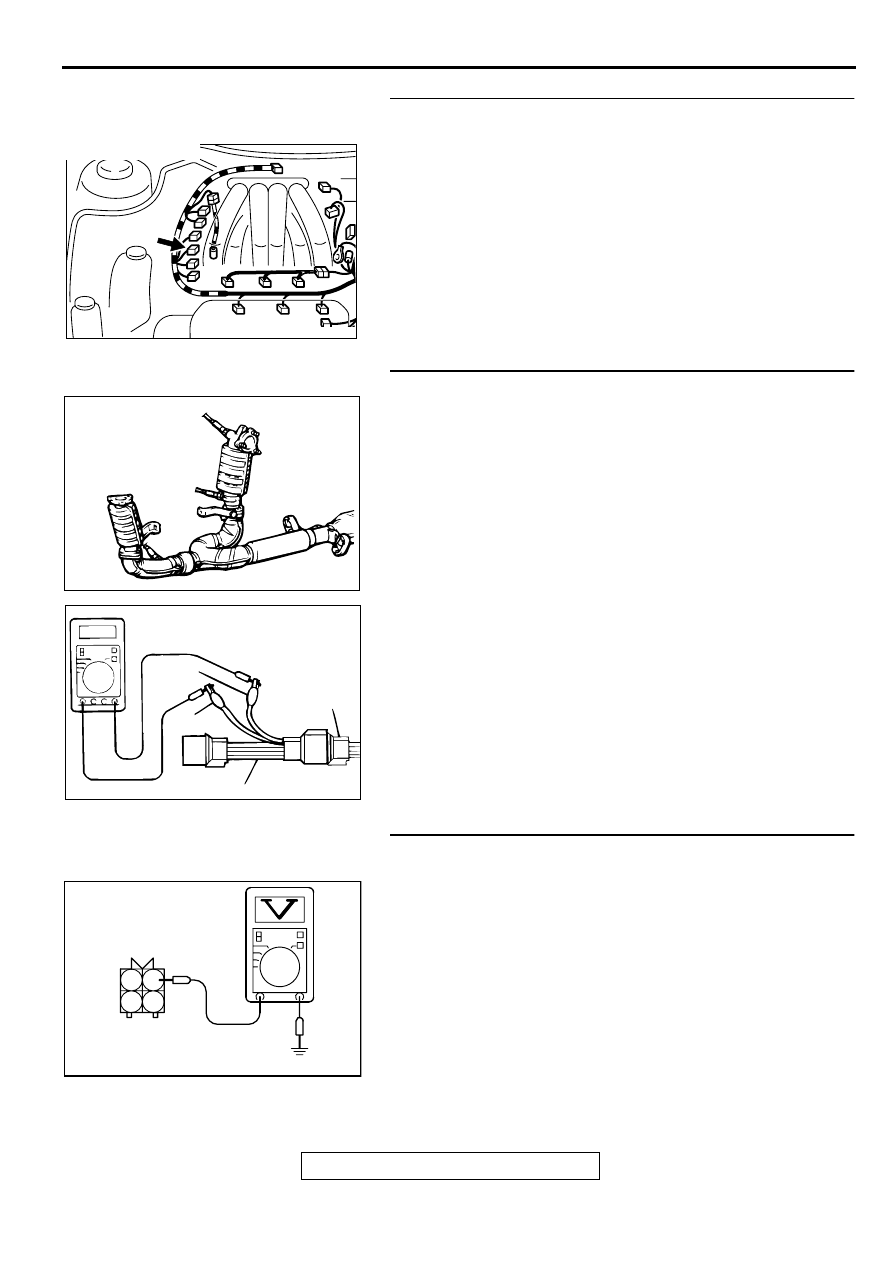

STEP 1. Check connector B-28 at the right bank heated
oxygen sensor (rear) for damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 12.

STEP 2. Check the right bank heated oxygen sensor (rear).
(1) Disconnect right bank heated oxygen sensor (rear)

connector B-28 and connect test harness special tool,
MB991316, to the connector on the right bank heated
oxygen (rear) sensor side.

(2) Measure the resistance between heated oxygen sensor

connector terminal 1 (red clip) and terminal 3 (blue clip).

Standard value: 11

 18 ohm [at 20

°

C (68

°

 F)]

Q: Is the resistance normal?

YES : Go to Step 3.
NO :  Replace the right bank heated oxygen sensor (rear).

Then go to Step 12.

STEP 3. Check the power supply voltage at right bank
heated oxygen sensor (rear) harness side connector B-28.
(1) Disconnect the connector B-28 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 1 and ground.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 5.
NO :  Go to Step 4.

AK000211

CONNECTOR : B-28

AB

ACX02493AC

CONNECTOR : B-28

RIGHT BANK
HEATED OXYGEN
SENSOR(REAR)

AKX01624 AB

MB991316

HEATED
OXYGEN
SENSOR
EQUIPMENT
SIDE
CONNECTOR

BLUE

RED

AKX01496AE

B-28 HARNESS
SIDE CONNECTOR

1

4

3

2

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-150

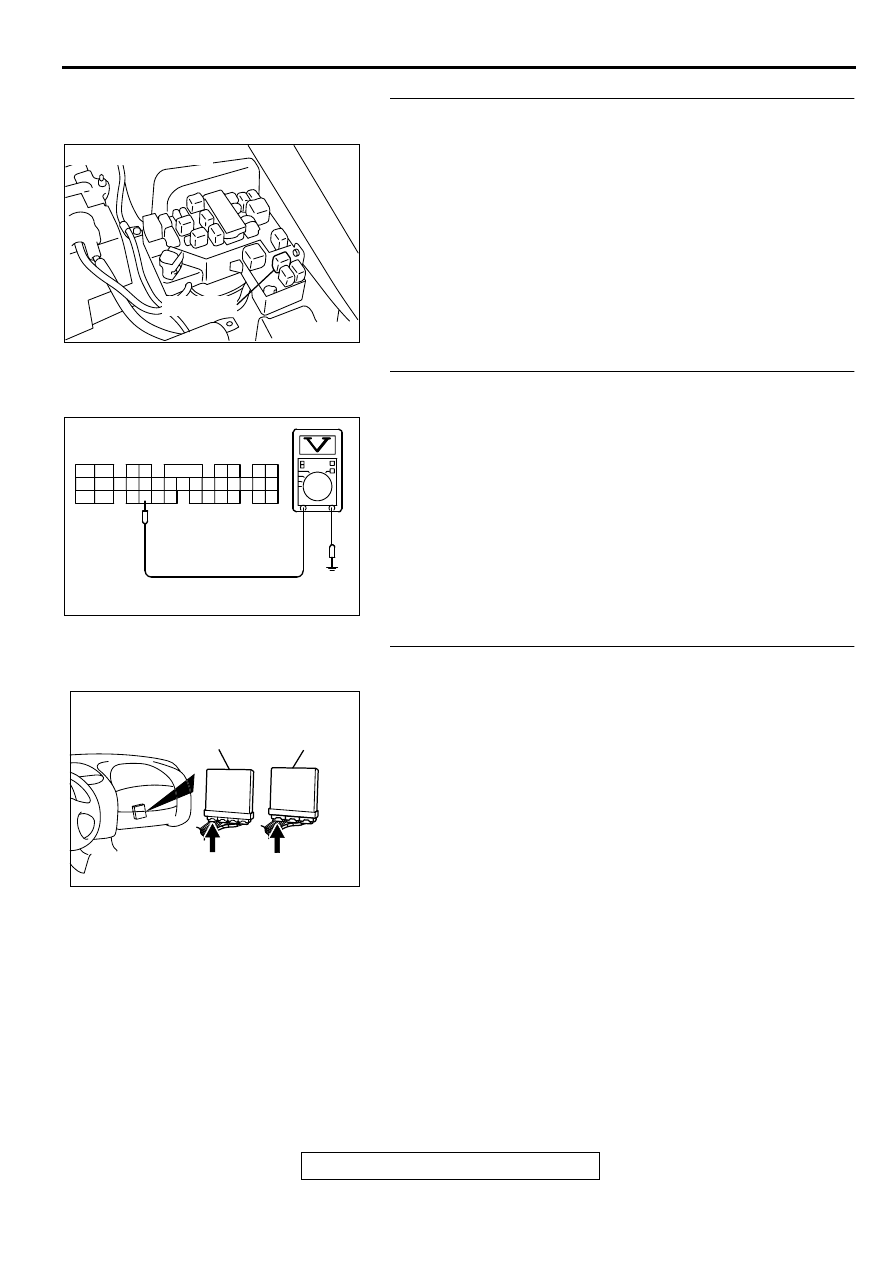

STEP 4. Check harness connector A-21X at the MFI relay
for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector A-

21X terminal 1 and right bank heated oxygen sensor
(rear) connector B-28 terminal 1 because of open
circuit or short circuit to ground. Then go to Step 12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 12.

STEP 5. Check the power supply voltage at ECM connector
C-51 <M/T> or PCM connector C-52 <A/T> by backprobing.
(1) Do not disconnect the connector C-51 <M/T> or C-52 <A/

T>.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 27 and ground by

backprobing.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check connector C-51 at ECM <M/T> or connector
C-52 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 12.

AK000226

AK000226AB

CONNECTOR : A-21X

MFI RELAY

AKX01537

AKX01537

1

2

3 4

5 6

7 8

9

10 11 12 13 14 15 16 17 18 19 20 21 22 23

24 25

26 27 28 29

30 31 32 33

34 35

C-51<M/T>, C-52<A/T>
CONNECTOR HARNESS
SIDE VIEW

AF

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ
