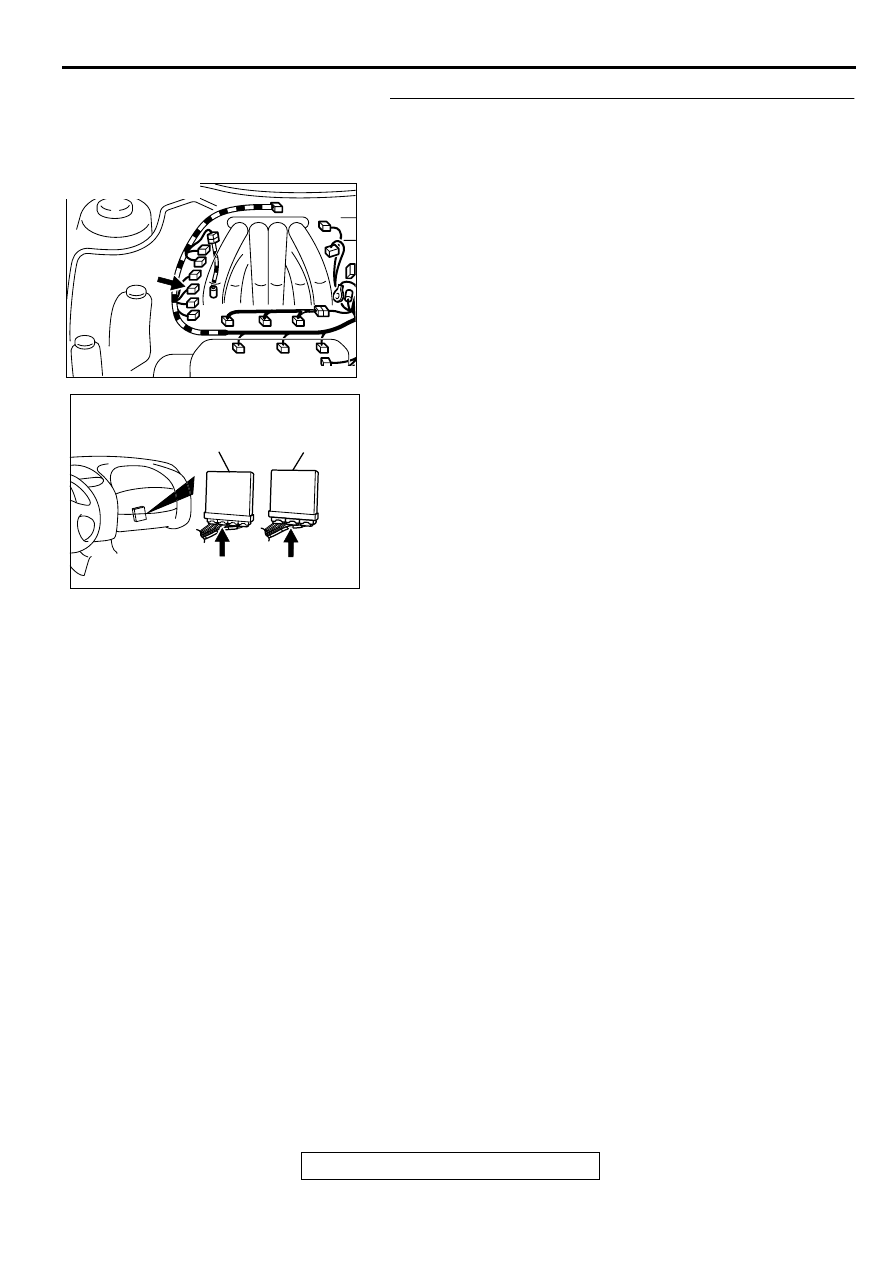

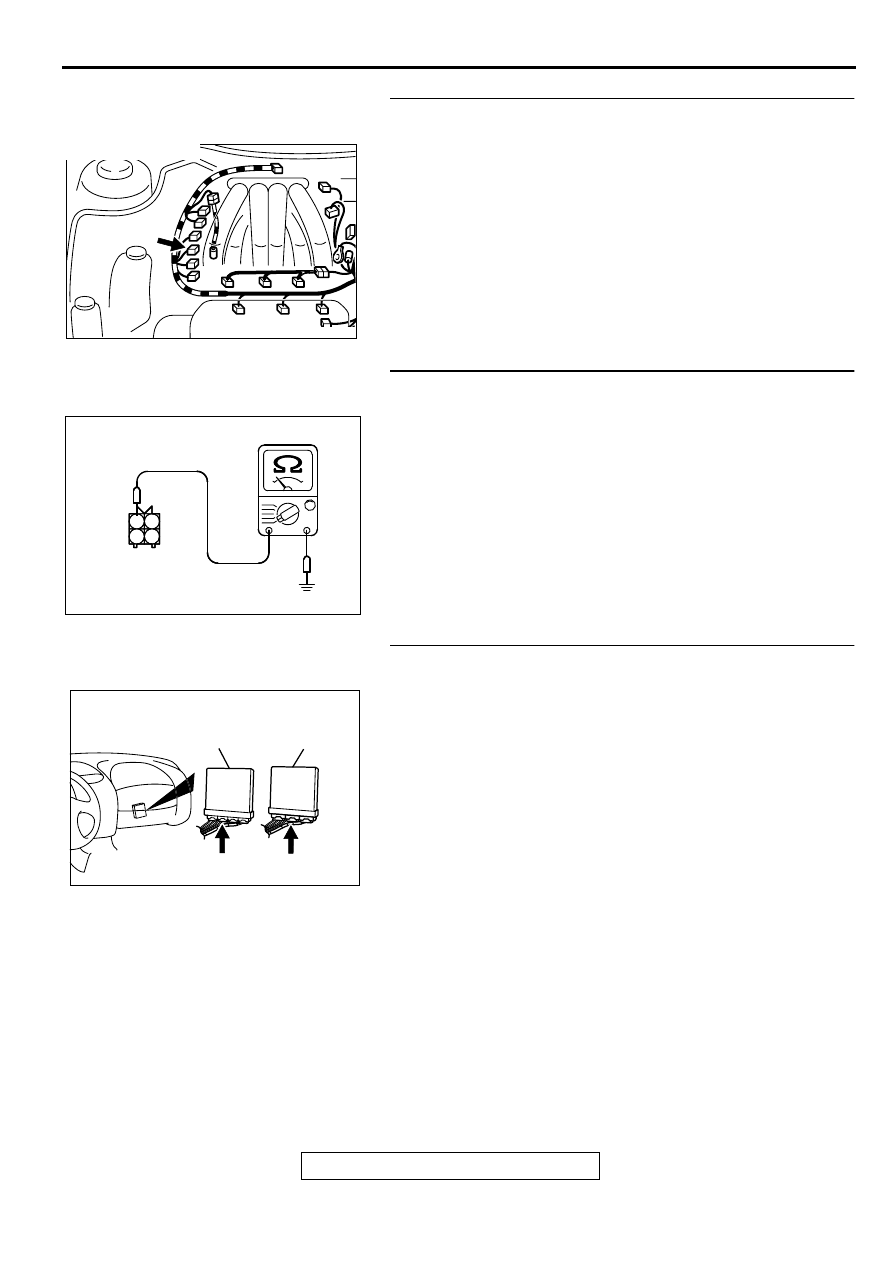

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-139

STEP 7. Check connector B-28 at right bank heated
oxygen sensor (rear) for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 15.

STEP 8. Check the continuity at right bank heated oxygen
sensor (rear) harness side connector B-28.
(1) Disconnect the connector B-28 and measure at the harness

side.

(2) Check for the continuity between terminal 2 and ground.

Should be less than 2 ohm.

Q: Is the continuity normal?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 15.

AK000211

CONNECTOR : B-28

AB

AK000243AB

B-28 HARNESS
SIDE CONNECTOR

2 1

4 3

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

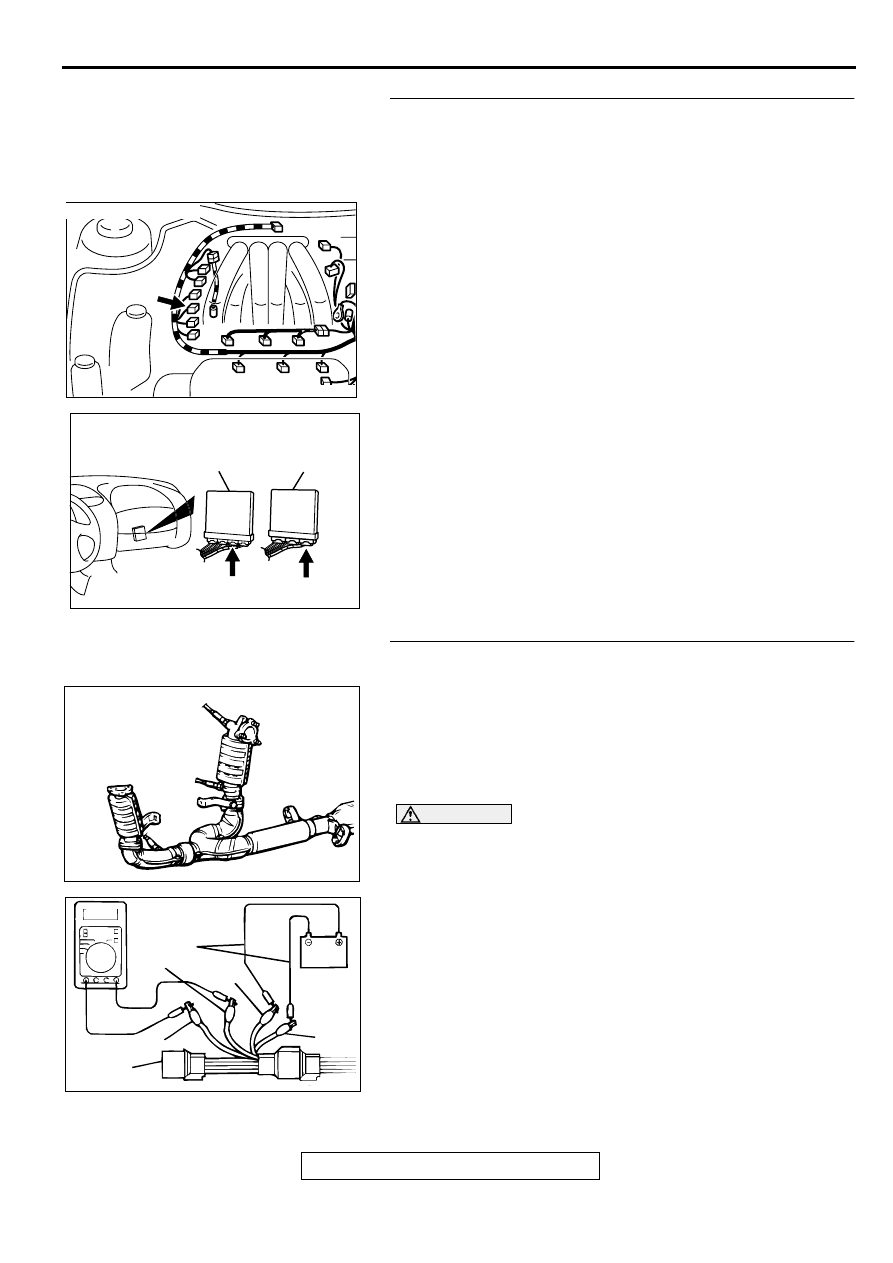

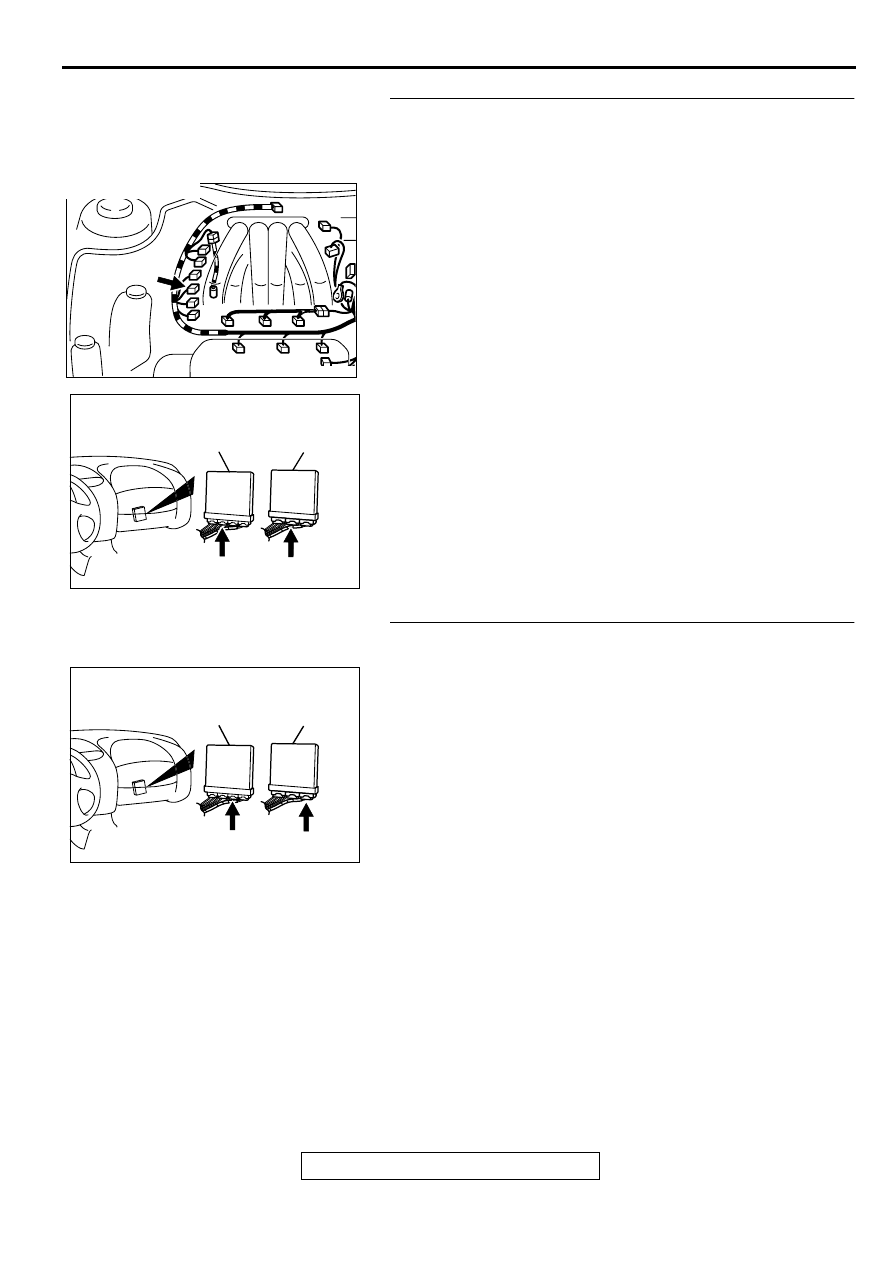

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-140

STEP 10. Check for open circuit and harness damage
between right bank heated oxygen sensor (rear) connector
B-28 terminal 2 and ECM connector C-58 terminal 49 <M/T>
or PCM connector C-55 terminal 57 <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 15.
NO :  Repair it. Then go to Step 15.

STEP 11. Check connector C-62 at ECM <M/T> or
connector C-59 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 15.

AK000211

CONNECTOR : B-28

AB

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

AK000225

CONNECTOR : C-62<M/T>, C-59<A/T>

C-59

C-62

PCM<A/T>

ECM<M/T>

AL

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-141

STEP 12. Check for harness damage between right bank
heated oxygen sensor (rear) connector B-28 terminal 2 and
ECM connector C-58 terminal 49 <M/T> or PCM connector
C-55 terminal 57 <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 15.

AK000211

CONNECTOR : B-28

AB

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-142

STEP 13. Check for short circuit to ground and harness
damage between right bank heated oxygen sensor (rear)
connector B-28 terminal 4 and ECM connector C-62
terminal 74 <M/T> or PCM connector C-59 terminal 74 <A/
T>.
Q: Is the harness wire in good condition?

YES : Go to Step 14.
NO :  Repair it. Then go to Step 15.

STEP 14. Check the right bank heated oxygen sensor
(rear).
(1) Disconnect the right bank heated oxygen sensor (rear)

connector B-28 and connect test harness special tool,
MB991316, to the connector on the right bank heated
oxygen sensor (front) side.

(2) Warm up the engine until engine coolant 80

°

 C (176

°

 F) or

higher.

CAUTION

Be very careful when connecting the jumper wires;
incorrect connection can damage the right bank heated
oxygen sensor (rear).
(3) Use the jumper wires to connect terminal 1 (red clip) to the

positive battery terminal and terminal 3 (blue clip) to the
negative battery terminal.

(4) Connect a digital volt meter between terminal 2 (black clip)

and terminal 4 (white clip).

(5) While repeatedly revving the engine, measure the right

bank heated oxygen sensor (rear) output voltage.

Standard value: 0.6

 1.0 V

Q: Is the voltage at the standard value?

YES : Replace the ECM or PCM. Then go to Step 15.
NO :  Replace the right bank heated oxygen sensor (rear).

Then go to Step 15.

AK000211

CONNECTOR : B-28

AB

AK000225

CONNECTOR : C-62<M/T>, C-59<A/T>

C-59

C-62

PCM<A/T>

ECM<M/T>

AL

ACX02493AC

CONNECTOR : B-28

RIGHT BANK
HEATED OXYGEN
SENSOR(REAR)

AKX01625 AB

BLUE

JUMPER
WIRES

BLACK

RED

WHITE

MB991316
