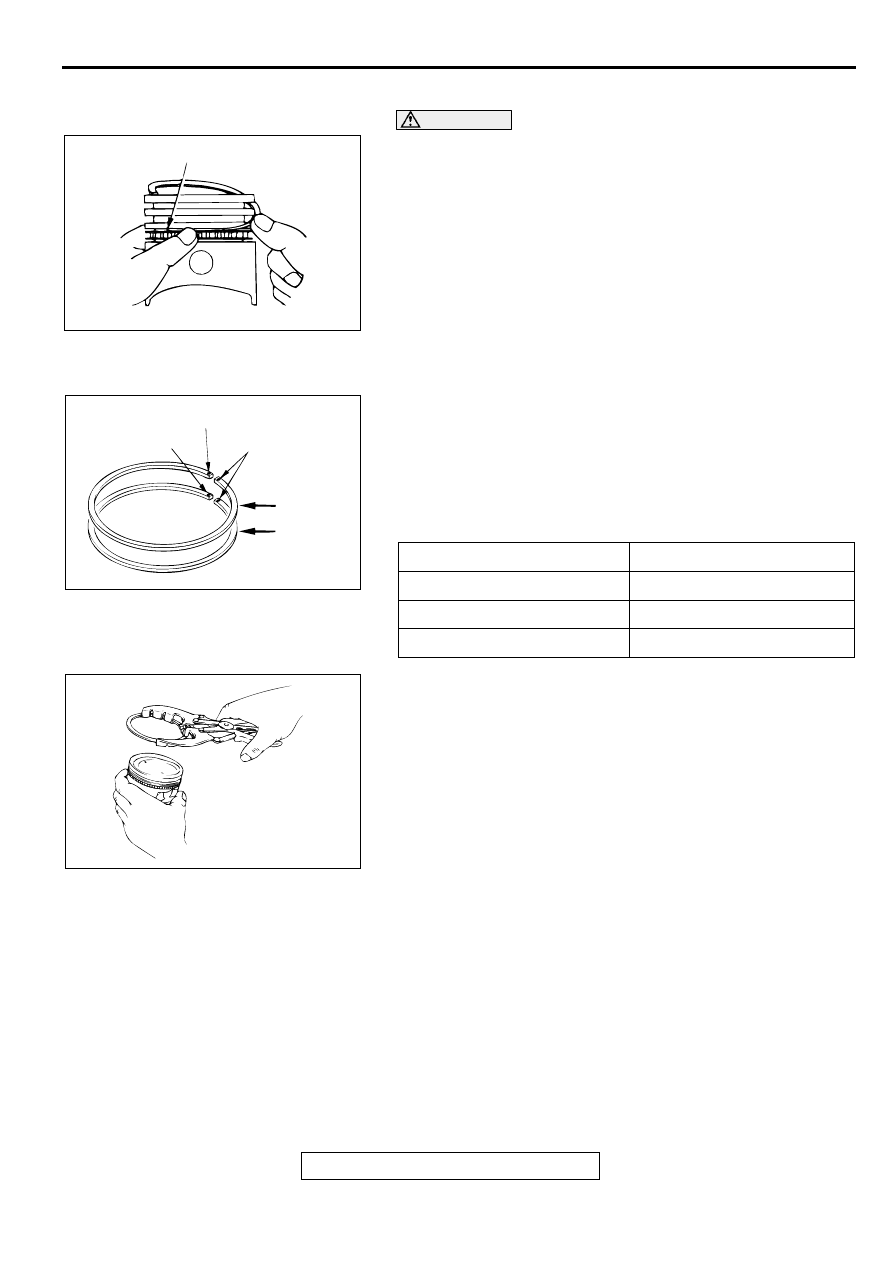

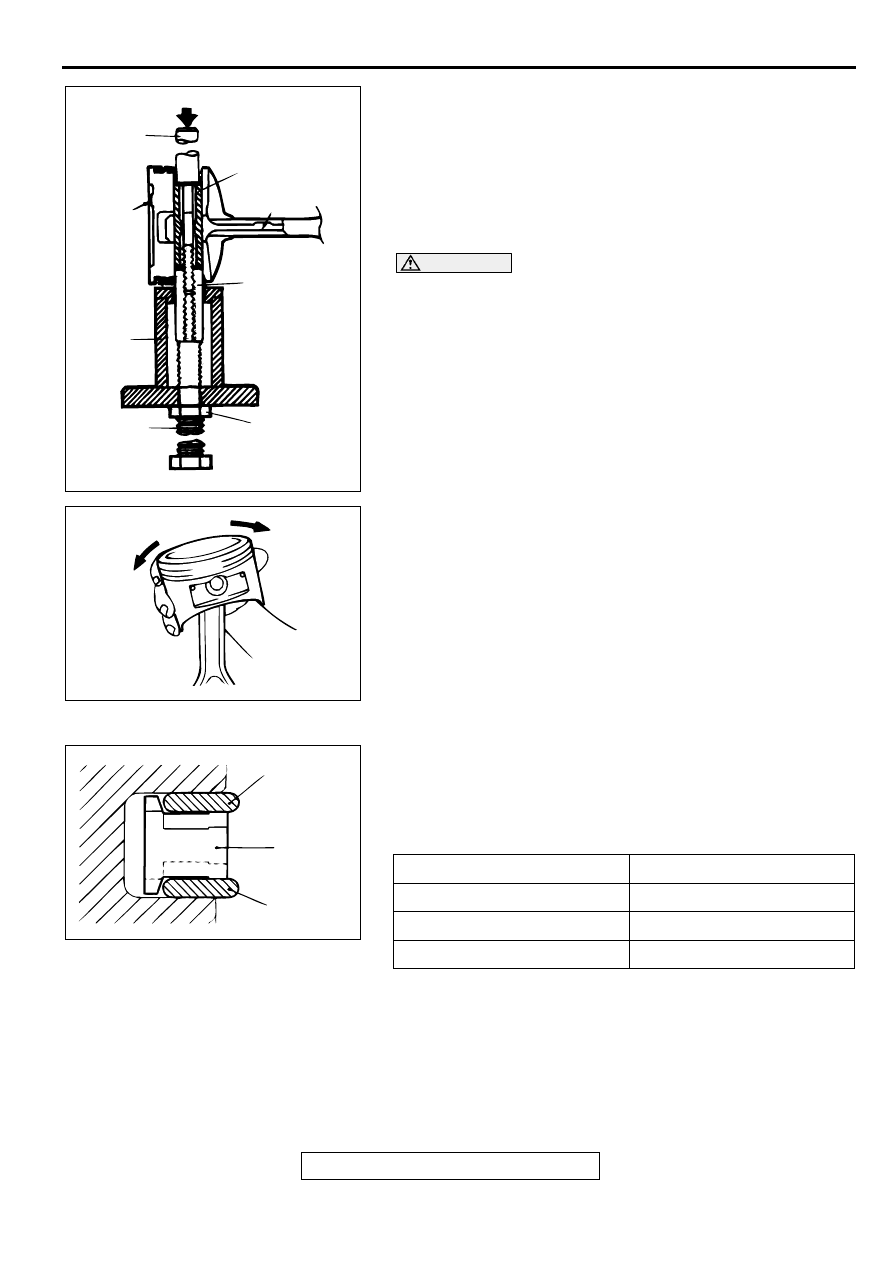

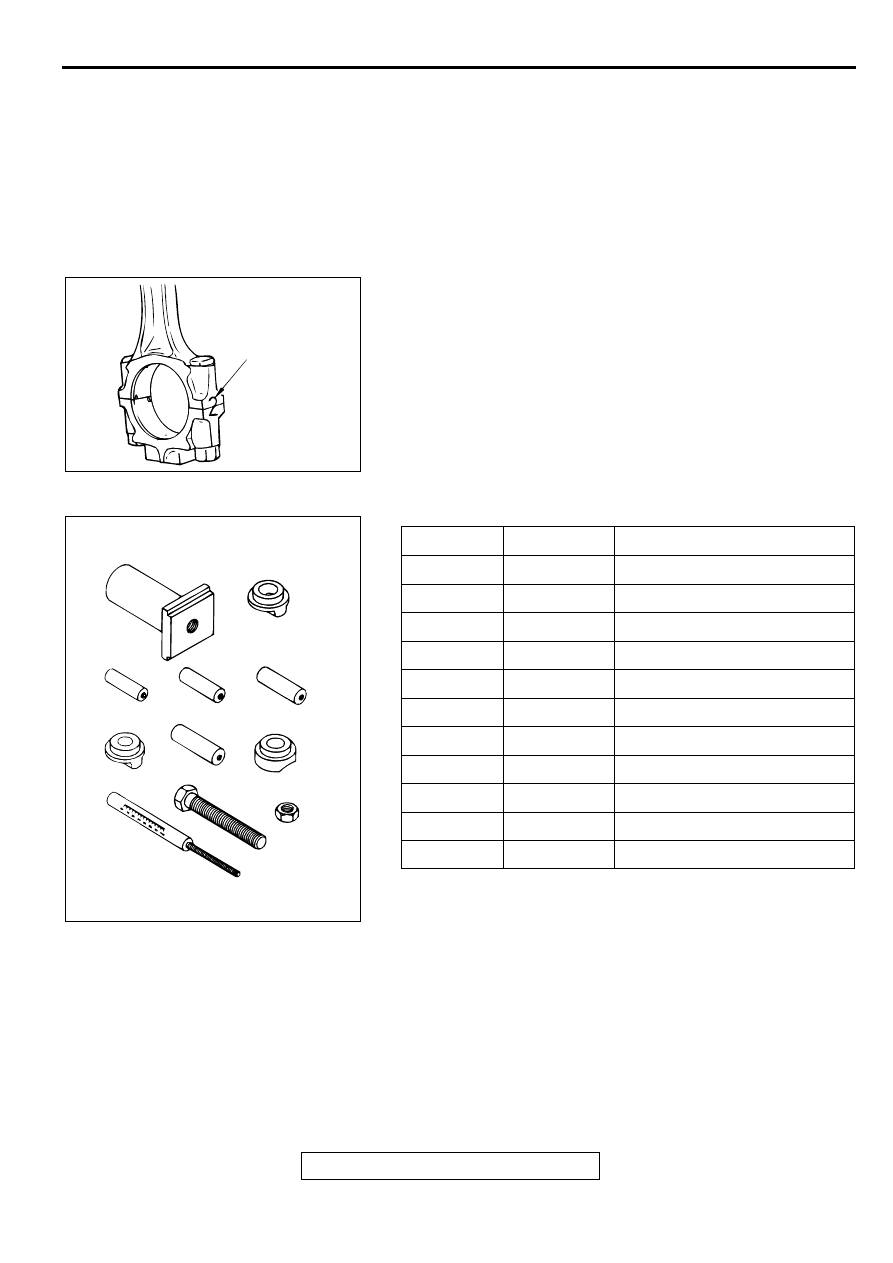

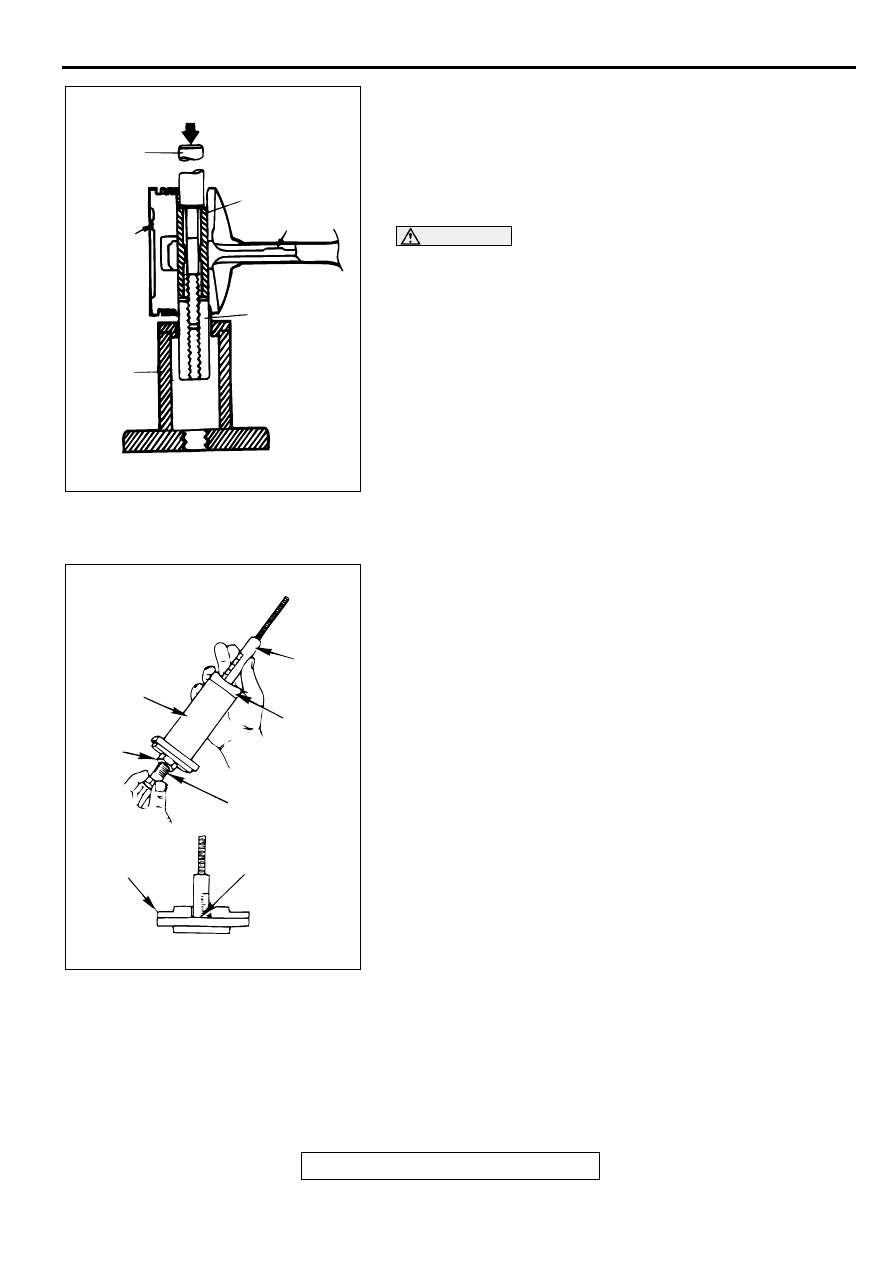

PISTON AND CONNECTING ROD TSB Revision ENGINE OVERHAUL <2.4L ENGINE> 11B-49 Required Special Tool: REMOVAL SERVICE POINTS <<A>> CONNECTING ROD CAP REMOVAL big end for correct reassembly. 2. Keep the removed connecting rods, caps, and bearings in that order according to the cylinder number. <<B>> PISTON PIN REMOVAL 1. Remove the stop screw from the base. 2. Select the correct piston support for your application (See above). Fit the piston support onto the base. Place the base 10.PISTON REMOVAL STEPS (Continued) AKX00600 CYLINDER NUMBER AB ITEM NO. PART NO. DESCRIPTION 1. MIT310134 Base 2. MIT310136 Piston support 3. MIT310137 Connecting rod guide pin 4. MIT310138 Connecting rod guide pin 5. MIT310139 Connecting rod guide pin 6. MIT310140 Piston support 7. MIT310141 Connecting rod guide pin 8. MIT310142 Piston support 9. MIT48143 Press pin 10. 216943 Stop screw 11. 10396 Nut AKX00598 PISTON PIN SETTING 1 2 5 8 11 10 9 6 3 4 7 AB |
