TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-17

INSPECTION

M1113002000050

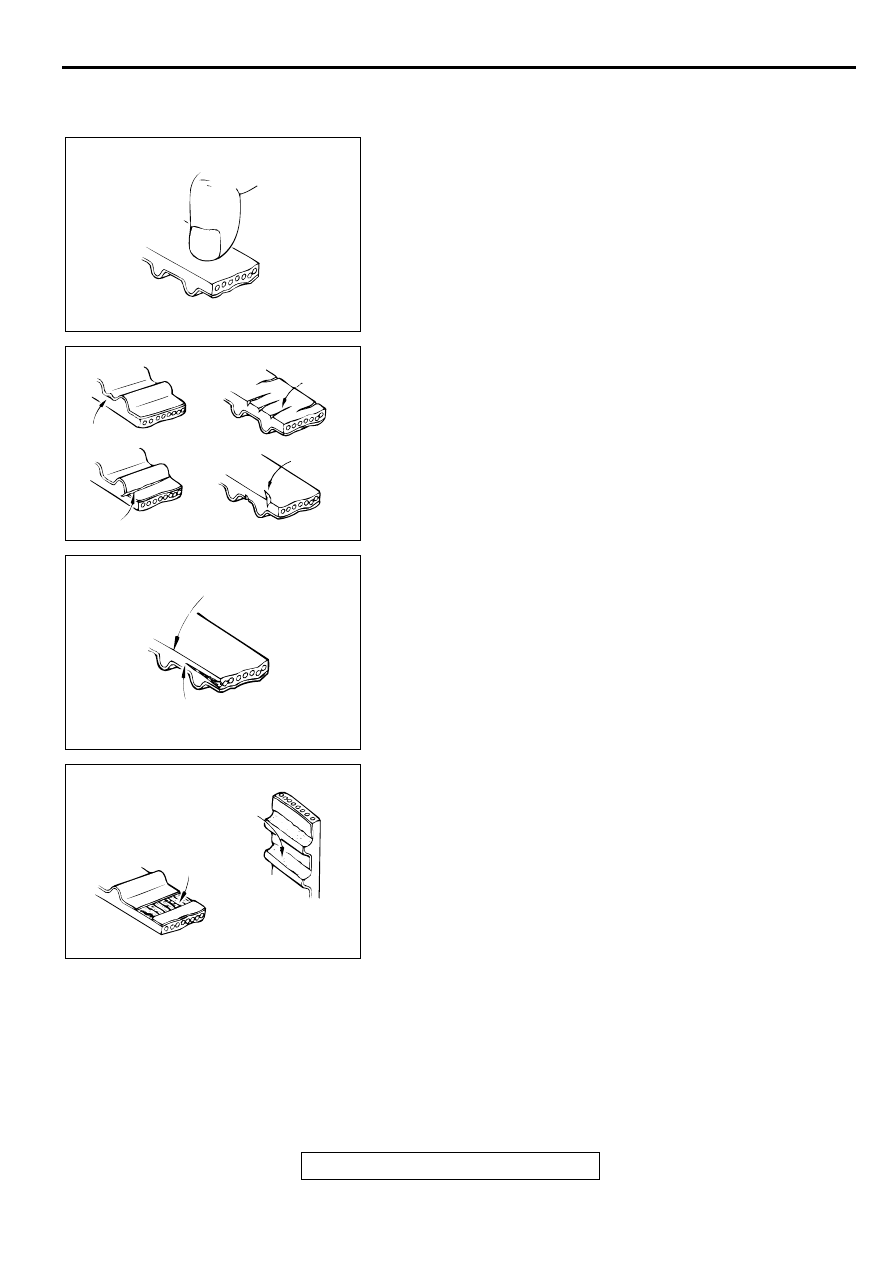

TIMING BELT
Replace the belt if any of the following conditions exist:
1. Hardening of rubber backing.

Back side is glossy without resilience and leaves no indent
when pressed with fingernail.

2. Cracks on rubber back.

3. Cracks or peeling of canvas.

4. Cracks on rib root.

5. Cracks on belt sides.

6. Abnormal wear of belt sides. Normal wear is indicated if the

sides are sharp as if cut by a knife. Abnormal wear is
indicated if the sides are ragged.

7. Abnormal wear on teeth.

8. Missing tooth.

AKX00601

AKX00564

CRACKS

CRACKS

CRACKS

PEELING

AB

AKX00602

ROUNDED EDGE

ABNORMAL WEAR
(RAGGED)

AB

AKX00603

TOOTH
MISSING

RUBBER EXPOSED

AB

TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-18

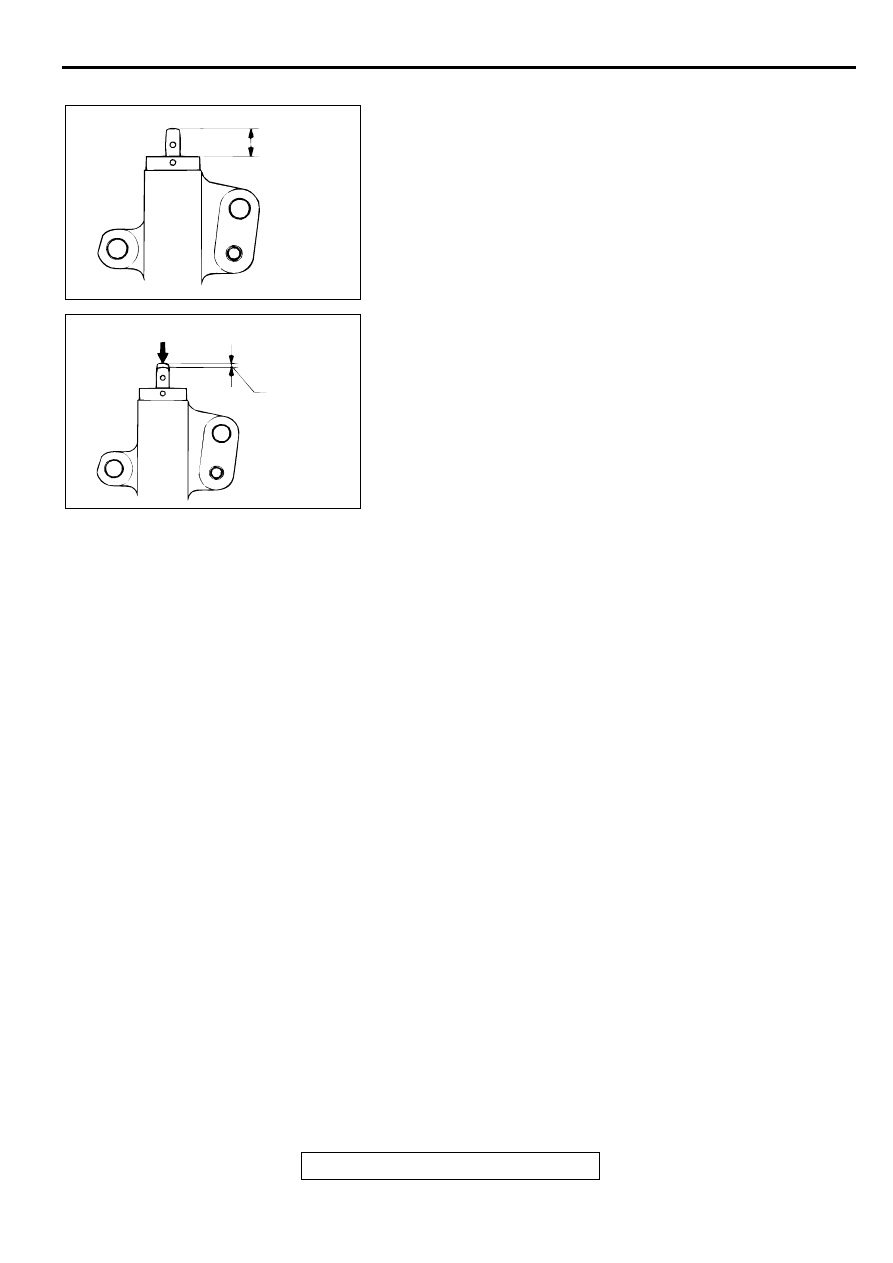

AUTO-TENSIONER
1. Check for oil leaks. If oil leaks are evident, replace the auto-

tensioner.

2. Check the rod end for wear or damage and replace the auto-

tensioner if necessary.

3. Measure the rod protrusion. If it is out of specification,

replace the auto tensioner.

Standard value: 12 mm (0.5 inch)

4. Press the rod with a force of 98 to 196 N (22 to 44 pound)

and measure the movement of the rod.
If the measured value is out of the standard value, replace
the auto-tensioner.

Standard value: 1.0 mm (0.03 inch) or less

AKX00477

12 mm
(0.5 in)

AB

AKX00478

98 TO196 N (22 TO 44 lb)

MOVEMENT

AB

FUEL AND EMISSION PARTS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-19

FUEL A N D  EM ISSIO N  PA R TS

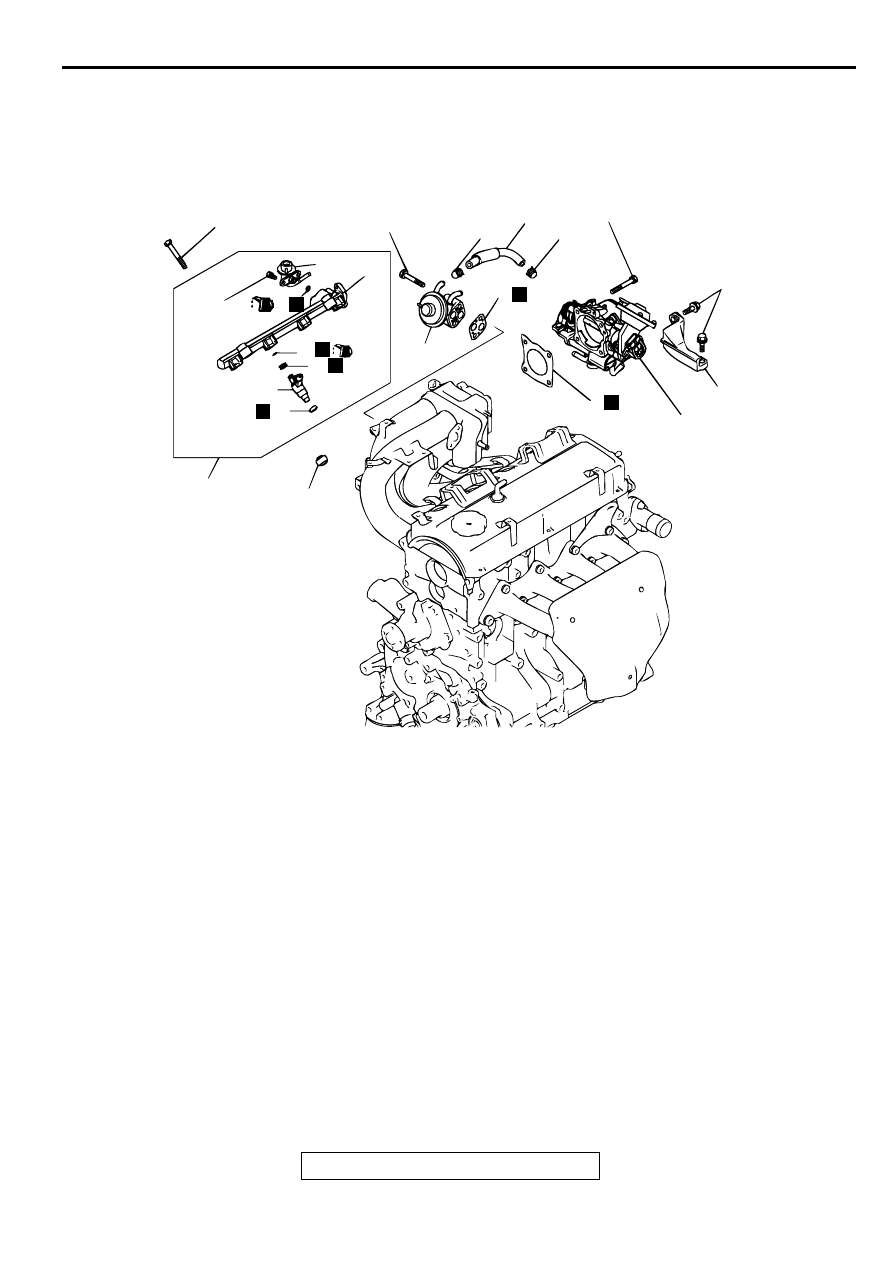

REMOVAL AND INSTALLATION

M1113002200032

AKX00513

19 ± 3 N·m
14 ± 2 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

8.8 ± 2 N·m
78 ± 17 in-lb

2

1

1

10

16

7

14

6

15

13

3

5

12

4

8

9

N

N

N

N

N

N

AB

12 ± 1 N·m
104 ± 9 in-lb

11

REMOVAL STEPS
1. HOSE CLIP
2. WATER HOSE
3 THROTTLE BODY STAY
4. THROTTLE BODY

>>C<<

5. THROTTLE BODY GASKET
6. EGR VALVE
7. GASKET
8. INJECTOR AND FUEL RAIL

9. INSULATOR

>>B<<

10.FUEL PRESSURE REGULATOR
11. O-RING
12.INSULATOR

>>A<<

13.INJECTOR
14.O-RING
15.GROMMET
16.FUEL RAIL

REMOVAL STEPS (Continued)

FUEL AND EMISSION PARTS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-20

INSTALLATION SERVICE POINTS

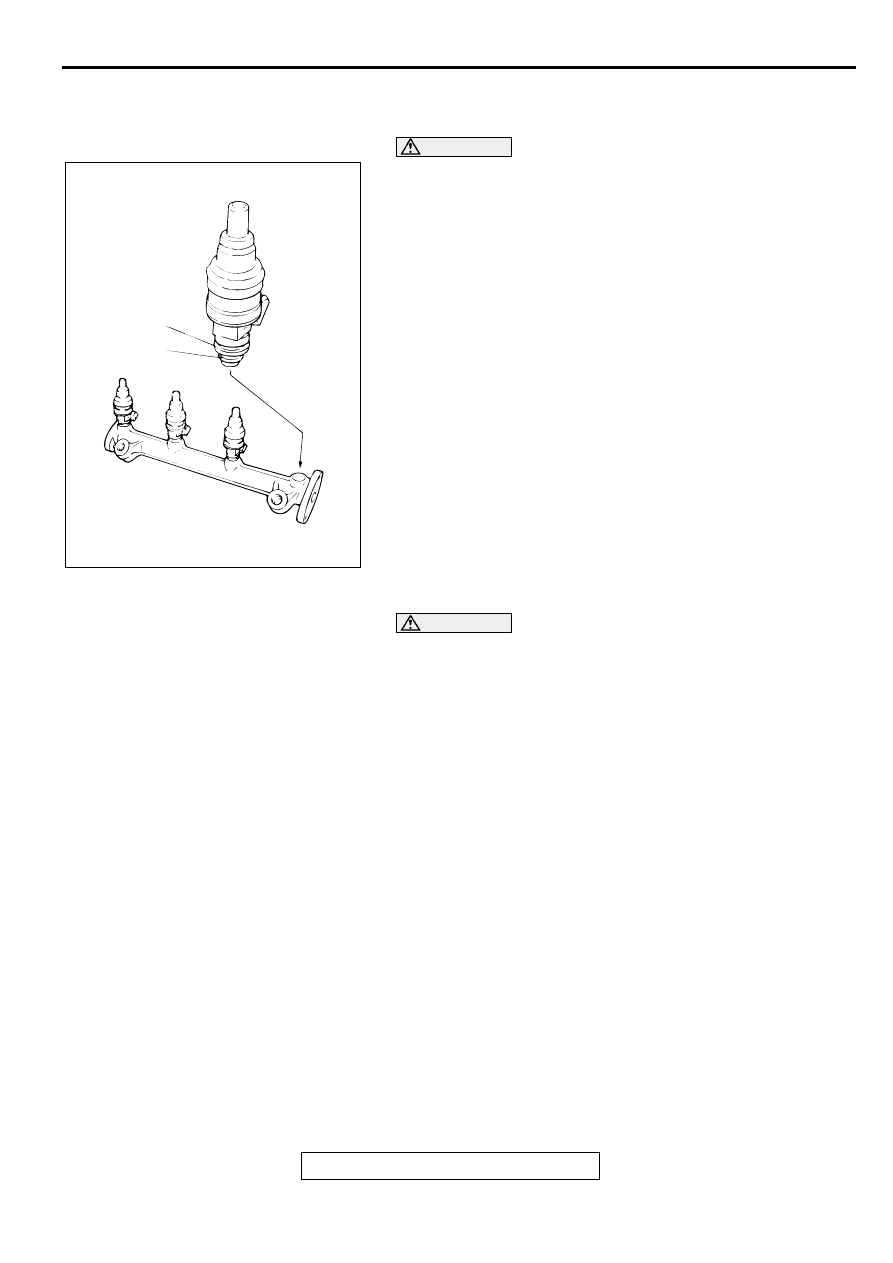

>>A<< INJECTORS INSTALLATION

CAUTION

Use care not to let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.

2. Insert the injector into the fuel rail.

3. Make sure the injector rotates smoothly.

If not, remove the injector to check the O-ring for damage,
and replace the O-ring if necessary. Then, reinstall the
injector and check that it rotates smoothly.

>>B<< FUEL PRESSURE REGULATOR INSTALLATION

CAUTION

Do not let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.

2. Insert the fuel pressure regulator into the fuel rail.

3. Make sure the pressure regulator rotates smoothly.

If not, remove the fuel pressure regulator to check the O-ring
for damage, and replace the O-ring if necessary. Then,
reinstall the fuel pressure regulator and check that it rotates
smoothly.

4. Tighten the two bolts to the specified torque.

Tightening torque: 8.8

±

 2 N

m (78

±

 17 in-lb)

AKX00446

GROMMET

O-RING

AB
