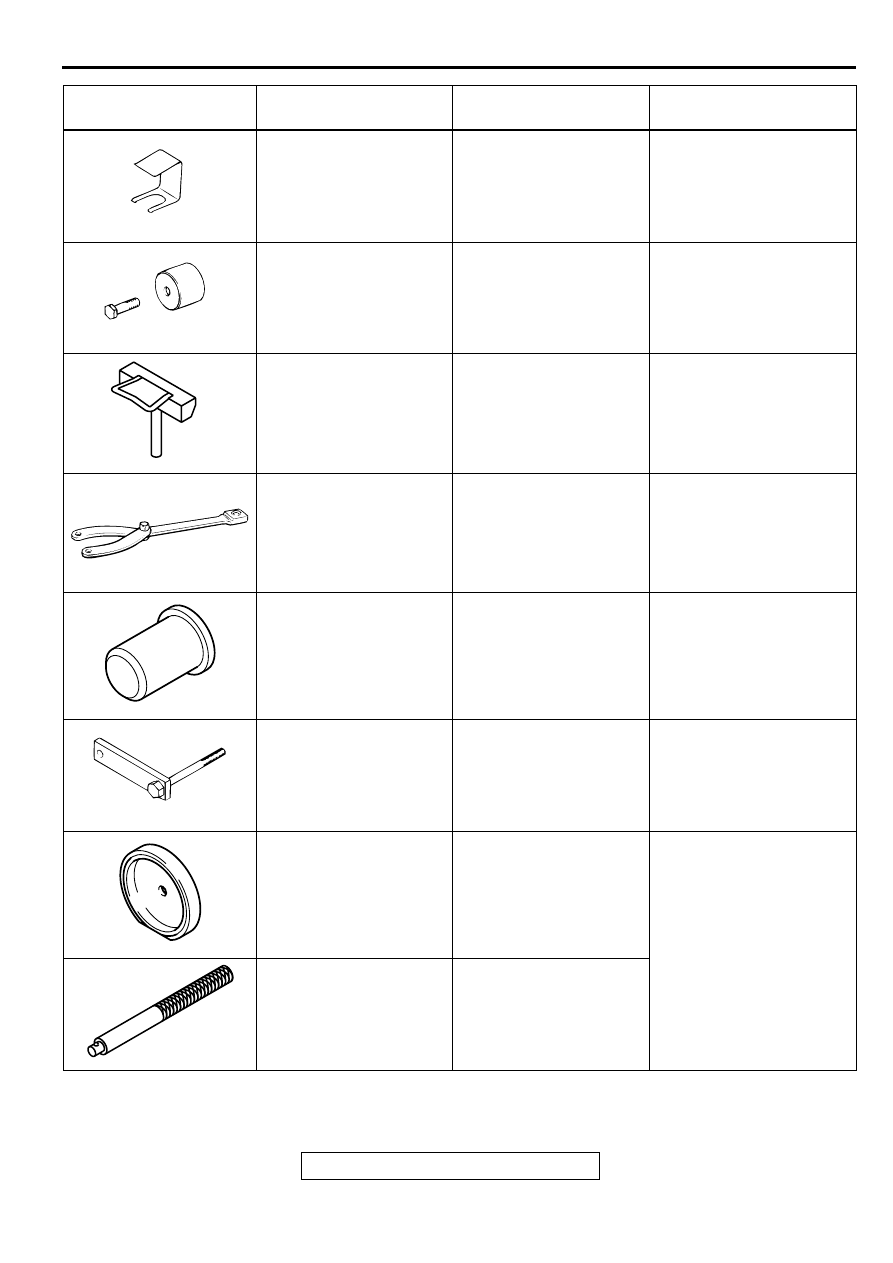

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-5

MD998443
Lash adjuster holder (8)

MD998443-01

Supporting of the auto-lash
adjuster to prevent it from
falling when rocker shaft
assembly is removed or
installed

MD998713
Camshaft oil seal installer

MD998713-01

Camshaft oil seal
installation

MD998727
Oil pan remover

MD998727-01

Oil pan removal

MB991367
Special spanner

MB991367-01

Holding the crankshaft
sprocket

MD998375
Crankshaft oil seal
installer

MD998375-01

Crankshaft front oil seal
installation

MD998781
Flywheel stopper

General service tool

Flywheel <M/T> or Drive
plate <A/T> supporting

MD998776
Crankshaft rear oil seal
installer

MD998776-01

Crankshaft rear oil seal
installation

MB990938
Handle

MB990938-01

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998443

D998713

B991367

D998781

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-6

O N -VEH IC LE SERVIC E

DRIVE BELT TENSION CHECK AND
ADJUSTMENT

M1111003100106

Refer to GROUP 00, Maintenance Service

 Drive Belts

(Check Condition)

P.00-40

.

IGNITION TIMING CHECK

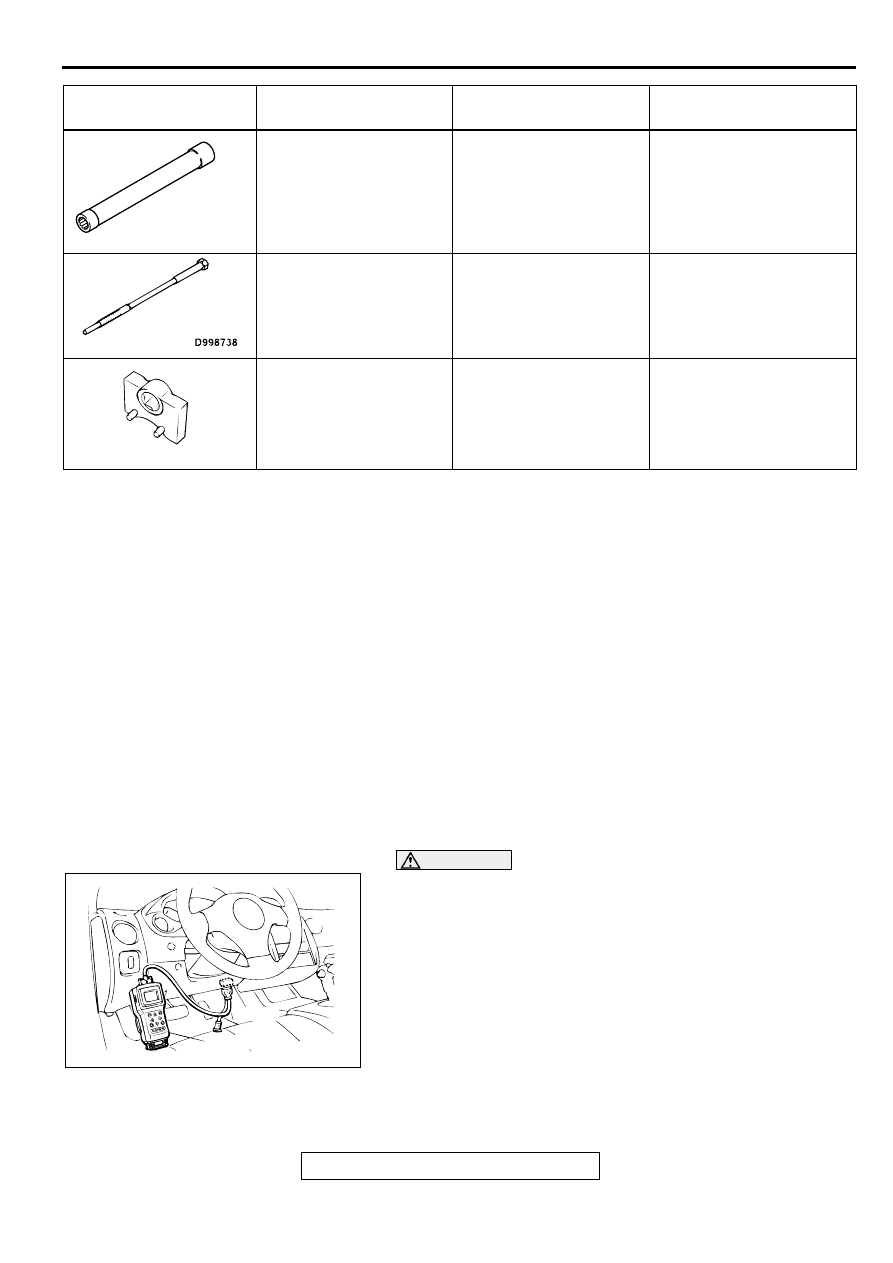

M1111001700061

Required Special Tool:
MB991502: Scan Tool (MUT-II)
1. Before inspection, set vehicles in the following condition:

Engine coolant temperature: 80

 95

°

C (176

 203

°

F

)

Lights and all accessories: OFF

Transaxle: Neutral (P range on vehicles with A/T)

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
2. Connect scan tool MB991502 to the data link connector.

3. Set up a timing light.

4. Start the engine and run it at idle.

5. Check that the idle speed is approximately 700 r/min.

6. Select scan tool MB991502 actuator test "item number 17."

7. Check that basic ignition timing is within the standard value.

Standard value: 5

°

 BTDC

±

 3

°

8. If the basic ignition timing is not within the standard value,

check the following items:

MB991654
Cylinder head bolt
wrench (12)

General service tool

Removal and installation of
cylinder head bolt

MD998738
Adjusting screw

General service tool

Holding the auto-
tensioner

Timing belt tension
adjustment

MD998767
Tensioner pulley socket
wrench

MD998752-01

Timing belt tension
adjustment

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998767

AKX01177

16 PIN

MB991502

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-7

Diagnosis output

Timing belt cover and crankshaft position sensor installation
conditions

Crankshaft sensing blade condition

CAUTION

If the actuator test is not canceled, the forced drive will
continue for 27 minutes. Driving in this state could lead to
engine failure.
9. Press the clear key on scan tool MB991502 (select forced

drive stop mode), and cancel the actuator test.

10.Check that the actual ignition timing is at the standard value.

Standard value: Approximately 10

°

 BTDC

NOTE: Ignition timing fluctuates about

±

 7

°

 Before Top Dead

Center, even under normal operating condition.

NOTE: It is automatically further advanced by about 5

°

 to

10

°

 Before Top Dead Center at higher altitudes.

IDLE MIXTURE CHECK

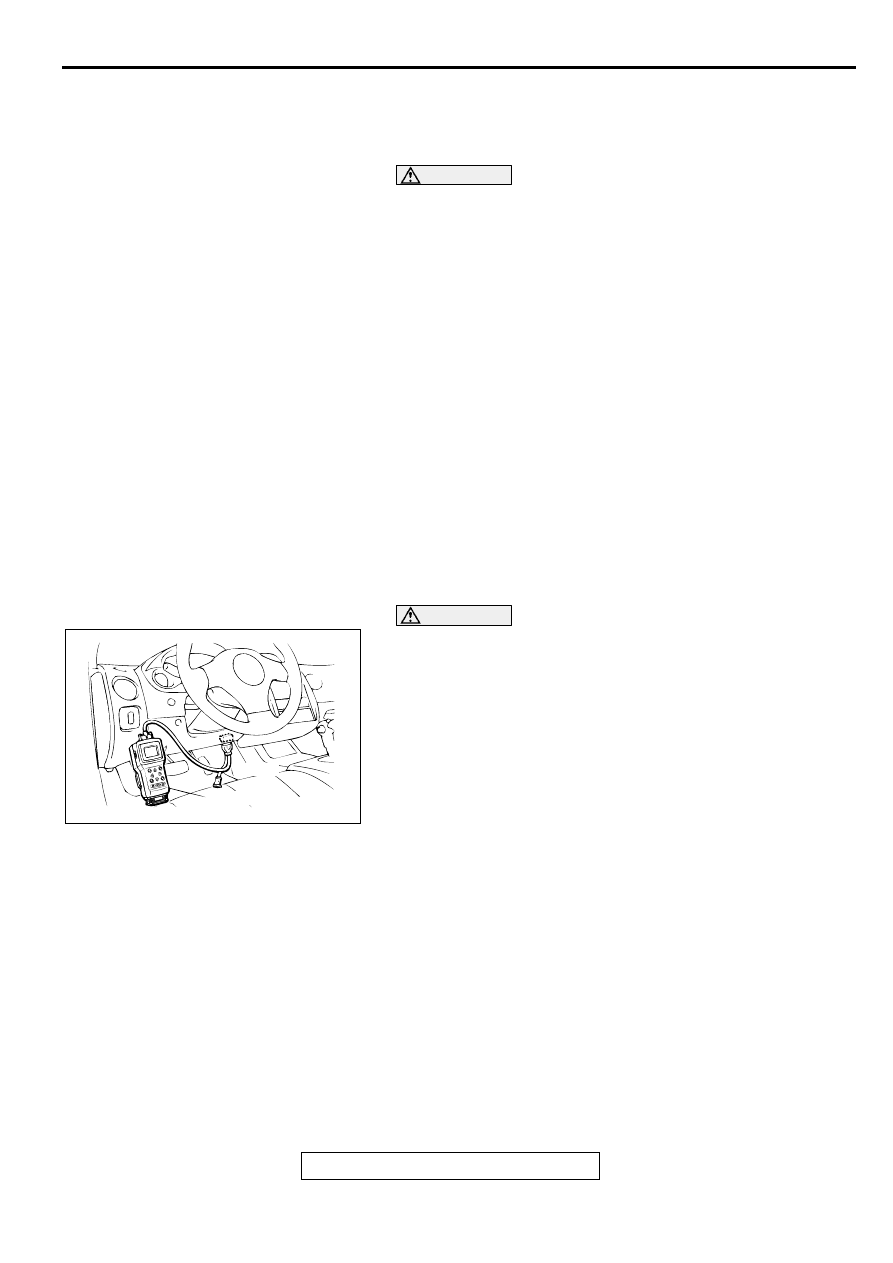

M1111002100062

Required Special Tool:
MB991502: Scan Tool (MUT-II)
1. Before inspection, set vehicles in the following condition:

Engine coolant temperature: 80

 95

°

C (176 - 203

°

F

)

Lights and all accessories: OFF

Transaxle: Neutral (P range on vehicles with A/T)

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
2. Connect scan tool MB991502 to the data link connector.

3. Check that the basic ignition timing is within the standard

value.

Standard value: 5

°

 BTDC

±

 3

°

4. Start the engine and increase the engine speed to 2,500 r/

min for 2 minutes.

5. Set the CO, HC tester.

6. Check the CO contents and the HC contents at idle.

Standard value:

CO contents: 0.5% or less
HC contents: 100 ppm or less

7. If the CO and HC contents do not remain inside the standard

value, check the following items:

NOTE: Replace the catalytic converter when the CO and HC
contents do not remain inside the standard value, even
though the result of the inspection is normal for all items.

Diagnosis output

Closed-loop control (When the closed-loop control is carried
out normally, the output signal of the heated oxygen sensor
changes between 0

 400 mV and 600

 1,000 mV at idle.)

Fuel pressures

AKX01177

16 PIN

MB991502

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-8

Injector

Ignition coil, spark plug cable, spark plug

EGR system and EGR valve leak

Evaporative emission control system

Compression pressure

CURB IDLE SPEED CHECK

M1111003500096

Required Special Tool:
MB991502: Scan Tool (MUT-II)
1. Before inspection and adjustment set vehicles in the

following condition.

Engine coolant temperature: 80

 95

°

C (176 - 203

°

F

)

Lights and all accessories: OFF

Transaxle: Neutral (P range on vehicles with A/T)

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
2. Connect scan tool MB991502 to the data link connector.

3. Check the basic ignition timing.

Standard value: 5

°

 BTDC

±

 3

°

4. Start the engine.

5. Run the engine at idle for 2 minutes.

6. Check the idle speed. Select item number 22 and take a

reading of the idle speed.

Curb idle speed: 700

±

 100 r/min

NOTE: The idle speed is controlled automatically by the idle
air control system.

7. If the idle speed is outside the standard value, refer to

GROUP 13A, Diagnosis

 Symptom Char

P.13A-22

.

COMPRESSION PRESSURE CHECK

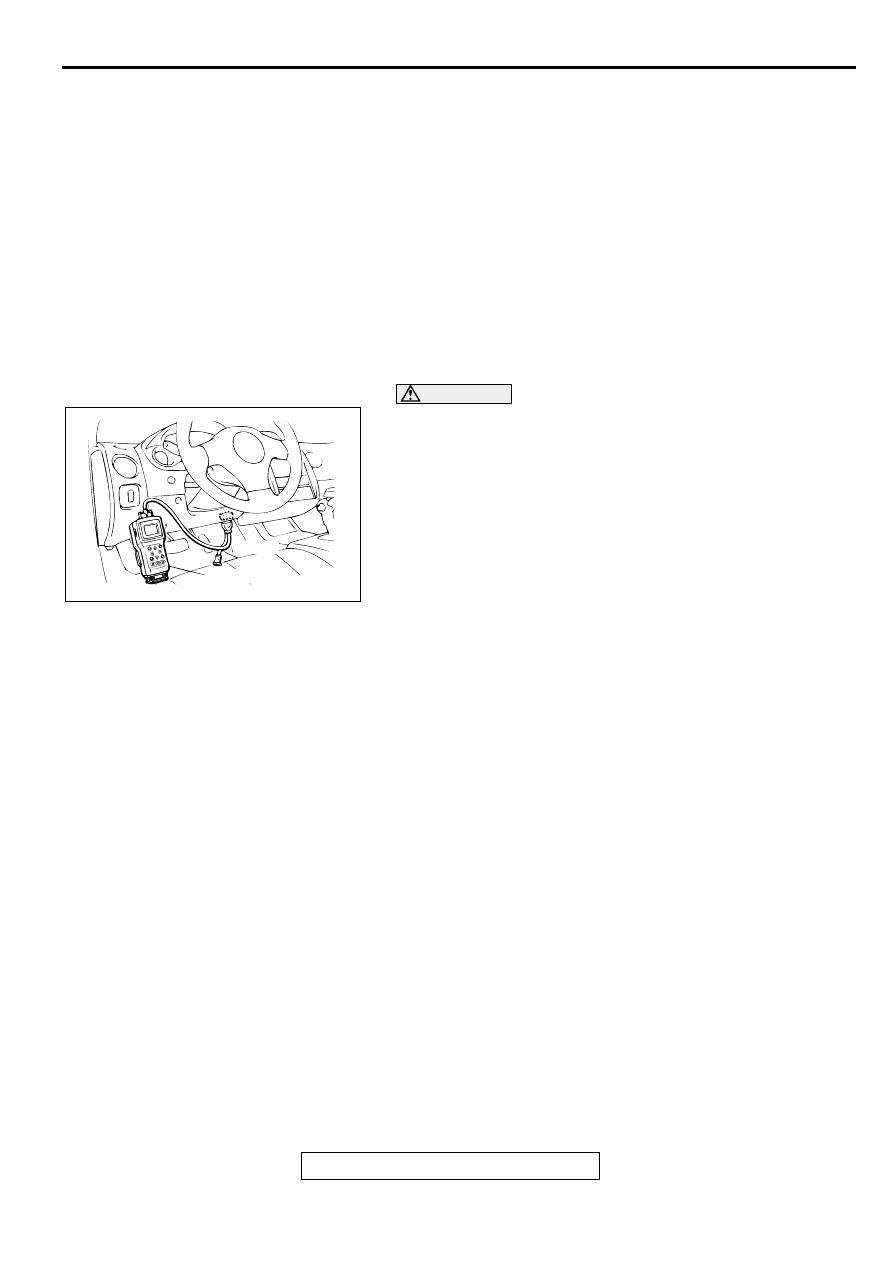

M1111002600056

1. Before inspection, check that the engine oil, starter and

battery are normal. Also, set the vehicle in the following
condition:

Engine coolant temperature: 80

 95

°

C (176

 203

°

F

)

Lights, and all accessories: OFF

Transaxle: Neutral (P range on vehicles with A/T)

2. Disconnect the spark plug cables.

3. Remove all of the spark plugs.

4. Disconnect the crankshaft position sensor connector.

NOTE: Doing this will prevent the engine control module
from carrying out ignition and fuel injection.

AKX01177

16 PIN

MB991502

AB
