11-1

GROUP 11

ENGINE

CONTENTS

ENGINE MECHANICAL <2.4L ENGINE> . . . . . . . . . . . . . . . . . .

11A

ENGINE OVERHAUL <2.4L ENGINE> . . . . . . . . . . . . . . . . . . . .

11B

ENGINE MECHANICAL <3.0L ENGINE> . . . . . . . . . . . . . . . . . .

11C

ENGINE OVERHAUL <3.0L ENGINE> . . . . . . . . . . . . . . . . . . . .

11D

11A-2

GROUP 11A

ENGINE

MECHANICAL



<2.4L ENGINE>

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

11A-3

ENGINE DIAGNOSIS. . . . . . . . . . . . .

11A-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

11A-4

ON-VEHICLE SERVICE. . . . . . . . . . .

11A-6

DRIVE BELT TENSION CHECK AND
ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . .

11A-6

IGNITION TIMING CHECK . . . . . . . . . . . . .

11A-6

IDLE MIXTURE CHECK . . . . . . . . . . . . . . .

11A-7

CURB IDLE SPEED CHECK  . . . . . . . . . . .

11A-8

COMPRESSION PRESSURE CHECK. . . .

11A-8

MANIFOLD VACUUM CHECK . . . . . . . . . .

11A-9

LASH ADJUSTER CHECK . . . . . . . . . . . . .

11A-10

ENGINE ASSEMBLY . . . . . . . . . . . . .

11A-12

REMOVAL AND INSTALLATION . . . . . . . .

11A-12

CAMSHAFT AND CAMSHAFT
OIL SEAL . . . . . . . . . . . . . . . . . . . . . .

11A-17

REMOVAL AND INSTALLATION . . . . . . . .

11A-17

OIL PAN . . . . . . . . . . . . . . . . . . . . . . .

11A-20

REMOVAL AND INSTALLATION  . . . . . . . .

11A-20

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11A-22

CRANKSHAFT FRONT OIL SEAL. . .

11A-22

REMOVAL AND INSTALLATION  . . . . . . . .

11A-22

CRANKSHAFT REAR OIL SEAL. . . .

11A-24

REMOVAL AND INSTALLATION  . . . . . . . .

11A-24

CYLINDER HEAD GASKET . . . . . . . .

11A-26

REMOVAL AND INSTALLATION  . . . . . . . .

11A-26

TIMING BELT . . . . . . . . . . . . . . . . . . .

11A-31

REMOVAL AND INSTALLATION  . . . . . . . .

11A-31

TIMING BELT B  . . . . . . . . . . . . . . . . .

11A-35

REMOVAL AND INSTALLATION  . . . . . . . .

11A-35

SPECIFICATIONS  . . . . . . . . . . . . . . .

11A-38

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

11A-38

SERVICE SPECIFICATIONS  . . . . . . . . . . .

11A-39

SEALANT  . . . . . . . . . . . . . . . . . . . . . . . . . .

11A-39

GENERAL DESCRIPTION

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-3

.

G EN ER A L DESC RIPTIO N

M1111000100099

The 4G64 (2.4L) engine is an in-line four cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from
the front of the engine (timing belt side). This engine is fired in the order of the 1, 3, 4 and 2 cylinders.

EN G IN E D IA G N O SIS

M1111000700109

ITEMS

SPECIFICATIONS

Type

In-line SOHC

Number of cylinders

4

Bore mm (in)

86.5 (3.41)

Stroke mm (in)

100.0 (3.94)

Piston displacement cm

3

 (cu in)

2,351 (143.4)

Compression ratio

9.0

Firing order

1-3-4-2

Counterbalance shaft

Equipped

Valve timing

Intake valve

Opens (BTDC)

16

°

Closes (ABDC)

60

°

 <M/T>

53

°

 <A/T>

Exhaust valve

Opens (BBDC)

60

°

 <M/T>

50

°

 <A/T>

Closes (ATDC)

16

°

Lubrication

Pressure feed-full flow filtration

Oil pump type

Involute gear type

SYMPTOMS

PROBABLE CAUSE

REMEDY

Compression is too
low

Blown cylinder head gasket

Replace the gasket

Worn or damaged piston rings

Replace the rings

Worn piston or cylinder

Repair or replace the piston and/or the
cylinder block

Worn or damaged valve seat

Repair or replace the valve and/or the
seat ring

Drop in oil pressure

Engine oil level is too low

Check the engine oil level

Malfunction of oil pressure switch

Replace the oil pressure switch

Clogged oil filter

Install a new filter

Worn oil pump gears or cover

Replace the gears and/or the cover

Thin or diluted engine oil

Change the engine oil to correct viscosity

Stuck (opened) oil relief valve

Repair the relief valve

Excessive bearing clearance

Replace the bearings

Oil pressure too high

stuck (closed) oil relief valve

Repair the relief valve

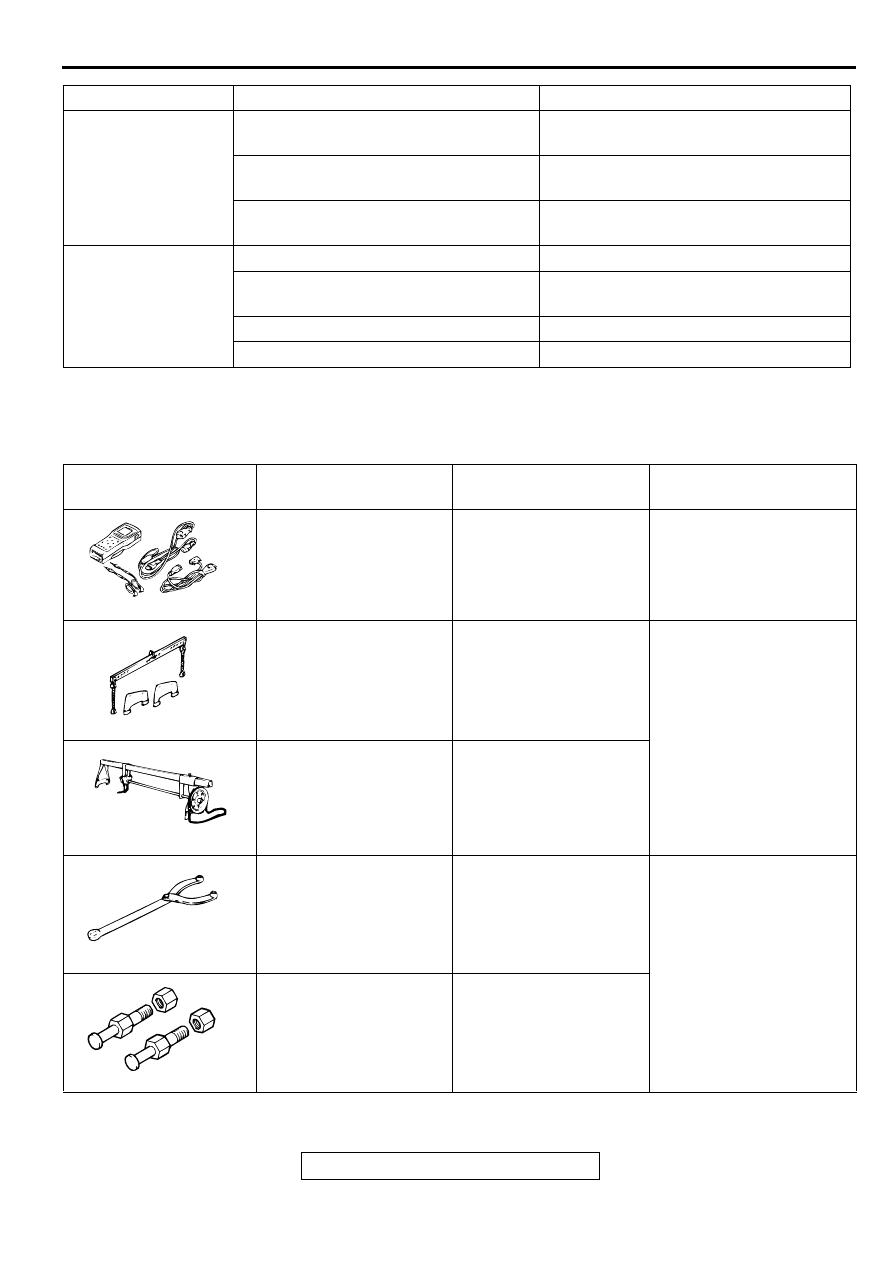

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-4

SPECIA L TO O LS

M1111000600168

Noisy valves

Malfunction of lash adjuster (including
entry of air into high pressure chamber)

Check the lash adjuster

Thin or diluted engine oil (low oil
pressure)

Change the engine oil

Worn or damaged valve stem or valve
guide

Replace the valve and/or the guide

Connecting rod noise/
main bearing noise

Insufficient oil supply

Check the engine oil level

Low oil pressure

Refer to oil pressure drop symptoms
above

Thin or diluted engine oil

Change the engine oil

Excessive bearing clearance

Replace the bearings

SYMPTOMS

PROBABLE CAUSE

REMEDY

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991502
Scan tool (MUT-II)

MB991496-OD

Ignition timing check

Idle speed check

MB991453
Engine hanger assembly

MZ203827-01

Supporting the engine
assembly during removal
and installation of the
transaxle

GENERAL SERVICE
TOOL
MZ203827
Engine lifter

MZ203827-01

MB990767
End yoke holder

MB990767-01

Holding the camshaft
sprocket when loosening
and tightening bolt

MD998719
Crankshaft pulley holder
pin

MT308239

B991502

MB991453

MZ203827

MB990767

MD998719
