TOWING AND HOISTING

TSB Revision

GENERAL <BODY AND CHASSIS>

00-25

LIFTING，

，

，

， JACKINGSUPPORT LOCATION

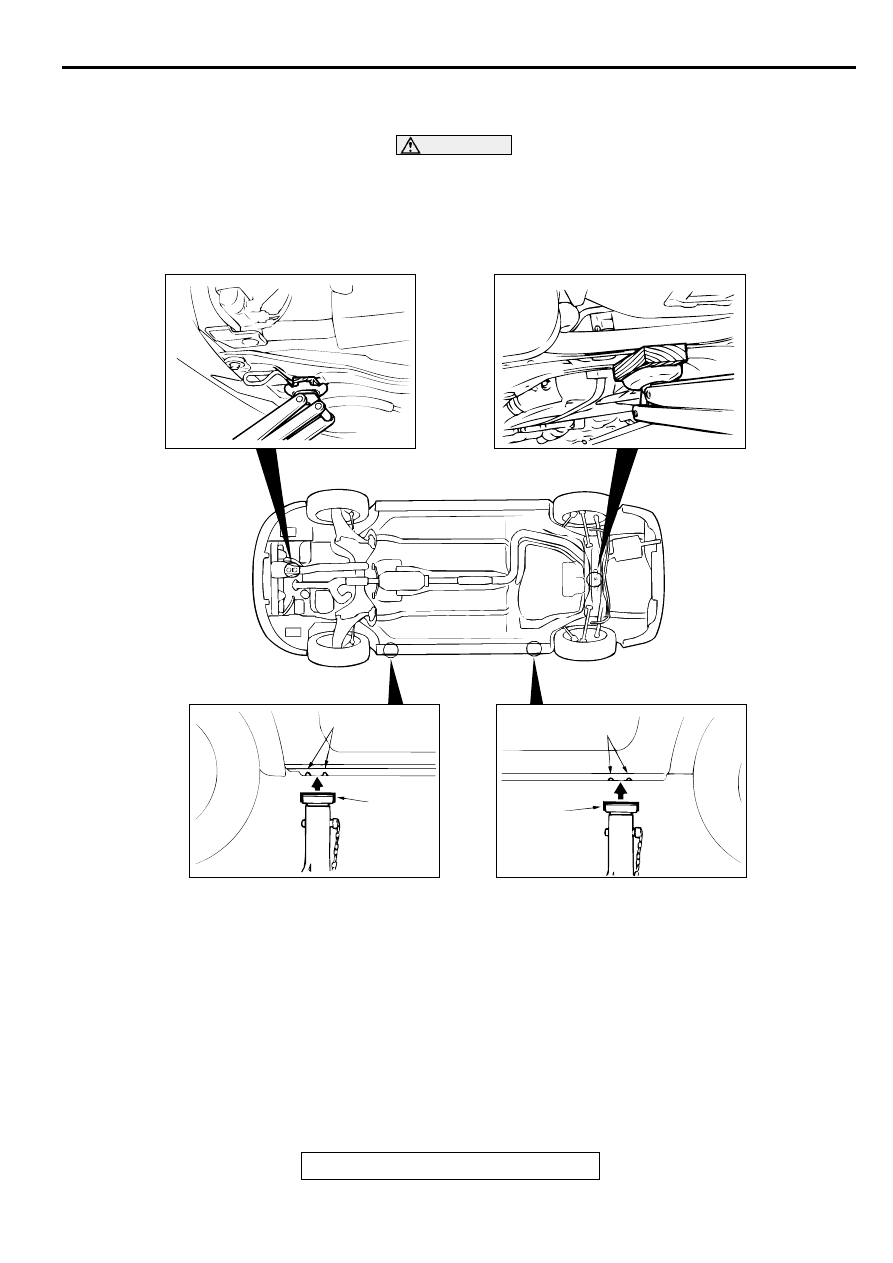

FLOOR JACK

CAUTION

•

Never support any point other than the specified one,
or it will be deformed.

•

For lifting, put rubber or similar material between the
side sill and rigid rack, or the side sill area will be
damaged.

POST TYPE
Special care should be taken when raising the vehicle on a
frame contact type hoist. The hoist must be equipped with the
proper adapters in order to support the vehicle at the proper
locations.

AC000072 AB

RIGID RACK

NOTCH

NOTCH

RUBBER

RUBBER

TOWING AND HOISTING

TSB Revision

GENERAL <BODY AND CHASSIS>

00-26

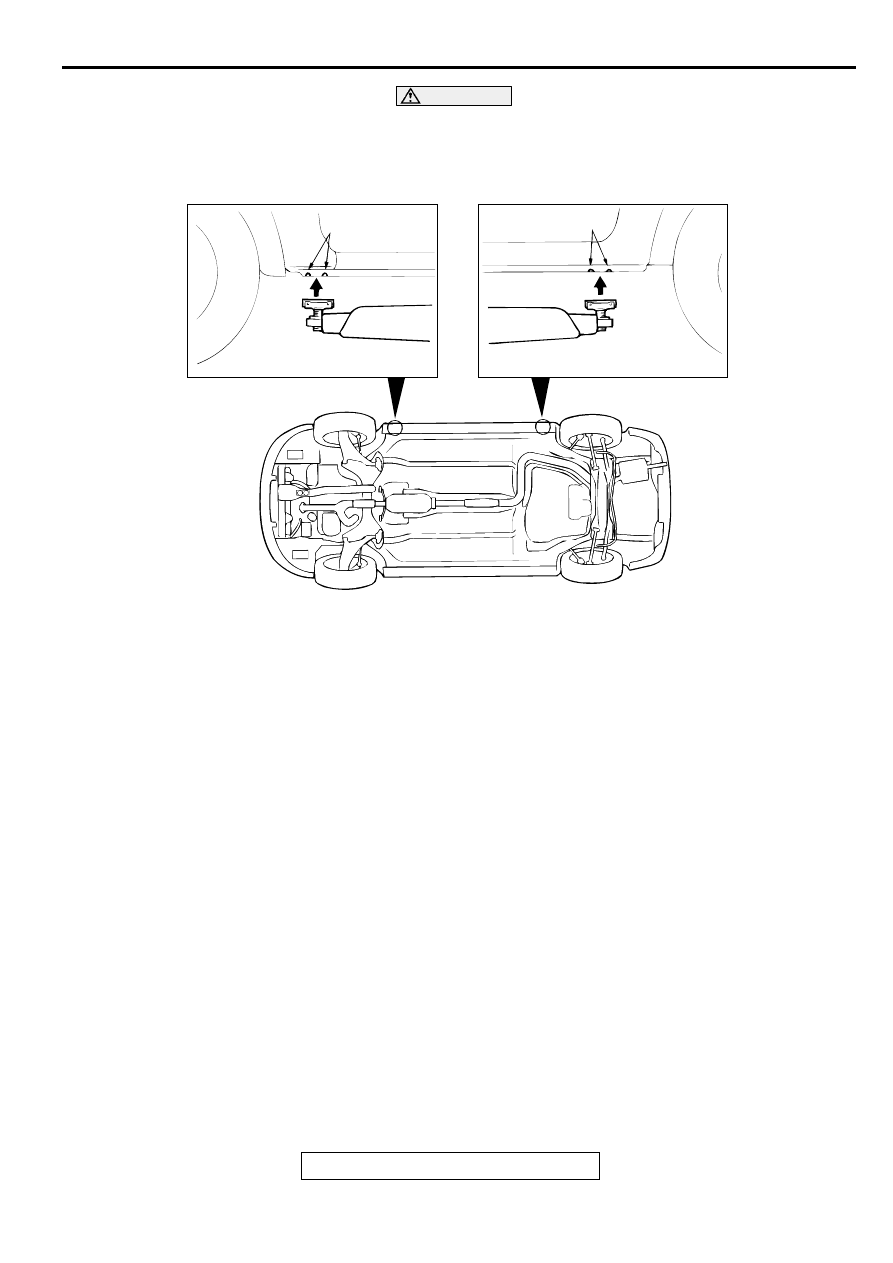

CAUTION

When service procedures require removing rear
suspension, fuel tank and spare tire, place additional
weight on rear end of vehicle or anchor vehicle to hoist to
prevent tipping of center of gravity changes.

AC000073

NOTCH

NOTCH

AB

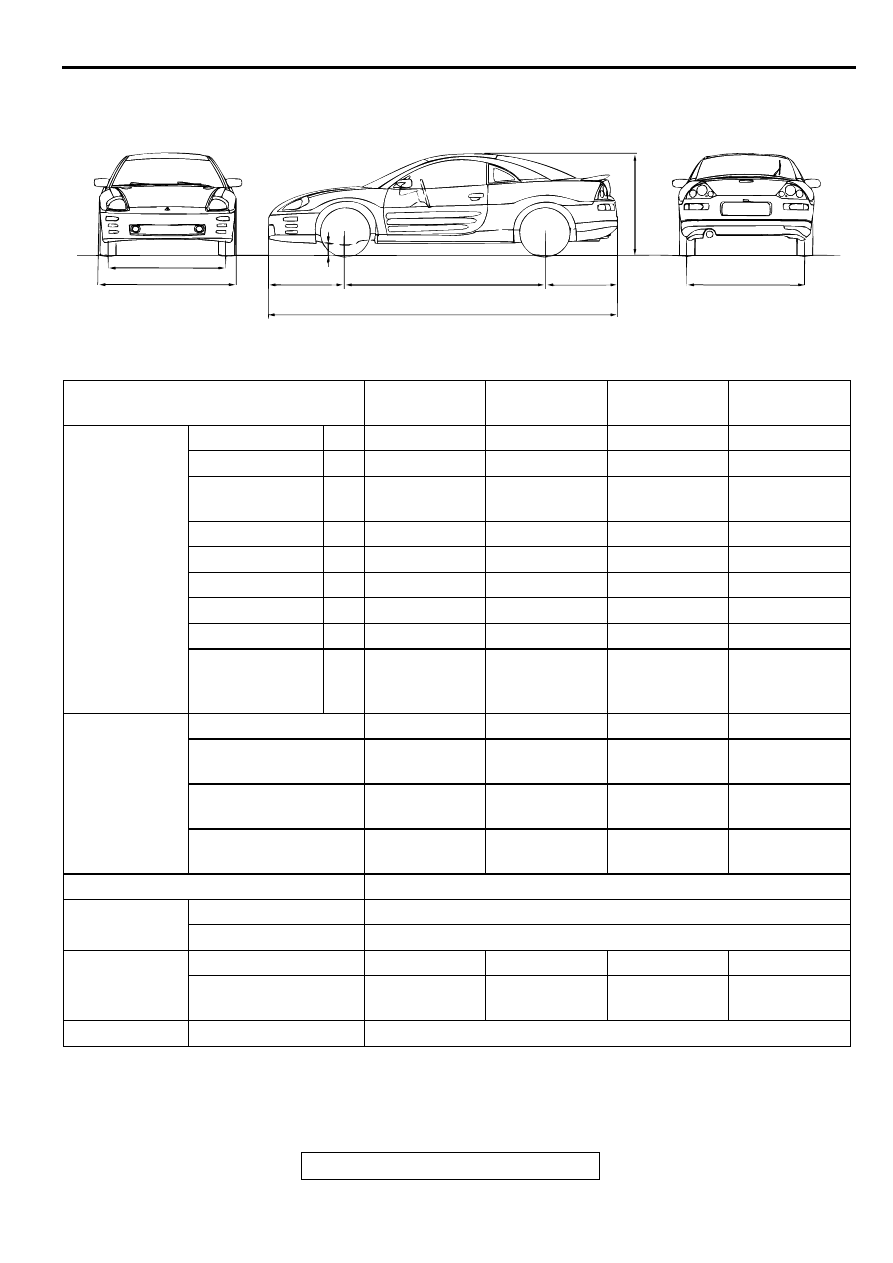

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-27

G EN ERA L DATA  A N D  SPEC IFIC ATIO NS

M1001000900097

<ECLIPSE >

GENERAL SPECIFICATIONS (Model with 2.4L Engine)

GENERAL SPECIFICATIONS (Model with 3.0L Engine)

AC002714

1

2

3

4

5

6

7

8

9

AB

ITEMS

RS
MNJEL4M

RS
MRJEL4M

GS
MNHEL4M

RS
MRHEL4M

Vehicle
dimension mm
(in)

Overall length

1

4,455 (175.4)

4,455 (175.4)

4,455 (175.4)

4,455 (175.4)

Overall width

2

1,750 (68.9)

1,750 (68.9)

1,750 (68.9)

1,750 (68.9)

Overall height
(unladen)

3

1,310 (51.6)

1,310 (51.6)

1,310 (51.6)

1,310 (51.6)

Wheelbase

4

2,560 (100.8)

2,560 (100.8)

2,560 (100.8)

2,560 (100.8)

Tread-front

5

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

Tread-rear

6

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

Overhang-front

7

975 (38.4)

975 (38.4)

975 (38.4)

975 (38.4)

Overhang-rear

8920 (36.2)

920 (36.2)

920 (36.2)

920 (36.2)

Minimum running
ground
clearance

9

148 (5.8)

148 (5.8)

148 (5.8)

148 (5.8)

Vehicle weight
kg (lb)

Curb weight

1,295 (2,855)

1,325 (2,922)

1,335 (2,944)

1,365 (3,010)

Gross vehicle weight
rating

1,750 (3,859)

1,750 (3,859)

1,750 (3,859)

1,750 (3,859)

Gross axle weight
rating-front

1,005 (2,216)

1,005 (2,216)

1,065 (2,348)

1,065 (2,348)

Gross axle weight
rating-rear

795 (1,753)

795 (1,753)

795 (1,753)

795 (1,753)

Seating capacity

4

Engine

Model No.

4G64

Piston displacement

2.4L

Transaxle

Model No.

F5M42

F4A42

F5M42

F4A42

Type

5-speed
manual

4-speed
automatic

5-speed
manual

4-speed
automatic

Fuel system

Fuel supply system

Electronic controlled multiport fuel injection

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-28

ITEMS

GT
MNXEL4M

GT
MRXEL4M

GT
MNGEL4M

GT
MRGEL4M

Vehicle
dimension mm
(in)

Overall length

1

4,455 (175.4)

4,455 (175.4)

4,455 (175.4)

4,455 (175.4)

Overall width

2

1,750 (68.9)

1,750 (68.9)

1,750 (68.9)

1,750 (68.9)

Overall height
(unladen)

3

1,310 (51.6)

1,310 (51.6)

1,310 (51.6)

1,310 (51.6)

Wheelbase

4

2,560 (100.8)

2,560 (100.8)

2,560 (100.8)

2,560 (100.8)

Tread-front

5

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

Tread-rear

6

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

1,510 (59.4)

Overhang-front

7

975 (38.4)

975 (38.4)

975 (38.4)

975 (38.4)

Overhang-rear

8920 (36.2)

920 (36.2)

920 (36.2)

920 (36.2)

Minimum running
ground
clearance

9

150 (5.9)

150 (5.9)

150 (5.9)

150 (5.9)

Vehicle weight
kg (lb)

Curb weight

1,415 (3,120)

1,445 (3,186)

1,460 (3,219)

1,460 (3,219)

Gross vehicle weight
rating

1,810 (3,991)

1,810 (3,991)

1,810 (3,991)

1,810 (3,991)

Gross axle weight
rating-front

1,065 (2,345)

1,065 (2,345)

1,065 (2,345)

1,065 (2,345)

Gross axle weight
rating-rear

795 (1,753)

795 (1,753)

795 (1,753)

795 (1,753)

Seating capacity

4

Engine

Model No.

6G72

Piston displacement

3.0L

Transaxle

Model No.

F5M51

F4A52

F5M51

F4A51

Type

5-speed
manual

4-speed
automatic

5-speed
manual

4-speed
automatic

Fuel system

Fuel supply system

Electronic controlled multiport fuel injection
