Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 5





VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-17

ECLIPSE SPYDER

VEHICLE IDENTIFICATION CODE PLATE

M1001005400105

The vehicle information code plate is riveted onto the cowl top
outer panel in the engine compartment.
The plate shows model code, engine model, transmission
model and body color code.

For monotone color vehicles, the body color code shall be
indicated.

VEHICLE SAFETY CERTIFICATION LABEL

The vehicle safety certification label is attached to the face of
the left door sill.
This label indicates the month and year of manufacture, Gross
Vehicle Weight Rating (GVWR), front and rear Gross Axle
Weight Rating (GAWR), and Vehicle Identification Number
(VIN).

VIN (EXCEPT SEQUENCE
NUMBER)

BRAND

ENGINE
DISPLACEMENT

MODEL CODE

4A3AE45G_1E

MITSUBISHI ECLIPSE
SPYDER

2.4L

D52ABNHEL4M

D52ABRHEL4M

4A3AE85H_1E

3.0L

D53ABNXEL4M

D53ABRXEL4M

NO. ITEMS

CONTENTS

1

MODEL

D53AMRG
EL4M

D53A: Vehicle model

MRGEL4M; Model series

2

ENGINE

6G72

Engine model

3

EXT

W69A

Exterior code

4

TRANS

F4A51

F4A51:Transaxle model

5

COLOR

W69

W69: Body color code

6

TRIM

71H

71H: Interior code

7

OPT

Z31

Z31: Equipment code

AC000053

1

2

3

7

4

5

6

AB

AC000054

VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-18

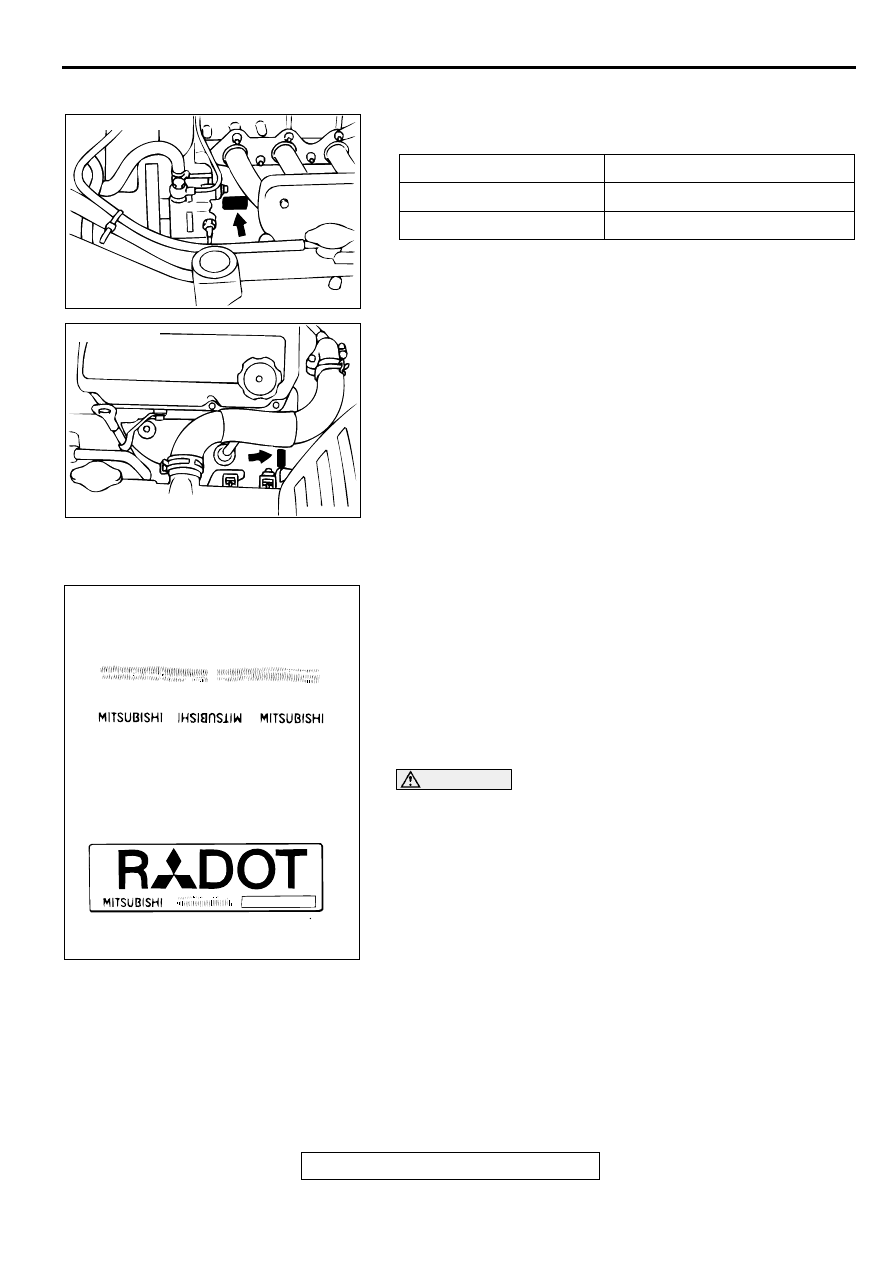

ENGINE MODEL STAMPING

The engine model is stamped on the cylinder block.
These engine model numbers are as shown as follows.

The engine serial number is stamped near the engine model
number.

THEFT PROTECTION

In order to protect against theft, a Vehicle Identification Number
(VIN) is attached as a plate or label to the following major parts
of the engine and transmission, as well as main outer panels:
Engine cylinder block, Transmission housing. Fender, Doors,
Liftgate, Quarter panel, Hood, Bumpers.
In addition, a theft-protection label is attached to replacement
parts for the body outer panel main components, and the same
data are stamped into replacement parts for the engine and the
transmission.

CAUTION

Cautions regarding panel repairs:

1. When repainting original parts, do so after first

masking the theft-protection label. After painting, be
sure to peel off the masking tape.

2. The theft-protection label for replacement parts is

covered by masking tape, so such parts can be painted
as is. The masking tape should be removed after
painting is finished.

3. The theft-protection label should not be removed from

original parts or replacement parts.

ENGINE MODEL

ENGINE DISPLACEMENT

4G64

2.4L

6G72

3.0L

AC000055AB

2.4L ENGINE

AC000056

3.0L ENGINE

AB

AC000057

THEFT PROTECTION LABEL
FOR ORIGINAL PARTS

FOR REPLACEMENT PARTS

AB

VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-19

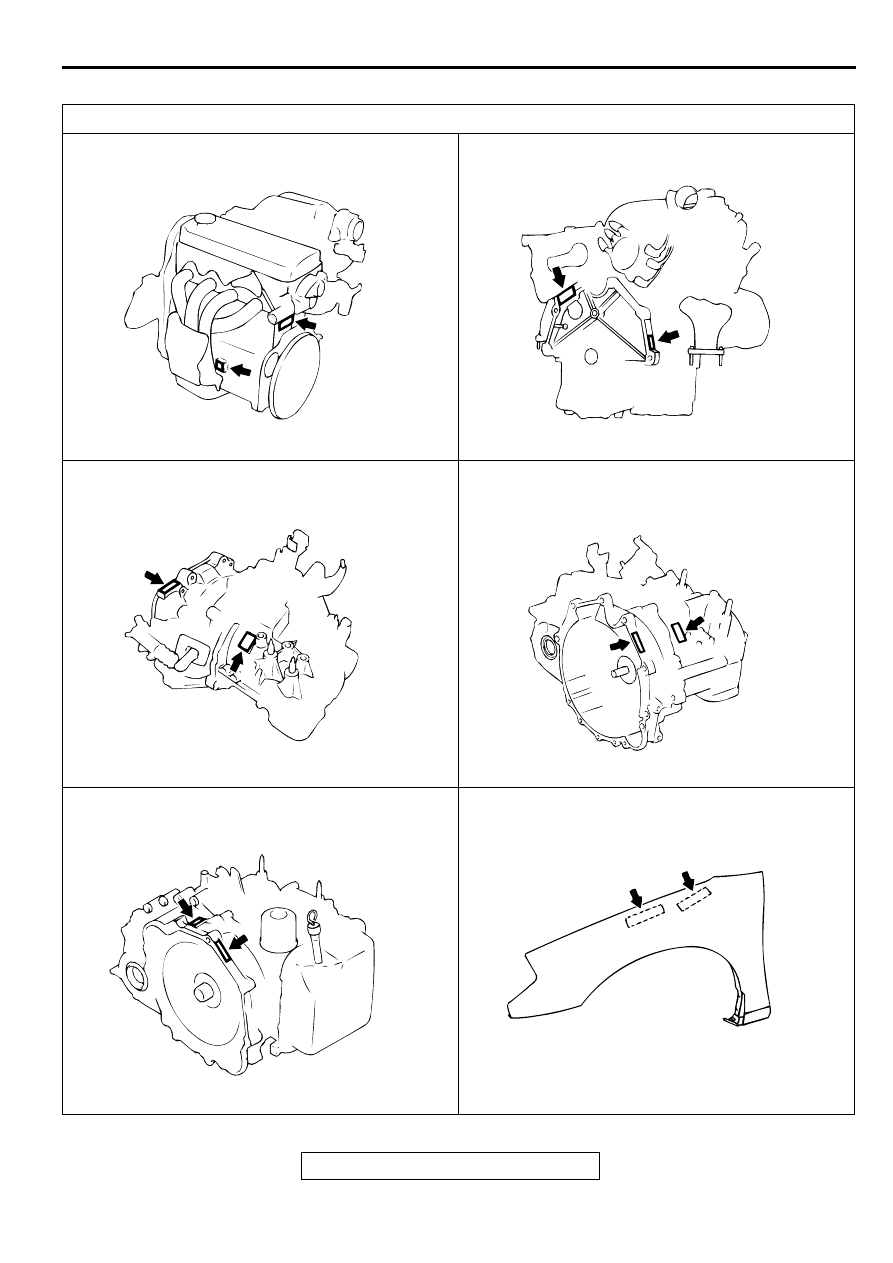

LOCATIONS

TARGET AREA (A: FOR ORIGINAL EQUIPMENT PARTS, B: FOR REPLACEMENT PARTS)

AC000058

ENGINE
<4G64>

AB

A

B

AC000061

ENGINE
<6G72>

AB

B

A

AC000059AB

MANUAL TRANSAXLE
<F5M42>

A

B

AC000062AB

MANUAL TRANSAXLE
<F5M51>

A

B

AC000060

AUTOMATIC TRANSAXLE

AB

A

B

AC000063

FENDER

B

A

AB

THE ILLUSTRATION INDICATOR LEFT OUER SIDE. RIGHT

SIDE IS SYMMETRICALLY OPPOSITE.

VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-20

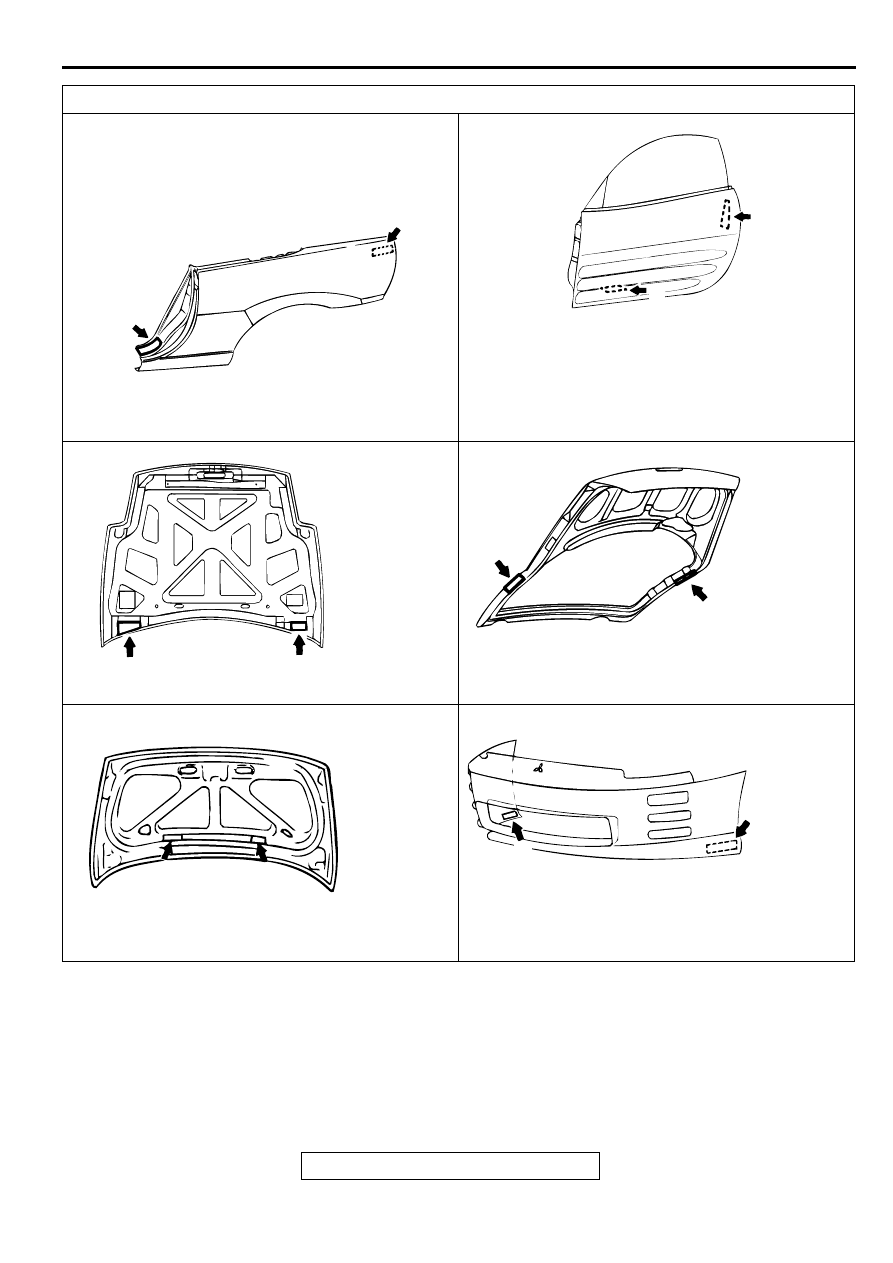

TARGET AREA (A: FOR ORIGINAL EQUIPMENT PARTS, B: FOR REPLACEMENT PARTS)

AC000064

QUARTER PANEL OUTER

A

B

AB

THE ILLUSTRATION INDICATOR LEFT OUER SIDE. RIGHT

SIDE IS SYMMETRICALLY OPPOSITE.

AC000067

DOOR

THE ILLUSTRATION INDICATOR LEFT OUER SIDE. RIGHT

SIDE IS SYMMETRICALLY OPPOSITE.

A

B

AC000065AB

HOOD

A

B

AC000068

LIFTGATE <ECLIPSE>

A

B

AB

AC004278AB

A

B

TRUNK LID <ECLIPSE SPYDER>

AC000066AB

A

B

FRONT BUMPER
