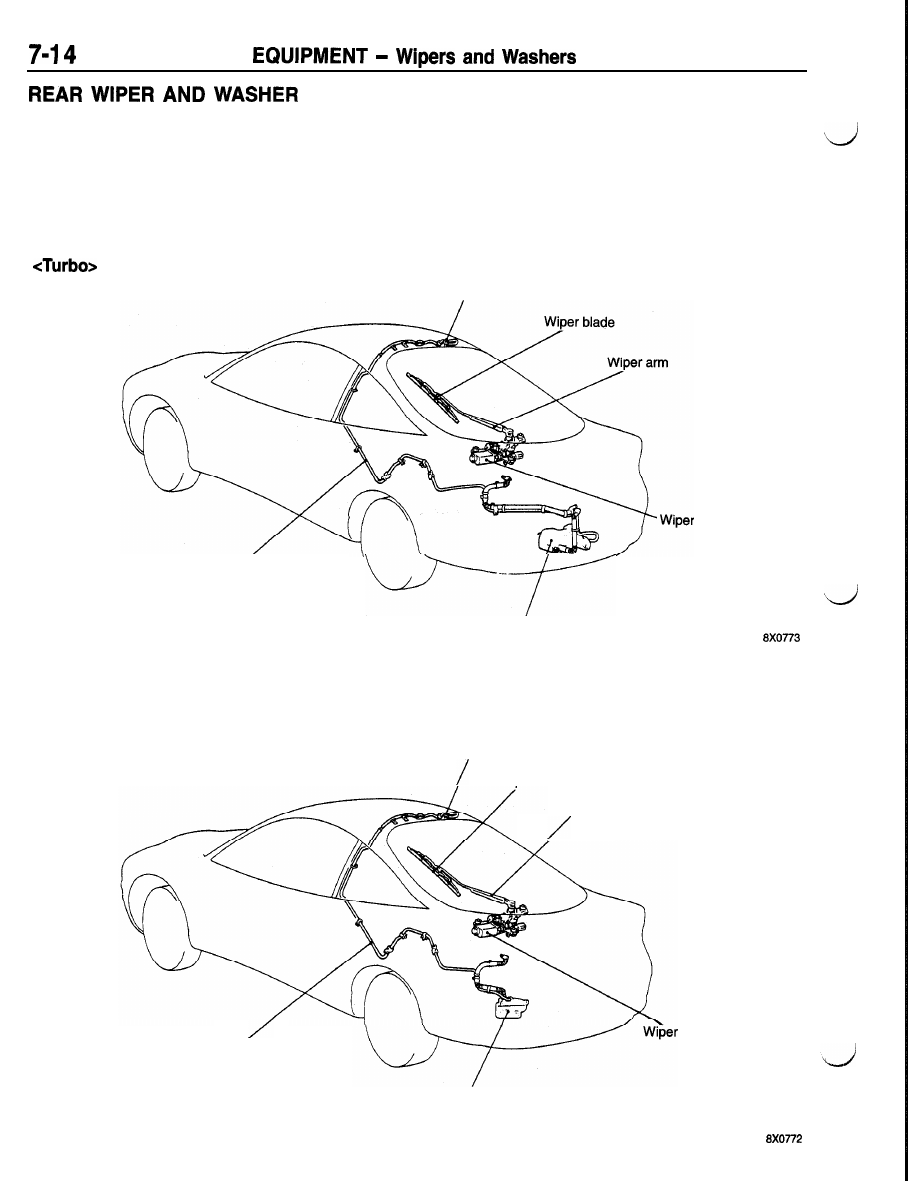

The rear wiper has an intermittent wiper function
for better rear visibility in the event of a light rain.

compartment. On turbo vehicles, the windshield
washer tank is also used as a rear washer tank.

It offers the following features.

l

The washer is one-nozzle, two-jet type.

l

On non-turbo vehicles, the rear washer tank

is installed in the L.H. side of the luggage

Washer nozzle

Wash& hose

Washer tank

motor

Al

<Non-turbo>

Washer nozzle

Wiper blade

Wiper arm

Washer hose

motor

Al

Washer tank

E Q U I P M E N T

- Radio  And Tape  Player, CD Player, CD Auto Changer,  Speaker,  Antenna

7-15

RADIO  AND  TAPE   PLAYER,   CD
SPEAKER,   ANTENNA

 The following radio, cassette tape player, CD player,

CD auto changer, speakers and antenna are avail-
able:

Radio and Tape Player, CD Player, CD Auto Changer

l

AM/FM electronic tuning radio

l

AM/FM electronic tuning radio with tape player

l

CD player

l

CD auto changer

PLAYER,   CD  AUTO  CHANGER,

NT??TlOOAA

Speaker

l

4-speaker  <Door speaker: 13 cm (5.1 in.)  -

single cone, Rear speaker: 16 cm (6.3 in.)  -
double cone>

l

6-speaker <Front  speaker: 8 cm (3.1 in.) -single
cone, Door speaker: 13 cm (5.1 in.)  - single
cone, Rear speaker: 16 cm (6.3 in.)  - double
cone>

l

6-speaker <Front  speaker: 8 cm (3.1 in.) -single
cone, Door speaker: 16 cm (6.3 in.)  - double
cone, Rear speaker: 6 in. x 9 in. - single cone>

l

8-speaker  <Front speaker: 2.5 in. -single cone,

Door speaker: 6.5 in. -single cone, Rear speak-
er: 6 in. x 9 in. + 2.5 in. - coaxial 2 way>

Antenna

l

Whip antenna

l

Glass antenna

Whip antenna

Door speaker (LH)

Radio and tape

Rear speakdr (LH)

Al

7-16

EQUIPMENT

 - Radio And Tape Player, CD Player, CD Auto Changer, Speaker, Antenna

<AM/FM Electronic Tuning Radio>

<AM/FM Electronic Tuning Radio and
Tape Player>

16x0940

<AM/FM Electronic Tuning Radio and
Tape Players

<AM/FM Electronic Tuning Radio and
Tape Player with Equalizer>

16X0949

16X0921

EQUIPMENT  - ETACS

7-17

ETACS

NrmWM

The ETACS (Electronic Time and Alarm Control System) has

been adopted for centralized control of various timer and alarm

functions.
The ETACS control unit has an input check function which

makes it possible to easily check whether the circuit from the
input switch to the microprocessor in the control unit is function-
ing properly or not.

FUNCTIONS AND SUMMARY OF OPERATION

Item

Light reminder alarm

function

Function and Summary of Operation

When the ignition key is removed
from the ignition switch and the

Lighting switch

driver’s door is opened while the



lighting switch

is ON (PARKING or

HEAD), the buzzer will sound

Ignition switch

tinuously to remind the driver that



the lights are ON.

Driver’s door

switch

ON (open)

OFF (closed)

Buzzer output

O N





not sound.) OFF

16X0881

Ignition key reminder

timer function

To prevent accidental door locking
with the key still in the ignition, the
following will take place. If the driv-

er’s door is opened, and the driver
or passenger lock knob is operated,
the system will automatically re-
lease the lock.
NOTE
This function has priority over the

central door lock system function.

reminder

switch







Door lock LOCK















5

sec.

5 sec.

5 sec.

Ignition key reminder

alarm function

When the driver’s door is opened
without removing the ignition key

(OFF or ACC position), the buzzer

will sound intermittently to remind

that the ignition key has not been

removed.

ignition switch



 removed)

(Key inserted)

O F F

Driver’s door

(Open) ON

switch

(Closed) OFF

(Buzzer sounds.)

O N

Buzzer

(Buzzer does

not sound.) OFF
