FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-7

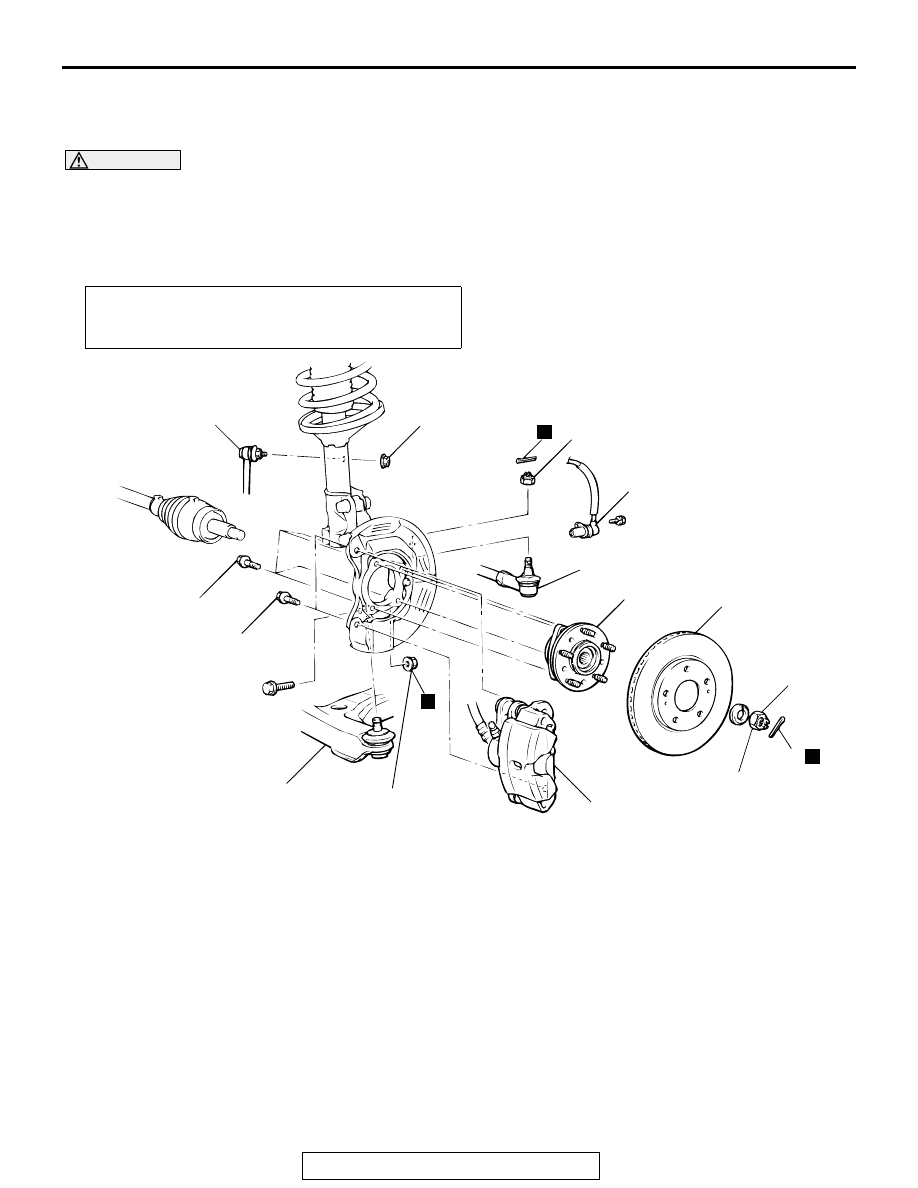

FRONT AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M1261001700397

CAUTION

• For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so

as not to damage it by striking against other parts.

• The front hub assembly should not be disassembled. When removing the front hub assembly, the

wheel bearing inner race may be left at the spindle side. In this case, always replace the front hub
assembly, otherwise the hub will damage the oil seal, causing oil leaks or excessive play.

Required Special Tools:

• MB990326: Preload Socket

• MB990767: End Yoke Holder

• MB990998: Front Hub Remover and Installer

• MB991897:Ball Joint Remover

Post-installation Operation
Press Dust Cover with a Finger to Check for Crack or
Damage in Ball Joint Dust Cover.

AC001149

N

7

44 ± 10 N·m

33 ± 7 ft-lb

N

N

29 ± 4 N·m
21 ± 3 ft-lb

1

6

9

3

5

4

226 ± 29 N·m
167 ± 21 ft-lb

2

108 ± 10 N·m
80 ± 7 ft-lb

8

88 ± 10 N·m
65 ± 7 ft-lb

100 ± 10 N·m
74 ± 7 ft-lb

AD





REMOVAL

STEPS





1.  FRONT SPEED SENSOR

<VEHICLES WITH ABS>

<<A>>

2. CALIPER

ASSEMBLY





3. BRAKE

DISC





4. COTTER

PIN

<<B>> >>A<<

5. DRIVESHAFT

NUT

<<C>>

6.  TIE ROD END CONNECTION





7.  STABILIZER LINK CONNECTION

<<C>>

8. LOWER

ARM

ASSEMBLY

CONNECTION





9.  FRONT HUB ASSEMBLY







REMOVAL STEPS  (Continued)

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-8

REMOVAL SERVICE POINTS

.

<<A>> CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with wire, etc.

.

<<B>> DRIVESHAFT NUT REMOVAL

CAUTION

Do not apply pressure to wheel bearing by the vehicle
weight to avoid possible damage when driveshaft nut is
loosened.
Use special tool MB990787 to fix the hub and remove the
driveshaft nut.

.

<<C>> TIE ROD END/LOWER ARM ASSEMBLY
DISCONNECTION

CAUTION

• Do not remove the nut from ball joint. Loosen it and use

special tool MB991897 to avoid possible damage to ball
joint threads.

• Hang special tool MB991897 with cord to prevent them

from falling.

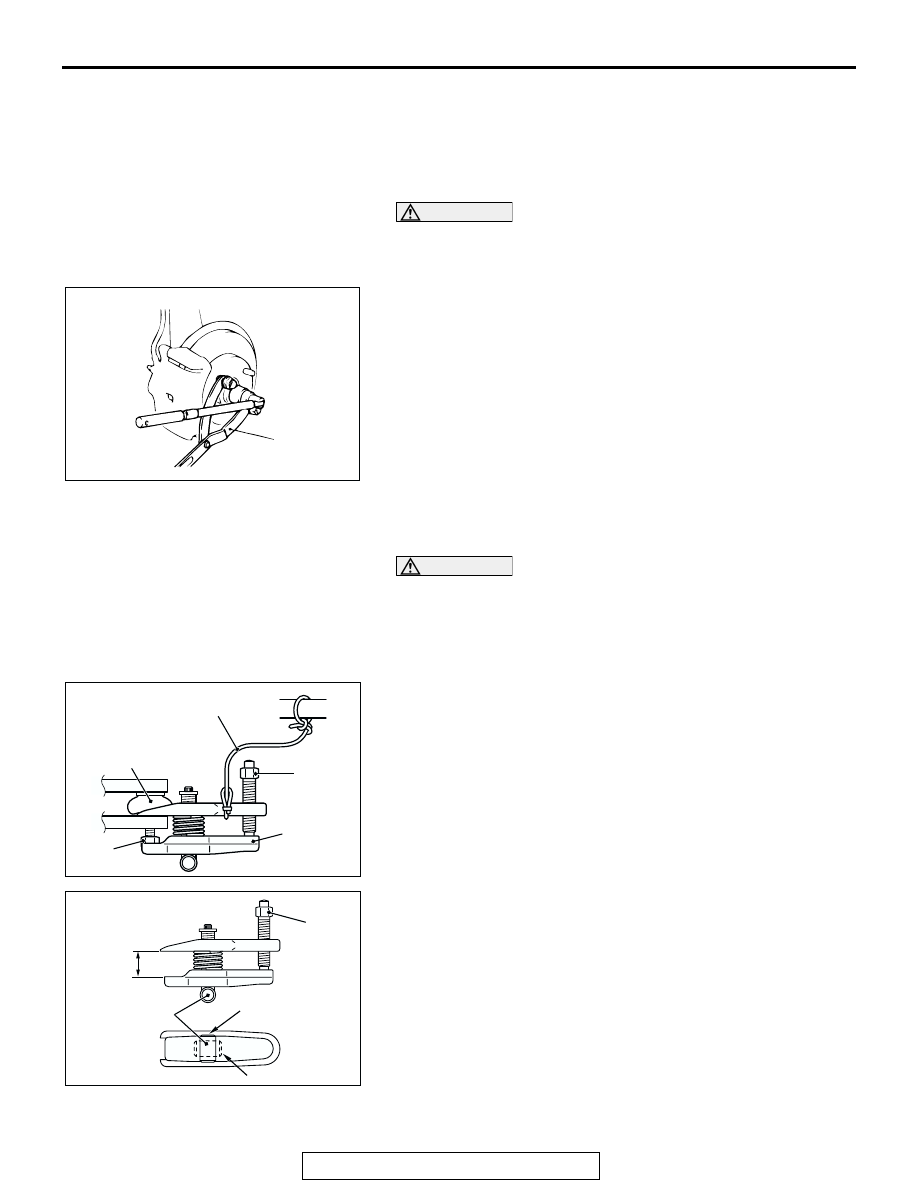

1. Install the special tool MB991897 as shown in the figure.

2. Turn the bolt and knob as necessary to make the jaws of

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the tie rod end.

AC001150AB

MB990767

AC106820 AB

CORD

BOLT

MB991897

NUT

BALL JOINT

AC106821

KNOB

PARALLEL

BOLT

GOOD

BAD

AB

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-9

INSTALLATION SERVICE POINT

.

>>A<< DRIVESHAFT NUT INSTALLATION

CAUTION

Do not apply pressure to wheel bearing by the vehicle
weight to avoid possible damage before securely tighten-
ing the driveshaft nut.
1. Face the flat side of a washer to a driveshaft nut to install
2. Use special tool MB990767 to fix the hub and tighten the

driveshaft nut.

3. If the position of the cotter pin holes does not match, tighten

the nut up to 255 N

⋅m (188 ft-lb) maximum.

4. Install the cotter pin in the first matching holes and bend it

securely.

INSPECTION

M1261001800167

.

WHEEL BEARING BREAKAWAY TORQUE CHECK

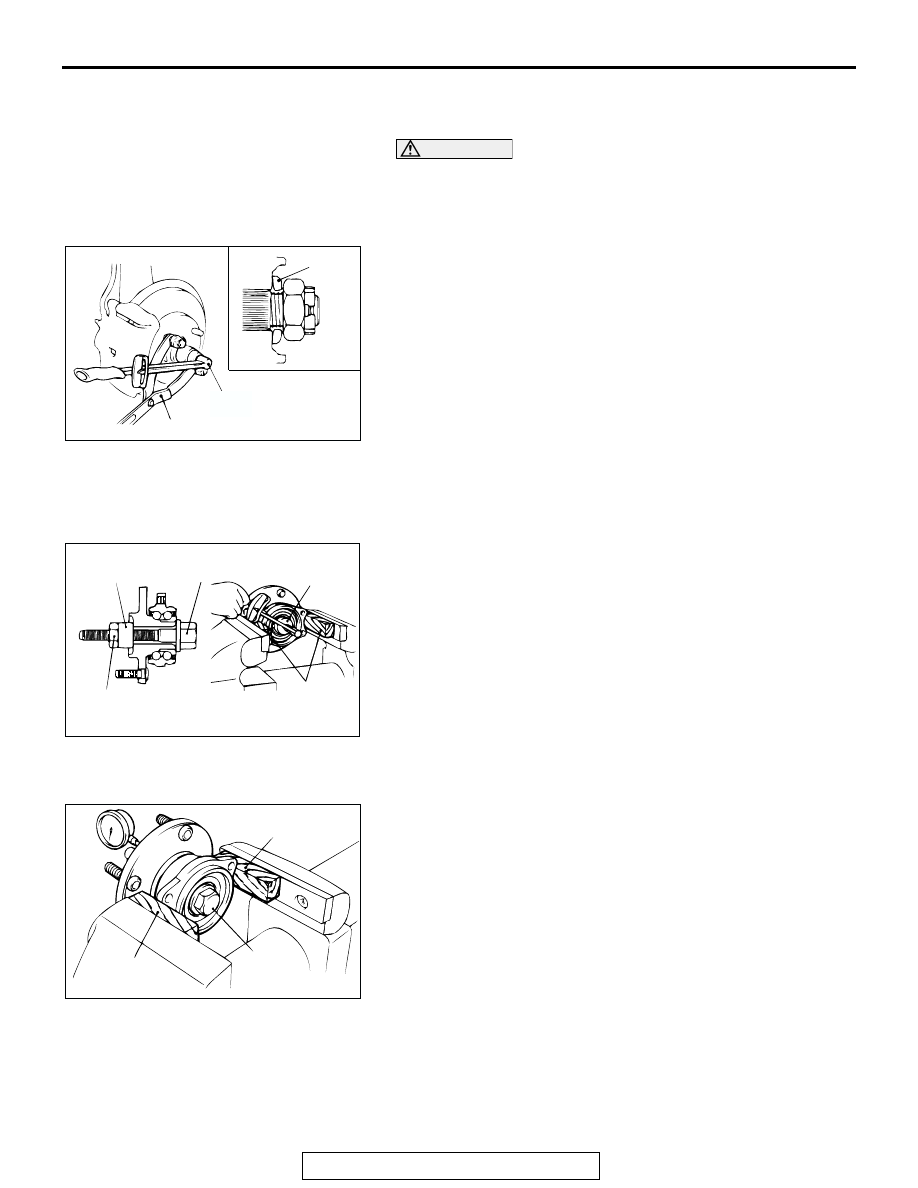

1. Install the special tools MB990998 and MB990326 to the

front hub assembly and tighten the nut to the specified
torque.

Tightening torque: 226

± 29 N⋅m (167 ± 21 ft-lb)

2. Measure the wheel bearing breakaway torque with special

tool MB990326.

Limit: 1.0 N

⋅m (9 in-lb) or less

3. Wheel bearing breakaway torque must be under the limit

value and there should be no roughness when rotating the
hub.

.

WHEEL BEARING END PLAY CHECK
1. Install the special tool MB990998 to the front hub assembly

and tighten the nut to the specified torque.

Tightening torque: 226

± 29 N⋅m (167 ± 21 ft-lb)

2. Measure the play in the hub axial direction.

Limit: 0.05 mm (0.002 inch)

3. If the play exceeds the limit, replace the front hub assembly.

AC001151

WASHER

MB990767

226 ± 29 N·m
167 ± 21 ft-lb

AB

AC001152

MB990998

BOLT

MB990326

WOOD
BLOCK

226 ± 29 N·m
167 ± 21 ft-lb

AB

AC001153

WOOD
BLOCK

WOOD
BLOCK

BOLT

AB

KNUCKLE

TSB Revision

FRONT AXLE

26-10

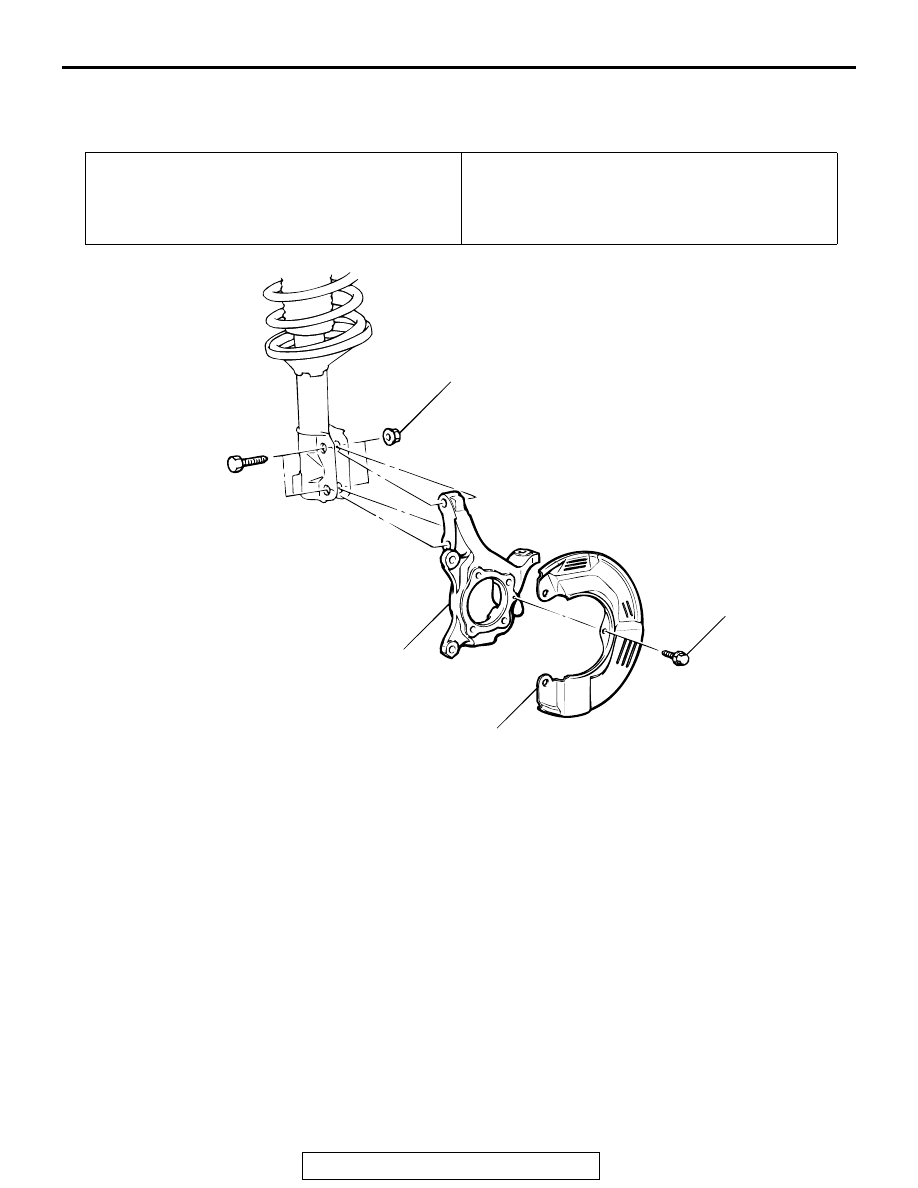

KNUCKLE

REMOVAL AND INSTALLATION

M1261002400162

INSPECTION

M1261002500158

Check the knuckle surface for galling and cracks.

Pre-removal Operation
• Front Hub Assembly Removal (Refer to

P.26-7

.)

Post-installation Operation
• Front Hub Assembly Installation (Refer to

P.26-7

.)

• Wheel Alignment Check and Adjustment (Refer to

GROUP 33A, On-vehicle Service

− Front Wheel Align-

ment Check and Adjustment

P.33A-6

.)

AC001154

300 ± 24 N·m
221 ± 18 ft-lb

8.9 ± 1.9 N·m
78 ± 17 in-lb

2

1

AB

REMOVAL STEPS

1.

DUST SHIELD

2.

KNUCKLE
