OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-37

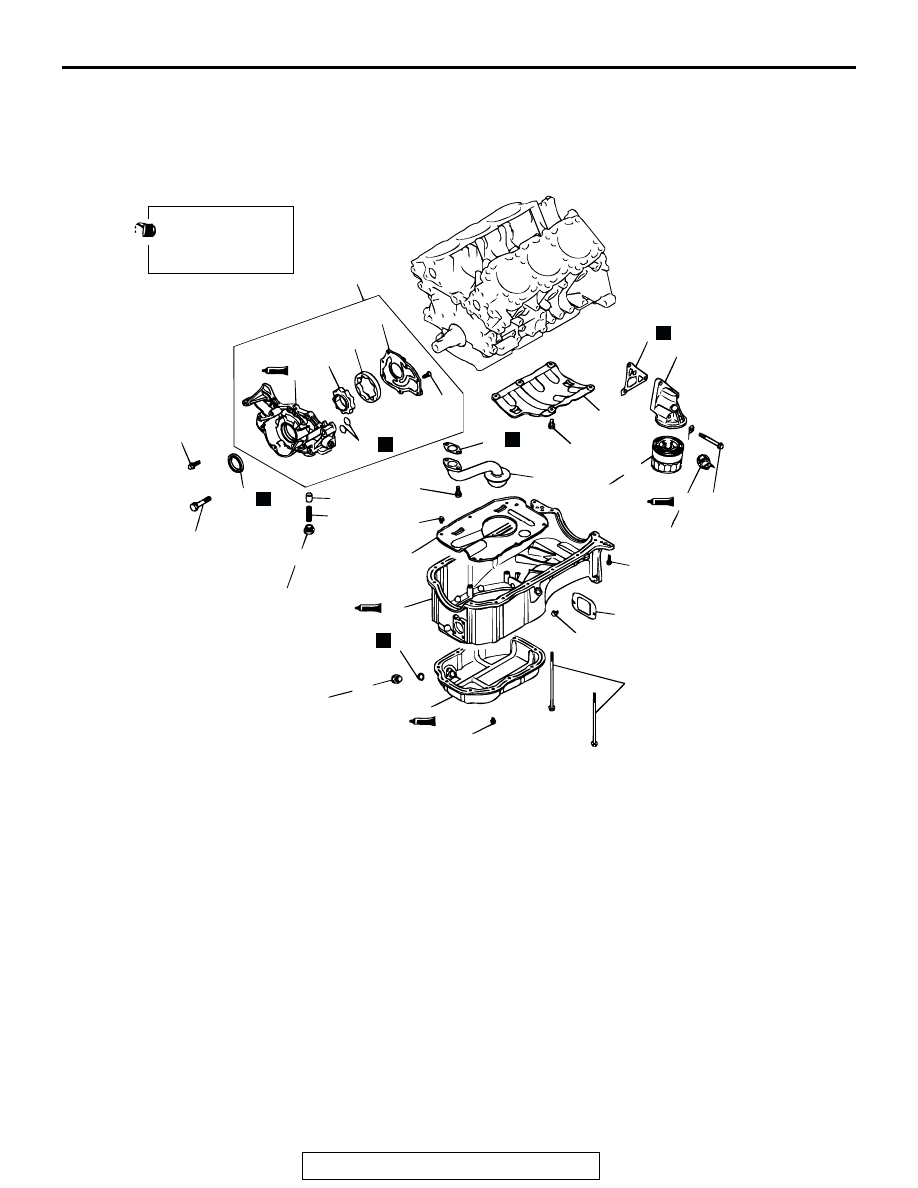

OIL PAN AND OIL PUMP

REMOVAL AND INSTALLATION

M1113008100033

Required Special Tool:

• MD998717: Crankshaft Front Oil Seal Installer

AKX00682

10 ± 2 N·m
87 ± 17 in-lb

14 ± 1 N·m
122 ± 9 in-lb
(M8 BOLT)

8.8 ± 2 N·m
78 ± 17 in-lb

19 ± 3 N·m
14 ± 2 ft-lb

14 ± 2 N·m
122 ± 17 in-lb

24 ± 3 N·m
17 ± 2 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

10 ± 2 N·m
87 ±17 in-lb

41 ± 8 N·m
30 ± 6 ft-lb
(M10 BOLT)

5.9 ± 1 N·m
52 ± 9 in-lb

44 ± 5 N·m
33 ± 4 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

5.9 ± 1 N·m
52 ± 9 in-lb

39 ± 5 N·m
29 ± 4 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

APPLY ENGINE OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

REMOVAL STEPS

>>H<<

1. OIL PRESSURE SWITCH

>>G<<

2. OIL FILTER
3. OIL FILTER BRACKET
4. OIL FILTER BRACKET GASKET
5. DRAIN PLUG

>>F<<

6. DRAIN PLUG GASKET

<<A>> >>E<<

7. OIL PAN, LOWER
8. COVER

<<B>> >>D<<

9. OIL PAN, UPPER
10. BAFFLE PLATE
11. OIL SCREEN
12. OIL SCREEN GASKET

13. BAFFLE PLATE
14. PLUG
15. RELIEF SPRING
16. RELIEF PLUNGER

>>C<<

17. CRANKSHAFT FRONT OIL SEAL

>>B<<

18. OIL PUMP CASE ASSEMBLY
19. O-RING
20. OIL PUMP COVER

<<C>> >>A<<

21. OIL PUMP OUTER ROTOR

<<C>> >>A<<

22. OIL PUMP INNER ROTOR
23. OIL PUMP CASE

REMOVAL STEPS (Continued)

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-38

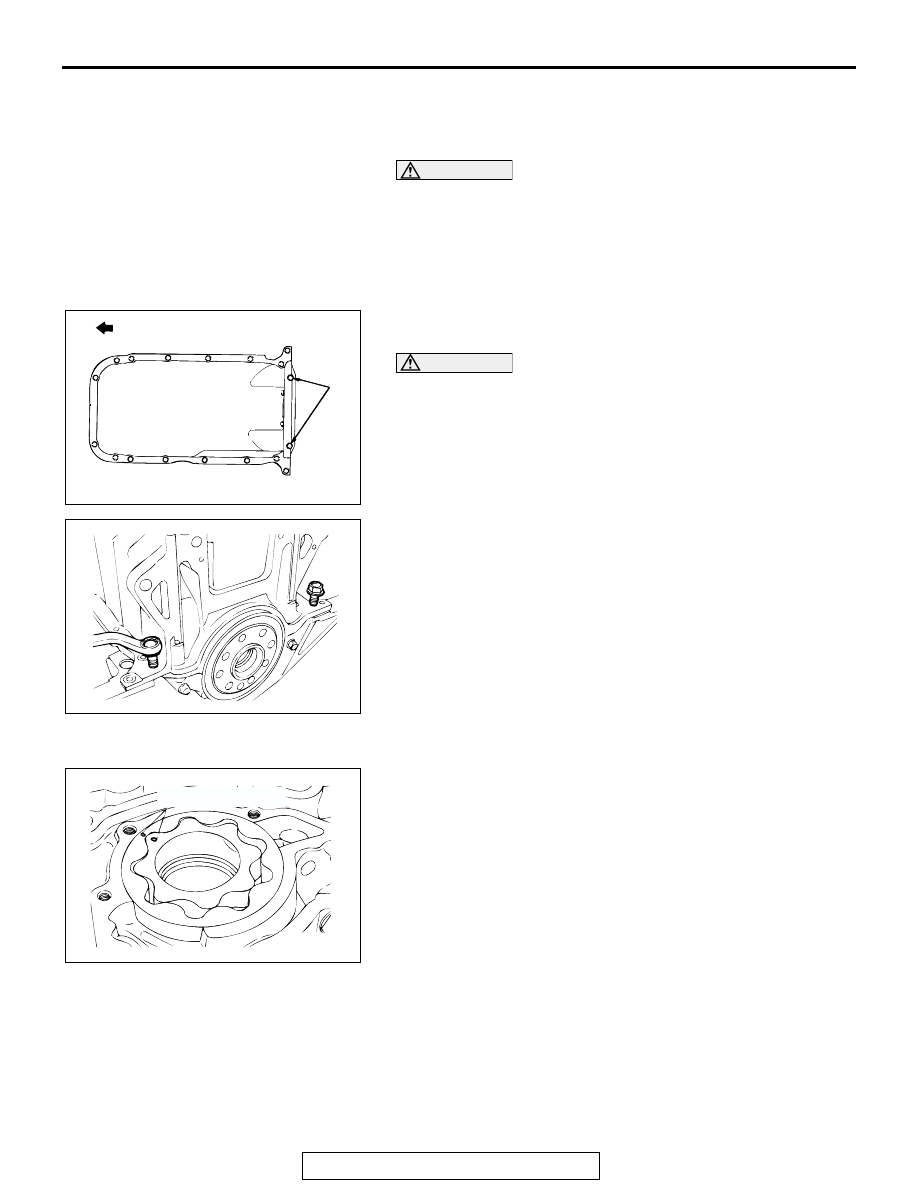

REMOVAL SERVICE POINT

<<A>> OIL PAN, LOWER REMOVAL
1. Remove the lower oil pan mounting bolts.

CAUTION

Do not use a scraper or special tool to remove the oil pan.
2. Remove the lower oil pan by tapping on the side wall with a

plastic hammer (mallet) through a wooden plank held
against it.

<<B>> OIL PAN, UPPER REMOVAL
1. Remove the long bolts "A" shown in the illustration first.
2. Remove all other bolts.

CAUTION

Do not use a scraper or special tool to remove the oil pan.
3. Remove the oil pan.

4. Screw M10 bolts into the two bolt holes in the oil pan to

break the joint and remove the oil pan.

<<C>> OUTER ROTOR/INNER ROTOR REMOVAL
Make alignment dots on the outer and inner rotors for assem-
bly.

AKX00746

"A"

TIMING BELT SIDE

"A"

AKX00658

AKX00742AB

ALIGNMENT DOTS

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-39

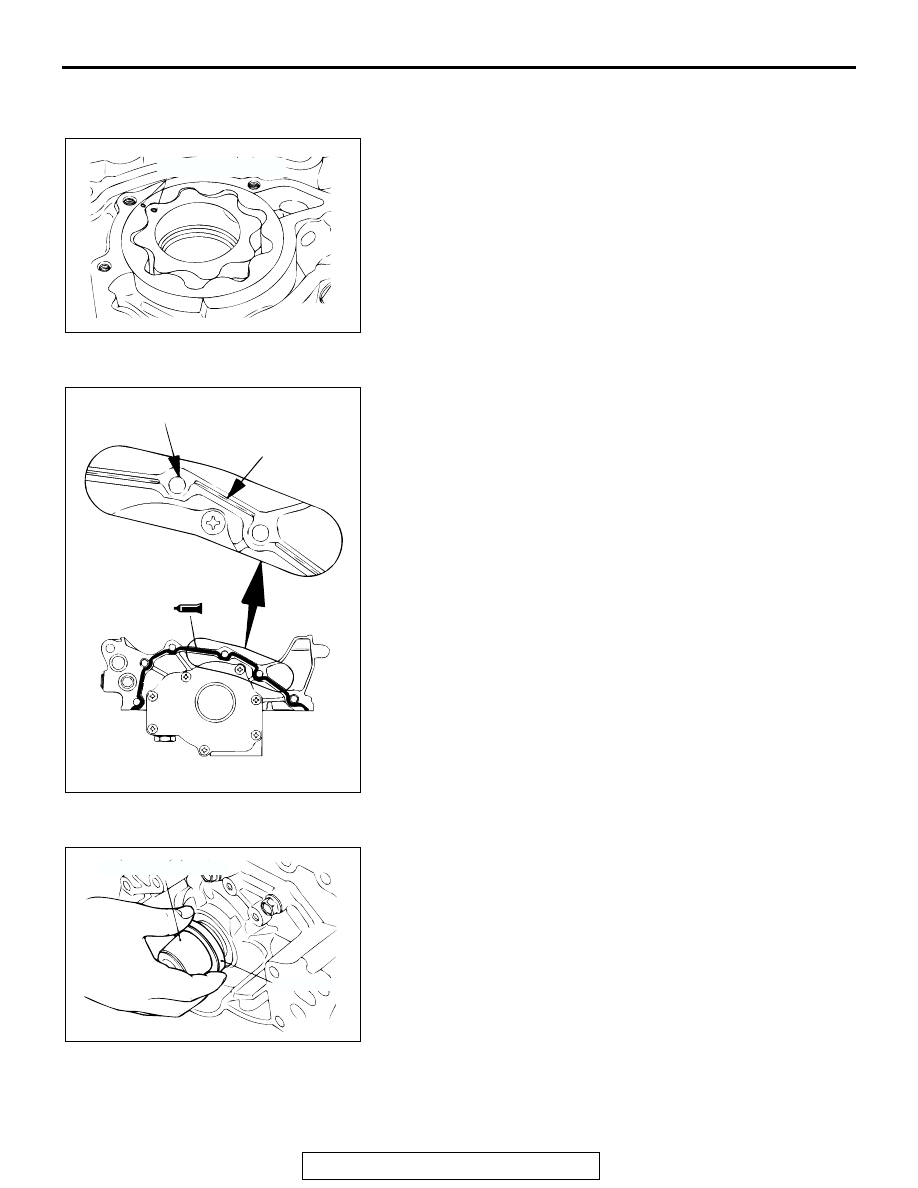

INSTALLATION SERVICE POINTS

>>A<< INNER ROTOR/OUTER ROTOR INSTALLATION
Apply engine oil to the rotors. Then, install the rotors ensuring
that the alignment dots made at disassembly are properly
aligned.

>>B<< OIL PUMP CASE ASSEMBLY INSTALLATION
1. Clean the gasket mating surfaces of oil pump case and

cylinder block.

2. Apply a 3 mm (0.1 inch) diameter bead of sealant

(Mitsubishi Genuine Parts number MD970389 or equivalent)
to the oil pump case.
Apply sealant as indicated by the broken line in the
illustration; the grooves must be traced and the bolt holes
must be surrounded with a bead of sealant.

3. Install the oil pump case assembly to the front of the cylinder

block.
NOTE: Be sure to install the oil pump case quickly while the
sealant is wet (within 15 minutes).

4. Tighten the oil pump case mounting bolts to the specified

torque.

Tightening torque:

± 1 N⋅m (122 ± 9 in-lb) <M8 BOLT>

± 8 N⋅m (30 ± 6 ft-lb) <M10 BOLT>

NOTE: After installation, keep the sealed area away from oil
and coolant for approximately one hour.

>>C<< CRANKSHAFT FRONT OIL SEAL INSTALLATION
1. Install the guide of special tool MD998717 to the front end of

the crankshaft.

2. Apply engine oil to the lip area of a new oil seal and push it

in until it contacts the oil pump case.

AKX00742AB

ALIGNMENT DOTS

AKX00674

BOLT HOLE

GROOVE

AKX00659 AB

MD998717 (GUIDE)

OIL SEAL

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-40

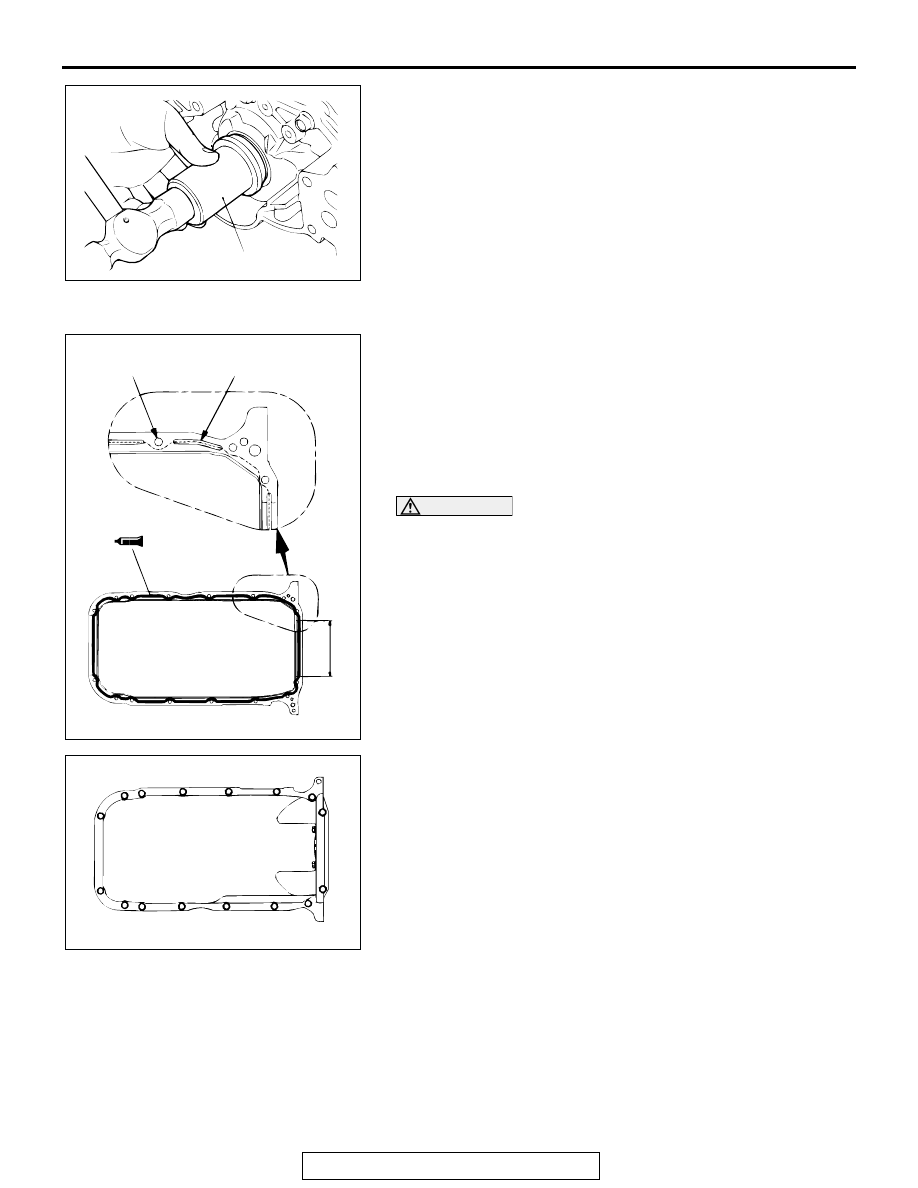

3. Using special tool MD998717, press-fit the oil seal into the

oil pump case.

>>D<< OIL PAN, UPPER INSTALLATION
1. Clean both gasket surfaces of the upper oil pan and cylinder

block.

2. Apply a 4 mm (0.2 inch) diameter bead of sealant

(Mitsubishi Genuine Parts number MD970389 or equivalent)
to the upper oil pan.
Apply sealant as indicated by the broken line in the
illustration; the grooves must be traced and the bolt holes
must be surrounded with a bead of sealant.

CAUTION

When installing the upper oil pan, be sure not to expel the
sealant from the oil pan flange at portion A in the illustra-
tion.
3. Install the oil pan to the bottom of the cylinder block.

NOTE: Be sure to install the oil pan quickly while the sealant
is wet (within 15 minutes).

4. Tighten the upper oil pan bolts in the sequence shown.

Tightening torque: 5.9

± 1 N⋅m (52 ± 9 in-lb)

NOTE: After installation, keep the sealed area away from
the oil and coolant for approximately one hour.

AKX00660

MD998717

AKX00675

BOLT HOLE

GROOVE

AKX00676

11 7
