TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-17

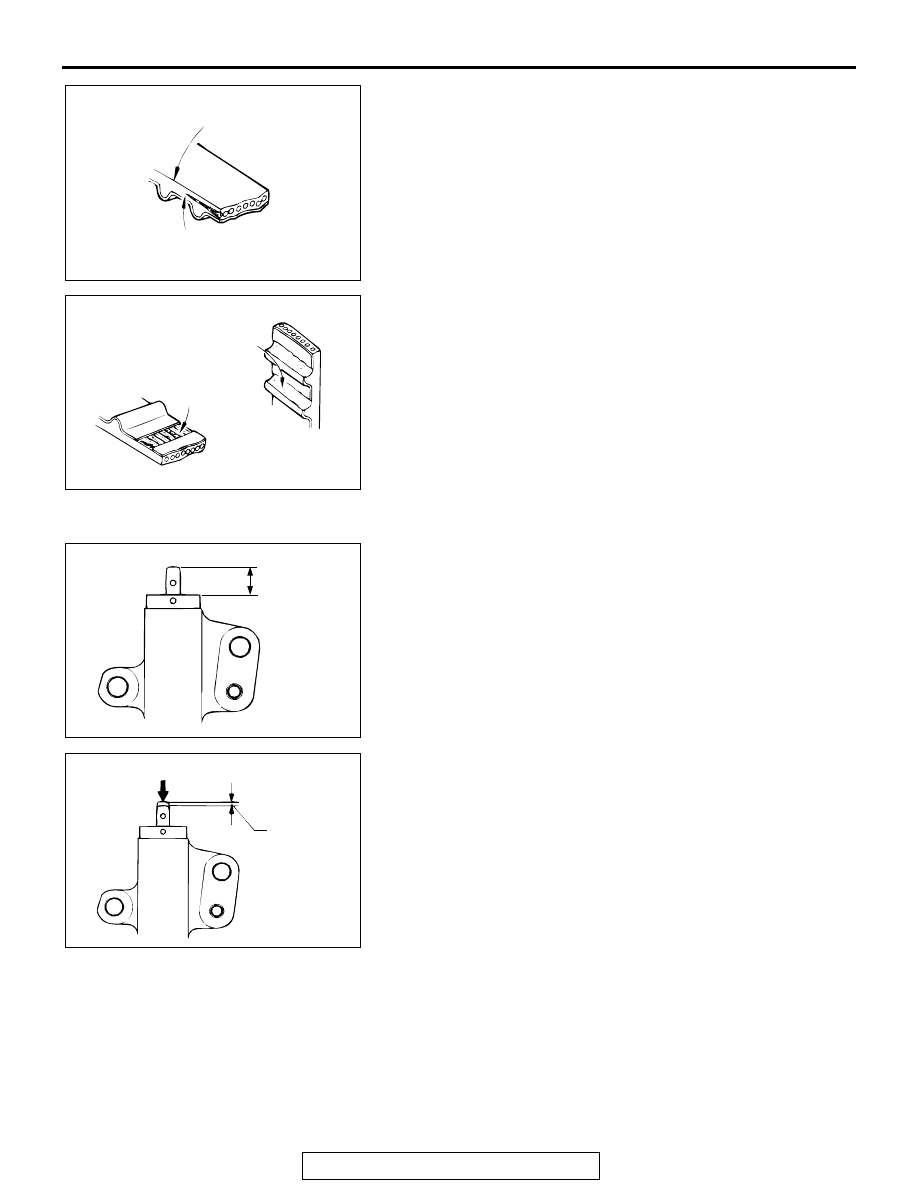

6. Abnormal wear of belt sides. Normal wear is indicated if the

sides are sharp as if cut by a knife. Abnormal wear is
indicated if the sides are ragged.

7. Abnormal wear on teeth.
8. Missing tooth.

.

AUTO-TENSIONER
1. Check for oil leaks. If oil leaks are evident, replace the

auto-tensioner.

2. Check the rod end for wear or damage and replace the

auto-tensioner if necessary.

3. Measure the rod protrusion. If it is out of specification,

replace the auto tensioner.

Standard value: 12 mm (0.5 inch)

4. Press the rod with a force of 98 to 196 N (22 to 44 pound)

and measure the movement of the rod.
If the measured value is out of the standard value, replace
the auto-tensioner.

Standard value: 1.0 mm (0.03 inch) or less

AKX00602

ROUNDED EDGE

ABNORMAL WEAR
(RAGGED)

AB

AKX00603

TOOTH
MISSING

RUBBER EXPOSED

AB

AKX00477

12 mm
(0.5 in)

AB

AKX00478

98 TO 196 N (22 TO 44 lb)

MOVEMENT

AB

FUEL AND EMISSION PARTS

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-18

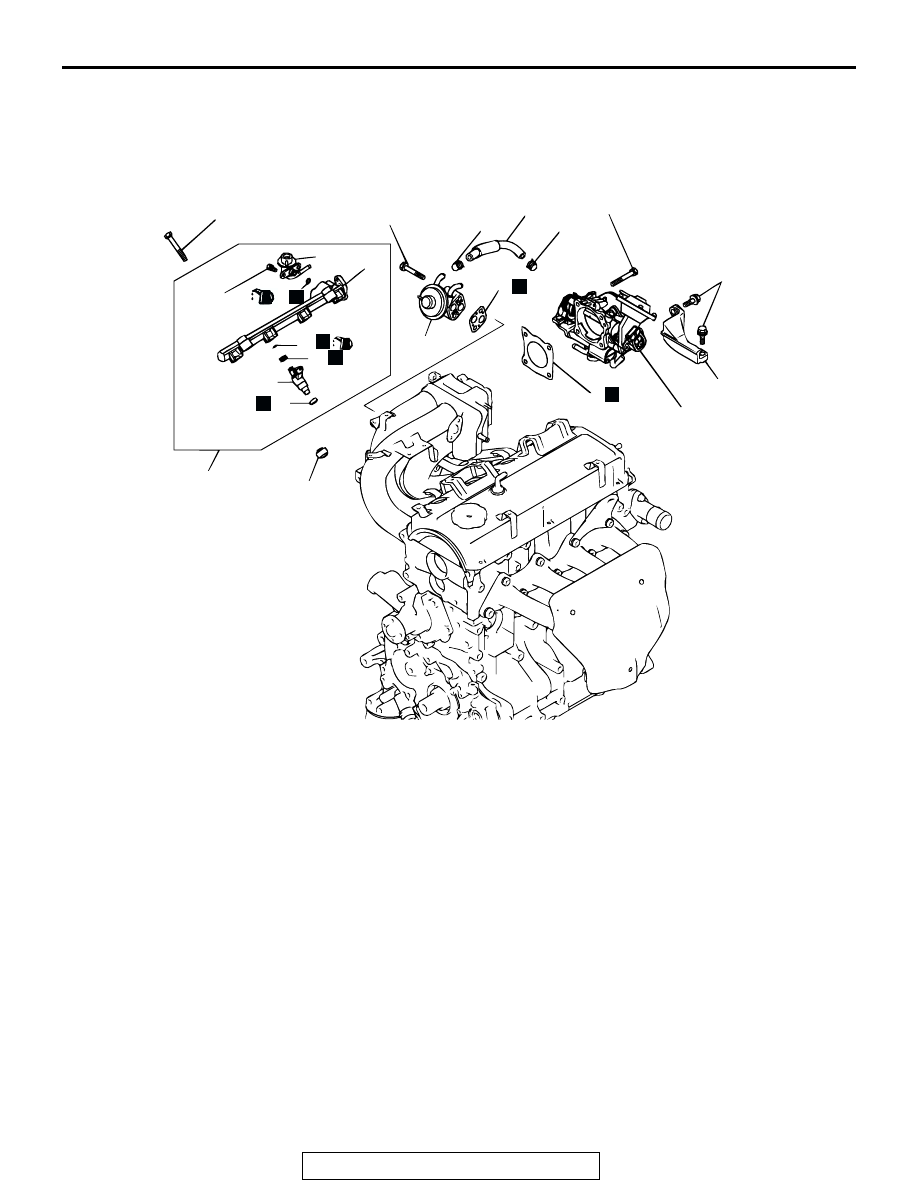

FUEL AND EMISSION PARTS

REMOVAL AND INSTALLATION

M1113002200032

AKX00513

19 ± 3 N·m
14 ± 2 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

8.8 ± 2 N·m
78 ± 17 in-lb

2

1

1

10

16

7

14

6

15

13

3

5

12

4

8

9

N

N

N

N

N

N

AB

12 ± 1 N·m
104 ± 9 in-lb

11

REMOVAL STEPS

1. HOSE CLIP
2. WATER HOSE
3. THROTTLE BODY STAY
4. THROTTLE BODY

>>C<<

5. THROTTLE BODY GASKET
6. EGR VALVE
7. GASKET
8. INJECTOR AND FUEL RAIL

9. INSULATOR

>>B<<

10. FUEL PRESSURE REGULATOR
11. O-RING
12. INSULATOR

>>A<<

13. INJECTOR
14. O-RING
15. GROMMET
16. FUEL RAIL

REMOVAL STEPS (Continued)

FUEL AND EMISSION PARTS

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-19

INSTALLATION SERVICE POINTS

.

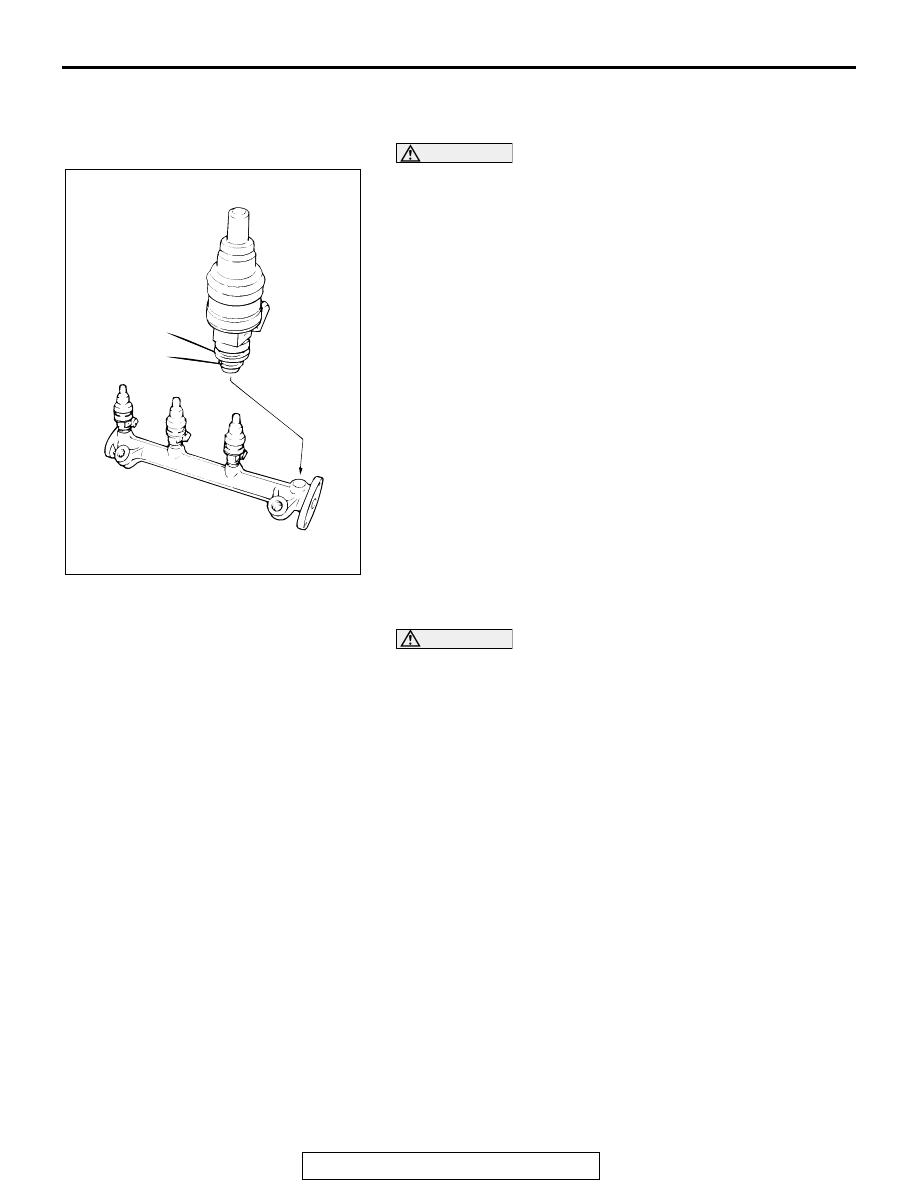

>>A<< INJECTORS INSTALLATION

CAUTION

Use care not to let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.
2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly.

If not, remove the injector to check the O-ring for damage,
and replace the O-ring if necessary. Then, reinstall the
injector and check that it rotates smoothly.

.

>>B<< FUEL PRESSURE REGULATOR INSTALLATION

CAUTION

Do not let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.
2. Insert the fuel pressure regulator into the fuel rail.
3. Make sure the pressure regulator rotates smoothly.

If not, remove the fuel pressure regulator to check the O-ring
for damage, and replace the O-ring if necessary. Then,
reinstall the fuel pressure regulator and check that it rotates
smoothly.

4. Tighten the two bolts to the specified torque.

Tightening torque: 8.8

± 2 N⋅m (78 ± 17 in-lb)

.

AKX00446

GROMMET

O-RING

AB

FUEL AND EMISSION PARTS

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-20

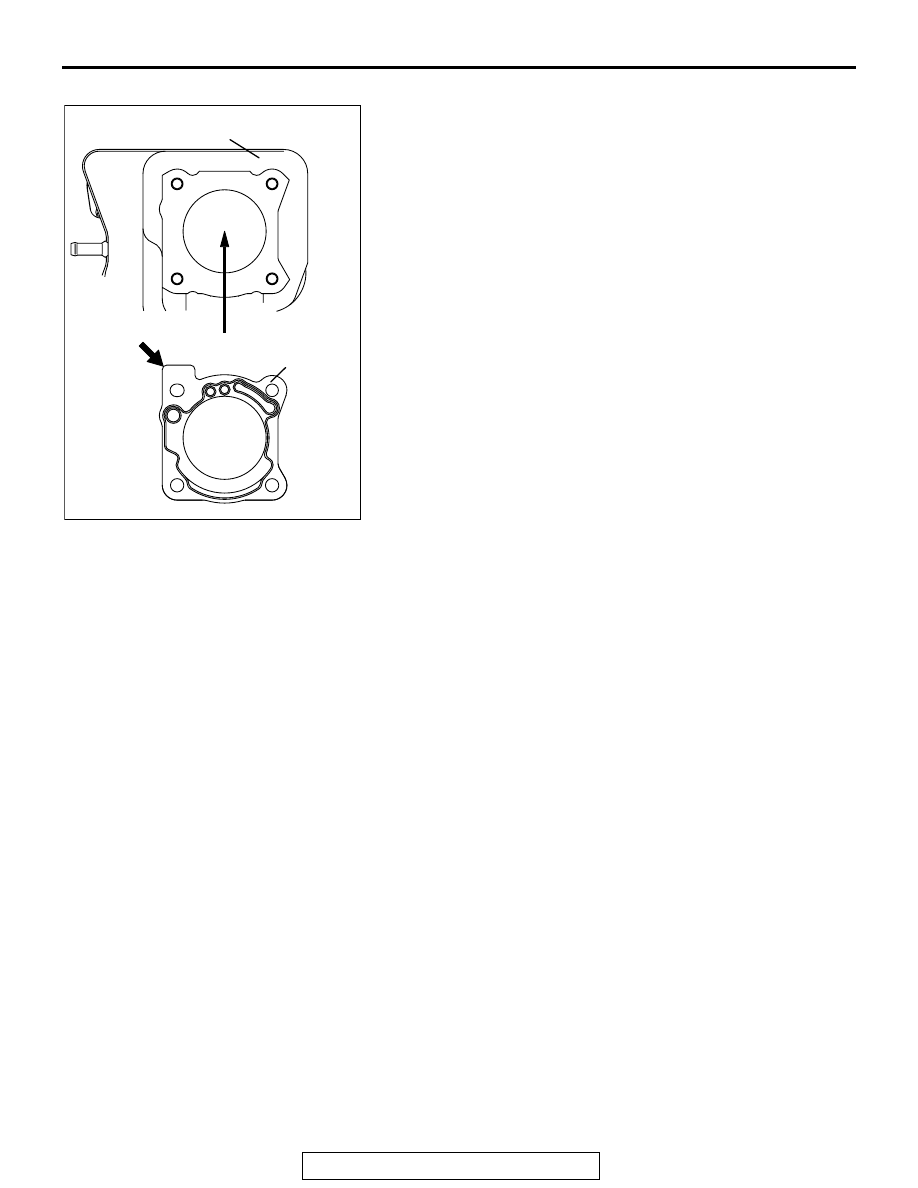

>>C<< THROTTLE BODY GASKET INSTALLATION
Install a new gasket so that the tab is positioned as shown in
the illustration.

AK000270

GASKET SURFACE OF INTAKE MANIFOLD

TAB

THROTTLE
BODY
GASKET

AB
