WIRING HARNESS

1. Check the connector for poor connection.

DANGER

The SRS system may not operate if SRS harnesses or
connectors are damaged or improperly connected,
which could result in serious injury or death to the
vehicle's driver and front passenger.

2. Check the harness for binds, the connectors for damage,

and the terminals for deformation. REPLACE ANY
CONNECTOR OR HARNESS THAT FAILS THE VISUAL
INSPECTION. (Refer to GROUP 52B, SRS Precaution

P.52B-17

.)

21. EXHAUST SYSTEM (CONNECTIONS, PIPES
AND CONVERTER HEAT SHIELDS) (CHECK AND
SERVICE AS REQUIRED)

M1001005800170

1. Check for holes and exhaust gas leaks due to damage,

corrosion, etc.

2. Check the joints and connections for looseness and exhaust

gas leaks.

3. Check the rubber hangers and brackets for damage.

AC000119

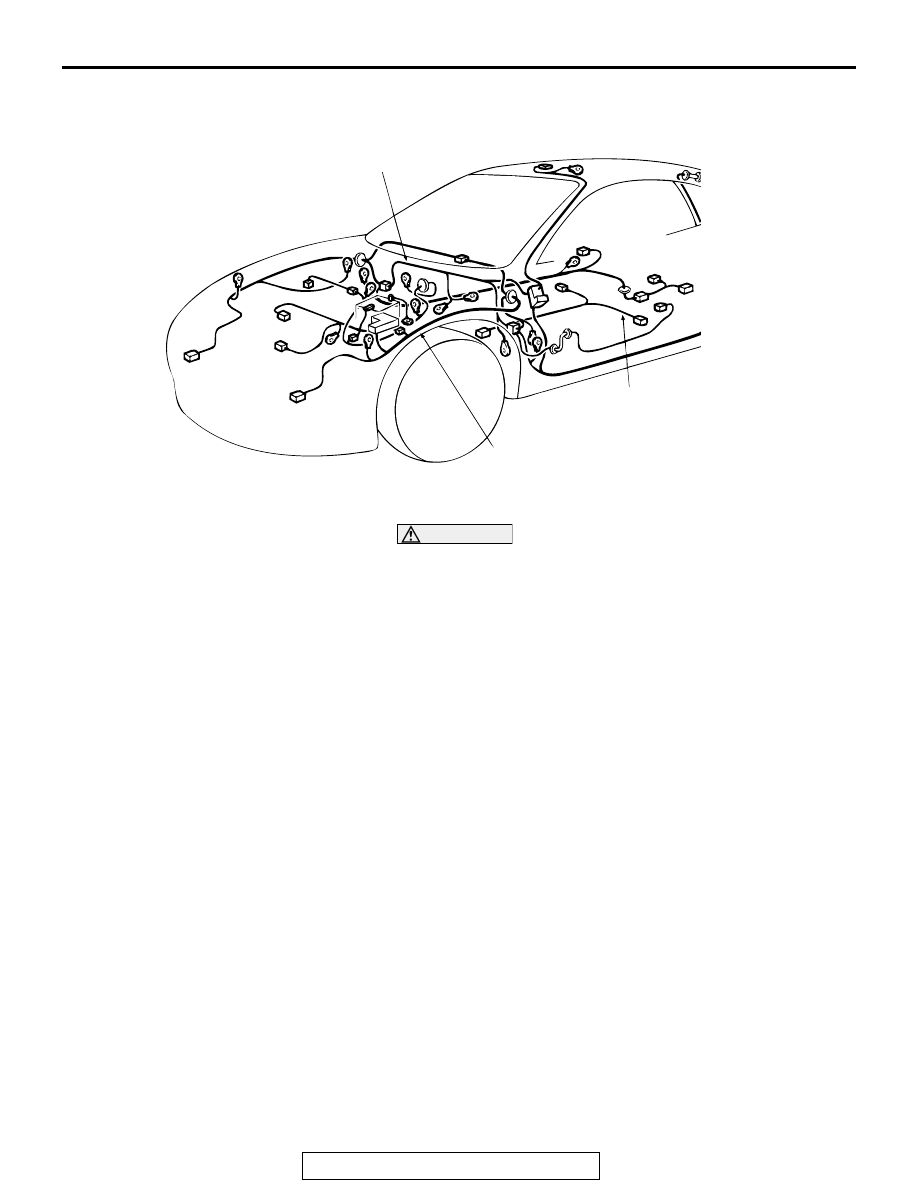

INSTRUMENT PANEL
WIRING HARNESS

FRONT WIRING
HARNESS (LH)

SIDE-AIRBAG
WIRING HARNESS
(ECLIPSE ONLY)

AC

MAIN SEALANT AND ADHESIVE TABLE

TSB Revision

GENERAL

00-68

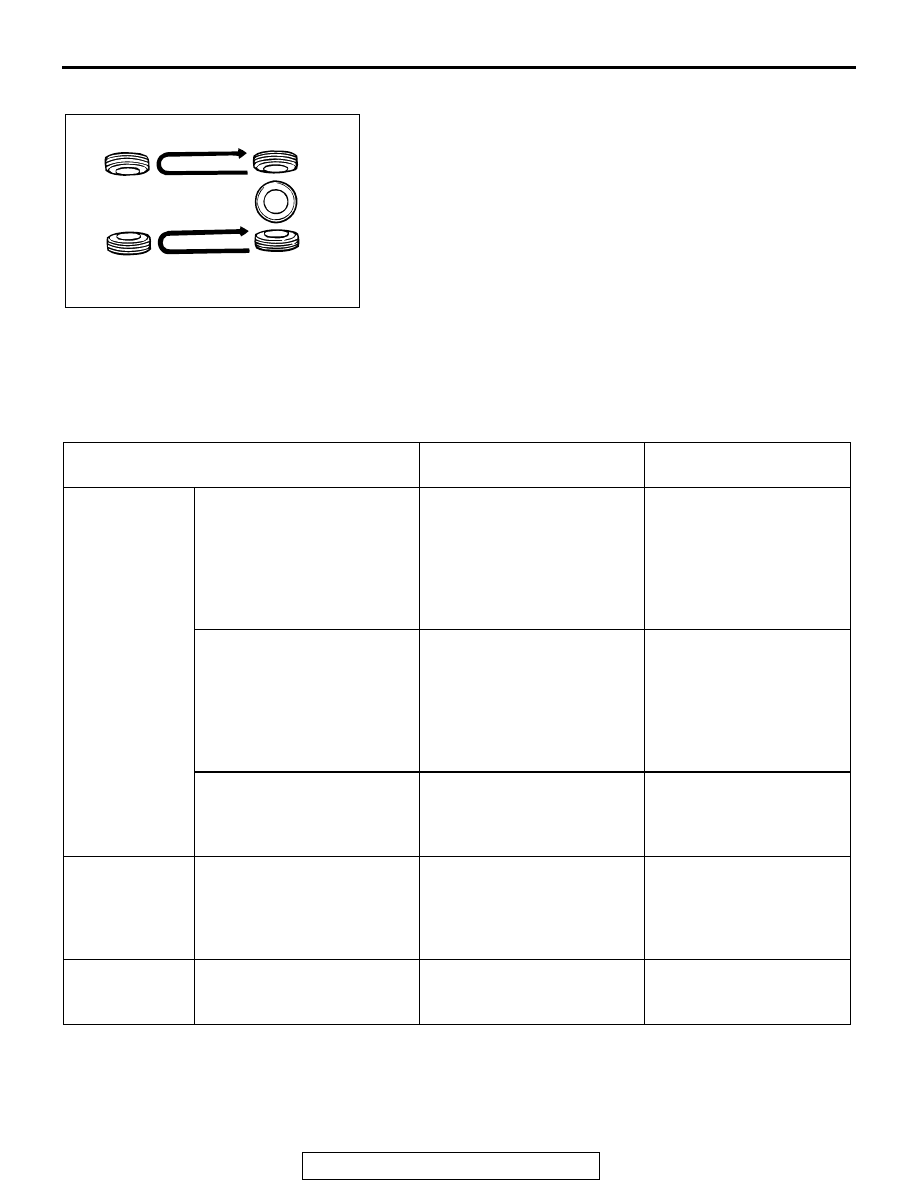

22. TIRES (ROTATE)

M1001008900187

Rotate tires regularly to equalize tire wear and help extend tire
life. Recommended tire rotation is every 12,000 km (7,500
miles) under normal driving conditions and every 9,600km
(6,000 miles) in severe driving conditions.
Timing for the rotation may vary according to vehicle condition,
road surface conditions, and individual driver's habits.
When rotating tires, check for uneven wear, damage, and
wheel alignment. Abnormal wear is usually caused by incorrect
tire pressure, improper wheel alignment, out-of balance
wheels, or severe braking.
The first rotation is the most important to achieve more uniform
wear for all tires on the vehicle.

MAIN SEALANT AND ADHESIVE TABLE

M1001003800215

AC000120

APPLICATION

3M

 NO.

LOCTITE

/PERMATEX

NO.

ENGINE AND
DRIVETRAIN

Between rocker cover and
camshaft bearing cap.
Between rocker cover,
semicircular packing and
cylinder head. Between oil
pressure switch and engine.

3M

 AAD Part No. 8660

Ultrapro High Temp.Silicone
Gasket or
3M

 AAD Part No. 8679

Black/8678 Black
Press-In-Place Silicone
gasket strips

Permatex

 Ultra Black

598, No.82180

Between engine coolant
temperature switch, engine
coolant temperature sensor,
thermo valve, thermo switch,
joint, engine coolant
temperature gauge unit
(large-size) and engine

3M

 AAD Part No. 8731

Medium Strength Blue
Threadlocker

Loctite

242 Blue Service

Tool Removable 24200

Between oil pan and engine
block

3M

 AAD Part No. 8672,

3M

 AAD Part No. 8704 or

3M

 AAD Part No. 8679/

3M

 AAD Part No. 8678 or

Permatex

 Ultra Gray

599, No.82194

WEATHER-STR
IPPING FOR
GLASS

Between tempered glass,
body flanges, and
weatherstrip

3M

 AAD Part No. 8509

Auto Bedding and Glazing
Compound or
3M

 AAD Part No. 8633

Windo-weld Resealant

−

WEATHER-STR
IPPING FOR
GLASS

Between laminated glass and
weatherstrip

3M

 AAD Part No. 8633

−

MAIN SEALANT AND ADHESIVE TABLE

TSB Revision

GENERAL

00-69

INTERIORS

Adhesive of vinyl chloride
cloth

3M

 AAD Part No. 8088

General Trim Adhesive or
3M

 AAD Part No. 8064

Vinyl Trim Adhesive

Permatex

 Vinyl Repair

Kit No.81786

Adhesion of door
weatherstrip

3M

 AAD Part No. 8001

(yellow) or
3M

 AAD Part No. 8008

(black) Super Weatherstrip
Adhesive or
3M

 AAD Part No. 8011

Black Weatherstrip Adhesive

Permatex

 Super Black

Weatherstrip Adhesive
No.82, 81850

Sealing of various grommets
and packing

3M

 AAD Part No. 8509 or

3M

 AAD Part No. 8678

−

Adhesion of headliners and
various interior decorative
materials

3M

 AAD Part No. 8088

General Trim Adhesive or
3M

 AAD Part No. 8090

Super Trim Adhesive

Permatex

 Spray

Adhesive No.82019

BODY
SEALANTS

Sealing of sheet metal joints,
drip rail, floor, side panels,
trunk, front panel, tail gate
hinge

3M

 AAD Part No. 8531

Heavy Drip-Check Sealer
(gray) or
3M

 AAD Part No. 8302

Ultrapro Autobody Sealant
(clear) or
3M

 AAD Part No. 8361

Urethane A/B Sealant (gray
or white)

−

Miscellaneous body sealants
(originally mounted
w/adhesive tape)

• Waterproof door film

• Fender panel

• Splash shield

• Mud guard

• Rear combination lamp

3M

 AAD Part No. 8633

Windo-weld Resealant

−

Fuel Tank and Pad

3M

 AAD Part No. 8088

General Trim Adhesive or
3M

 AAD Part No. 8090

Super Trim Adhesive

Permatex

 Spray

Adhesive No.82019

APPLICATION

3M

 NO.

LOCTITE

/PERMATEX

NO.

MAIN SEALANT AND ADHESIVE TABLE

TSB Revision

GENERAL

00-70

CHASSIS
SEALANT

Sealant of various flange
faces and threaded parts.
Packing of fuel gauge unit

3M

 AAD Part No. 8730

High Strength Red Thread
lock or
3M

 AAD Part No. 8731

Medium Strength Blue
Threadlocker

Loctite

272 High Strength

and High Temperature
27200

Sealing of various threaded
parts, dust covers. Differential
carrier packing, dust covers
and ball joint and linkage.
Packing and shims of
steering box, sealing of rack
support cover and top cover
of steering box housing, seal
of junction face of knuckle
arm flange

3M

 AAD Part No. 8672

Ultrapro High Temp.Silicone
Gasket or
3M

 AAD Part No. 8679

(black) or
3M

 AAD Part No. 8678

(black) Press-In-Place
Silicone gasket strips
3M

 AAD Part No. 8661 or

3M

 AAD Part No. 8663

Super Silicone sealant

Permatex

 The Right Stuff

No.25223

Seal of brake shoe hold down
pin and wheel cylinder of
drum brakes

3M

 AAD Part No. 8633

Windo-weld Resealant

−

QUICK FIX
ADHESIVE

−

3M

 AAD Part No. 8155

Quick Fix Adhesive

Loctite

Quicktite Super

Glue 21309

ANAEROBIC
STRONG
SEALING
AGENT

Fixing of various threads,
bolts, screws. Fixing of
differential drive gear bolt,
Connecting of tilt steering
bolt. Fan, pulley, gear Sealing
of small gaps and flange
faces

3M

 AAD Part No. 8730

High Strength Threadlocker
or
3M

 AAD Part No. 8731

Medium Strength
ThreadlockerThreadlocker

Loctite

271,

High-Strength
Threadlocker 27100 or
27200

UNDERCOATIN
G AGENT

-

3M

 AAD Part No. 8883

Rubberized Undercoating
Aerosol or
3M

 AAD Part No. 8864

Body Schutz Undercoating
(qt)

Permatex

 Heavy-Duty

Undercoating 81833

APPLICATION

3M

 NO.

LOCTITE

/PERMATEX
