MAINTENANCE SERVICE

TSB Revision

GENERAL

00-51

4. Tighten the lock bolt.

Tightening torque: 23

± 2 N⋅m (16 ± 2 ft-lb)

5. Tighten the nut of the generator pivot bolt.

Tightening torque: 44

± 10 N⋅m (33 ± 7 ft-lb)

6. Tighten the adjusting bolt.

Tightening torque: 4.9

± 1.0 N⋅m (44 ± 8 in-lb)

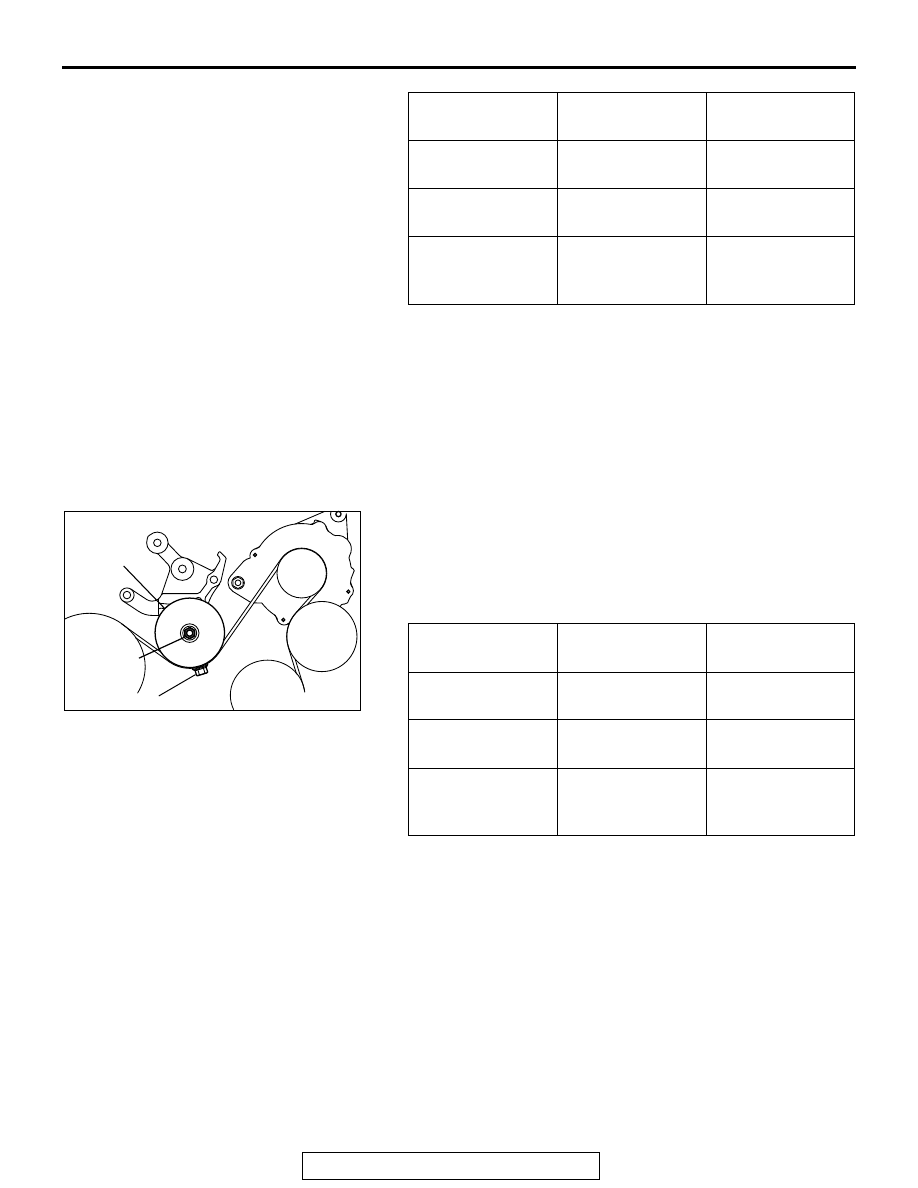

<3.0L ENGINE>
1. Loosen the tensioner pulley fixing nut.
2. With the tensioner pulley fixing nut temporarily tightened to

± 5 N⋅m (11 ± 4 ft-lb), set the belt tension or defection

amount to the standard value using the adjusting bolt.

Standard value:

3. Tighten the tension pulley fixing nut.

Tightening torque: 49

± 10 N⋅m (36 ± 7 ft-lb)

ITEMS

DURING
ADJUSTMENT

DURING
REPLACEMENT

Vibration
frequency Hz

201

− 222

267

− 299

Tension N (lb)

441

− 539

(99

− 121)

785

− 981

(176

− 220)

Deflection
(Reference value)
mm (in)

7.2

− 8.4

(0.28

− 0.33)

4.4

− 5.3

(0.17

− 0.21)

ITEMS

DURING
ADJUSTMENT

DURING
REPLACEMENT

Vibration
frequency Hz

149

− 162

180

− 201

Tension N (lb)

539

− 637

(121

− 143)

785

− 981

(176

− 221)

Deflection
(Reference value)
mm (in)

9.0

− 10.1

(0.35

− 0.40)

6.2

− 7.6

(0.24

− 0.30)

AKX01156

TENSIONER
PULLEY

FIXING
NUT

ADJUSTING BOLT

MAINTENANCE SERVICE

TSB Revision

GENERAL

00-52

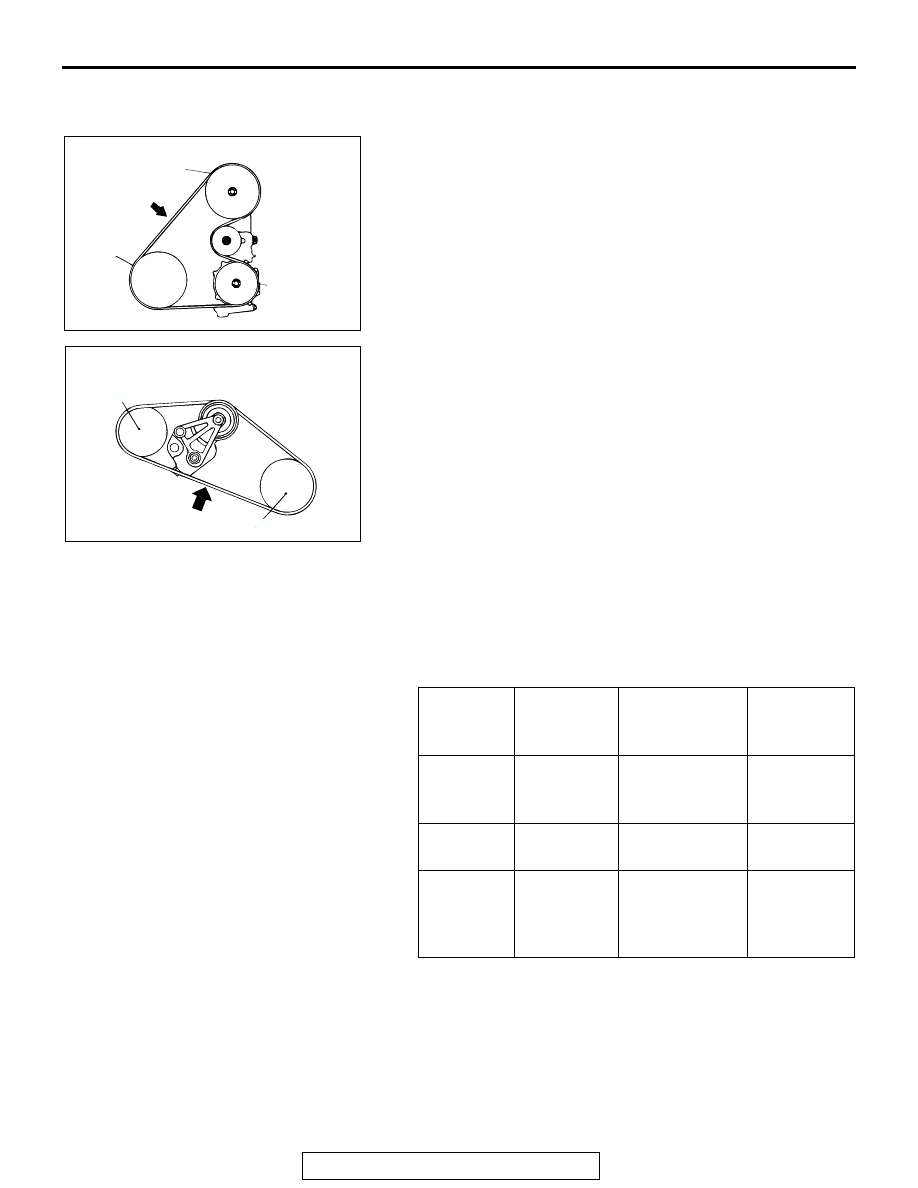

POWER STEERING OIL PUMP DRIVE BELT
TENSION CHECK AND ADJUSTMENT

Check the drive belt tension by the following procedure.

<When using scan tool MB991958>

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: Main Harness B (Vehicles without CAN

communication system)

• MB991668: Belt Tension Meter Set

Gently tap the middle of the belt between the pulleys (the loca-
tion indicated by the arrow) with your finger as shown in the
illustration, and check that the vibration frequency of the belt is
within the standard value.
NOTE: Refer to

P.00-46

for details on the method of measuring

the vibration frequency using the scan tool.

<When using a tension gauge>
Use a belt tension gauge to check that the belt tension is within
the standard value.

<Belt deflection check>
Apply 98 N (22 pound) of force to the middle of the drive belt
between the pulleys (at the place indicated by the arrow) and
check that the amount of deflection is within the standard value.

Standard value:
<2.4L ENGINE>

ITEMS

WHEN
CHECKED

DURING
ADJUSTMENT

DURING
REPLACEM
ENT

Vibration
frequency
Hz

108

− 132

114

− 126

137

− 157

Tension N
(lb)

392

− 588

(88

− 132)

441

− 539

(99

− 121)

637

− 834

(143

− 187)

Deflection
(Reference
value) mm
(in)

11.7

− 15.3

(0.46

− 0.60)

12.5

− 14.3

(0.49

− 0.56)

8.8

− 11.0

(0.35

− 0.43)

AC102990AB

OIL PUMP PULLEY

CRANKSHAFT
PULLEY

A/C
COMPRESSOR
PULLEY

<2.4L ENGINE>

AC000088

<3.0L ENGINE>

POWER STEERING
OIL PUMP PULLEY

ADJUSTING
BOLT

CRANKSHAFT PULLEY

MAINTENANCE SERVICE

TSB Revision

GENERAL

00-53

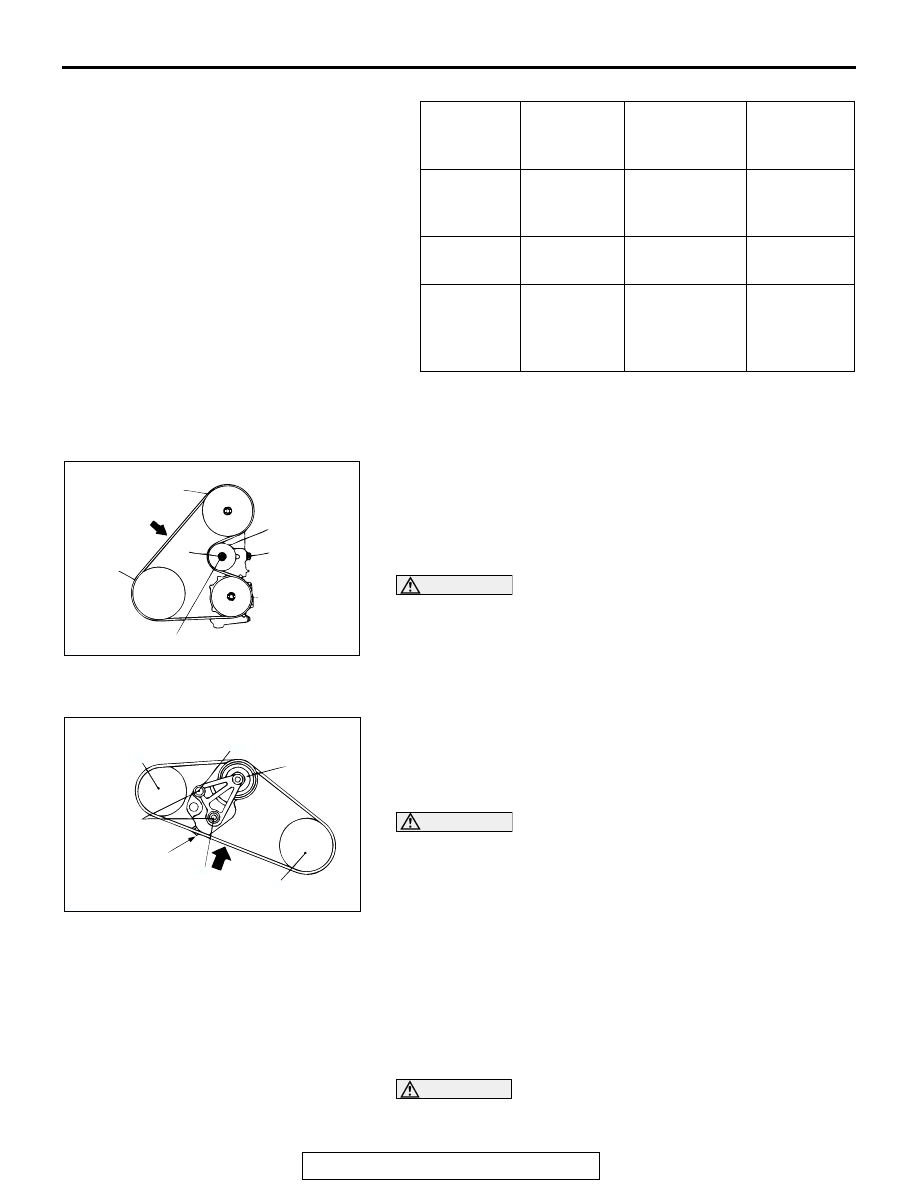

<3.0L ENGINE>

if the tension or deflection is outside the standard value, adjust
by the following procedure.

<2.4L ENGINE>
1. Loosen the tension pulley fixing nut A behind the tension

pulley.

2. Adjust the belt deflection amount using the adjusting bolt B.
3. Tighten the fixing nut A.

Tightening torque: 44

± 10 N⋅m (33 ±7 ft-lb)

CAUTION

Check after turning the crankshaft one or more rotation
clockwise.
4. Check the belt deflection amount and tension, and readjust

if necessary.

<3.0L ENGINE>
1. Loosen the tension pulley fixing nut and bolt.
2. Adjust the belt tension using the adjusting bolt.
3. Tighten the fixing nut and bolt.

Tightening torque: 44

± 10 N⋅m (33 ± 7 ft-lb)

CAUTION

Check after turning the crankshaft one or more rotation
clockwise.
4. Check the belt deflection amount and tension, and readjust

if necessary.

10. ENGINE OIL (CHANGE)

M1001002600359

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

°C (176°F) to 90°C

(194

°F).

2. Remove the engine oil filler cap.

WARNING

Use care as oil could be hot.

3. Remove the drain plug to drain oil.

ITEMS

WHEN
CHECKED

DURING
ADJUSTMENT

DURING
REPLACEM
ENT

Vibration
frequency
Hz

134

− 165

142

− 158

171

− 196

Tension N
(lb)

373

− 569

(84

− 128)

422

− 520

(95

− 117)

608

− 804

(137

− 181)

Deflection
(Reference
value) mm
(in)

11.0

− 14.2

(0.43

− 0.56)

11.7

− 13.4

(0.46

− 0.53)

8.4

− 9.3

(0.33

− 0.37)

AC102991

A/C
COMPRESSOR
PULLEY

CRANKSHAFT
PULLEY

TENSIONER
PULLEY

44 ± 10 N·m

33 ± 7 ft-lb

<2.4L ENGINE>

OIL PUMP PULLEY

AC000090

<3.0L ENGINE>

TENSION
PULLEY

44 ± 10 N·m
33 ± 7 ft-lb

POWER STEERING

OIL PUMP PULLEY

FIXING BOLT

ADJUSTING BOLT

FIXING NUT

CRANKSHAFT PULLEY

MAINTENANCE SERVICE

TSB Revision

GENERAL

00-54

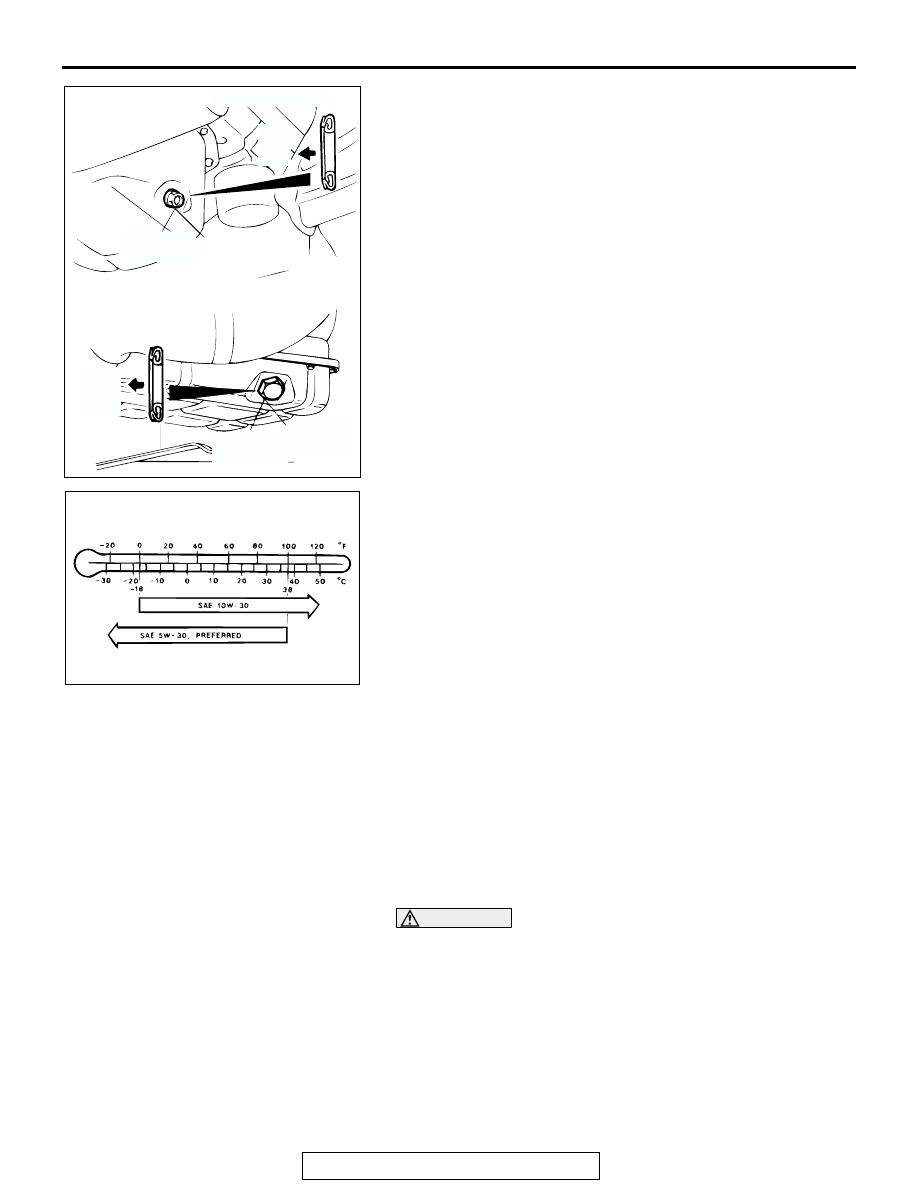

4. Install a new drain plug gasket so that it faces in the

direction shown in the illustration, and then tighten the drain
plug to the specified torque.

Tightening torque: 39

± 5 N⋅m (29 ± 4 ft-lb)

5. Refill the specified quantity of oil.

Specified Engine Oil: Engine oil displaying ILSAC cer-
tification mark ("Starburst" symbol) conforming the
API classification SJ EC or SJ/CD EC
Total quantity (Includes volume inside oil filter): 4.3
dm

(4.5 quarts)

6. Install the engine oil filler cap.
7. Check oil level.

11. ENGINE OIL FILTER (REPLACE)

M1001002700334

Required Special Tool:

• MB991396 (When using the oil filter of MD360935,

MD325717, MD332687 and MD365876): Oil Filter Wrench

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

°C (176°F) to 90°C

(194

°F).

2. Remove the engine oil filler cap.

WARNING

Use care as oil could be hot.

3. Remove the drain plug to drain oil.

AC000092

<2.4L ENGINE>

DRAIN PLUG GASKET

OIL
PAN
SIDE

DRAIN
PLUG

39 ± 5 N·m
29 ± 4 ft-lb

DRAIN
PLUG

OIL
PAN
SIDE

DRAIN PLUG GASKET

<3.0L ENGINE>

ACX00887AB
