ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-5

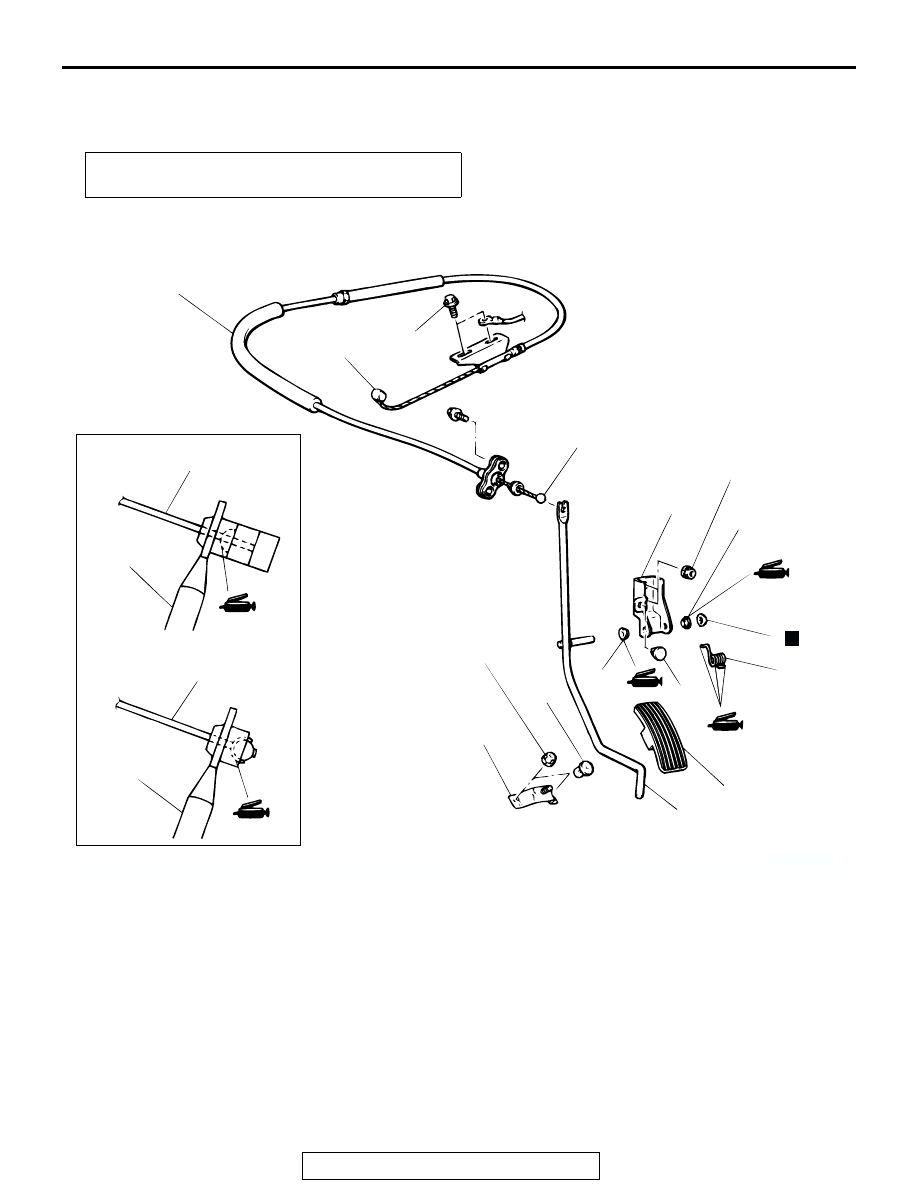

ACCELERATOR CABLE AND PEDAL

REMOVAL AND INSTALLATION

M1171001200211

Post-installation Operation
Adjusting the Accelerator Cable (Refer to

P.17-4

.)

AC005107

1

4

5

8

6

7

9

12

8

4

4

13

10

10

11

8

3

2

N

AB

<2.4L ENGINE>

<3.0L ENGINE>

4.9 ± 1.0 N·m
44 ± 8 in-lb

12 ± 2 N·m
100 ± 22 in-lb

REMOVAL STEPS

1. ADJUSTING BOLT
2. INNER CABLE CONNECTION

(THROTTLE LEVER SIDE)

3. INNER CABLE CONNECTION

(ACCELERATOR PEDAL SIDE)

4. ACCELERATOR CABLE
5. PUSH-ON SPRING NUT
6. PEDAL PAD

7. SPRING
8. ACCELERATOR ARM ASSEMBLY
9. ACCELERATOR PEDAL BRACKET
10. BUSHING
11. STOPPER
12. ACCELERATOR PEDAL STOPPER
13. BRACKET

REMOVAL STEPS (Continued)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-6

AUTO-CRUISE CONTROL

GENERAL DESCRIPTION

M1172000100258

By using the auto-cruise control, the driver can drive
at the desired speed [in a range of approximately 40
− 200 km/h (25 − 124 mph)] without depressing the

accelerator pedal.

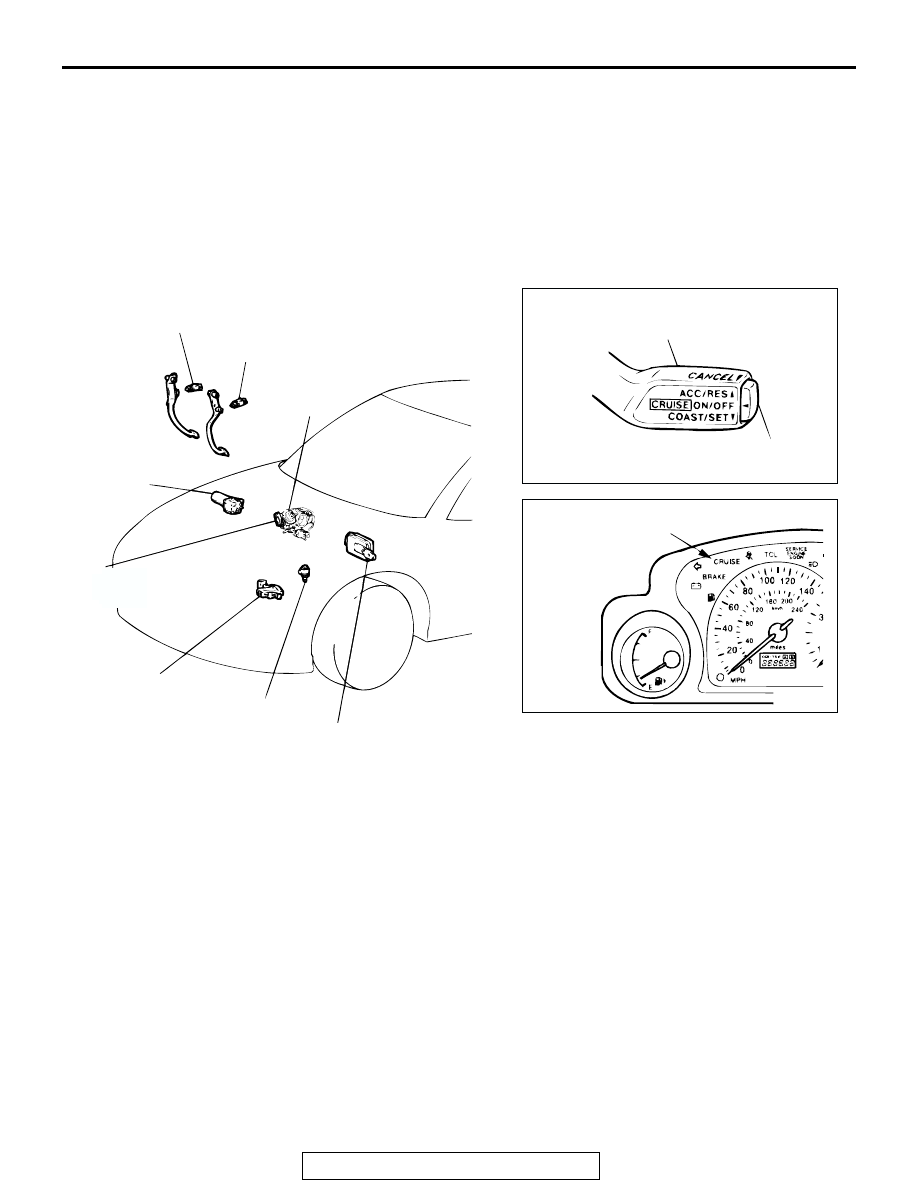

CONSTRUCTION DIAGRAM

AC001446

STOPLIGHT
SWITCH

CLUTCH PEDAL POSITION
SWITCH <M/T>

VACUUM
ACTUATOR

AUTO-CRUISE
VACUUM PUMP
ASSEMBLY

THROTTLE
POSITION
SENSOR

PARK/NEUTRAL POSITION
SWITCH <A/T>

VEHICLES SPEED
SENSOR <M/T>

AUTO-CRUISE
CONTROL-ECU

AUTO-CRUISE
CONTROL SWITCH

MAIN SWITCH

AUTO-CRUISE CONTROL
INDICATOR LIGHT

AC

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-7

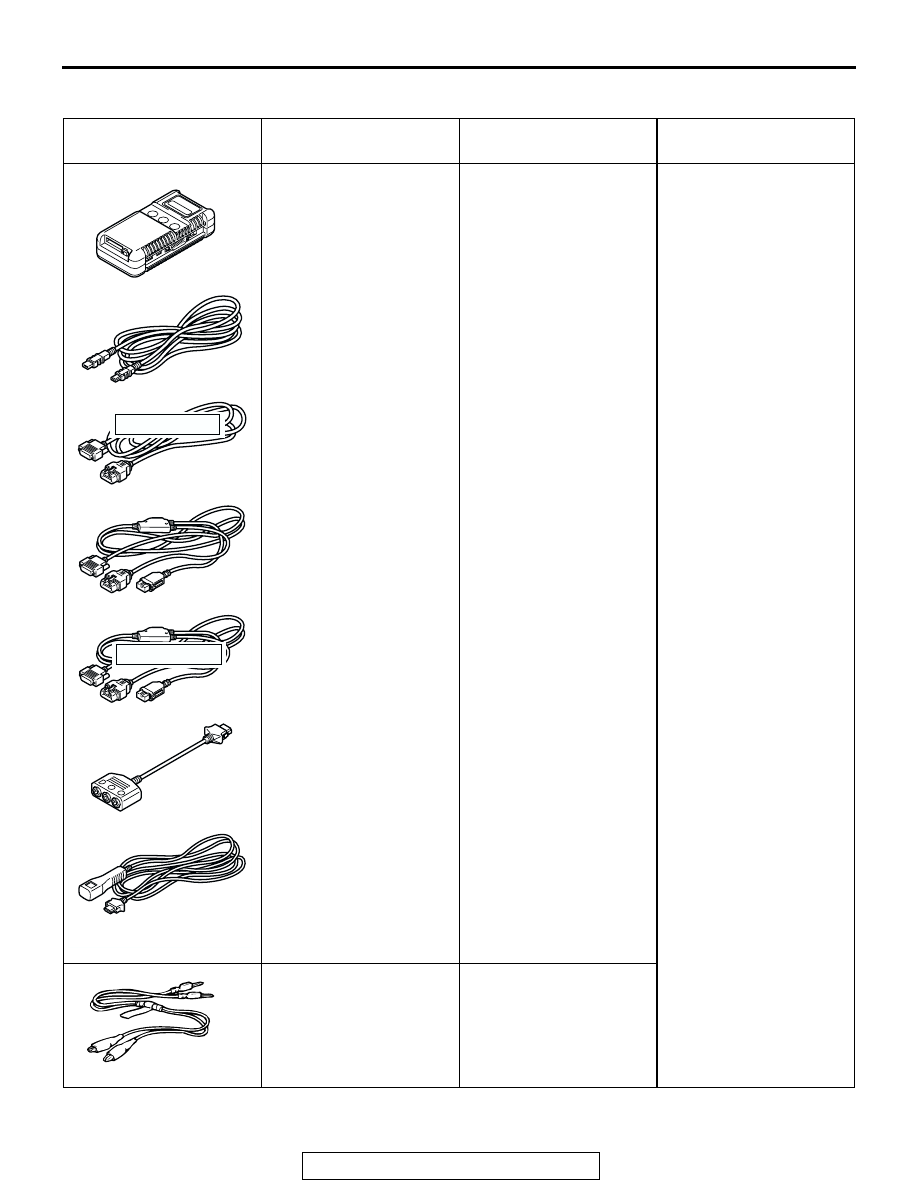

SPECIAL TOOLS

M1172000600253

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III Sub Assembly

A: Vehicle

Communication
Interface

B: MUT-III USB Cable
C: MUT-III Main Harness

A (Vehicles with CAN
communication
system)

D: MUT-III Main Harness

B (Vehicles without
CAN communication
system)

E: MUT-III Main Harness

C (for Daimler Chrysler
models only)

F: MUT-III Adapter

Harness

G: MUT-III Trigger

Harness

Checking diagnostic
trouble codes

MB991529 Diagnostic
trouble code check
harness

Tool not necessary if scan
tool (MUT-III) is available

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

MB991529

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-8

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

INTRODUCTION TO AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

M1172003300239

The auto-cruise control system allows driving without
stepping on the accelerator pedal by setting a ran-
dom speed between 40 km/h (25 mph) and 200 km/h
(124 mph). Problems in this system can be investi-
gated by the following methods.

Auto-cruise control system diagnostic
trouble codes

The auto-cruise control system consists of the
auto-cruise control-ECU, control switches, sensors
and vacuum pump. The control switches and sen-
sors monitor the state of the vehicle. Based on input
signals from those switches and sensors, the

auto-cruise control-ECU activates the vacuum pump.
If the auto-cruise control-ECU detects a problem on
any of those components, the ECU estimates where
the problem may be occurring, and will output a diag-
nostic trouble code. Diagnostic trouble codes cover
the throttle position sensor, auto-cruise control
switch, vehicle speed sensor <M/T>, auto-cruise
control-ECU and vacuum pump.

AUTO-CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1172002000257

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will check most of the
possible causes of an auto-cruise control system
problem.
1. Gather information from the customer.
2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any auto-cruise control

system DTC.

4. If you can verify the condition but no auto-cruise

control system DTCs are set, and the malfunction
may be intermittent. Refer to GROUOP 00, How
to Use Troubleshooting/Inspection Service Points
− How to Cope with Intermittent Malfunctions

P.00-6

.

5. If you can verify the condition but there are no

auto-cruise control system DTCs, or the system
cannot communicate with scan tool MB991958,
refer to Symptom Chart

P.17-48

 and find the fault.

6. If there is an auto-cruise control system DTC,

record the number of the code, then erase the
code from vehicle memory using the scan tool.

7. Re-create the auto-cruise control system DTC set

conditions to see if the same Auto-cruise Control
System DTC will set again.

• If the same Auto-cruise Control System DTC sets

again, perform the diagnostic procedures for the
set code. Refer to

P.17-12

, Auto-cruise Control

System Diagnostic Trouble Code Chart.

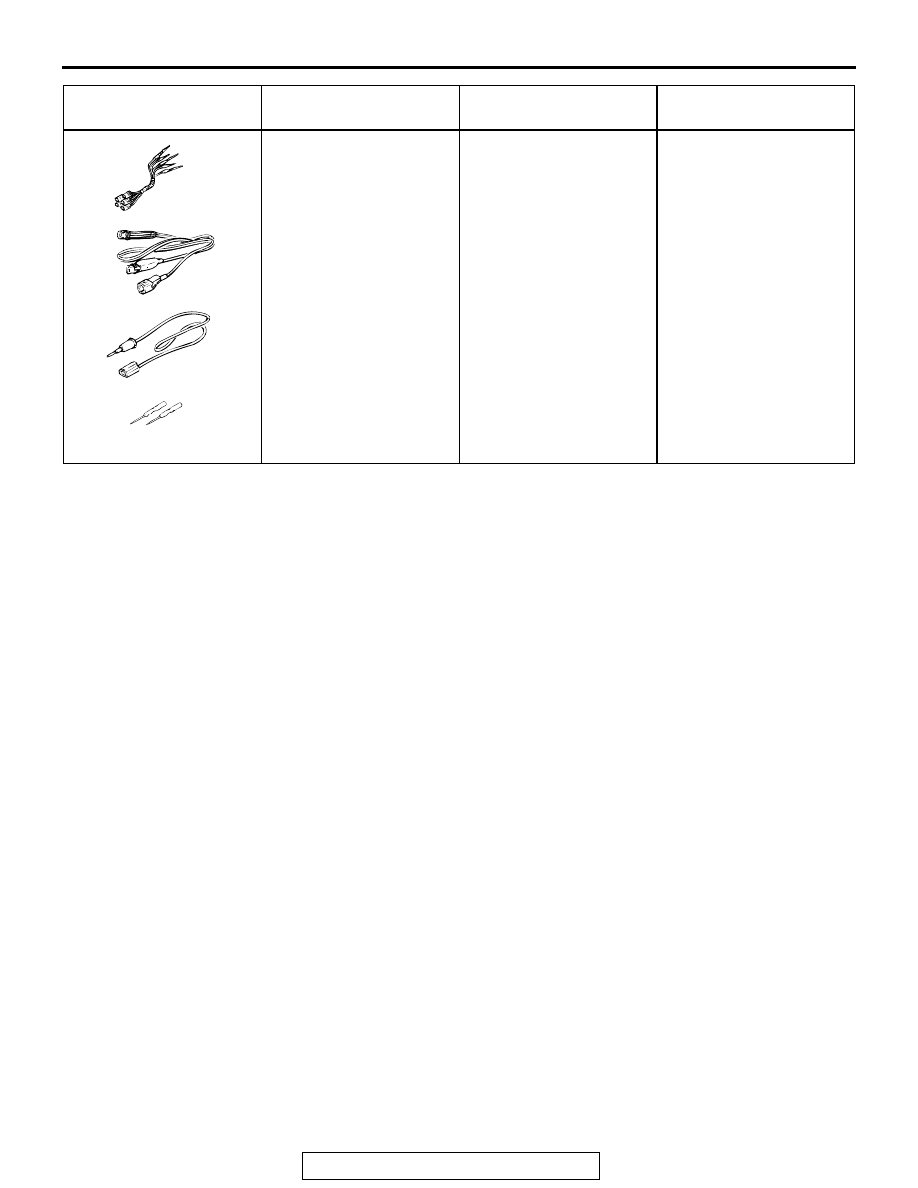

MB991223
Harness set
MB991219
A: Connector pin contact
pressure inspection

MB991223
MB991709-01

Checking the continuity
and measuring the
voltage at the harness
connector

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991223

A

AH
