17-1

GROUP 17

ENGINE AND

EMISSION CONTROL

CONTENTS

ENGINE CONTROL . . . . . . . . . .

17-3

GENERAL DESCRIPTION  . . . . . .

17-3

ENGINE CONTROL SYSTEM
DIAGNOSIS . . . . . . . . . . . . . . . . . .

17-3

INTRODUCTION TO ENGINE CONTROL
SYSTEM DIAGNOSIS . . . . . . . . . . . . . .

17-3

ENGINE CONTROL SYSTEM DIAGNOSTIC
TROUBLESHOOTING STRATEGY  . . .

17-3

SYMPTOM CHART . . . . . . . . . . . . . . . .

17-3

SYMPTOM PROCEDURES  . . . . . . . . .

17-3

ON-VEHICLE SERVICE. . . . . . . . .

17-4

ACCELERATOR CABLE CHECK AND
ADJUSTMENT. . . . . . . . . . . . . . . . . . . .

17-4

ACCELERATOR CABLE AND
PEDAL . . . . . . . . . . . . . . . . . . . . . .

17-5

REMOVAL AND INSTALLATION  . . . . .

17-5

AUTO-CRUISE CONTROL . . . .

17-6

GENERAL DESCRIPTION  . . . . . .

17-6

SPECIAL TOOLS. . . . . . . . . . . . . .

17-7

AUTO-CRUISE CONTROL SYSTEM
DIAGNOSIS  . . . . . . . . . . . . . . . . . .

17-8

INTRODUCTION TO AUTO-CRUISE
CONTROL SYSTEM DIAGNOSIS . . . . .

17-8

AUTO-CRUISE CONTROL SYSTEM
DIAGNOSTIC TROUBLESHOOTING
STRATEGY  . . . . . . . . . . . . . . . . . . . . . .

17-8

AUTO-CRUISE CONTROL SYSTEM
DIAGNOSTIC FUNCTION . . . . . . . . . . .

17-9

DIAGNOSTIC TROUBLE CODE CHART

17-12

DIAGNOSTIC TROUBLE CODE
PROCEDURES  . . . . . . . . . . . . . . . . . . .

17-13

SYMPTOM CHART  . . . . . . . . . . . . . . . .

17-48

SYMPTOM PROCEDURES . . . . . . . . . .

17-50

DATA LIST REFERENCE TABLE . . . . .

17-84

CHECK AUTO-CRUISE CONTROL-ECU
TERMINALS . . . . . . . . . . . . . . . . . . . . . .

17-85

ON-VEHICLE SERVICE . . . . . . . . .

17-87

AUTO-CRUISE CONTROL SWITCH
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-87

AUTO-CRUISE CONTROL SYSTEM
COMPONENT CHECK. . . . . . . . . . . . . .

17-89

AUTO-CRUISE CONTROL. . . . . . .

17-92

REMOVAL AND INSTALLATION. . . . . .

17-92

EMISSION CONTROL . . . . . . .

17-94

GENERAL DESCRIPTION . . . . . . .

17-94

DIAGNOSIS  . . . . . . . . . . . . . . . . . .

17-94

SPECIAL TOOLS . . . . . . . . . . . . . .

17-94

Continued on next page

17-2

VACUUM HOSES  . . . . . . . . . . . . .

17-95

VACUUM HOSE ROUTING. . . . . . . . . .

17-95

VACUUM CIRCUIT DIAGRAM  . . . . . . .

17-98

VACUUM HOSE INSTALLATION . . . . .

17-100

VACUUM HOSE CHECK. . . . . . . . . . . .

17-101

POSITIVE CRANKCASE
VENTILATION SYSTEM . . . . . . . .

17-101

GENERAL DESCRIPTION (POSITIVE
CRANKCASE VENTILATION SYSTEM)

17-101

COMPONENT LOCATION  . . . . . . . . . .

17-102

POSITIVE CRANKCASE VENTILATION
SYSTEM CHECK. . . . . . . . . . . . . . . . . .

17-102

POSITIVE CRANKCASE VENTILATION
VALVE CHECK . . . . . . . . . . . . . . . . . . .

17-103

EVAPORATIVE EMISSION
CONTROL SYSTEM  . . . . . . . . . . .

17-103

GENERAL DESCRIPTION (EVAPORATIVE
EMISSION SYSTEM)  . . . . . . . . . . . . . .

17-103

COMPONENT LOCATION  . . . . . . . . . .

17-105

PURGE CONTROL SYSTEM CHECK
(PURGE FLOW CHECK). . . . . . . . . . . .

17-106

EVAPORATIVE EMISSION PURGE
SOLENOID CHECK. . . . . . . . . . . . . . . .

17-107

VOLUME AIRFLOW SENSOR CHECK.

17-107

BAROMETRIC PRESSURE SENSOR
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-108

ENGINE COOLANT TEMPERATURE
SENSOR CHECK  . . . . . . . . . . . . . . . . .

17-108

INTAKE AIR TEMPERATURE SENSOR
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-108

FUEL TANK DIFFERENTIAL PRESSURE
SENSOR CHECK  . . . . . . . . . . . . . . . . .

17-108

EVAPORATIVE EMISSION VENTILATION
SOLENOID CHECK. . . . . . . . . . . . . . . .

17-109

EXHAUST GAS RECIRCULATION
(EGR) SYSTEM  . . . . . . . . . . . . . . .

17-109

GENERAL DESCRIPTION (EXHAUST GAS
RECIRCULATION SYSTEM) . . . . . . . . .

17-109

COMPONENT LOCATION. . . . . . . . . . .

17-111

EXHAUST GAS RECIRCULATION
SYSTEM CHECK . . . . . . . . . . . . . . . . . .

17-112

VACUUM CONTROL VALVE CHECK . .

17-113

EGR VALVE CHECK . . . . . . . . . . . . . . .

17-113

EGR PORT VACUUM CHECK. . . . . . . .

17-114

EGR VACUUM REGULATOR SOLENOID
VALVE CHECK  . . . . . . . . . . . . . . . . . . .

17-115

VOLUME AIRFLOW SENSOR CHECK

17-115

ENGINE COOLANT TEMPERATURE
SENSOR CHECK. . . . . . . . . . . . . . . . . .

17-115

CRANKSHAFT POSITION SENSOR
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-116

EVAPORATIVE EMISSION
CANISTER AND FUEL TANK
PRESSURE RELIEF VALVE . . . . .

17-117

REMOVAL AND INSTALLATION. . . . . .

17-117

INSPECTION . . . . . . . . . . . . . . . . . . . . .

17-118

CATALYTIC CONVERTER  . . . . . .

17-119

GENERAL DESCRIPTION
(CATALYTIC CONVERTER) . . . . . . . . .

17-119

REMOVAL AND INSTALLATION. . . . . .

17-120

SPECIFICATIONS . . . . . . . . . .

17-122

FASTENER TIGHTENING
SPECIFICATIONS  . . . . . . . . . . . . .

17-122

SERVICE SPECIFICATIONS . . . . .

17-123

ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-3

ENGINE CONTROL

GENERAL DESCRIPTION

M1171000100169

A cable-type accelerator mechanical sus-
pended-type pedal has been adopted.

ENGINE CONTROL SYSTEM DIAGNOSIS

INTRODUCTION TO ENGINE CONTROL SYSTEM DIAGNOSIS

M1171002000157

If there is a malfunction in the engine control system,
the accelerator cable, accelerator pedal or throttle
lever may be faulty.

ENGINE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1171002100251

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find an
engine control system fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

SYMPTOM CHART

M1171002200270

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Throttle Valve will not Fully Open or Close

DIAGNOSIS

STEP 1. Check the accelerator cable adjustment.

Q: Is the accelerator cable properly adjusted?

YES :

Go to Step 2.

NO :

Adjust the accelerator cable by referring to

P.17-4

, and then go to Step 4.

STEP 2. Check the return spring.

Q: Is the return spring damaged or deformed?

YES :

Go to Step 3.

NO :

Replace, then go to Step 4.

STEP 3. Check the throttle lever.

Q: Is the throttle lever damaged or deformed?

YES :

Replace, then go to Step 4.

NO :

There is no action to be taken.

STEP 4. Check symptom.

Q: Does the throttle valve fully open and close?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

SYMPTOM

INSPECTION PROCEDURE

REFERENCE PAGE

Throttle valve will not fully open or close

1

P.17-3

Accelerator pedal operation is not smooth
(over acceleration)

2

P.17-4

ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-4

INSPECTION PROCEDURE 2: Accelerator Pedal Operation is not Smooth (Over Acceleration)

DIAGNOSIS

STEP 1. Check the accelerator pedal.

Q: Is the accelerator pedal loose?

YES :

Tighten, then go to Step 4.

NO :

Go to Step 2.

STEP 2. Check the accelerator cable wiring.

Q: Is the accelerator cable routing bent sharply?

YES :

Repair, then go to Step 4.

NO :

Go to Step 3.

STEP 3. Check the accelerator cable lubricant.

Q: Is the accelerator cable lubricated sufficiently?

YES :

There is no action to be taken.

NO :

Refill or replace the lubricant, then go to
Step 4.

STEP 4. Check symptom.

Q: Does the accelerator pedal work normally?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

ON-VEHICLE SERVICE

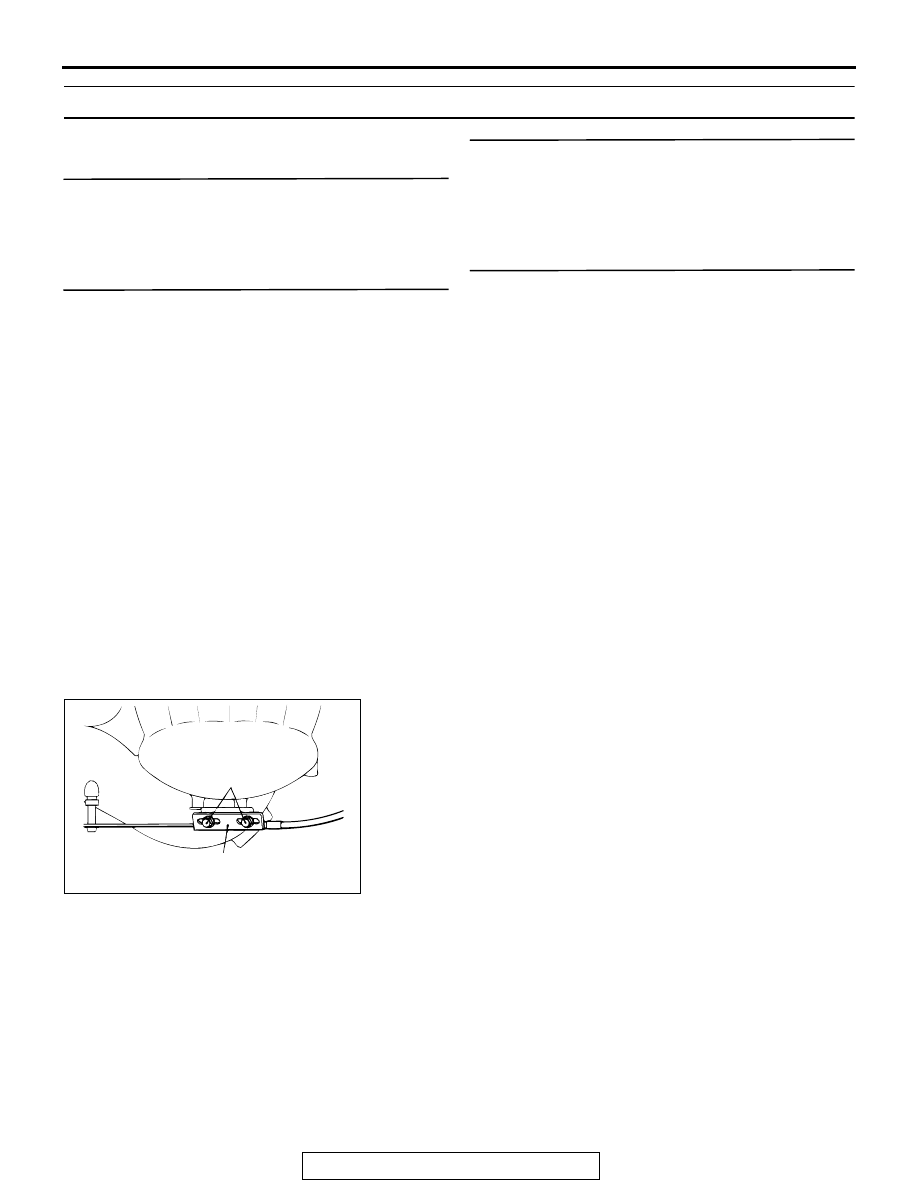

ACCELERATOR CABLE CHECK AND
ADJUSTMENT

M1171000900295

1. Turn A/C and lamps OFF. Inspect and adjust at no load.
2. Warm engine until stabilized at idle.
3. Confirm idle speed is at standard value.

Standard value: 700

± 100 r/min

4. Stop engine. [ignition switch: "LOCK" (OFF) position.]
5. Confirm there are no sharp bends in the accelerator cable.
6. Check the inner cable for correct slack.

Standard value: 1.0

 2.0 mm (0.04  0.08 inch)

7. If there is too much slack or no slack, adjust play by the

following procedures.

(1) Loosen the adjusting bolt to release the cable.
(2) Move the plate until the inner cable play is at the standard

value, and then tighten the adjusting bolt.

(3) After adjusting, check that the throttle lever is touching

the stopper.

AC001444

ADJUSTING BOLTS

PLATE

AB
