MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-811

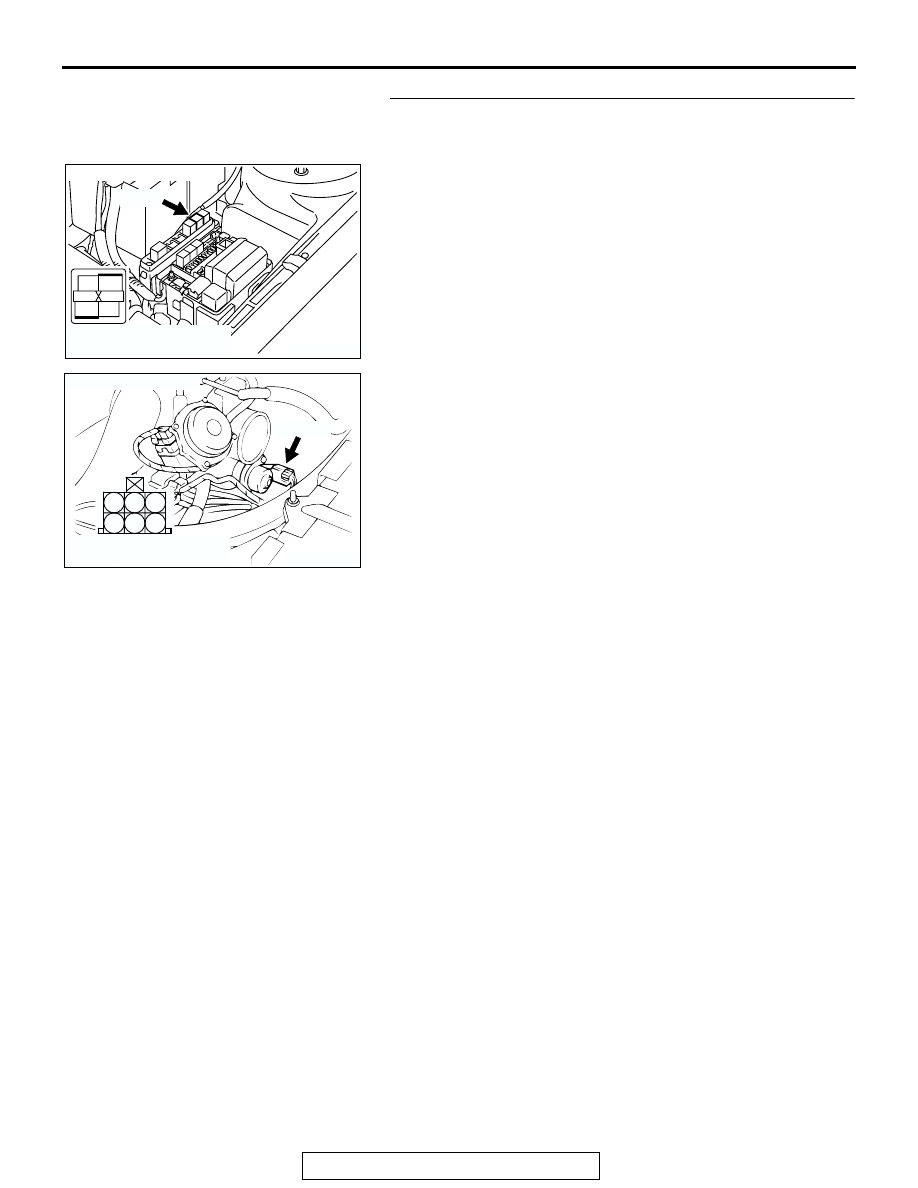

STEP 12. Check for harness damage between MFI relay
connector A-18X (terminal No. 4) and idle air control motor
connector B-34 (terminals No. 2, No. 5).
Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 14.

AK300454

2

1

3

4

CONNECTOR: A-18X

AB

A-18X

HARNESS CONNECTOR:
COMPONENT SIDE

AK300438

1

2

3

4

5

6

CONNECTOR: B-34

AB

B-34 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-812

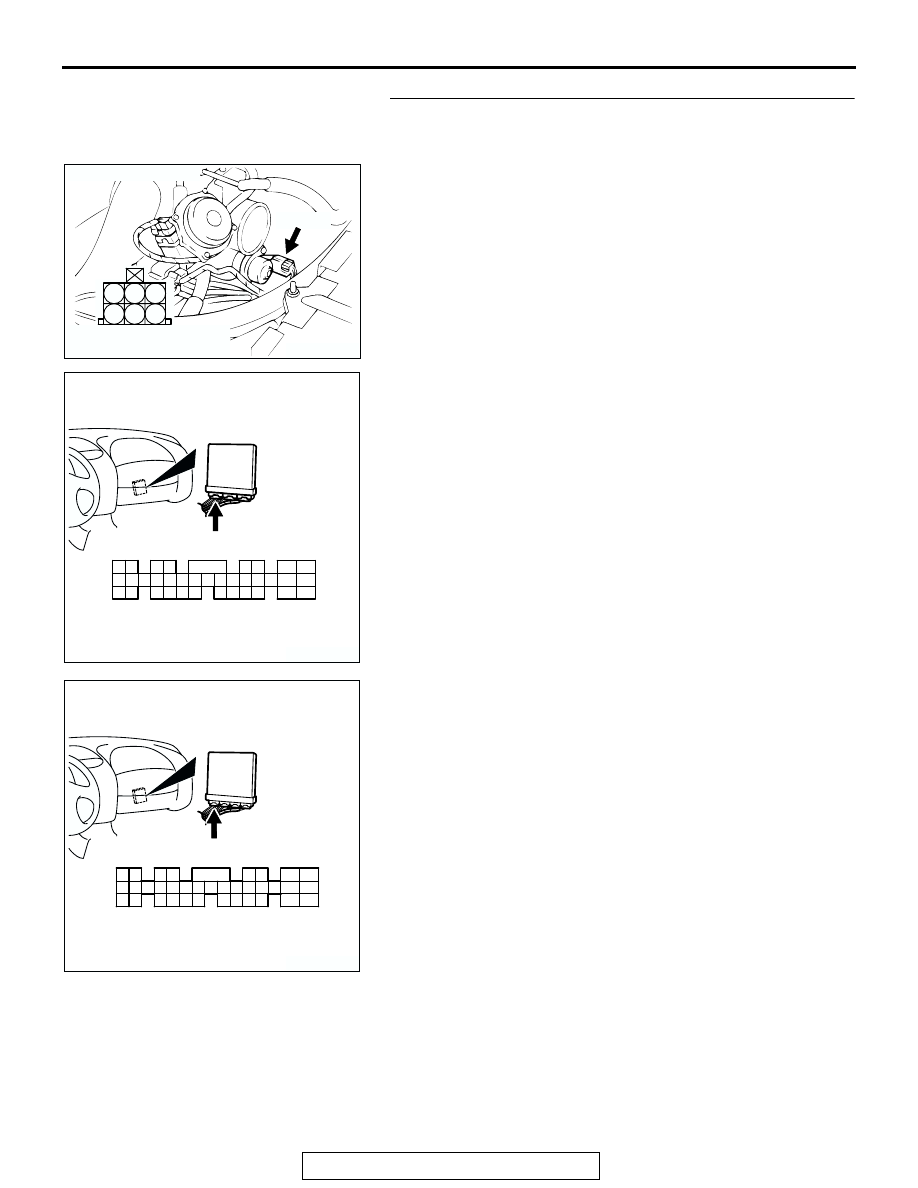

STEP 13. Check for harness damage between idle air
control motor connector B-34 and ECM connector C-51
<M/T> or PCM connector C-52 <A/T>.

a. Idle air control motor connector B-34 terminal 1 and ECM

connector C-51 (terminal No. 14) <M/T> or PCM connector
C-52 (terminal No. 14) <A/T>.

b. Idle air control motor connector B-34 terminal 3 and ECM

connector C-51 (terminal No. 28) <M/T> or PCM connector
C-52 (terminal No. 28) <A/T>.

c. Idle air control motor connector B-34 terminal 4 and ECM

connector C-51 (terminal No. 15) <M/T> or PCM connector
C-52 (terminal No. 15) <A/T>.

d. Idle air control motor connector B-34 terminal 6 and ECM

connector C-51 (terminal No. 29) <M/T> or PCM connector
C-52 (terminal No. 29) <A/T>.

Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

AK300438

1

2

3

4

5

6

CONNECTOR: B-34

AB

B-34 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300443

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-51 <M/T>

C-51 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300458

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-52 <A/T>

C-52 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-813

STEP 14. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-7

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0507 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0513: Immobilizer Malfunction

.

TECHNICAL DESCRIPTION

• ECM <M/T> or PCM <A/T> monitors the commu-

nication condition with the immobilizer-ECU and
the message from the immobilizer-ECU, and
when the abnormality is found, ECM <M/T> or
PCM <A/T> makes the engine not to start.

.

DTC SET CONDITIONS

Check Conditions

• Ignition switch: ON

Judgment Criteria

• When the communication error between ECM

<M/T> or PCM <A/T> and the immobilizer-ECU
continues for 2 seconds or more.

.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set are: )

• Malfunction of immobilizer-ECU.

• Malfunction of ECM <M/T> or PCM <A/T>.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-814

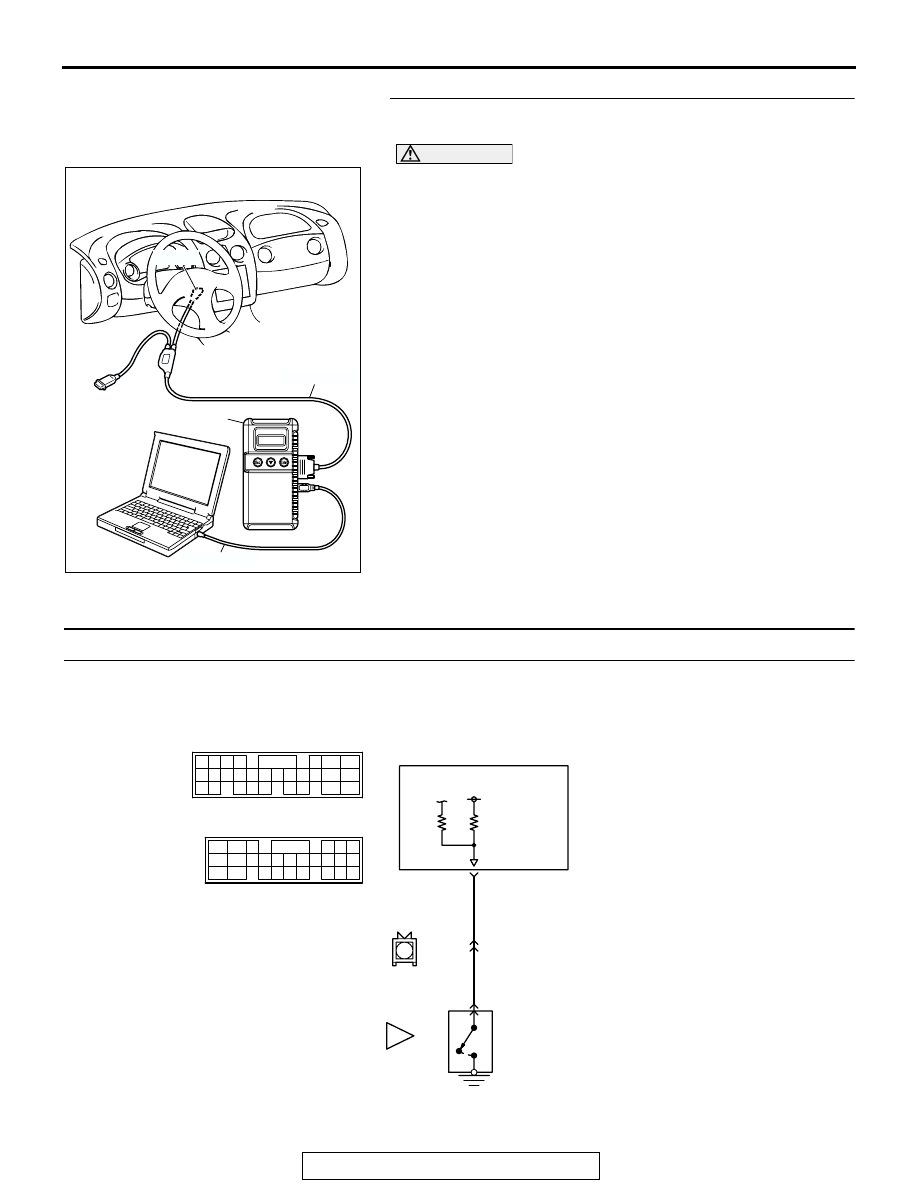

STEP 1. Using scan tool MB991958, read the immobilizer
diagnostic trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the immobilizer system-DTC
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the immobilizer -DTC set?

YES : Refer to GROUP 54A, Ignition Switch and

Immobilizer System

− Diagnostic Trouble Code Chart

P.54A-12

.

NO :  If DTC P0513 is output again after the MFI-DTC has

been erased, replace the ECM <M/T> or PCM <A/T>.
Then check that the DTC P0513 does not reset.

DTC P0551: Power Steering Pressure Sensor Circuit Range/Performance

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK000708

1

YELL

O

W

1

YELL

O

W

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

POWER STEERING
PRESSURE SWITCH

B-19

1

54 <M/T>
52 <A/T>

     B-47
MU802653

1

65

43
50

42
49

41

48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

C-58 <M/T>
(MU803782)

C-55 <A/T>
(MU803781)

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

Power Steering Pressure Switch Circuit
