MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-363

STEP 3. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-7

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0152 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

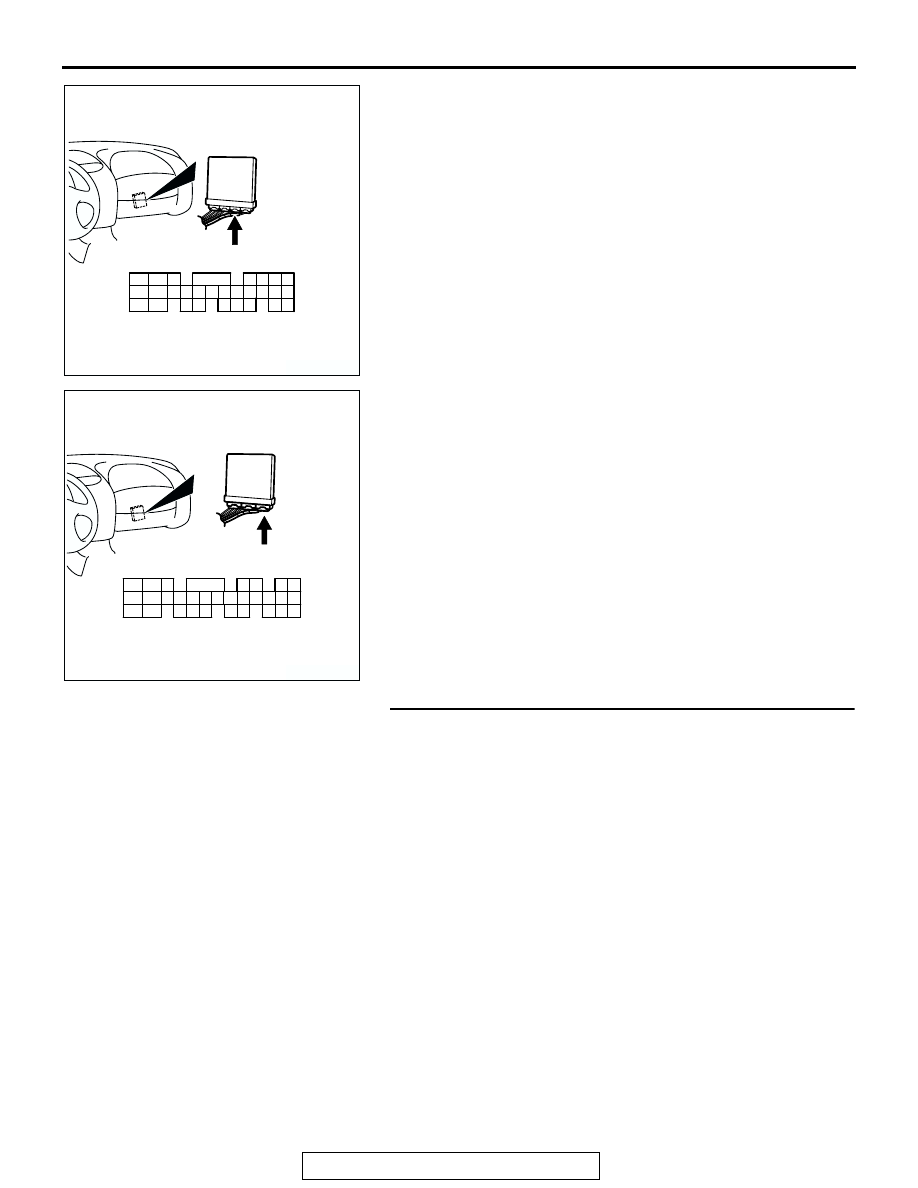

AK300460

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-59 <A/T>

C-59 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-364

DTC P0153: Heated Oxygen Sensor Circuit Slow Responce (bank 2, sensor 1)

AK000694

4

1 2
3

BL

ACK

BL

ACK

WHITE

     B-24
MU802605

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

LEFT BANK HEATED OXYGEN
SENSOR (FRONT)

FROM MFI RELAY

TO ECM
OR PCM

1

2

3

4

49 <M/T>*1
57 <A/T>*3

71 <M/T>*2
71 <A/T>*4

NOTE
*1:ECM connector C-58 <M/T>
*2:ECM connector C-62 <M/T>
*3:PCM connector C-55 <A/T>
*4:PCM connector C-59 <A/T>

98

78

71

88 89

76 77

72
79
91

73
80

74

75

81
92

82 83
93

84 85

94

86 87

95 96

90

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97

96

100

89

78

71

90

76 77

75

72
79

97

C-62 <M/T>
(MU803783)

C-59 <A/T>
(MU803782)

65

43
50

42
49

41
48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

C-58 <M/T>
(MU803782)

C-55 <A/T>
(MU803781)

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

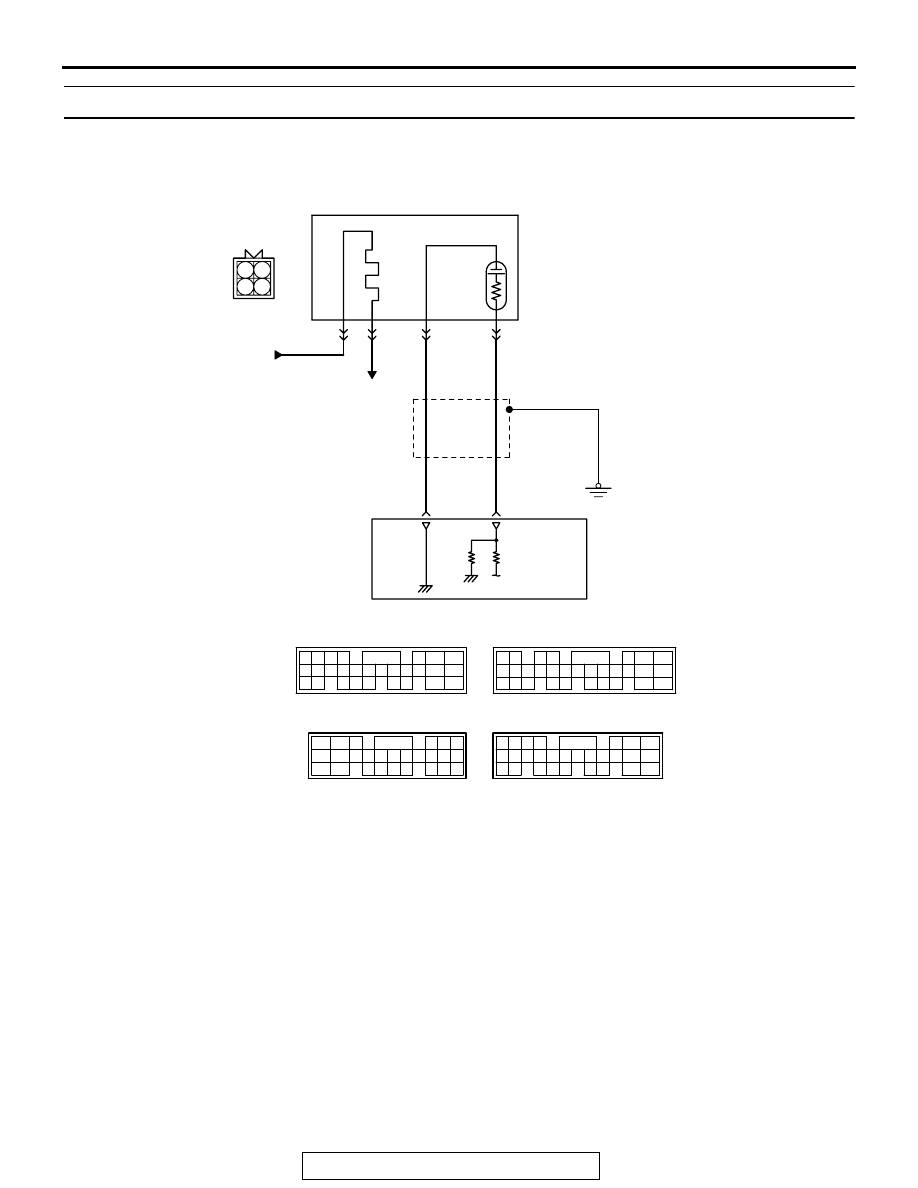

Left Bank Heated Oxygen Sensor (front) Circuit

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-365

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the ECM (ter-
minal No. 71) <M/T> or PCM (terminal No. 71)
<A/T> from the output terminal (terminal No. 4) of
the left bank heated oxygen sensor (front).

• Terminal No. 2 of the left bank heated oxygen

sensor (front) is grounded with ECM (terminal
No. 49) <M/T> or PCM (terminal No. 57) <A/T>.

.

TECHNICAL DESCRIPTION

• The left bank heated oxygen sensor (front)

detects the concentration of oxygen in the
exhaust gas; it converts that data to voltage, and
sends it to the ECM <M/T> or PCM <A/T>.

• When the left bank heated oxygen sensor (front)

begins to deteriorate, the heated oxygen sensor
signal response deteriorates also.

• The ECM <M/T> or PCM <A/T> varies the air/fuel

mixture to make it leaner and richer, and checks
the response speed of the left bank heated oxy-
gen sensor (front). In addition, the ECM <M/T> or
PCM <A/T> also checks for an open circuit in the
left bank heated oxygen sensor (front) output
line.

.

DESCRIPTIONS OF MONITOR METHODS
Left bank heated oxygen sensor (front) rich/lean

switching frequency is under specified value.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Misfire monitor

• Fuel system monitor

Sensor (The sensor below is determined to be

normal)

• Volume airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

• Throttle position sensor

.

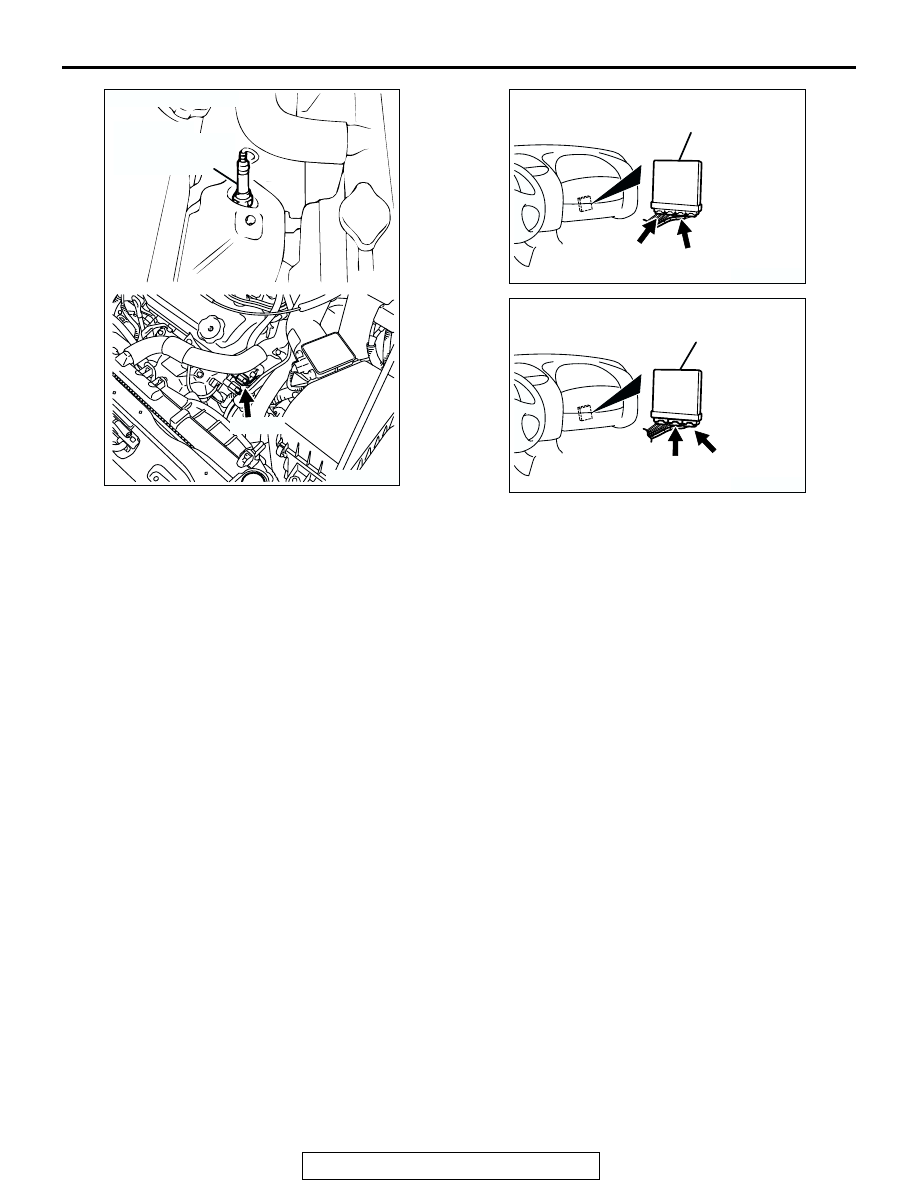

AK300061

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

CONNECTOR: B-24

AB

B-24 (B)

AK300244

CONNECTORS: C-52, C-59 <A/T>

AF

PCM

C-52 (GR)

C-59 (GR)

AK300091

CONNECTORS: C-58, C-62 <M/T>

ECM

AD

C-58 (GR)

C-62 (GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-366

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• Engine coolant temperature is higher than 50°C

(122

°F).

• Engine speed is at between 1,250 and 3,000

r/min.

• Volumetric efficiency is between 20 and 60 per-

cent at AT.

• Volumetric efficiency is between 18 and 60 per-

cent at MT.

• Under the closed loop air/fuel control.

• The throttle valve is open.

• Short-term fuel trim is higher than −30 and lower

than +25 percent.

• More than 3 seconds have elapsed after the

abovementioned conditions have been met.

• The ECM <M/T> or PCM <A/T> monitors for this

condition for 7 cycles of 12 second each during
the drive cycle.

Judgment Criteria

• The left bank heated oxygen sensor (front) sends

"lean" and "rich" signals alternately 11 times or
less for 12 seconds.
NOTE: If the sensor switch time is longer than the
Judgment Criteria due to the MUT-III OBD-II test
Mode

−

 H02S Test Results, it is assumed that the

heated oxygen sensor has deteriorated. If it is
short, it is assumed that the harness wire is bro-
ken or has a short circuit.
If the heated oxygen sensor signal voltage has
not changed even once (lean/rich) after the DTC
was erased, the sensor switch time will display as
0 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to , Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 4

− Heated Oxygen Sensor Monitor

P.13B-7

.

.

F1: THRESHOLD VALUE FOR REAL-TIME SWITDHING FREQUENCY
F0: THRESHOLD VALUE FOR AVERAGE SWITDHING FREQUENCY

START

MONITORING

CONDITIONS

MALFUNCTION

GOOD

END

NO

NO

YES

YES

Ff < F0

CALCULATE AVERAGE SWITCHING

FREQUENCY (Ff) OVER SPECIFIED TIMES

AK301438
