MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-259

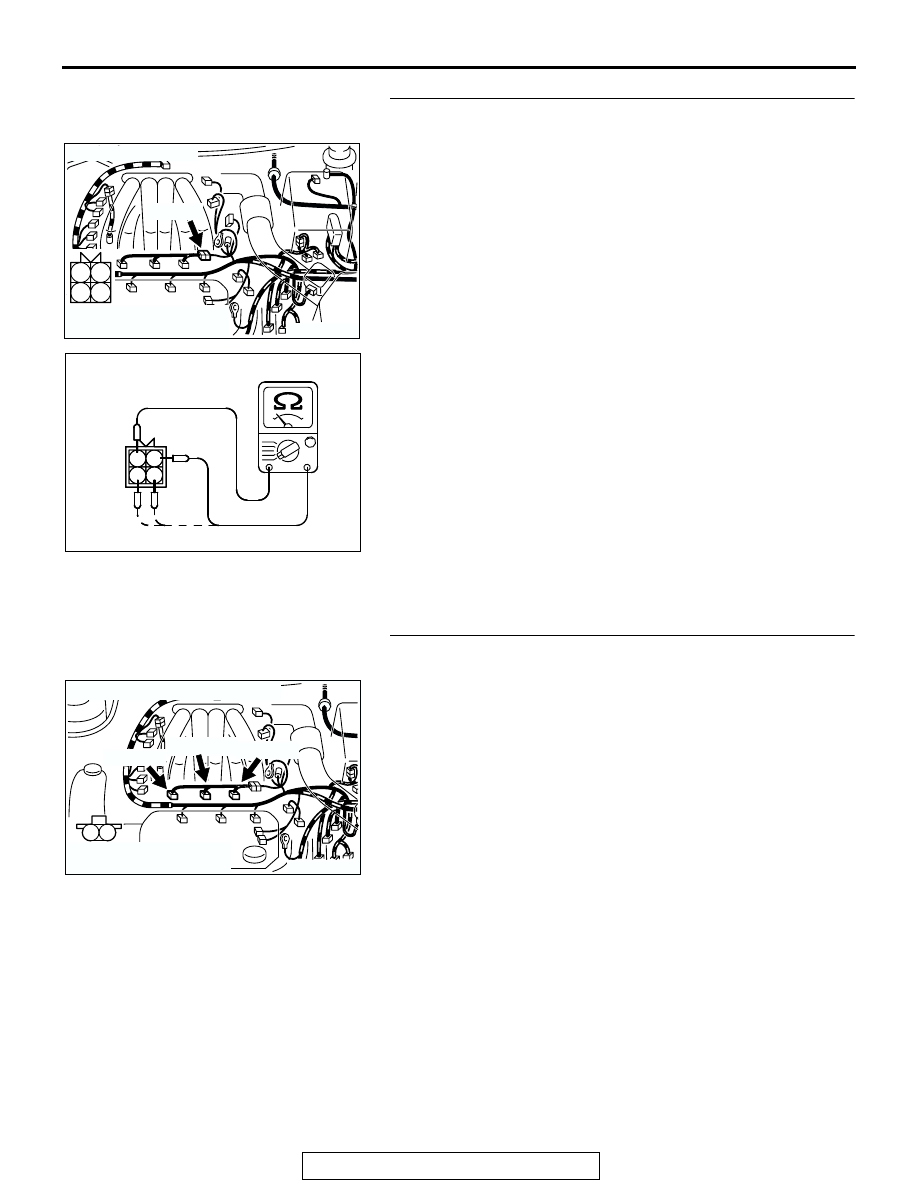

STEP 7. Check the right bank injector resistance at
intermediate connector B-48.
(1) Disconnect the injector intermediate connector B-48.

(2) Measure the resistance between each injector side

connector terminal.

a. Measure the resistance between terminal No. 1 and No.

2 when measuring No. 1 cylinder.

b. Measure the resistance between terminal No. 1 and No.

3 when measuring No. 3 cylinder.

c. Measure the resistance between terminal No. 1 and No.

4 when measuring No. 5 cylinder.

• Resistance should be between 13 and 16 ohms [at 20°C

(68

°F)].

Q: Is the resistance normal?

YES : Go to Step 10.
NO :  Go to Step 8.

STEP 8. Check connector B-01, B-05, B-26 at right bank
injector for damage.
(1) Remove the intake manifold.
(2) Check the right bank injector connector, which deviates

from the standard value at Step 7.

Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300751

1

2

3

4

CONNECTOR: B-48

AB

B-48 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000240AB

INJECTOR
INTERMEDIATE
CONNECTOR

1 2
3 4

AK300752

1

2

CONNECTORS: B-01, B-05, B-26

AB

B-05 (GR) B-26 (GR)

B-01 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-260

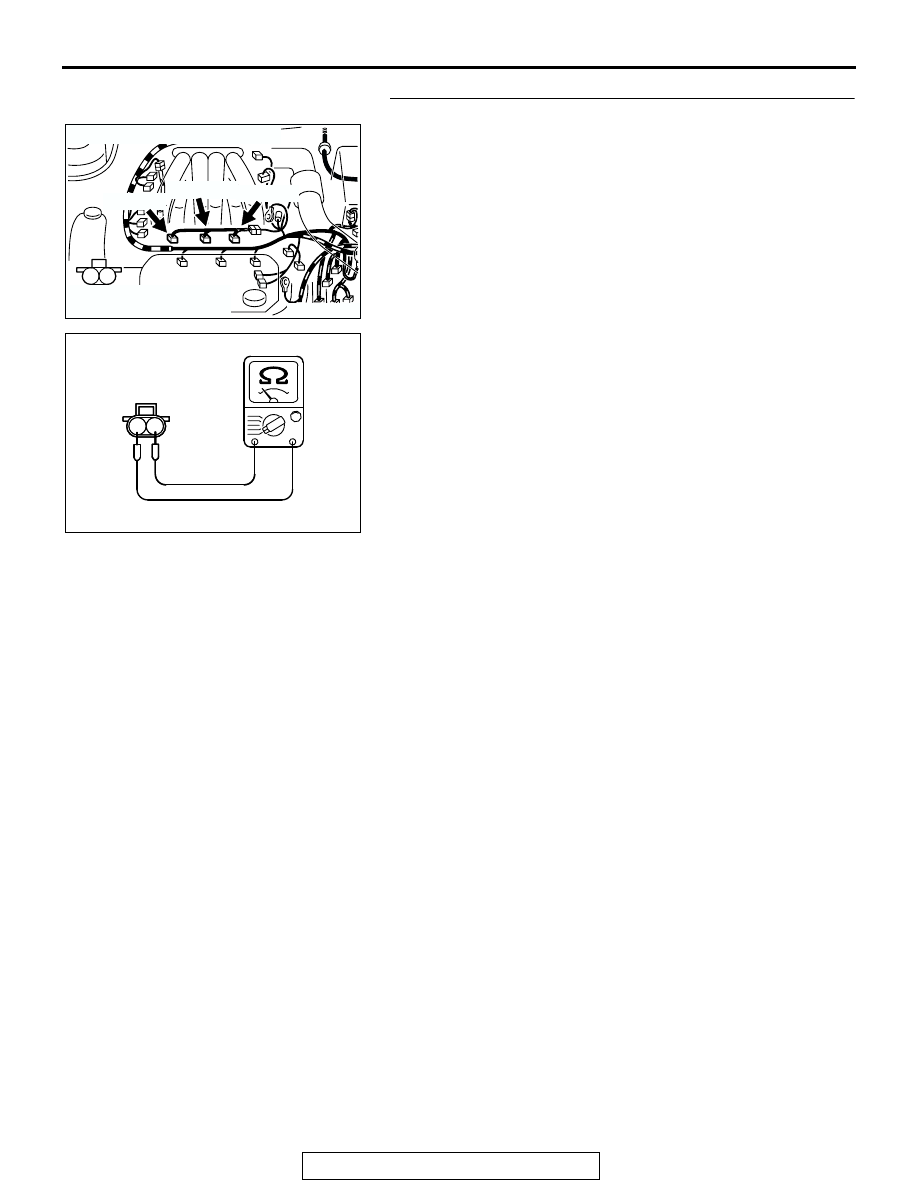

STEP 9. Check the right bank injector.
(1) Check the right bank injector connector, which deviates

from the standard value at Step 7.

(2) Measure the resistance between injector side connector

terminal No. 1 and No. 2.

Standard value: 13

 16 ohms [at 20°C (68°F)]

Q: Is the resistance between 13 and 16 ohms?

YES : Repair harness wire between injector intermediate

connector and right bank injector connector because
of harness damage. Then go to Step 14.

NO :  Replace the injector. Then go to Step 14.

AK300752

1

2

CONNECTORS: B-01, B-05, B-26

AB

B-05 (GR) B-26 (GR)

B-01 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000241

INJECTOR SIDE
CONNECTOR

1 2

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-261

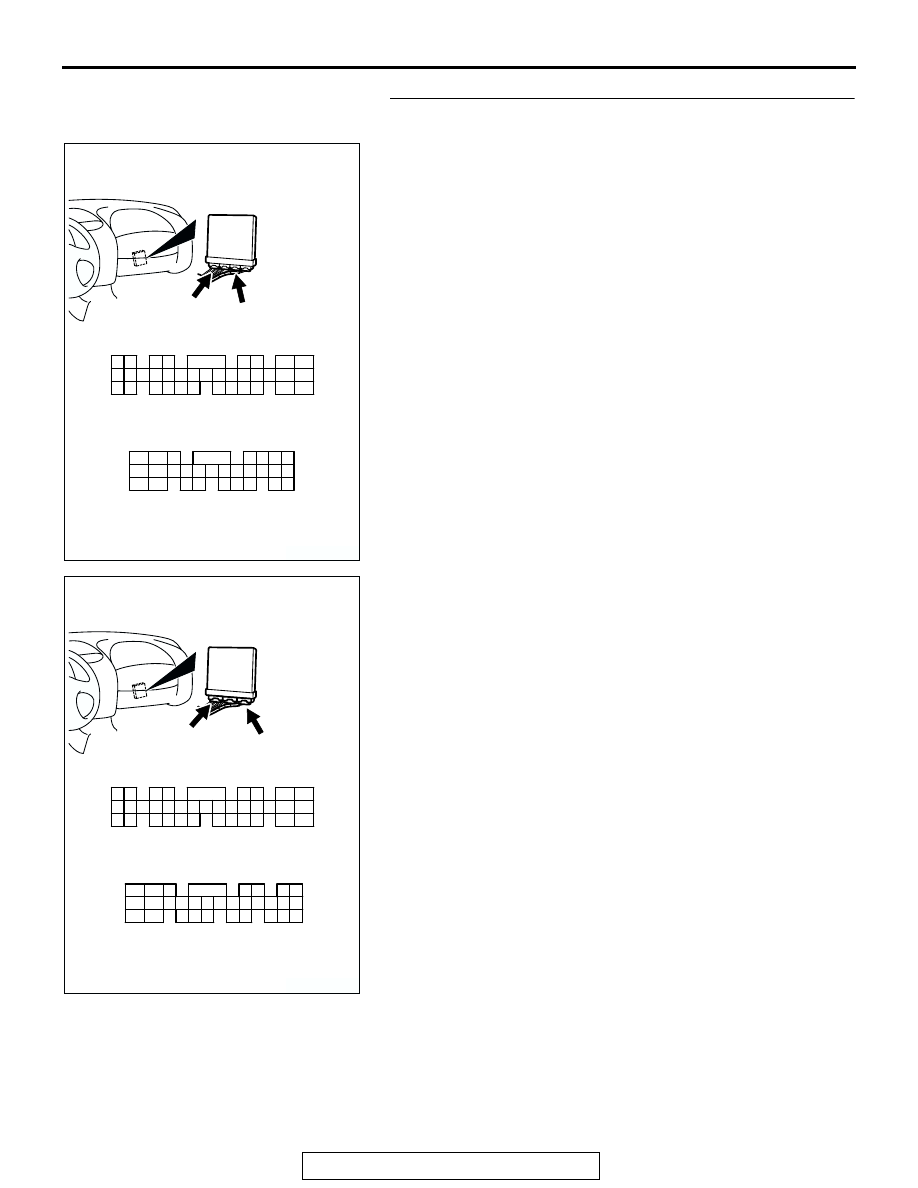

STEP 10. Check connector C-51, C-62 at ECM <M/T> or
connector C-52, C-59 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300461

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTORS: C-52, C-59 <A/T>

C-52 (GR)

C-59 (GR)

AB

C-59 HARNESS CONNECTOR:
COMPONENT SIDE

C-52 HARNESS CONNECTOR:
COMPONENT SIDE

AK300442

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTORS: C-51, C-62 <M/T>

C-51 (GR)

C-62 (GR)

AB

C-62 HARNESS CONNECTOR:
COMPONENT SIDE

C-51 HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-262

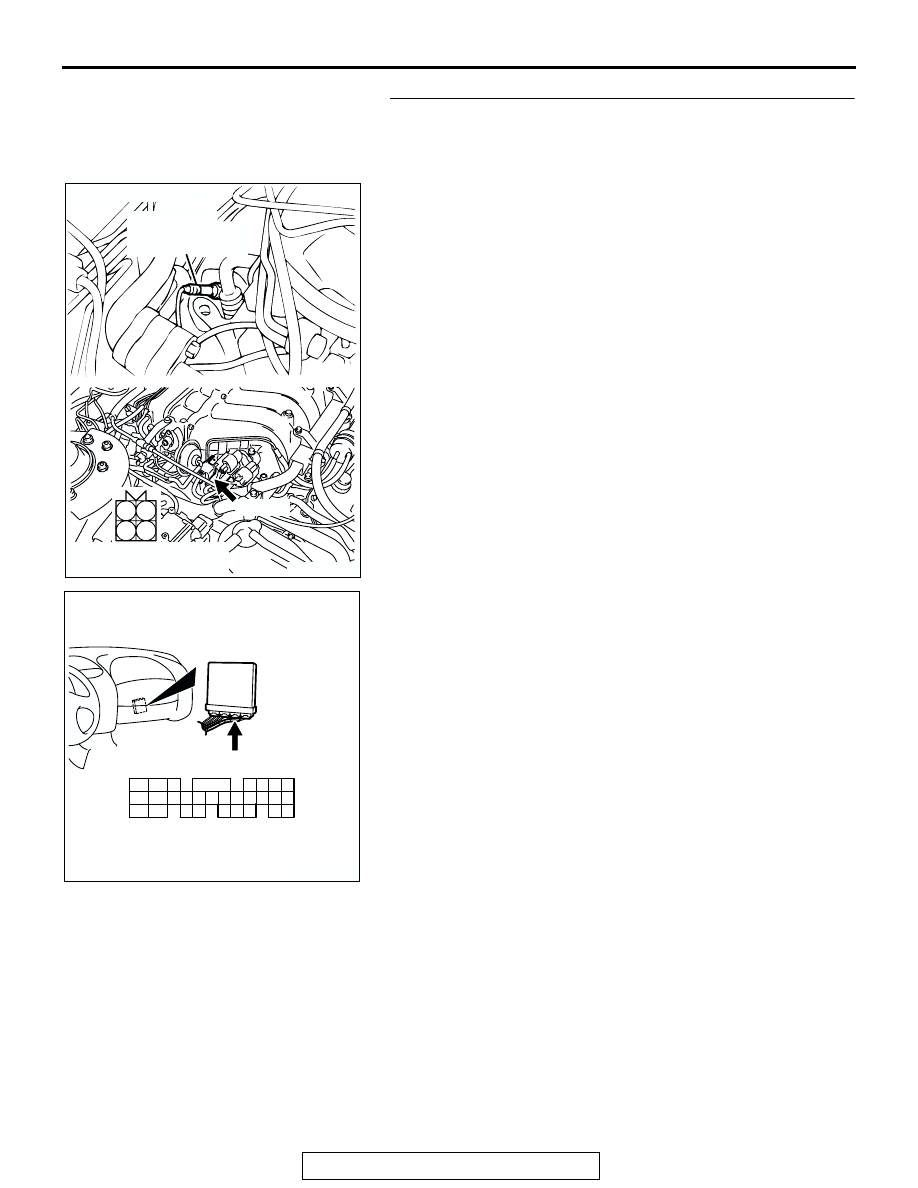

STEP 11. Check for harness damage between right bank
heated oxygen sensor (front) connector B-27 (terminal No.
4) and ECM connector C-62 (terminal No. 72) <M/T> or PCM
connector C-59 (terminal No. 72) <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 12.
NO :  Repair it. Then go to Step 14.

AK300409

1

2

3

4

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AB

B-27 (B)

CONNECTOR: B-27

HARNESS CONNECTOR:
COMPONENT SIDE

AK300460

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-59 <A/T>

C-59 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE
