MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-119

CIRCUIT OPERATION

• Approximately 5 volts are applied to the intake air

temperature sensor output terminal (terminal No.
6) from the ECM (terminal No. 62) <M/T> or PCM
(terminal No. 64) <A/T> via the resistor in the
ECM <M/T> or PCM <A/T>. The ground terminal
(terminal No. 5) is grounded with ECM (terminal
No. 34) <M/T> or PCM (terminal No. 16) <A/T>.

• The intake air temperature sensor is a negative

temperature coefficient type of resistor. When the
intake air temperature rises, the resistance
decreases.

• The intake air temperature sensor output voltage

increases when the resistance increases and
decreases when the resistance decreases.

.

TECHNICAL DESCRIPTION

• The intake air temperature sensor converts the

intake air temperature to a voltage.

• The ECM <M/T> or PCM <A/T> checks whether

this voltage is within a specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Intake air temperature sensor output voltage is out of

specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-120

DTC SET CONDITIONS

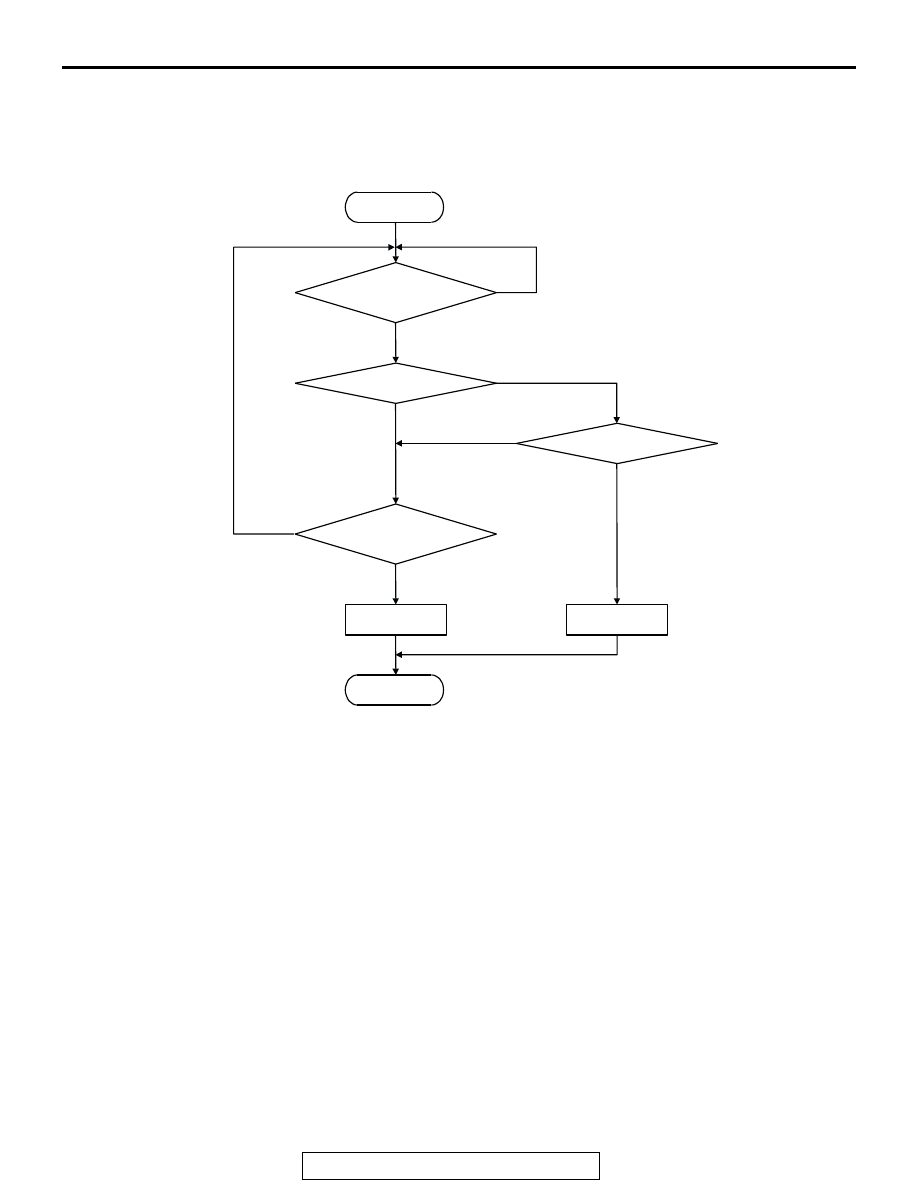

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the start-

ing sequence was completed.

Judgement Criteria

• Intake air temperature sensor output voltage has

continued to be 4.5 volts or higher [corresponding
to an air intake temperature of

−40°C (−104°F) or

lower] for 2 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to , Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13B-7

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Intake air temperature sensor failed.

• Open intake air temperature sensor circuit con-

nector damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

START

OUTPUT VOLTAGE < 0.2V

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 2secs

OUTPUT VOLTAGE > 4.6V

MONITORING

CONDITIONS

NO

YES

AK301424

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-121

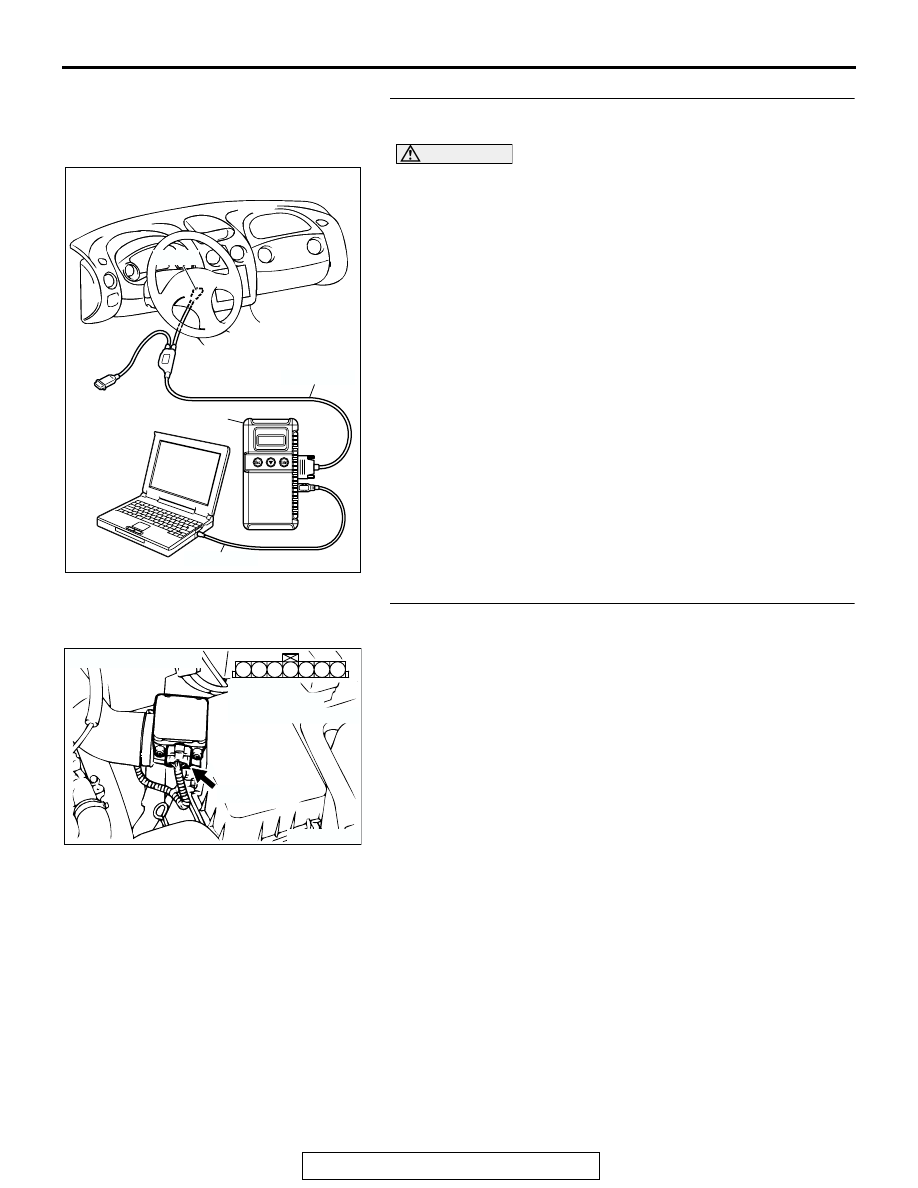

STEP 1. Using scan tool MB991958, check data list item 13:
Intake Air Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool or MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

13, Intake Air Temperature Sensor.

• The intake air temperature and temperature shown with

the scan tool should approximately match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check connector B-14 at the intake air
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-122

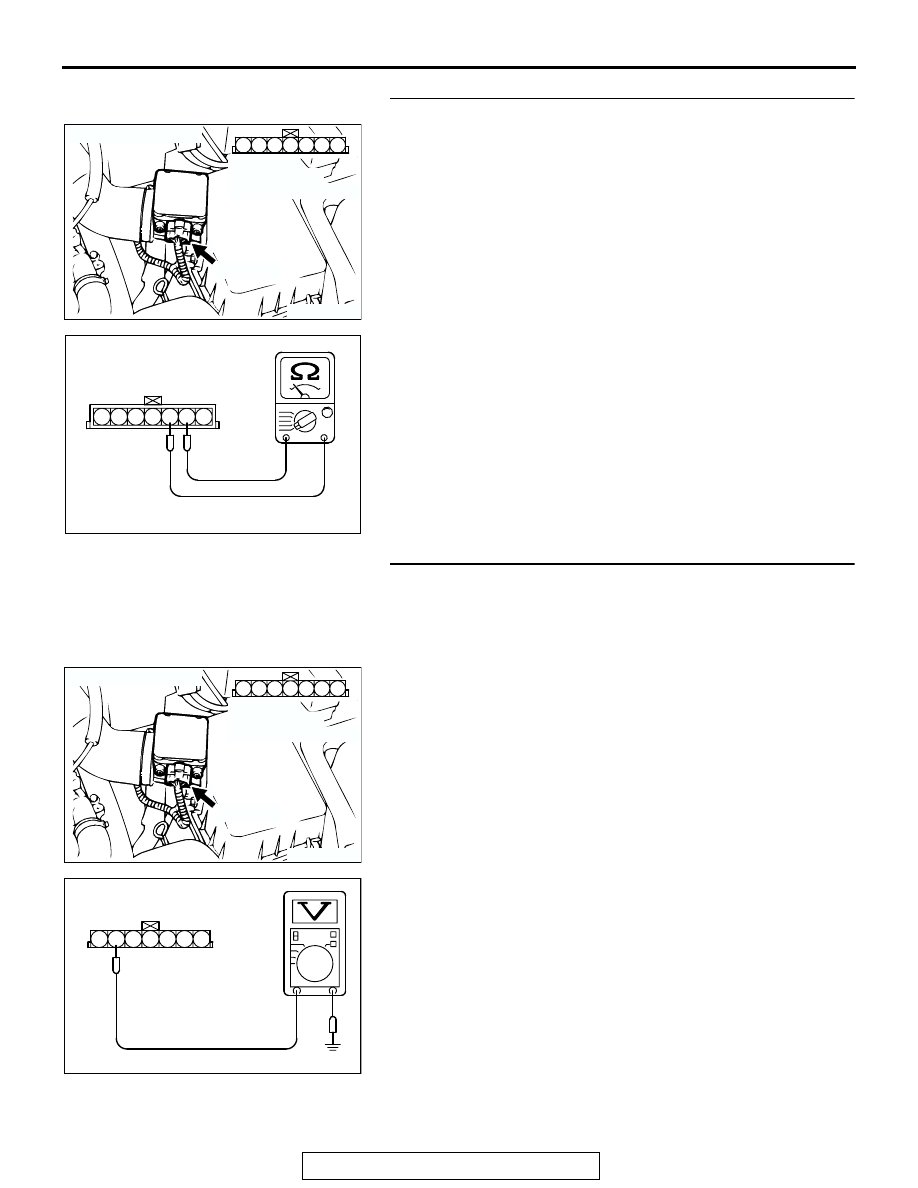

STEP 3. Check the intake air temperature sensor.
(1) Disconnect the intake air temperature sensor connector

B-14.

(2) Measure the resistance between intake air temperature

sensor side connector terminal 5 and 6.

• There should be continuity. (0.30 − 1.0 kΩ)

Q: Is the measured resistance between 0.30 and 1.0 k

Ω?

YES : Go to Step 4.
NO :  Replace the volume airflow sensor. Then go to Step

11.

STEP 4. Check the sensor supply voltage at intake air
temperature sensor harness side connector B-14.
(1) Disconnect the connector B-14 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 6 and ground.

• Voltage should be between 4.5 and 4.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 8.
NO :  Go to Step 5.

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000319AB

1 2 3 4 5 6 7

INTAKE AIR TEMPERATURE
SENSOR SIDE CONNECTOR

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01408

7 6 5 4 3 2 1

AG

B-14 HARNESS
CONNECTOR:
COMPONENT SIDE
